Stainless Steel Bearing Inserts SK00 SU00


SK/SU  Stainless steel,Setscrew/Eccentric locking




Facebook Twitter Pinterest LinkedIn 分享

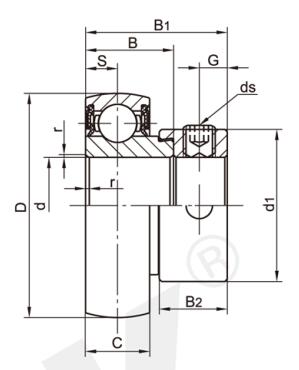

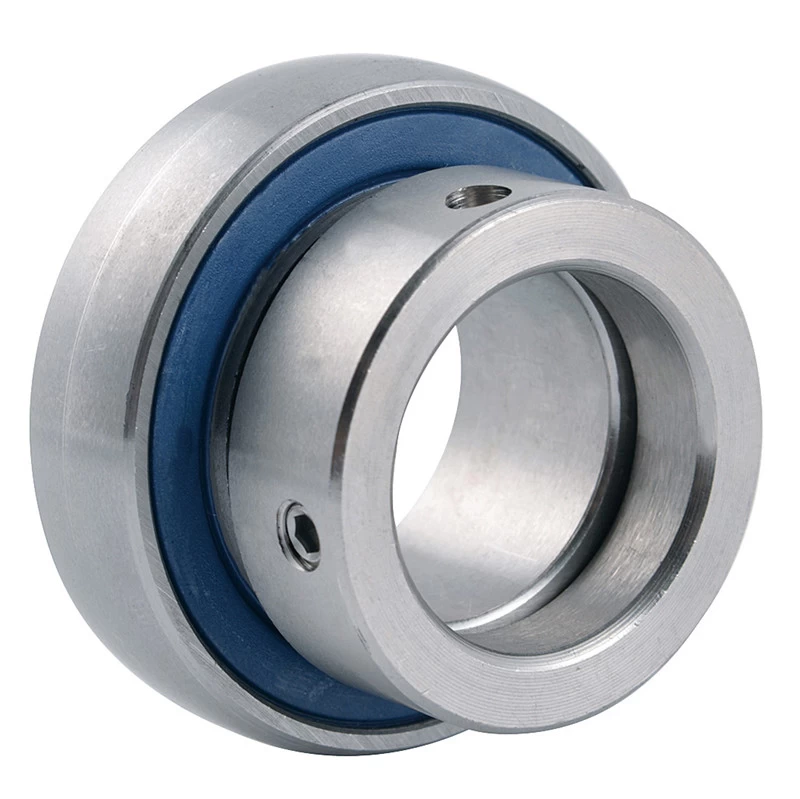

Stainless Steel Ball Bearing Inserts SU001

Bearing
Shaft
d (mm)
Dimensions(mm) Basic Load Rating kgf Weight (kg)
D B c S B1 B2 d1 r G ds Dynamic Cr Static Cor
SU 000 10 26 11 8 4 17.5 8.5 17 0.7 3.5 M4X0.7 4.6 1.96 0.03
SU 001 12 28 11 8 4 17.5 8.5 19 0.7 3.5 M4X0.7 5.09 2.4 0.04
SU 002 15 32 12 9 4.5 18.5 8.5 22 0.7 3.5 M4X0.7 5.58 2.84 0.05
SU 003 17 35 13.5 10 5 20.5 9.5 25 0.8 3.5 M4X0.7 5.97 3.28 0.07
SU 004 20 42 16.5 12 6 24.5 11 30 1.3 3.8 M5X0.8 9.35 5.04 0.11
SU 005 25 47 17.5 12 6 25.5 12 36 1.3 4 M5X0.8 10.09 5.83 0.15
SU 006 30 55 18.5 13 6.5 26.5 12 42 1.5 4 M5X0.8 13.23 8.28 0.21

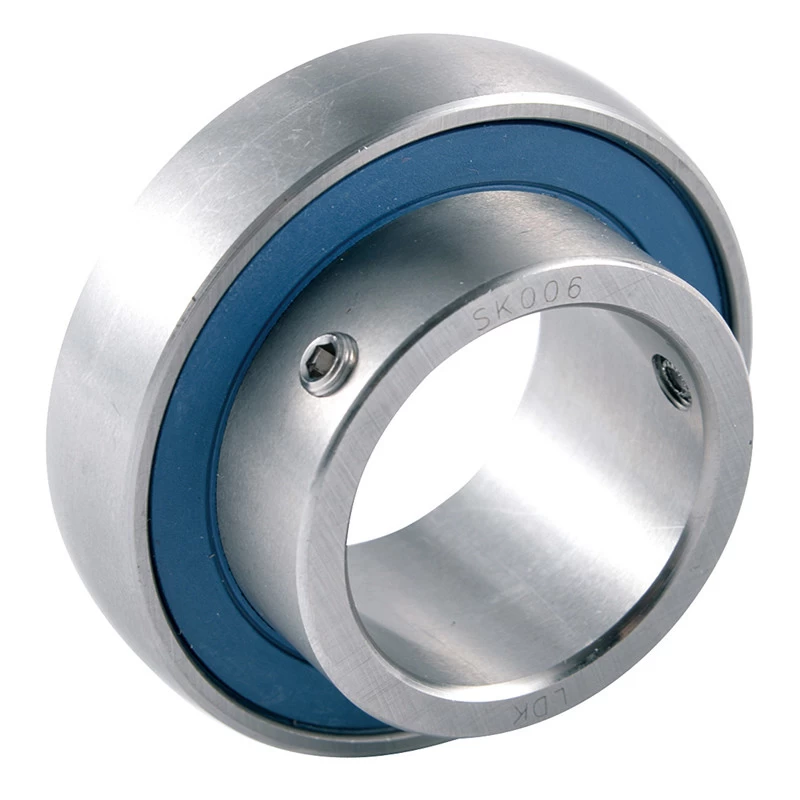

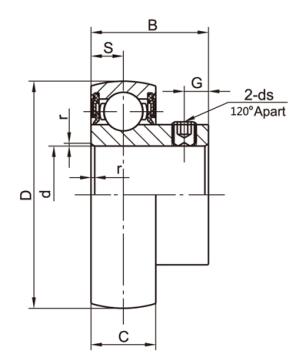

SK003 Stainless Steel Ball Bearing Inserts

Bearing Shaft d( mm) Dimensions(mm) Basic Load Rating kgf Weight (kg)
D B C S r G ds Dynamic Cr Static Cor
SK 000 10 26 14 8 4 0.7 3 M3X0.5 4.6 1.96 0.03
SK 001 12 28 14.5 8 4 0.7 3 M3X0.5 5.09 2.4 0.04
SK 002 15 32 16.5 9 4.5 0.7 3.5 M4X0.7 5.58 2.84 0.05
SK 003 17 35 17.5 10 5 0.8 3.5 M4X0.7 5.97 3.28 0.07
SK 004 20 42 21 12 6 1.3 4 M5X0.8 9.35 5.04 0.11
SK 005 25 47 22.5 12 6 1.3 4.5 M5X0.8 10.09 5.83 0.15
SK 006 30 55 24.5 13 6.5 1.5 5 M5X0.8 13.23 8.28 0.21
