Stainless Steel Bearing Inserts With Adapter Sleeve Locking SUK2

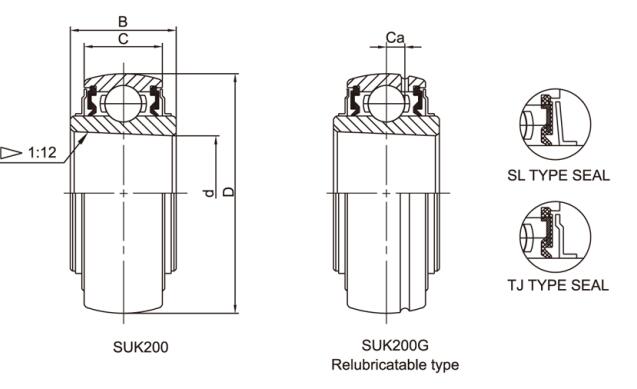

SUK  Standard duty, Stainless steel,Taperd bore,Adapter sleeve locking



Facebook Twitter Pinterest LinkedIn 分享

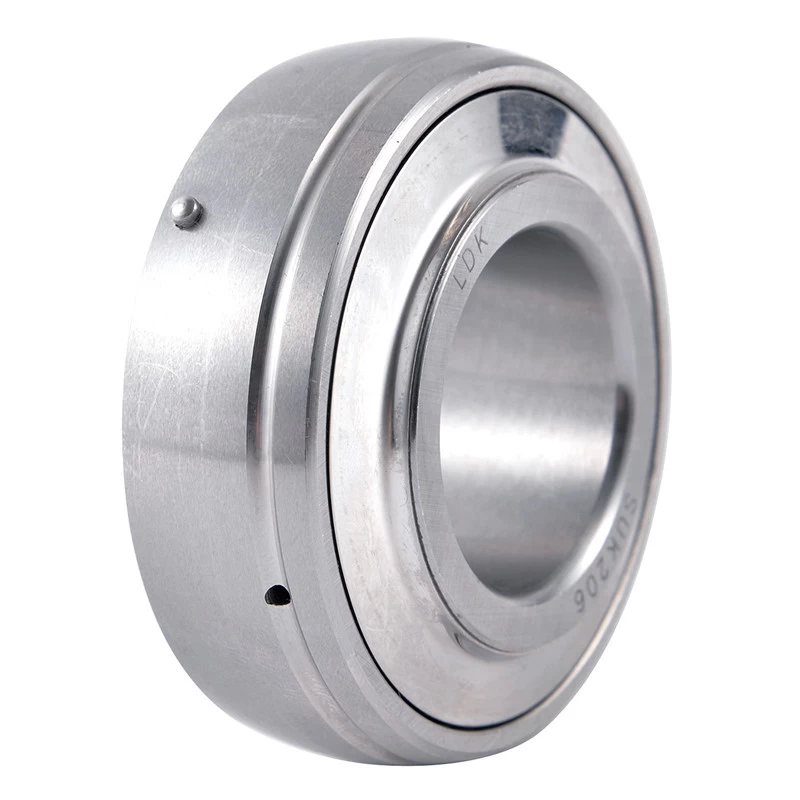

Stainless Steel Bearing SUK208


Bearing No. Dimensions(mm)
Basic Load Rating
( KN )
Weight
d1 d D B C Ca Dvnamic Cr Static Cor (kg)
SUK205 20 25 52 23 17 4.5 14.0 7.8 0.21
SUK206 25 30 62 26 19 5.1 19.5 11.2 0.31
SUK207 30 35 72 27 20 5.8 25.7 15.2 0.46
SUK208 35 40 80 29 21 6.2 29.6 18.2 0.63
SUK209 40 45 85 30 22 6.5 31.8 20.8 0.68
SUK210 45 50 90 31 24 7 35.1 23.2 0.78
SUK211 50 55 100 36 26 7.3 43.5 29.2 1.07
SUK212 55 60 110 38 27 7.7 52.5 32.8 1.51
