Stainless Steel Bearing Inserts With Eccentric Locking SNA2 SNA2...L3



SNA  Standard duty, Stainless steel,Wider inner ring,Eccentric locking


Facebook Twitter Pinterest LinkedIn 分享

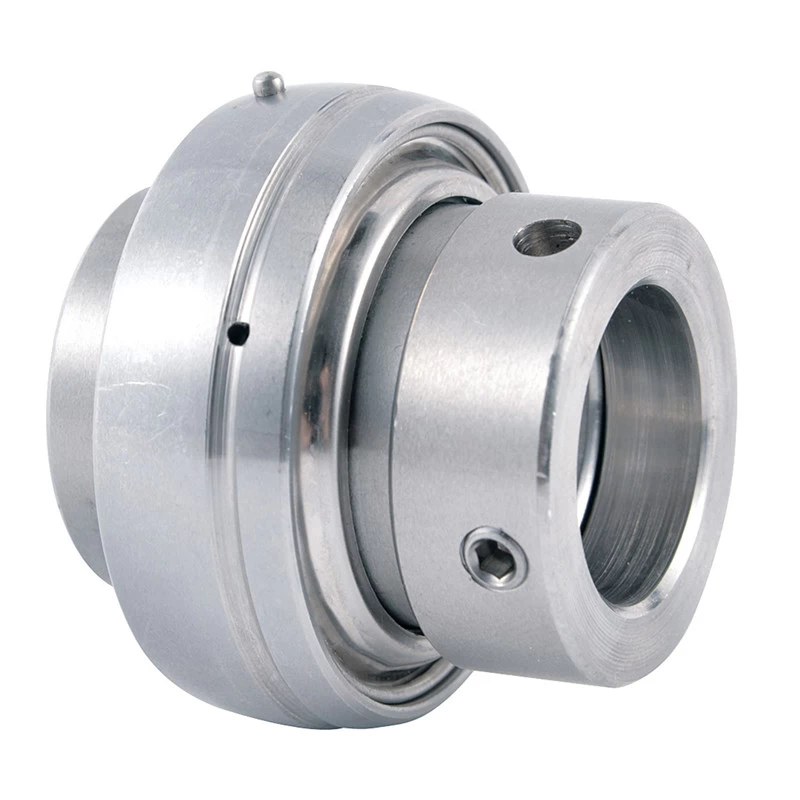

Stainless Steel Bearing SNA206 L3

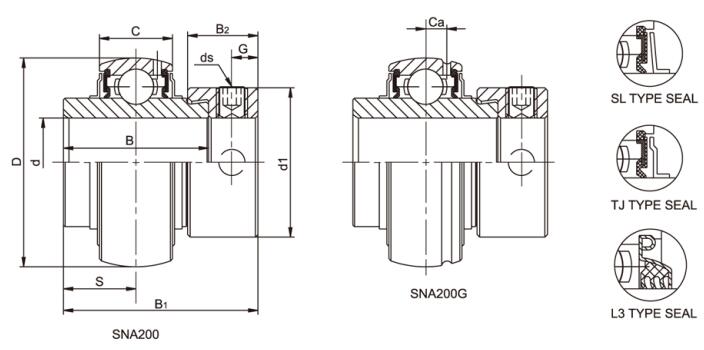

Bearing No. Shaft Dia Dimensions(mm)
Load rating
( KN )
Weight (kg)
d D B C S B1 B2 d1 G ds Ca Dynamic Cr Static Cor
(in) (mm) (mm) (in.UNF)
SNA204  20 47 34.2 17 17.1 43.7 13.5 33.3 5 M6x1   4.3 12.82 6.65 0.21
SNA204-12 3/4   47 34.2 17 17.1 43.7 13.5 33.3 5   1/4-28 4.3 0.21
SNA205  25 52 34.9 17 17.5 44.4 13.5 38.1 5 M6x1   4.2 14.03 8.05 0.25
SNA205-14  7/8    52 34.9 17 17.5 44.4 13.5 38.1 5   1/4-28 4.2 0.25
SNA205-15  15/16    52 34.9 17 17.5 44.4 13.5 38.1 5   1/4-28 4.2 0.25
SNA205-16 1   52 34.9 17 17.5 44.4 13.5 38.1 5   1/4-28 4.2 0.25
SNA206  30 62 36.5 19 18.3 48.4 15.9 44.5 6 M6x1   5.3 19.47 11.43 0.39
SNA206-17  1-1/16    62 36.5 19 18.3 48.4 15.9 44.5 6   1/4-28 5.3 0.39
SNA206-18  1-1/8    62 36.5 19 18.3 48.4 15.9 44.5 6   1/4-28 5.3 0.39
SNA206-19  1-3/16    62 36.5 19 18.3 48.4 15.9 44.5 6   1/4-28 5.3 0.39
SNA206-20 1-1/4   62 36.5 19 18.3 48.4 15.9 44.5 6   1/4-28 5.3 0.39
SNA207  35 72 37.6 20 18.8 51.1 17.5 55.6 6.5 M8x1   5.8 25.69 15.55 0.6
SNA207-20  1-1/4    72 37.6 20 18.8 51.1 17.5 55.6 6.5   5/16-24 5.8 0.6
SNA207-21  1-5/16    72 37.6 20 18.8 51.1 17.5 55.6 6.5   5/16-24 5.8 0.6
SNA207-22  1-3/8    72 37.6 20 18.8 51.1 17.5 55.6 6.5   5/16-24 5.8 0.6
SNA207-23 1-7/16   72 37.6 20 18.8 51.1 17.5 55.6 6.5   5/16-24 5.8 0.6
SNA208  40 80 42.8 21 21.4 56.3 18.3 60.3 6.5 M8x1   6.2 29.51 18.14 0.77
SNA208-24  1-1/2    80 42.8 21 21.4 56.3 18.3 60.3 6.5   5/16-24 6.2 0.77
SNA208-25 1-9/16   80 42.8 21 21.4 56.3 18.3 60.3 6.5   5/16-24 6.2 0.77
SNA209  45 85 42.8 22 21.4 56.3 18.3 63.5 6.5 M8x1   6.5 31.85 20.8 0.84
SNA209-26  1-5/8    85 42.8 22 21.4 56.3 18.3 63.5 6.5   5/16-24 6.5 0.84
SNA209-27  1-11/16    85 42.8 22 21.4 56.3 18.3 63.5 6.5   5/16-24 6.5 0.84
SNA209-28 1-3/4   85 42.8 22 21.4 56.3 18.3 63.5 6.5   5/16-24 6.5 0.84
SNA210  50 90 49.2 24 24.6 62.7 18.3 69.9 6.5 M8x1   7 34.99 23.7 1.02
SNA210-30  1-7/8    90 49.2 24 24.6 62.7 18.3 69.9 6.5   5/16-24 7 1.02
SNA210-31  1-15/16    90 49.2 24 24.6 62.7 18.3 69.9 6.5   5/16-24 7 1.02
SNA210-32 2   90 49.2 24 24.6 62.7 18.3 69.9 6.5   5/16-24 7 1.02
SNA211  55 100 55.5 25 27.8 71.4 20.7 76.2 8 M10X1.25   7.4 43.34 29.39 1.37
SNA211-32  2   100 55.5 25 27.8 71.4 20.7 76.2 8   3/8-24 7.4 1.37
SNA211-33  2-1/16    100 55.5 25 27.8 71.4 20.7 76.2 8   3/8-24 7.4 1.37
SNA211-34  2-1/8    100 55.5 25 27.8 71.4 20.7 76.2 8   3/8-24 7.4 1.37
SNA211-35 2-3/16   100 55.5 25 27.8 71.4 20.7 76.2 8 3/8-24 7.4 1.37
SNA212    60 110 61.9 27 31 77.8 22.3 84.2 8 M10x1.25   7.6 47.68 33.43 1.85
SNA212-36  2-1/4    110 61.9 27 31 77.8 22.3 84.2 8   3/8-24 7.6 1.85
SNA212-37  2-5/16    110 61.9 27 31 77.8 22.3 84.2 8   3/8-24 7.6 1.85
SNA212-38  2-3/8    110 61.9 27 31 77.8 22.3 84.2 8   3/8-24 7.6 1.85
SNA212-39 2-7/16   110 61.9 27 31 77.8 22.3 84.2 8   3/8-24 7.6 1.85
