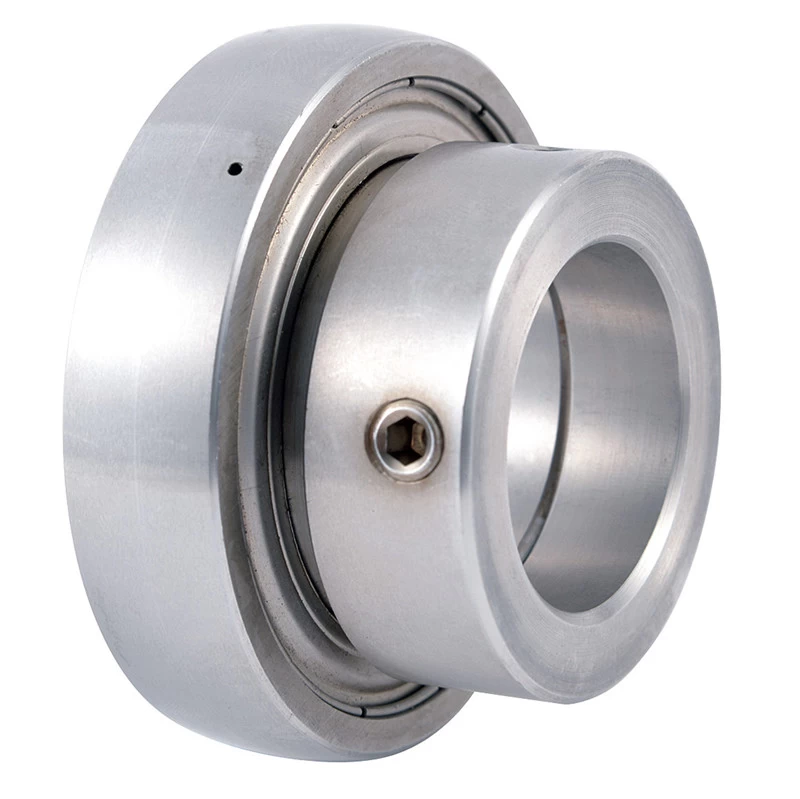

Stainless Steel Bearing Inserts With Eccentric Locking SSA


SSA  Standard duty, Stainless steel,Narrow inner ring,Eccentric locking



Facebook Twitter Pinterest LinkedIn 分享

Stainless Steel Bearing SSA205-16

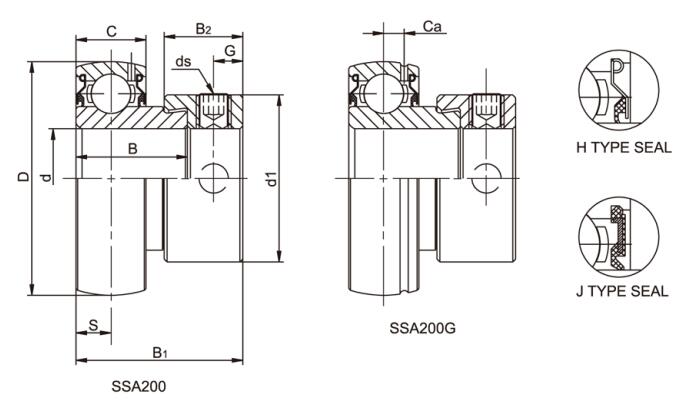

Bearing No. Shaft Dia Dimensions(mm)
Load ratmg
( KN )
Weight (kg)
d D B C S B1 B2 d1 G ds Ca Dynamic Static
(in) (mm)     (mm) (in.UNF) Cr Cor
SSA204  20 47 21.5 14 7 31 13.5 33.3 5 M6x1   4 12.82 6.65 0.21
SSA204-12 3/4   47 21.5 14 7 31 13.5 33.3 5   1/4-28 4 0.21
SSA205  25 52 22 15 7.5 31.5 13.5 38.1 5 M6x1   4 14.03 8.05 0.25
SSA205-14  7/8    52 22 15 7.5 31.5 13.5 38.1 5   1/4-28 4 0.25
SSA205-15  15/16    52 22 15 7.5 31.5 13.5 38.1 5   1/4-28 4 0.25
SSA205-16 1   52 22 15 7.5 31.5 13.5 38.1 5   1/4-28 4 0.25
SSA206    30 62 23.8 16 8 35.7 15.9 44.5 6 M6x1   4.9 19.47 11.43 0.39
SSA206-17  1-1/16    62 23.8 16 8 35.7 15.9 44.5 6   1/4-28 4.9 0.39
SSA206-18 1-1/8   62 23.8 16 8 35.7 15.9 44.5 6   1/4-28 4.9 0.39
SSA206-19  1-3/16    62 23.8 16 8 35.7 15.9 44.5 6   1/4-28 4.9 0.39
SSA206-20 1-1/4   62 23.8 16 8 35.7 15.9 44.5 6   1/4-28 4.9 0.39
SSA207  35 72 25.4 17 8.5 38.9 17.5 55.6 6.5 M8x1   5.4 25.69 15.55 0.6
SSA207-20  1-1/4    72 25.4 17 8.5 38.9 17.5 55.6 6.5   5/16-24 5.4 0.6
SSA207-21 1-5/16   72 25.4 17 8.5 38.9 17.5 55.6 6.5   5/16-24 5.4 0.6
SSA207-22  1-3/8    72 25.4 17 8.5 38.9 17.5 55.6 6.5   5/16-24 5.4 0.6
SSA207-23 1-7/16   72 25.4 17 8.5 38.9 17.5 55.6 6.5   5/16-24 5.4 0.6
SSA208  40 80 30.2 18 9 43.7 18.3 60.3 6.5 M8x1   5.8 29.51 18.14 0.77
SSA208-24  1-1/2    80 30.2 18 9 43.7 18.3 60.3 6.5   5/16-24 5.8 0.77
SSA208-25 1-9/16   80 30.2 18 9 43.7 18.3 60.3 6.5   5/16-24 5.8 0.77
SSA209  45 85 30.2 19 9.5 43.7 18.3 63.5 6.5 M8x1   6.1 31.85 20.8 0.84
SSA209-26  1-5/8    85 30.2 19 9.5 43.7 18.3 63.5 6.5   5/16-24 6.1 0.84
SSA209-27  1-11/16    85 30.2 19 9.5 43.7 18.3 63.5 6.5   5/16-24 6.1 0.84
SSA209-28 1-3/4   85 30.2 19 9.5 43.7 18.3 63.5 6.5   5/16-24 6.1 0.84
SSA210 50 90 30.2 20 10 43.7 18.3 69.9 6.5 M8x1   6.5 34.99 23.7 1.02
SSA210-30  1-7/8    90 30.2 20 10 43.7 18.3 69.9 6.5   5/16-24 6.5 1.02
SSA210-31  1-15/16    90 30.2 20 10 43.7 18.3 69.9 6.5   5/16-24 6.5 1.02
SSA210-32 2   90 30.2 20 10 43.7 18.3 69.9 6.5   5/16-24 6.5 1.02
SSA211  55 100 32.5 21 10.5 48.4 20.7 76.2 8 M10X1.25   7 43.34 29.39 1.37
SSA211-32  2   100 32.5 21 10.5 48.4 20.7 76.2 8   3/8-24 7 1.37
SSA211-33  2-1/16    100 32.5 21 10.5 48.4 20.7 76.2 8   3/8-24 7 1.37
SSA211-34  2-1/8    100 32.5 21 10.5 48.4 20.7 76.2 8   3/8-24 7 1.37
SSA211-35 2-3/16   100 32.5 21 10.5 48.4 20.7 76.2 8   3/8-24 7 1.37
SSA212    60 110 37.2 22 11 53.1 22.3 84.2 8 M10x1.25   7.3 47.68 33.43 1.85
SSA212-36  2-1/4    110 37.2 22 11 53.1 22.3 84.2 8   3/8-24 7.3 1.85
SSA212-37  2-5/16    110 37.2 22 11 53.1 22.3 84.2 8   3/8-24 7.3 1.85
SSA212-38  2-3/8    110 37.2 22 11 53.1 22.3 84.2 8   3/8-24 7.3 1.85
SSA212-39 2-7/16   110 37.2 22 11 53.1 22.3 84.2 8   3/8-24 7.3 1.85
