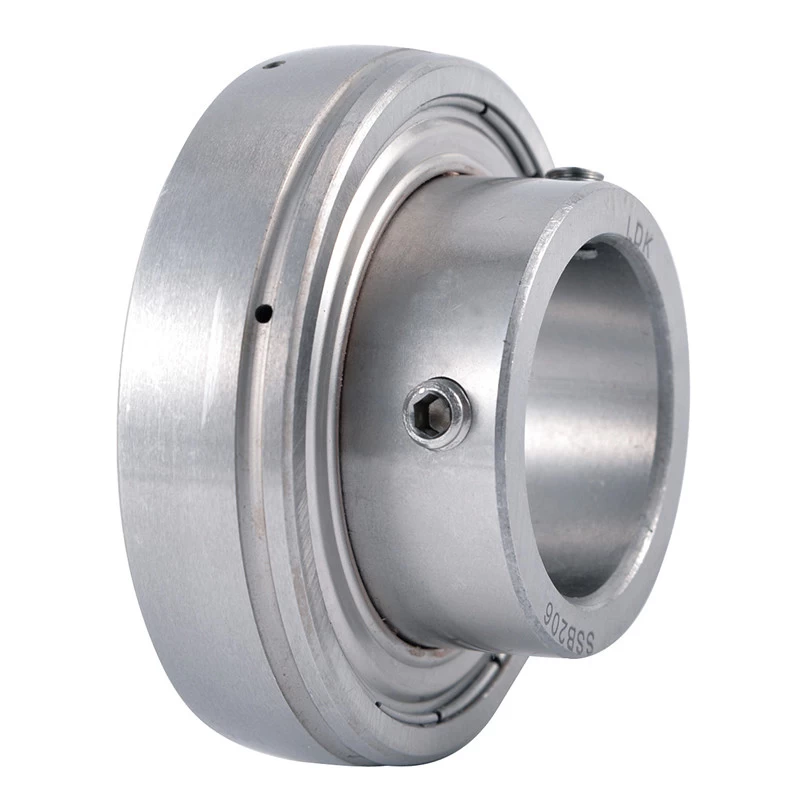

Stainless Steel Bearing Inserts With Setscrew Locking SSB2


SSB  Standard duty, Stainless steel,Narrow inner ring,Setscrew locking




Facebook Twitter Pinterest LinkedIn 分享

Stainless Steel Bearing Inserts SSB204

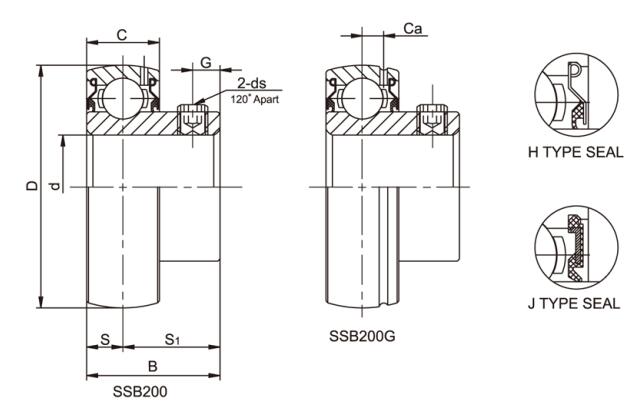

Bearing No. Shaft Dia Dimensions(mm)
Load rating
( KN )
Weight (kg)
d D B C S S1 G ds Ca Dynamic Cr Static Cor
(in) (mm) (mm) (in.UNF)
SSB204  20 47 25 14 7 18 5 M6x1 4 12.82 6.65 0.12
SSB204-12 3/4   47 25 14 7 18 5   1/4-28 4 0.12
SSB205  25 52 27 15 7.5 19.5 5.5 M6x1 4 14.03 8.05 0.18
SSB205-13  13/16    52 27 15 7.5 19.5 5.5   1/4-28 4 0.18
SSB205-14  7/8    52 27 15 7.5 19.5 5.5   1/4-28 4 0.18
SSB205-15  15/16    52 27 15 7.5 19.5 5.5   1/4-28 4 0.18
SSB205-16 1   52 27 15 7.5 19.5 5.5   1/4-28 4 0.18
SSB206  30 62 30 16 8 22 5.9 M6x1 4.9 19.47 11.43 0.26
SSB206-17  1-1/16    62 30 16 8 22 5.9   1/4-28 4.9 0.26
SSB206-18  1-1/8    62 30 16 8 22 5.9   1/4-28 4.9 0.26
SSB206-19  1-3/16    62 30 16 8 22 5.9   1/4-28 4.9 0.26
SSB206-20 1-1/4   62 30 16 8 22 5.9   1/4-28 4.9 0.26
SSB207  35 72 32 17 8.5 23.5 8 M8x1 5.4 25.69 15.55 0.43
SSB207-20  1-1/4    72 32 17 8.5 23.5 8   5/16-24 5.4 0.43
SSB207-21  1-5/16    72 32 17 8.5 23.5 8   5/16-24 5.4 0.43
SSB207-22  1-3/8    72 32 17 8.5 23.5 8   5/16-24 5.4 0.43
SSB207-23 1-7/16   72 32 17 8.5 23.5 8   5/16-24 5.4 0.43
SSB208  40 80 34 18 9 25 8 M8x1 5.8 29.51 18.14 0.60
SSB208-24  1-1/2    80 34 18 9 25 8   5/16-24 5.8 0.60
SSB208-25 1-9/16   80 34 18 9 25 8   5/16-24 5.8 0.60
SSB209  45 85 36 19 9.5 26.5 8 M8x1 6.1 31.85 20.8 0.8
SSB209-26  1-5/8    85 36 19 9.5 26.5 8   5/16-24 6.1 0.8
SSB209-27  1-11/16    85 36 19 9.5 26.5 8   5/16-24 6.1 0.8
SSB209-28 1-3/4   85 36 19 9.5 26.5 8   5/16-24 6.1 0.8
SSB210  50 90 38 20 10 28 10 M10X1.25 6.5 34.99 23.7 0.83
SSB210-30  1-7/8    90 38 20 10 28 10   3/8-24 6.5 0.83
SSB210-31  1-15/16    90 38 20 10 28 10   3/8-24 6.5 0.83
SSB210-32 2   90 38 20 10 28 10   3/8-24 6.5 0.83
SSB211  55 100 40 21 10.5 29.5 10 M10X1.25 7 43.34 29.39 1.12
SSB211-32  2   100 40 21 10.5 29.5 10   3/8-24 7 1.12
SSB211-33  2-1/16    100 40 21 10.5 29.5 10   3/8-24 7 1.12
SSB211-34  2-1/8    100 40 21 10.5 29.5 10   3/8-24 7 1.12
SSB211-35 2-3/16   100 40 21 10.5 29.5 10   3/8-24 7 1.12
SSB212    60 110 42 22 11 31 10 M10X1.25   7.3 47.68 33.43 1.55
SSB212-36  2-1/4    110 42 22 11 31 10   3/8-24 7.3 1.55
SSB212-37  2-5/16    110 42 22 11 31 10   3/8-24 7.3 1.55
SSB212-38  2-3/8    110 42 22 11 31 10   3/8-24 7.3 1.55
SSB212-39 2-7/16   110 42 22 11 31 10   3/8-24 7.3 1.55
