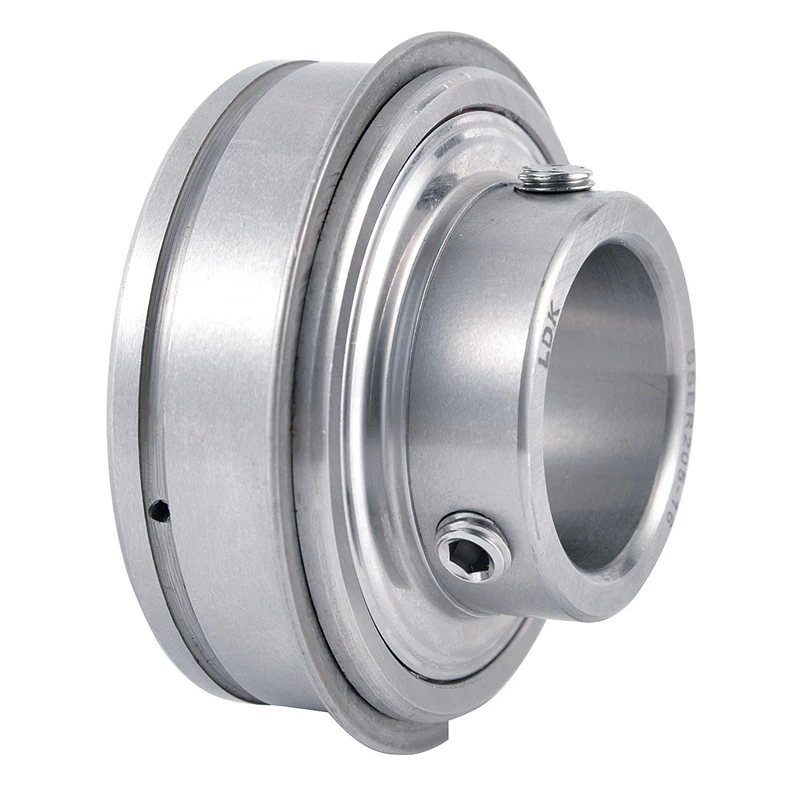

Stainless Steel Bearing Inserts With Setscrew Locking SSER


SSER  Standard duty,Stainlesss steel,With cylindrical outer ring and snap ring,Setscrew locking




Facebook Twitter Pinterest LinkedIn 分享

Stainless Steel Bearing Inserts SSER206

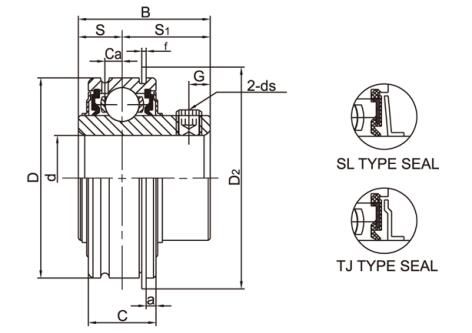

Bearing No. Shaft Dia Dimensions (mm)
Basic Load Rating
( KN )
Weight (kg)
d D B C S S1 a r D2 (Max.) G ds Ca Dynamic Cr Static Cor
(in) (mm) (mm) (in.UNF)
SSER201  12 47 31 15.9 11.5 19.5 2.46 1.07 52.7 5 M6X0.75 3.95 12.8 6.6 0.27
SSER201-8 1/2   47 31 15.9 11.5 19.5 2.46 1.07 52.7 5   1/4-28 3.95 0.27
SSER202  15 47 31 15.9 11.5 19.5 2.46 1.07 52.7 5 M6X0.75 3.95 12.8 6.6 0.25
SSER202-9  9/16    47 31 15.9 11.5 19.5 2.46 1.07 52.7 5   1/4-28 3.95 0.25
SSER202-10 5/8   47 31 15.9 11.5 19.5 2.46 1.07 52.7 5   1/4-28 3.95 0.25
SSER203   17 47 31 15.9 11.5 19.5 2.46 1.07 52.7 5 M6X0.75 3.95 12.8 6.6 0.23
SSER203-11 11/16   47 31 15.9 11.5 19.5 2.46 1.07 52.7 5   1/4-28 3.95 0.23
SSER204  20 47 31 15.9 11.5 19.5 2.46 1.07 52.7 5 M6X0.75 3.95 12.8 6.6 0.22
SSER204-12 3/4   47 31 15.9 11.5 19.5 2.46 1.07 52.7 5   1/4-28 3.95 0.22
SSER205  25 52 34.9 19.1 13.1 21.8 2.46 1.07 57.9 5 M6X0.75 4.35 14.0 7.8 0.28
SSER205-13  13/16    52 34.9 19.1 13.1 21.8 2.46 1.07 57.9 5   1/4-28 4.35 0.28
SSER205-14  7/8    52 34.9 19.1 13.1 21.8 2.46 1.07 57.9 5   1/4-28 4.35 0.28
SSER205-15  15/16    52 34.9 19.1 13.1 21.8 2.46 1.07 57.9 5   1/4-28 4.35 0.28
SSER205-16 1   52 34.9 19.1 13.1 21.8 2.46 1.07 57.9 5   1/4-28 4.35 0.28
SSER206  30 62 38.1 22.2 15.9 22.2 3.18 1.65 67.7 5 M6X0.75 4.35 19.5 11.2 0.38
SSER206-17  1-1/16    62 38.1 22.2 15.9 22.2 3.18 1.65 67.7 5   1/4-28 4.35 0.38
SSER206-18  1-1/8    62 38.1 22.2 15.9 22.2 3.18 1.65 67.7 5   1/4-28 4.35 0.38
SSER206-19  1-3/16    62 38.1 22.2 15.9 22.2 3.18 1.65 67.7 5   1/4-28 4.35 0.38
SSER206-20 1-1/4   62 38.1 22.2 15.9 22.2 3.18 1.65 67.7 5   1/4-28 4.35 0.38
SSER207  35 72 42.9 23.8 17.5 25.4 3.18 1.65 78.6 6.5 M8X1 6.3 25.7 15.2 0.56
SSER207-20  1-1/4    72 42.9 23.8 17.5 25.4 3.18 1.65 78.6 6.5   5/16-24 6.3 0.56
SSER207-21  1-5/16    72 42.9 23.8 17.5 25.4 3.18 1.65 78.6 6.5   5/16-24 6.3 0.56
SSER207-22  1-3/8    72 42.9 23.8 17.5 25.4 3.18 1.65 78.6 6.5   5/16-24 6.3 0.56
SSER207-23 1-7/16   72 42.9 23.8 17.5 25.4 3.18 1.65 78.6 6.5   5/16-24 6.3 0.56
SSER208  40 80 49.2 27.8 19 30.2 3.18 1.65 86.6 8 M8X1 7.5 29.6 18.2 0.87
SSER208-24  1-1/2    80 49.2 27.8 19 30.2 3.18 1.65 86.6 8   5/16-24 7.5 0.87
SSER208-25 1-9/16   80 49.2 27.8 19 30.2 3.18 1.65 86.6 8   5/16-24 7.5 0.87
SSER209  45 85 49.2 27.8 19 30.2 3.18 1.65 91.6 8 M8X1 7.5 31.8 20.8 0.95
SSER209-26  1-5/8    85 49.2 27.8 19 30.2 3.18 1.65 91.6 8   5/16-24 7.5 0.95
SSER209-27  1-11/16    85 49.2 27.8 19 30.2 3.18 1.65 91.6 8   5/16-24 7.5 0.95
SSER209-28 1-3/4   85 49.2 27.8 19 30.2 3.18 1.65 91.6 8   5/16-24 7.5 0.95
SSER210  50 90 51.6 28.6 19 32.6 3.18 2.41 96.5 10 M10X1.25 6.8 35.1 23.2 1.03
SSER210-30  1-7/8    90 51.6 28.6 19 32.6 3.18 2.41 96.5 10   3/8-24 6.8 1.03
SSER210-31  1-15/16    90 51.6 28.6 19 32.6 3.18 2.41 96.5 10   3/8-24 6.8 1.03
SSER210-32 2   90 51.6 28.6 19 32.6 3.18 2.41 96.5 10   3/8-24 6.8 1.03
SSER211  55 100 55.6 30.2 22.2 33.4 3.18 2.41 106.5 10 M10X1.25 7.6 43.5 29.2 1.21
SSER211-32  2   100 55.6 30.2 22.2 33.4 3.18 2.41 106.5 10   3/8-24 7.6 1.21
SSER211-33  2-1/16    100 55.6 30.2 22.2 33.4 3.18 2.41 106.5 10   3/8-24 7.6 1.21
SSER211-34  2-1/8    100 55.6 30.2 22.2 33.4 3.18 2.41 106.5 10   3/8-24 7.6 1.21
SSER211-35 2-3/16   100 55.6 30.2 22.2 33.4 3.18 2.41 106.5 10   3/8-24 7.6 1.21
SSER212    60 110 65.1 31.8 25.4 39.7 3.18 2.41 116.6 10 M10X1.25   8.4 52.5 32.8 1.68
SSER212-36  2-1/4    110 65.1 31.8 25.4 39.7 3.18 2.41 116.6 10   3/8-24 8.4 1.68
SSER212-37  2-5/16    110 65.1 31.8 25.4 39.7 3.18 2.41 116.6 10   3/8-24 8.4 1.68
SSER212-38  2-3/8    110 65.1 31.8 25.4 39.7 3.18 2.41 116.6 10   3/8-24 8.4 1.68
SSER212-39 2-7/16   110 65.1 31.8 25.4 39.7 3.18 2.41 116.6 10   3/8-24 8.4 1.68
