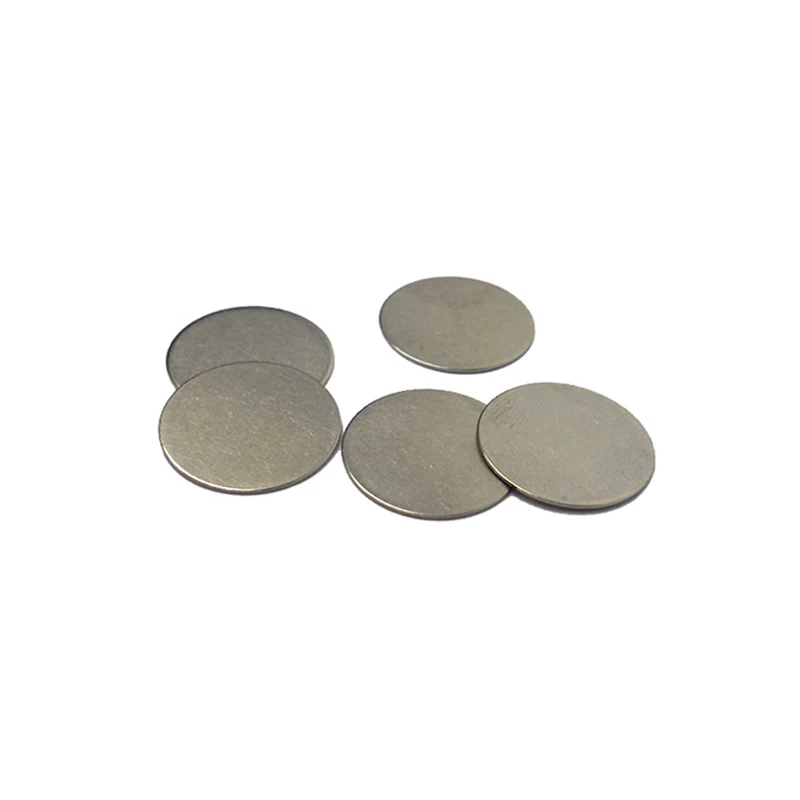

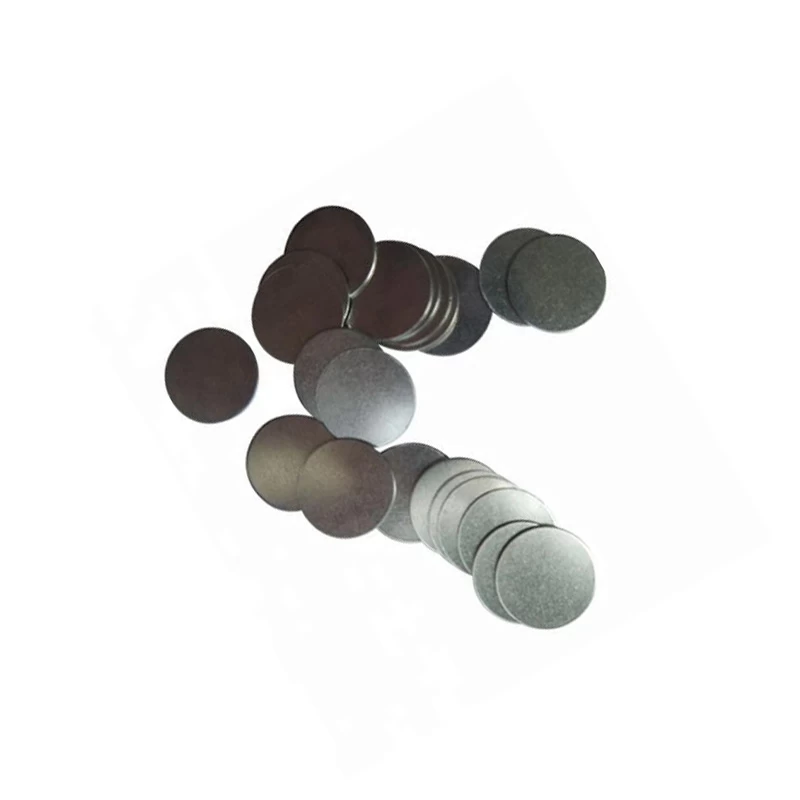

304/316 Stainless Steel Coin Cell Spacer for CR20XX Coin Cell Assembly in Lab
Material: 304 stainless steel, 316 stainless steel optional.
Size: 15.8*0.5mm (optional material thickness is 0.2mm, 0.5mm, 0.8mm, 1mm etc)
Minimum package: 100pcs/bag. MOQ=1bag.
The OEM service : we can print your logo on the surface when you order large quantities, email to ping@aotbattery for more information.

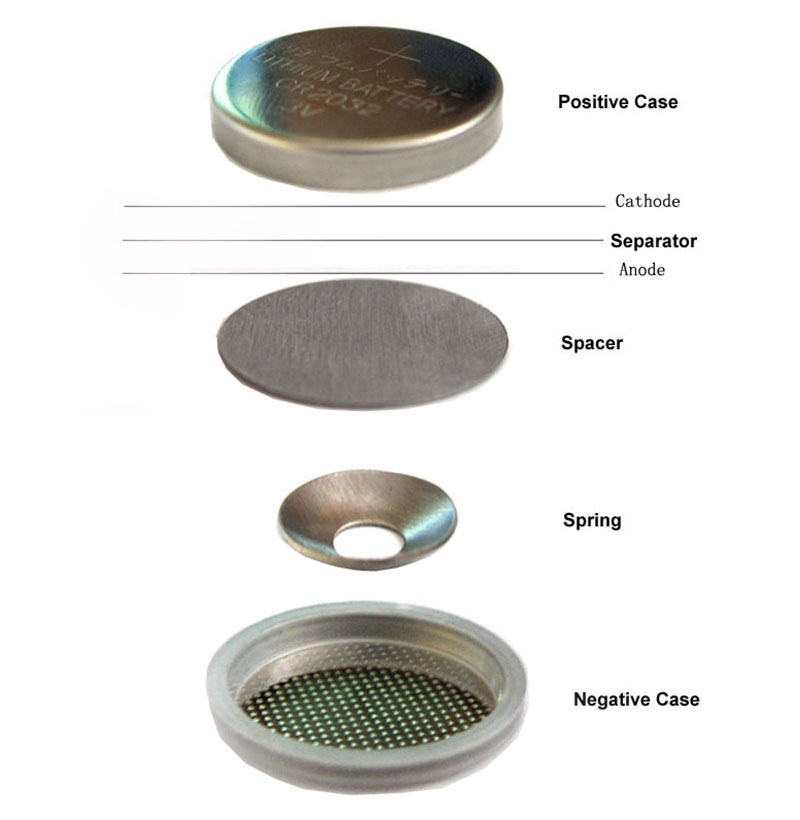

Coin cell parts assembly:
Match Below Coin Cell Cases Size:
|
Model
|
Outer Diameter
|
Height
|
|
CR2016
|
20mm
|
1.6mm
|
|
CR2025
|
20mm
|
2.5mm
|
|
CR2032
|
20mm
|
3.2mm
|

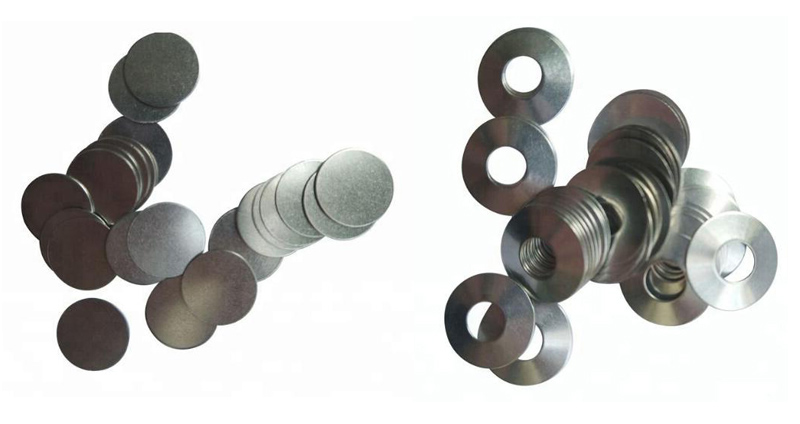

Standard combination: Cone spring with spacer
Optional combination: wave spring with spacer for coin cell:
