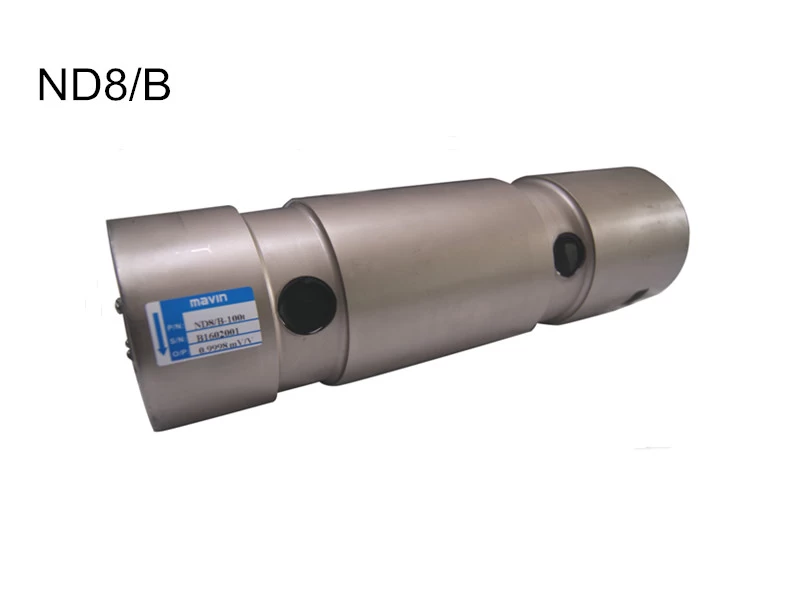

Stainless steel double shear beam Load Cell ND8/B (100T)
The ND8/B is a double ended shear beam load cell for a wide capacity range for Truck Scale, Industrial weighing systems, Rail scale, Hopper scale, Road scale. Stainless Steel load cell made with nickel plated of stable quality.
Key Features：
Double
shear beam shaped
Stainless Steel material with nickel plated
Capacity: 100T
Precision: 0.2-0.5%R.O.
Protection
class: IP67/PI68
Rated Output : 0.995-1.005 mV/V
Usage & Applications：
Industrial weighing system

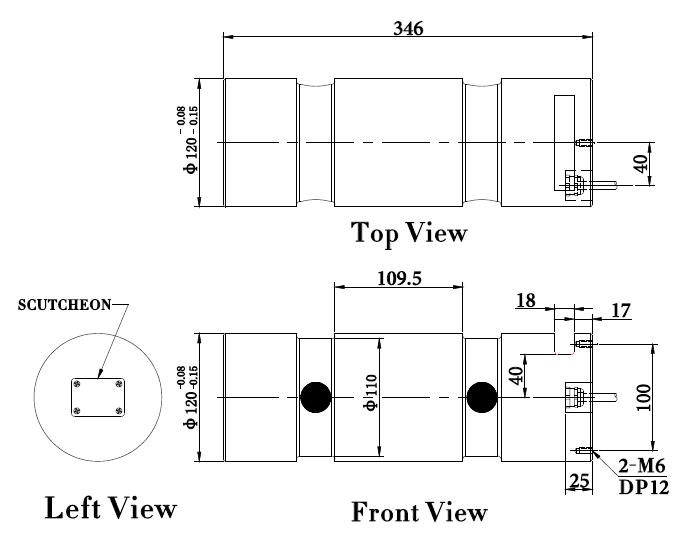

Dimension：
ND8/B Specification：
|
Rated Capacities
|
100（t）
|
|
Rated Output
|
(0.995~1.005)mV/V
|
|
Zero Balance
|
±0.0200 mV/V
|
|
Non-linearity
|
0.2~0.5 %R.O.
|
|
Hysteresis
|
0.2~0.5 %R.O.
|
|
Repeatability
|
0.2~0.5 %R.O.
|
|
30mins Creep
|
0.2~0.5 %R.O.
|
|
30mins Return
|
0.2~0.5 %R.O.
|
|
Safe Overload
|
|
|
Ultimate Overload
|
|
|
Temperature Effect On Output
|
0.005%R.O./℃
|
|
Temperature Effect On Zero
|
0.005 %R.O./℃
|
|
Input Impedance
|
740±15 Ω
|
|
Output Impedance
|
700±5 Ω
|
|
Insulation Impedance
|
≥5000 MΩ/(50VDC)
|
|
Recommended Excitation
|
5~12 VDC
|
|
Maximum Excitation
|
15 VDC
|
|
OperatingTemperatureRange
|
-20~60 ℃
|
|
Construction
|
Stainless Steel
|
|
Protection Class
|
IP67 / IP68
|
|
Cable
|
φ7.5×1.5m
|
|
Recommended Platform Size
|
|
|
Mode of Connection
|
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）
|
