Stainless Steel Electric heating Liquid Mixing Tank

Heated Mixing Tank is suitable for the production of various kinds of shampoo, lition, liquod soap and detergent etc. liquid washing products in cosmetic factory and pharmaceutical factory.



We Can Do Customized for You:

   All of our reactor are specially made as per customer's request, you could advise below parameter , then we will send you accurate quotation with related drawing:

1. Working volume

2. Working Temperature

3. Working Pressure

4. Reactor Material / contacting components material

5. With the agitator or mixer or not,  and the Mixing Speed

6. With heating device or not.

7. Your other request

With above information, we will come back to you with special designing just for yourself.

Heated Mixing Tank


Product Description:

  Heated Mixing Tank has high speed disperser. mixing and disperse viscously, solid and liquid etc.

  Various kind of raw material will be dissolve which is such as AES, AESA LSA, during liquid production which can save energy consumption and shorten production the and shorten production period.

  Detergent mixing machine main adopts stepless timing device which reduce babble occur under low temperature and high viscosity condition less air bubble will be formed to produce liquid washing products, like shampoo, liquid soap, bath shower, dish washing, hand washing, lubricating oil, etc.

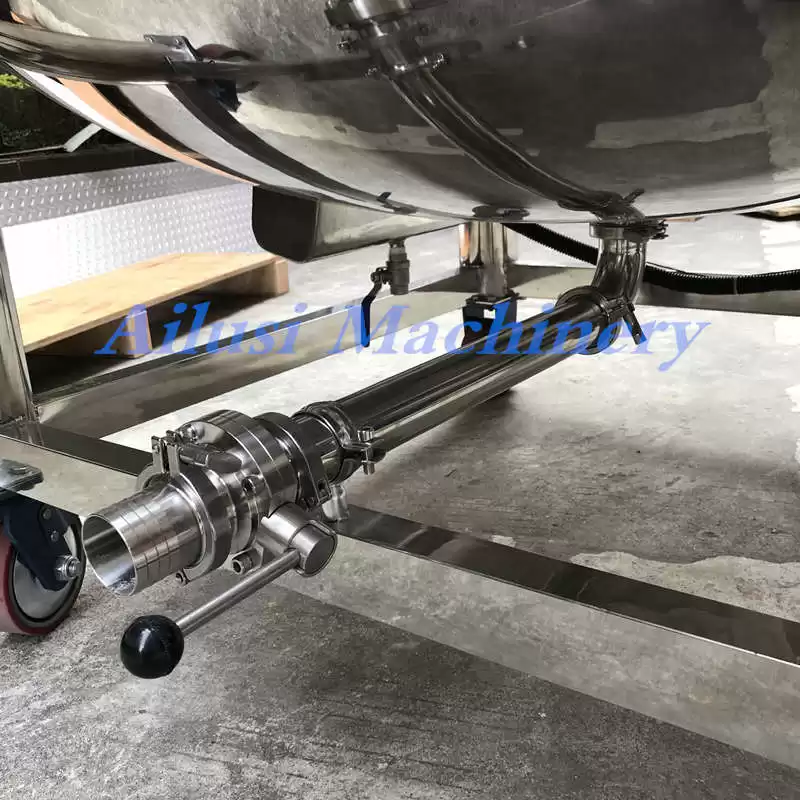

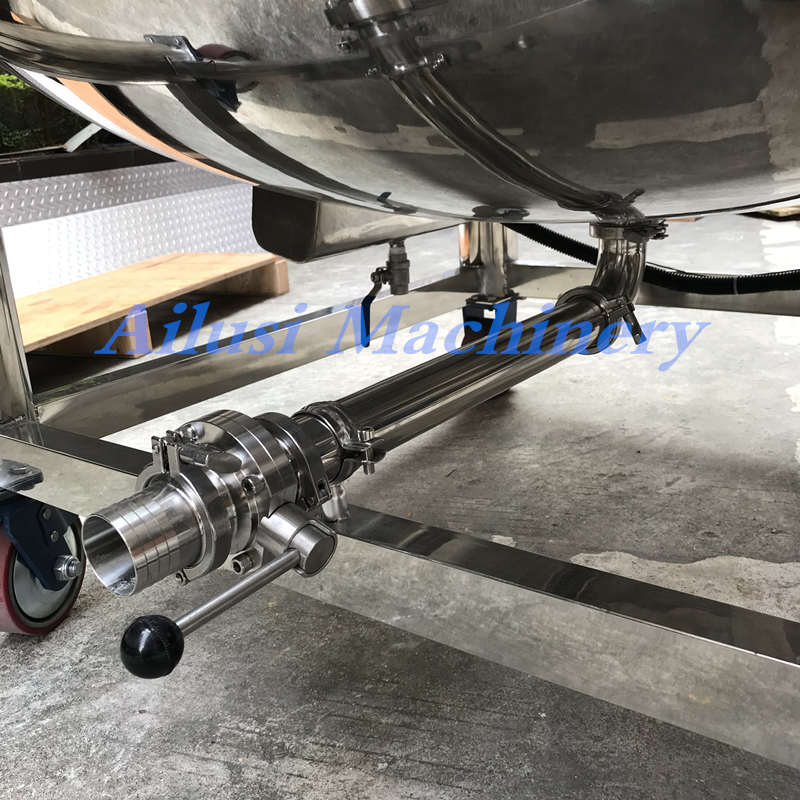

  Finished products of Heated Mixing Tank can be discharged by valve or match a screw pump.

Process for Jacket heated Liquid Mixer


Item
Heater
(KW)
Mixer
(KW)
Mixer Speed
(RPM)
Homogenizer
(KW)
Homogenizer Speed
(RPM)
ALW-200L
6
1.5
0-63
4
2890
ALW-300L
9
2.2
0-63
4
2890
ALW-500L
18
3-4
0-63
5.5
2900
ALW-1000L
27KW/steam
4-5.5
0-63
7.5
2900
ALW-2000L

27KW/steam
5.5
0-63
11
2930
ALW-3000L
36KW/steam
7.5
0-63
15
2930
ALW-5000L
48KW/steam
11
0-63
22
2940


Product Deatails:


Maintenance:

1. Keep the equipment looks clean, no watermarks, smooth

2. Keep equipment clean, after finished product should be cleaned with hot water as soon as possible

3. Check on the homogeneous blade usually, Are there loose screws

4. Homogenizer into the water whether the flow, the water solenoid valve is working properly

5. Check the mixing gear regularly adequacy of the grease, any abnormal sound


Packing:

packaging of Movable Liquid mixer tankPacking for Liquid Mixing Heating TankFactory for Liquid Mixer Machine
