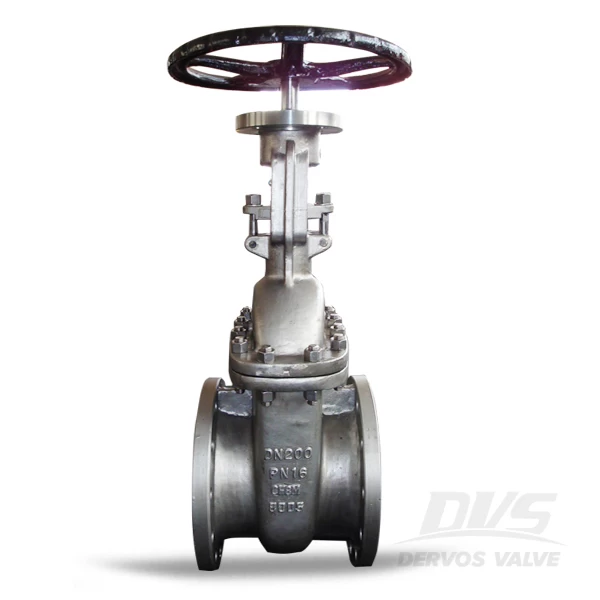

The stainless steel CF8M gate valve is designed with flange connection and handwheel operation per DIN 3352. The PN16 DN200 full port gate valve has OS&Y structure, resilient wedge and replaceable seat.
Design Specifications
Design and Manufacture: DIN 3352
End to End Dimension: DIN3202
Flange End: EN1092-1
Test & Inspection: EN12266-1/2
Design Feature
-Full Bore Design
-Superior flow rates & small friction loss
-Low torque value for closing and opening the valve
-Flexible wedge for better seating and ease of operation
-Smooth finish and superior sealing for seat face
-Every valve is manufactured with specific number on body for traceability
Quick Detail
|
Type
|
Gate
Valve
|
|
Size
|
DN
200
|
|
Pressure
|
PN
16
|
|
Construction
|
Bolted
Bonnet, Rising Stem, Outside Screw and Yoke
|
|
Connection
|
Flange
Connection
|
|
Operation
|
Handwheel
|
|
Body Material
|
Stainless
Steel CF8M
|
|
TrimMaterial
|
Stainless Steel
|
|
Temperature Range
|
-268β~+648β
|
|
Medium
|
Water, Oil and Gas
|
|
Origin
|
China
|

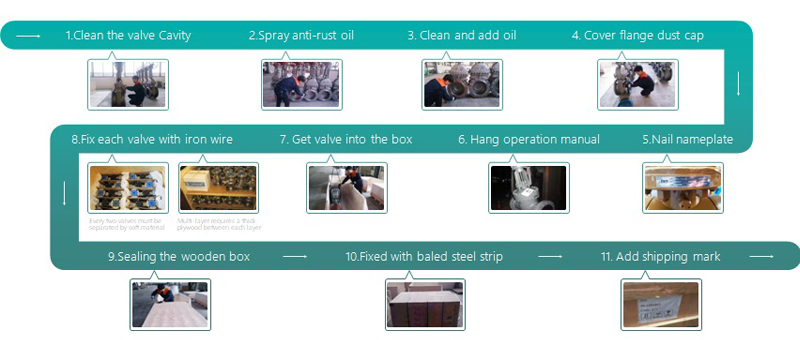

Dervos Packaging
Packaging is an important part we could never neglect. Dervos has a packaging process for each order to ensure a safe and clear delivery of the order.
