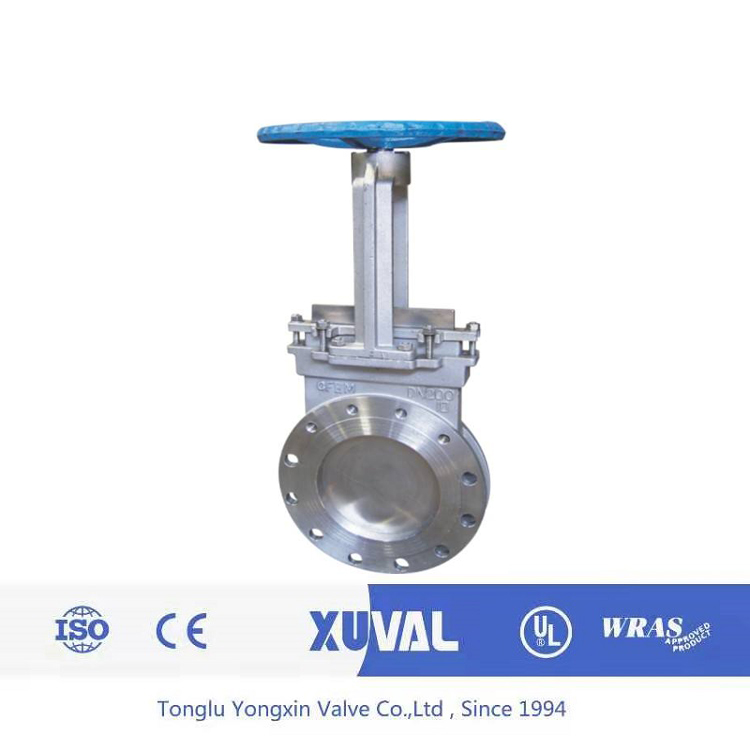

Stainless steel Manual Open-rod Knife Gate Valve
Overview of Knife Gate Valve Products:
Knife gate valve, also known as knife gate valve or knife slurry valve, was introduced into China in the 1980s. It has a wide range of applications, from coal preparation, gangue discharge, slag discharge in mines and power plants, to sewage treatment in cities, form slurry transportation in cement and paper mills to professional pipelines such as food, sanitation and medicine. Ultra-thin design of knife gate valve with its advantages of small size, light weight, small flow resistance, no slag accumulation, easy installation and disassembly completely solved the problems of large flow resistance, space occupation, slag accumulation, difficult installation and maintenance of ordinary gate valve, flat gate valve, ball valve, globe valve, regulating valve, butterfly valve and other valves. As a result, a large number of universal cut-off gates and adjustable gates have been replaced by knife gate valves.
Suitable medium for knife gate valve:
Gold ore powder, tailings, ore samd, slag, coal slurry, sandstone, steel ash, pulp, wood pulp, cement slurry, fibre, dust, powder, grain, chemically treated sewage, slaughterhouse wastewater, urban sewage, precipitated oil, asphalt, silo export, fruit, grain, beer, beverage, oil, steam, gas transportation and so on Power plant water supply and drainage, slag discharge, etc.
Sealing instructions for knife gate valve:
1.Soft seals (unidirectional or bi-dirextional) with temperature resistance less than 280℃. The suitable medium is gas-liquid medium with strong fluidity and low density. Its advantages: strong sealing performance, not easy to leak inside and outside. Its disadvantage: contact with particles or high temperature media will cause sealing damage.
2.Hard seals (unidirectional or bi-dirextional) with temperature resistance less than 1000 are suitable for all kinds of hard media such as solids, dust and particles. Its advantages: strong wear resistance. Its shortcomings: poor sealing, not suitable for other and liquid media pipelines.
|
NAME
|
MATERIAL
|
|
DRIVE
|
Handwheel,Pneumatic,Hand pneumatic,Denso,Electric hydraulic,Hydraulic,Bevel gear, Sprocket, Hand hydraulic, Lecerage
|
|
CIRCLE
|
45#, 304
|
|
HANDLE
|
QT450, 304
|
|
BEARING
|
GCr15
|
|
STEM NUT
|
QA19-4, Barss, Ductile iron
|
|
YOKE
|
WCB, 304, 316, 316L, 2520
|
|
STEM
|
2Cr13, 304, 316L, 2520
|
|
PIN
|
35#, 201, 304
|
|
PACKIN GLAND
|
WCB, 304, 316, 316L, 2520
|
|
BOIT AND NUT
|
45#, 304, 316, 316L, 2520
|
|
PACKING
|
Graphite packing,PTFE packing, Ceramic fiber packing
|
|
BODY
|
WCB, CF8, CF8M, CF3M, 310S
|
|
DISC
|
201, 304, 316L, 2520, 2205
|
|
SEAT
|
NBR, EPDM, PTFE, STL, TC, PU
|
Rising stem one way-Knife gate valve
|
|
DN
|
N
|
N*M
|
Number of manual turns
|
Handwheel specifications
|
Cylinder size
|
Denso specifications
|
|
50
|
3350
|
20
|
13
|
φ180
|
SC-63*60
|
DZW-15
|
|
65
|
3450
|
20
|
17
|
φ180
|
SC-63*70
|
DZW-15
|
|
80
|
3600
|
25
|
20
|
φ180
|
SC-80*90
|
DZW-15
|
|
100
|
3800
|
30
|
20
|
φ200
|
SC-100*110
|
DZW-15
|
|
125
|
5850
|
40
|
25
|
φ200
|
SC-125*135
|
DZW-15
|
|
150
|
6000
|
65
|
30
|
φ280
|
SC-125*160
|
DZW-15
|
|
200
|
9800
|
85
|
40
|
φ300
|
SC-160*210
|
DZW-20
|
|
250
|
14300
|
135
|
50
|
φ320
|
SC-160*260
|
DZW-20
|
|
300
|
19200
|
180
|
60
|
φ320
|
SC-200*310
|
DZW-30
|
|
350
|
23000
|
220
|
70
|
φ350
|
SC-200*360
|
DZW-30
|
|
400
|
32500
|
280
|
67
|
φ450
|
SC-200*410
|
DZW-45
|
|
450
|
34800
|
400
|
75
|
φ450
|
SC-250*460
|
DZW-45
|
|
500
|
38300
|
470
|
83
|
φ500
|
SC-250*510
|
DZW-60
|
|
600
|
40800
|
600
|
100
|
φ600
|
SC-320*610
|
DZW-60
|
Two way sealed-Through cartridge valve
|
|
DN
|
N
|
N*M
|
Number of manual turns
|
Handwheel specifications
|
Cylinder size
|
Denso specifications
|
|
50
|
3800
|
70
|
13
|
φ200
|
SC-80*60
|
DZW-15
|
|
65
|
3900
|
70
|
17
|
φ200
|
SC-80*70
|
DZW-15
|
|
80
|
5300
|
100
|
20
|
φ200
|
SC-100*90
|
DZW-15
|
|
100
|
6200
|
120
|
20
|
φ240
|
SC-125*110
|
DZW-15
|
|
125
|
9800
|
150
|
25
|
φ240
|
SC-160*135
|
DZW-20
|
|
150
|
11000
|
225
|
30
|
φ300
|
SC-160*160
|
DZW-20
|
|
200
|
15500
|
315
|
40
|
φ320
|
SC-200*210
|
DZW-30
|
|
250
|
24800
|
470
|
50
|
φ350
|
SC-200*260
|
DZW-30
|
|
300
|
31000
|
650
|
60
|
φ350
|
SC-250*310
|
DZW-45
|
|
350
|
34000
|
765
|
70
|
φ400
|
SC-250*360
|
DZW-45
|
|
400
|
37000
|
1000
|
67
|
φ450
|
SC-250*410
|
DZW-60
|
|
450
|
39000
|
1400
|
75
|
φ450
|
SC-300*460
|
DZW-60
|
|
500
|
45000
|
1650
|
83
|
φ500
|
SC-320*510
|
DZW-90
|
|
600
|
47000
|
2100
|
100
|
φ600
|
SC-320*610
|
DZW-90
|
