Stainless Steel Air Meshed Lithium Coin Cell Button Battery Cases for Lab
|
Model
|

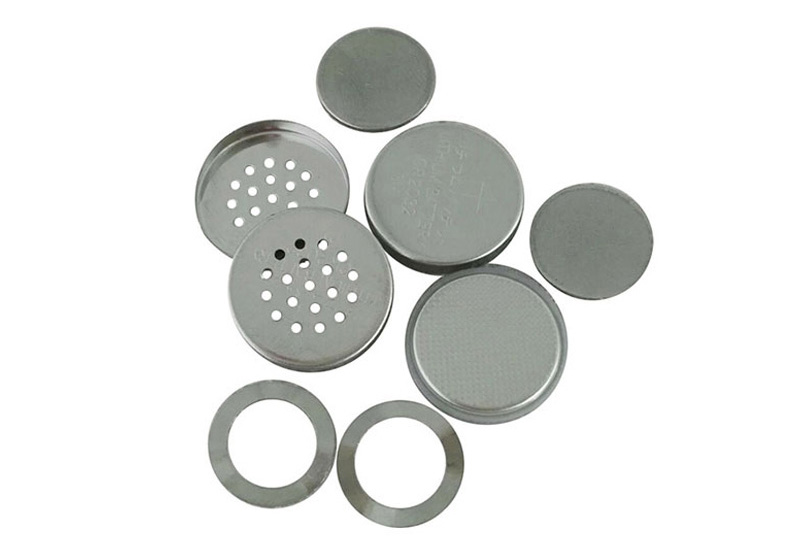

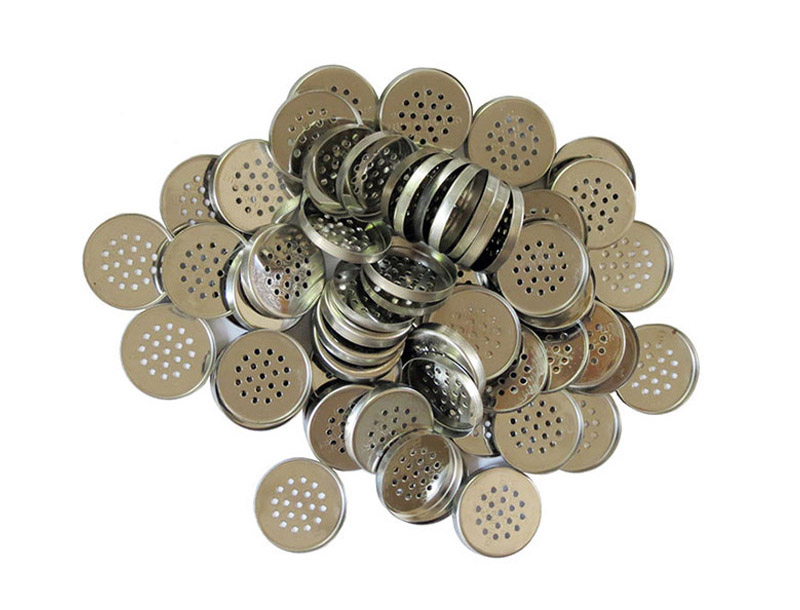

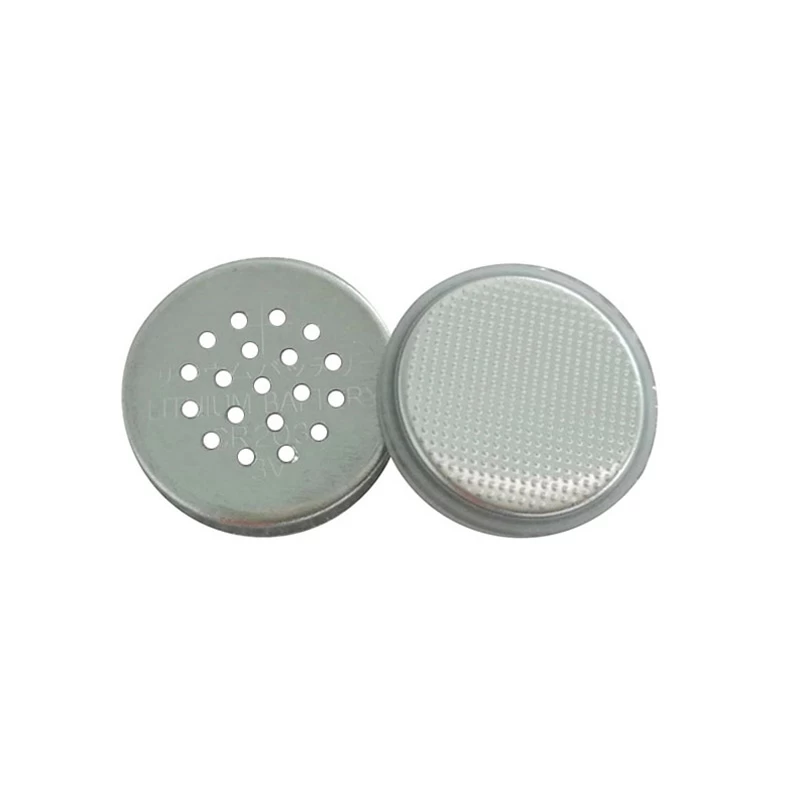

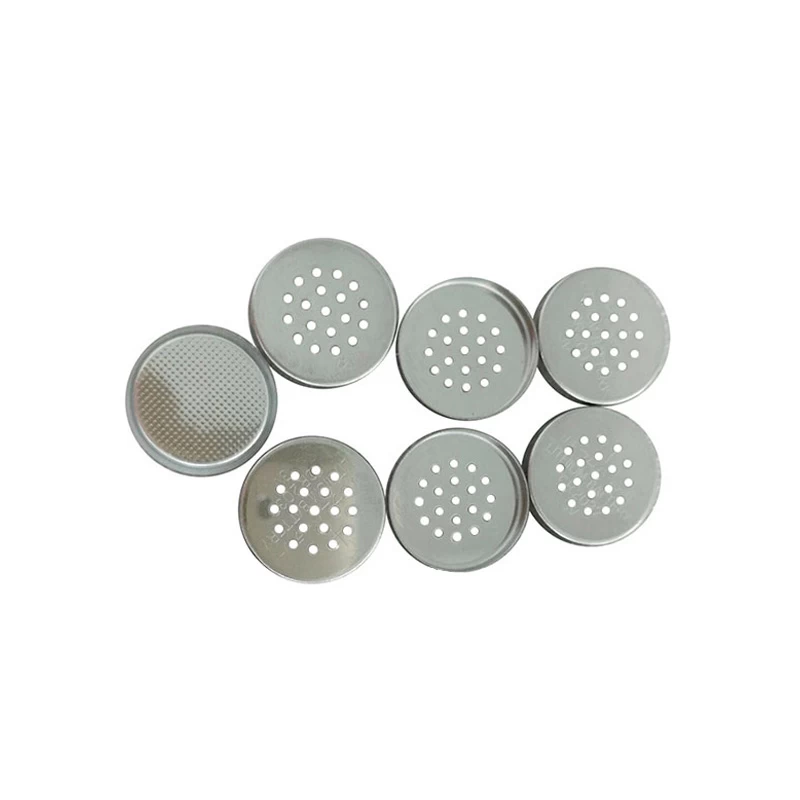

CR2032 Meshed Coin Cell Case for Li-air Battery
|
|
Dimensions
|
20mm*32mm
|
|
Materials
|
Casing: SS304/SS316
Sealing Gasket: PP Material
The thickness of the SS304/316 for both anode and cathode case is 0.25 mm +/- 0.02 mm.
|
|
Application Note
|
After perfectly crimping, the External Height should be around 3.0mm.
The diameter of the inner ring of the plastic gasket for the coin cell 2032 is around 16.39mm.
Usually, a case does not need to clean before crimping, but if you do need to clean the case, please put in ethanol for 4-6 hrs, and use drying oven to dry several hours (please set the oven to 30℃,because of PP O-ring).
|
