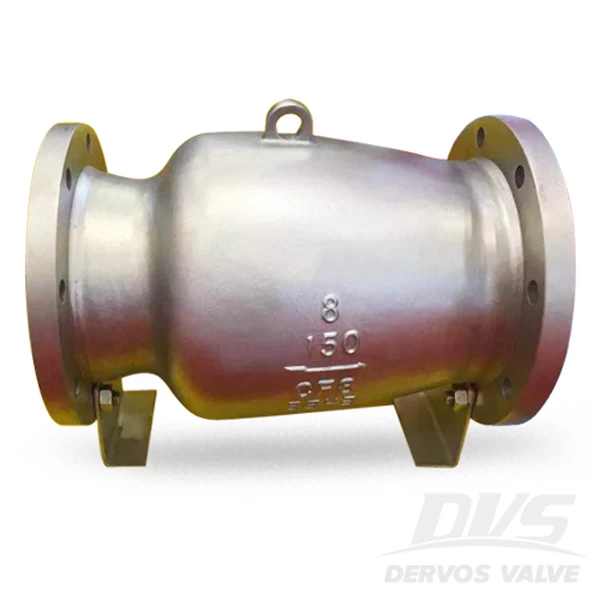

The stainless steel CF8 non return valve features in non slam type disc, ANSI 150 flange end, and full port design.
Quick Detail
|
Type
|
Non
Return Valve ( Check Valve)
|
|
Size
|
8''
|
|
DesignPressure
|
Class
150
|
|
Construction
|
Non
Slam Type
|
|
Connection
|
RF
Flange
|
|
Design & Manufacture
|
ASME
B16.34
|
|
End to End
|
ASME
B16.10
|
|
Connection
|
ASME
B16.5
|
|
Pressure &
Temp
|
ASME
B16.34
|
|
Test &
Inspection
|
API
598
|
|
Body Material
|
A351
CF8
|
|
Trim Material
|
SS304
|
|
Media
|
W.O.G.
|
Available Modifications for Dervos Valves
-Valve Pressure
-Valve Size
-Reduced Bore & Full Bore
-Body & Trim Material (Disc, Seat, Pin, Spring)
-End Connection (Flange, BW, SW, Thread, Wafer, Lug)
-Available Operation (Bare Stem, With Actuators)
-Available Counterweight
-Available Cylinder
-Customizing Coating
-Customizing Packaging
Related Knowledge
What is non-slam check valve?
Water hammer is a hydraulic phenomenon that undergoes an abrupt change in its rate of flow and are caused by sudden shutting or slamming. Water hammer will reduce process efficiency, cause valve damage, gasket joint leaks and other problems.
The non-slam check valve is designed to reduce water hammer. An internal spring can prevent the disc from slamming close.The design of a non-slam check valve could eliminate pressure flutuations, vibration and damges. Plus, the disc and spring experience minimal wear over time, which will largely extend the service lives of non-slam check compared to swing check valve.
