Stainless Steel Plain Bearings SCOM..T

BALL

·440C Stainless steel

·Heat treated

·Hard chrome Plated

·Precision ground

Race

·300 Series stainless steel

·PTFE lined



Facebook Twitter Pinterest LinkedIn 分享

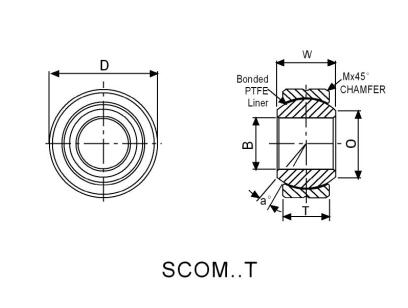

SCOM14T Spherical Bearing

Bearing No. DIMENSIONS IN INCHES
PIFE
Lined
B
+.0015
-.0005
D
+ .0000
-.0007
T
±.005
W
±.005
0 Shoulder. Dia. Ref.
M
Chamfer Ref
Ball
Dia.
Ref.
Misaligh. Angle
a0
Ult.Raidal Static Load Lbs. Approx. Brg.Wt. Lbs.
SCOM3T 0.1900 0.5625 0.218 0.281 0.293 0.020 0.406 11.0 4,400 0.01
SCOM4T 0.2500 0.6562 0.250 0.343 0.364 0.022 0.500 13.5 6,700 0.02
SCOM5T 0.3125 0.7500 0.281 0.375 0.419 0.032 0.562 12.0 9,200 0.03
SCOM6T 0.3750 0.8125 0.312 0.406 0.516 0.032 0.656 10.0 12.400 0.04
SCOM7T 0.4375 0.9062 0.343 0.437 0.530 0.032 0.718 8.0 14.900 0.05
SCOM8T 0.5000 1.0000 0.390 0.500 0.640 0.032 0.813 9.5 17,900 0.07
SCOM9T 0.5625 1.0937 0.437 0.562 0.710 0.032 0.906 9.5 23,700 0.09
SCOM10T 0.6250 1.1875 0.500 0.625 0.780 0.032 1.000 8.5 32,000 0.11
SCOM12T 0.7500 1.4375 0.593 0.750 0.920 0.044 1.187 9.0 48.000 0.20
SCOM14T 0.8750 1.5625 0.703 0.875 0.980 0.044 1.312 9.5 69,000 0.26
SCOM16T 1.0000 1.7500 0.797 1.000 1.118 0.044 1.500 10.0 83,000 0.39
