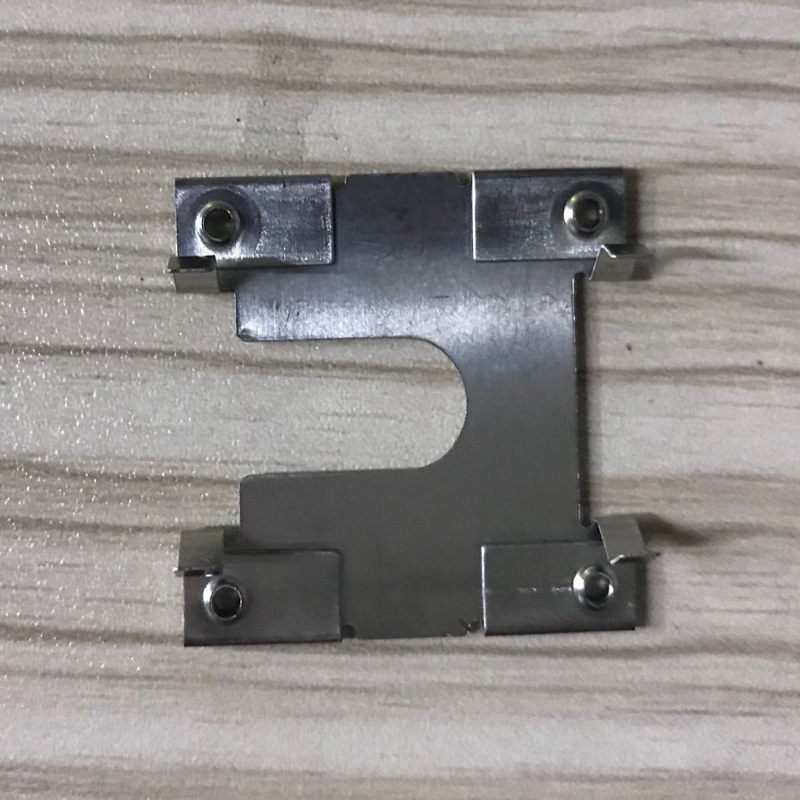

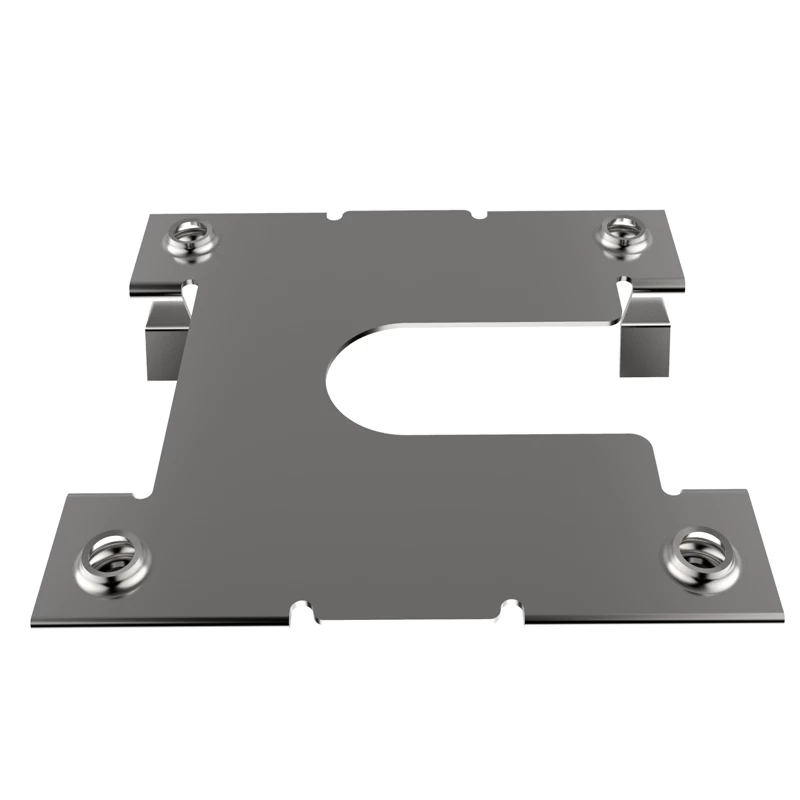

The surface of the aluminum alloy rail is generally oxidized, so the surface is non-conductive, and the surface of the solar grounding clip has a circular needling, which is electrically conductive by piercing the oxide film on the rail.

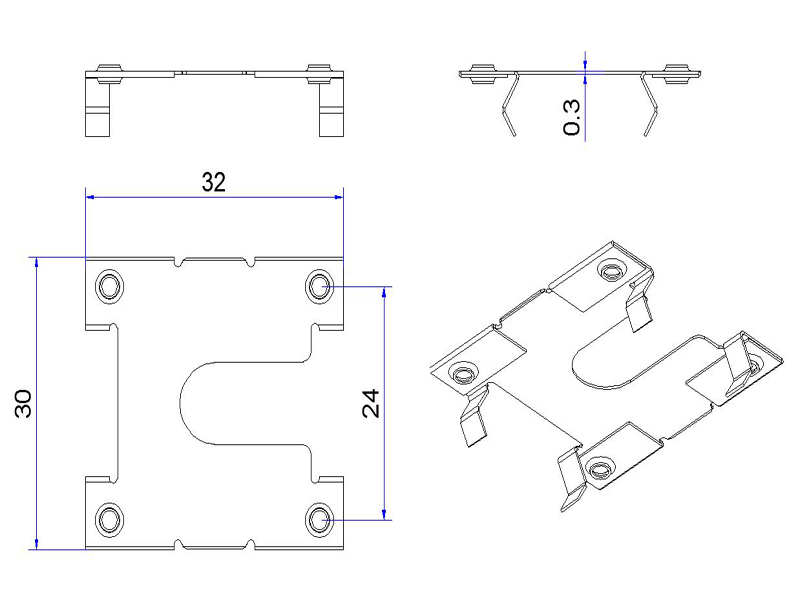

Drawing of component section
Component composition
|
Item No.
|
GT-GC
|
|
Item Name
|
Solar grounding clip
|
|
Component
|
Component name
|
Spec (mm)
|
Qty
|
|
Solar grounding clip
|
30
|
1
|
|
|
|

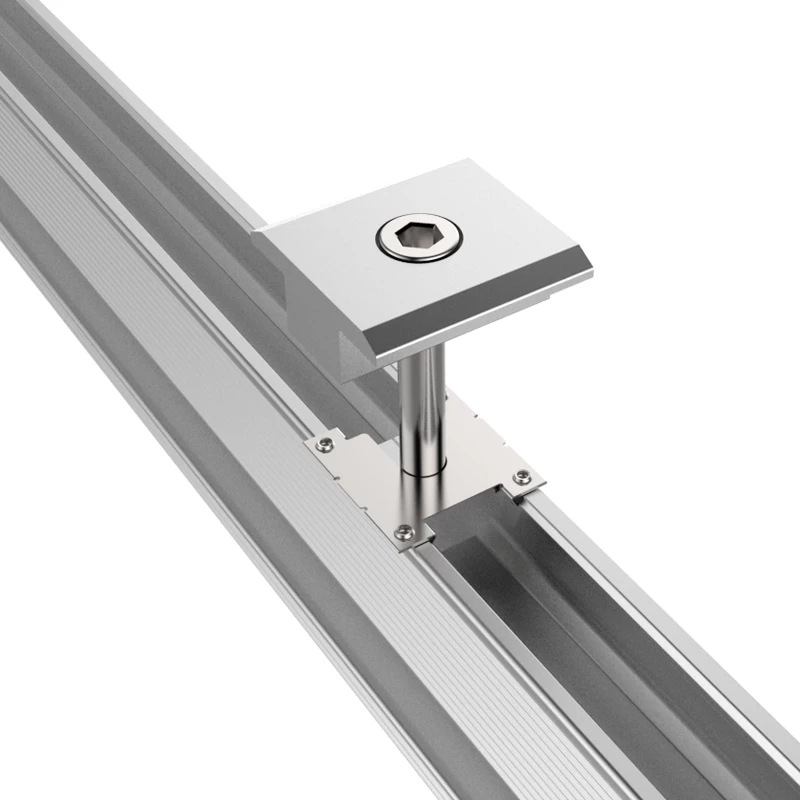

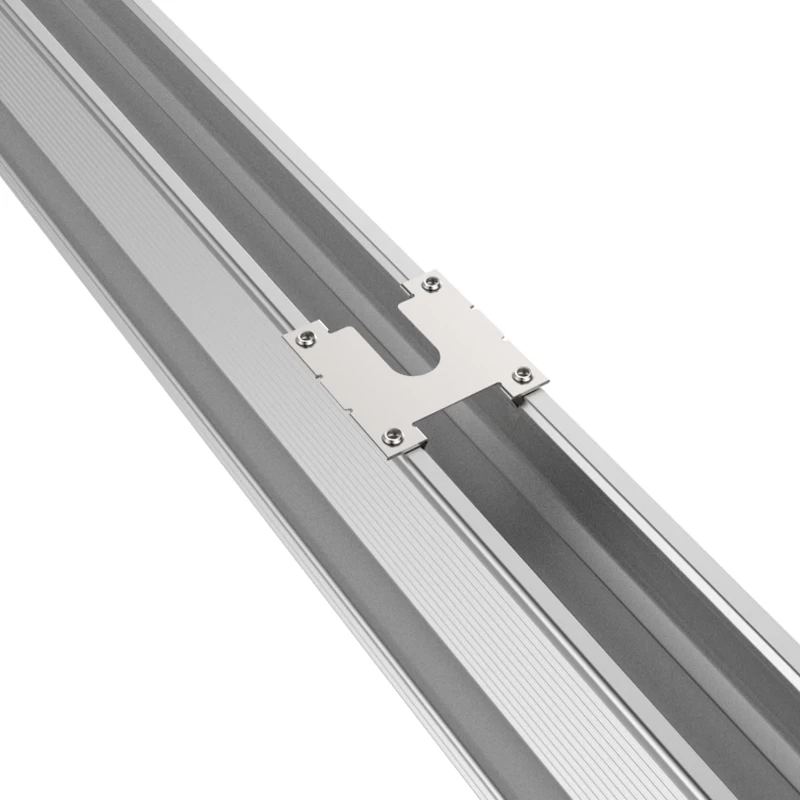

Detail drawing of component installation
