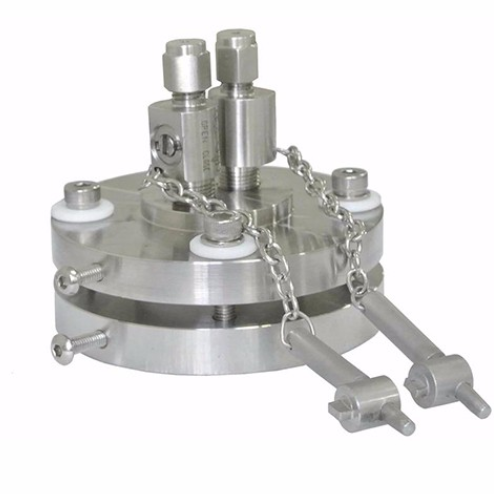

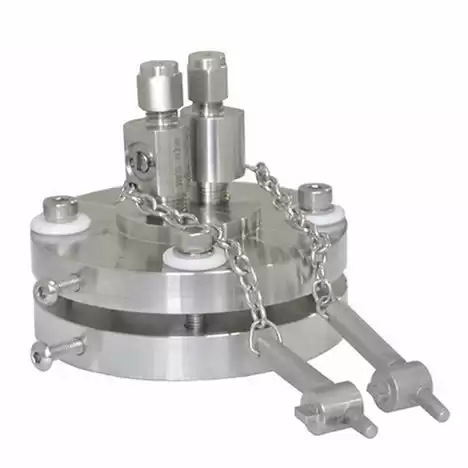

Stainless Steel Split Test Cell For Lithium Air Battery Research
The EQ-STC-LI-AIR is Split Test Cell for Lithium Air Battery Research. You can control air flow pressure and test various anode and cathode material at easy
|

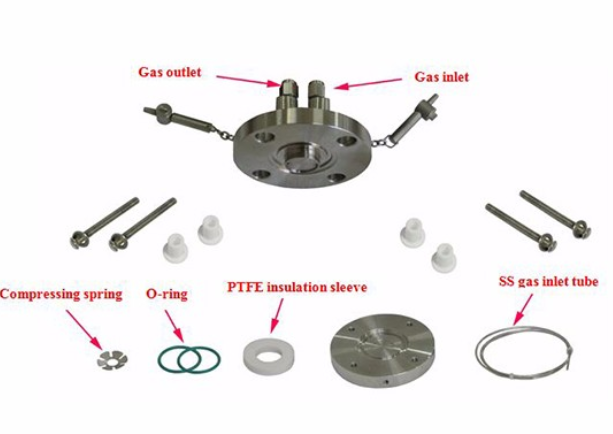

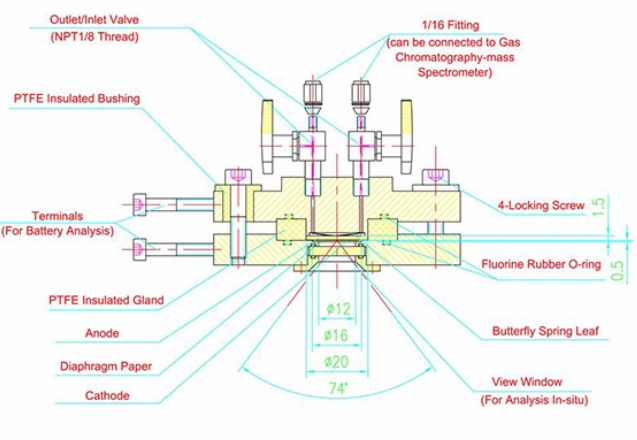

Structure
|
1 Stainless Steel Structure with internal Silver- Clad surface treatment ensures high electrical conductivity and good
corrosion protection
2 Two electrodes design
3 Electrolyte corrosive-proof PTFE Guide Sleeve and Sealing O-rings
4 Compact design fits in any benchtop glove boxes
|
|
Cell Thickness
|
1~3mm (cathode+separator+anode)
|
|
Bottom Recess Area
|
16mm Dia.
(The recess area can accommodate the electrodes with
size upto 16mm dia.)
|
|
Max. Working Temperature
|
250℃
|
|
Valves & Fittings
|
Two Stainless Steel needle valves and 1/16" tube connector is
installed on both gas inlet and outlet
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|

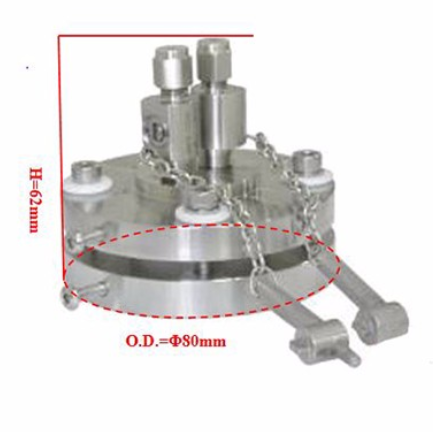

Dimensions
|
φ80*62mm
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
