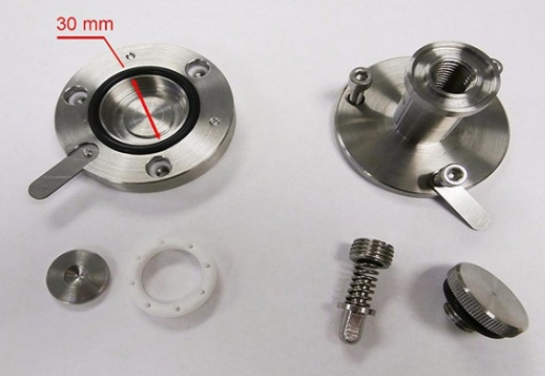

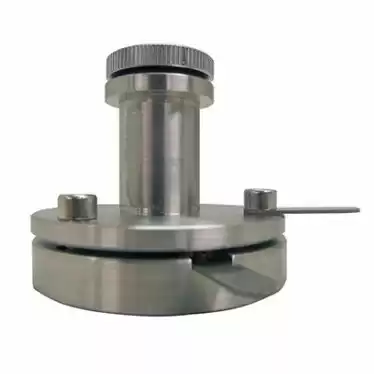

Stainless Steel Two-Electrode Split Test Cell for R&D Coin Cell Battery
The EQ-STC Split Test Cell is used for Rechargeable Battery and battery electrode materials Research.
|
Structure
|
Full stainless steel
|
|
Max. Cell Thickness
|
6mm (cathode+separator+anode)
|
|
Features
|
1 A 6mm height spacer inside the test cell to press down on the electrode
and prevent the electrode from curling
2 Sealed by electrolyte corrosive-proof PTFE O-rings
3 Electrolyte corrosive-proof PTFE Guide Sleeve capable of
withstanding up to 250 ºC.
4 Easy to separate after testing
5 Small enough to be put in and taken out from a glove box
6 Same functionality to "Coin Cell" but with more size options for electrode
and separator and also the proper dimensions for glove box compatibility
|
|
Optional
|
10, 12, 15, 19, 20, and 24 mm diameter customized
|
|
Dimension
|
Φ80mm*80mm
|
