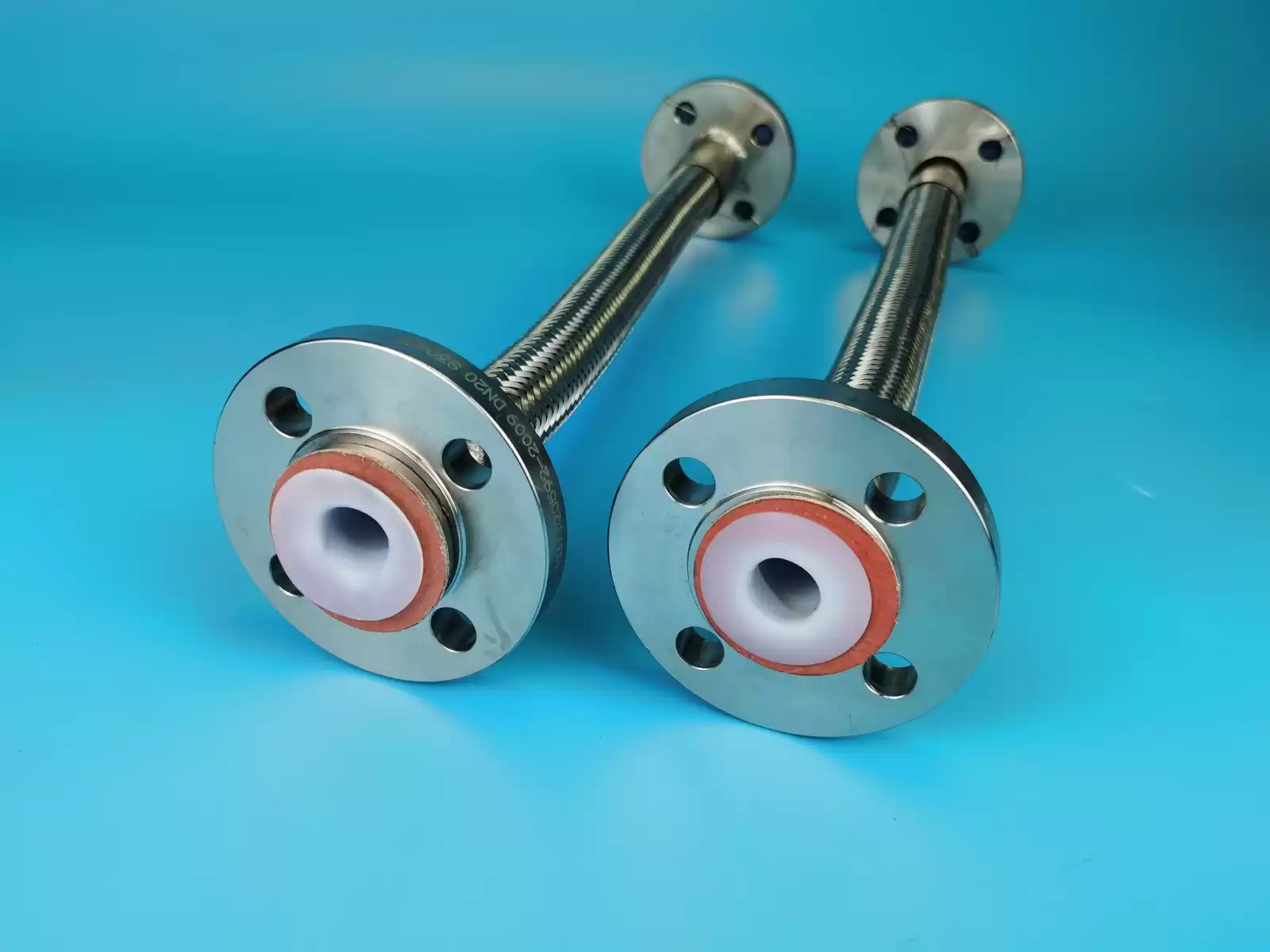

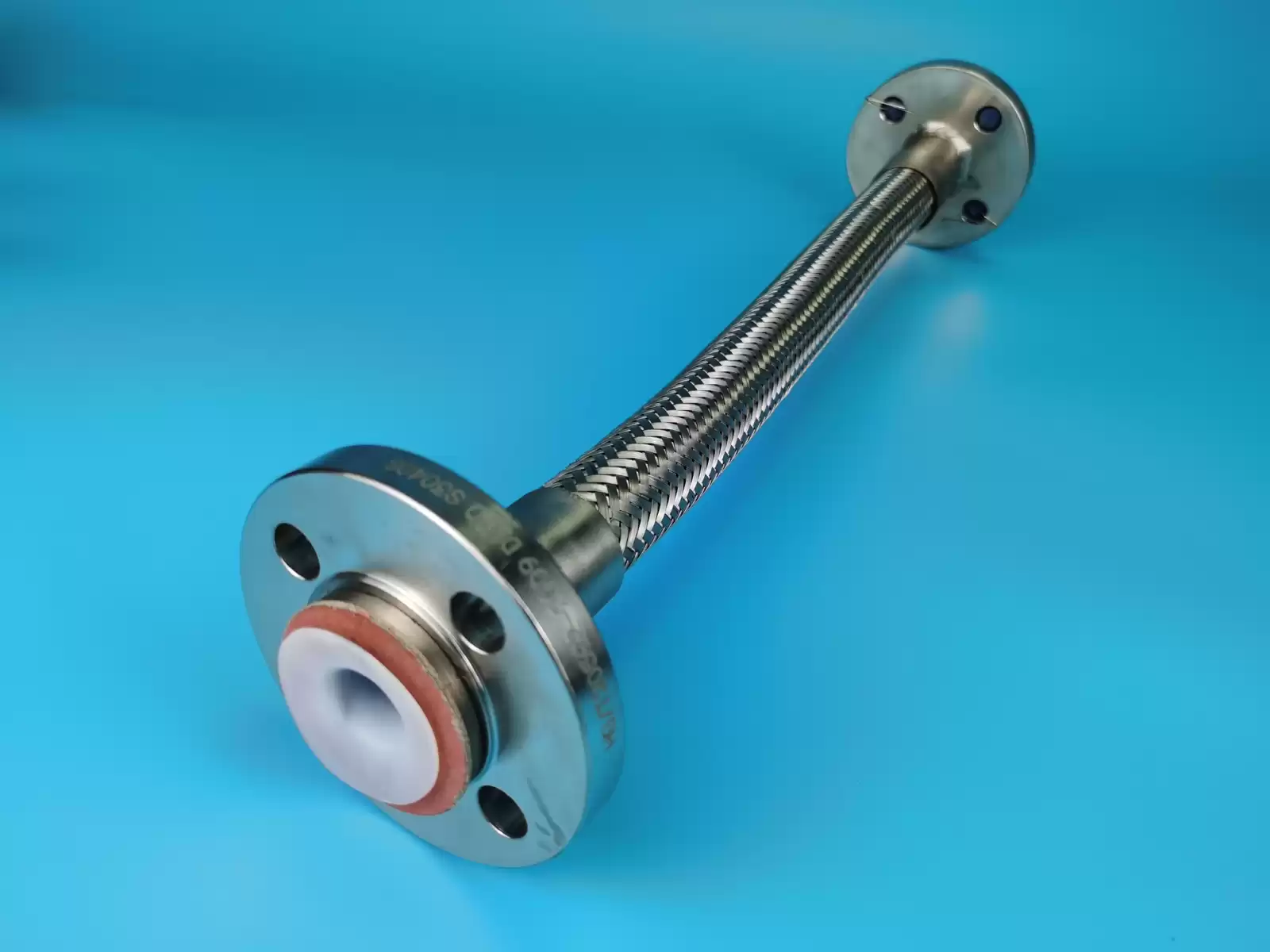

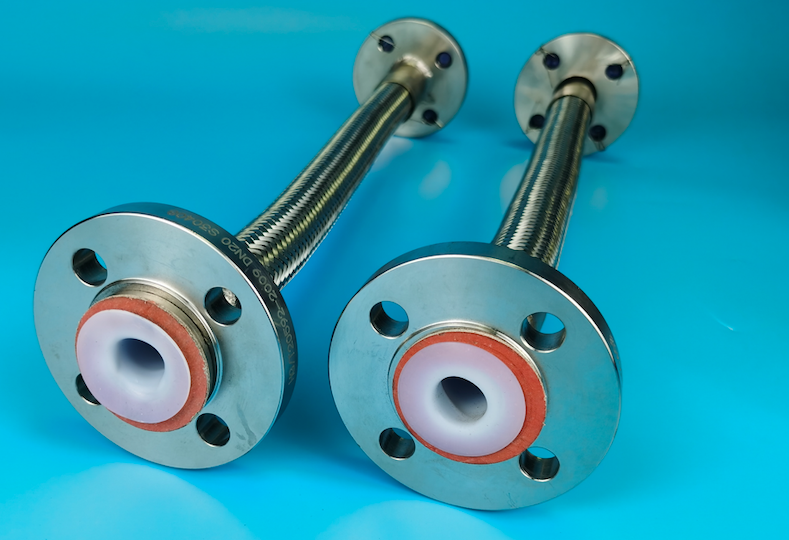

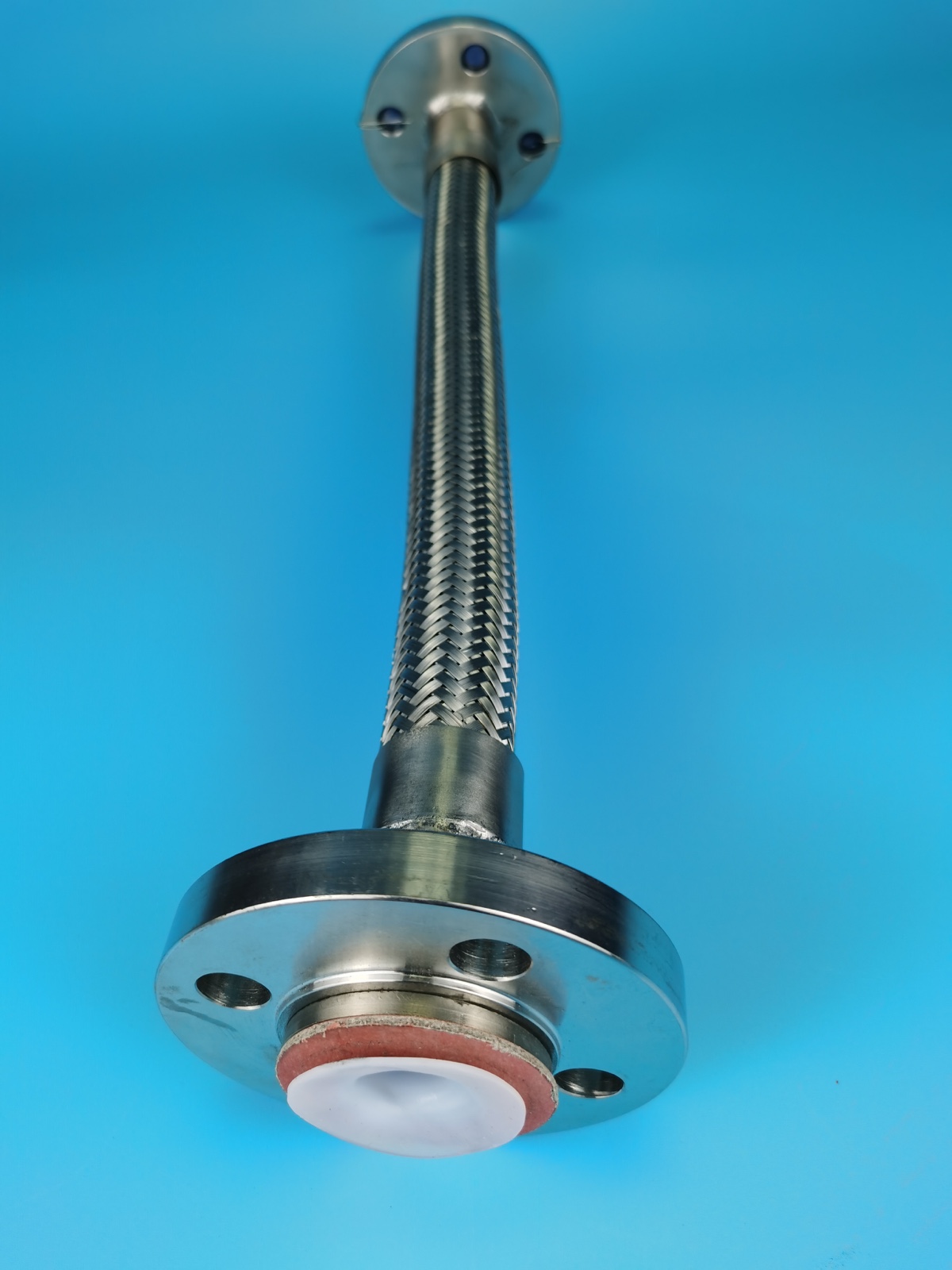

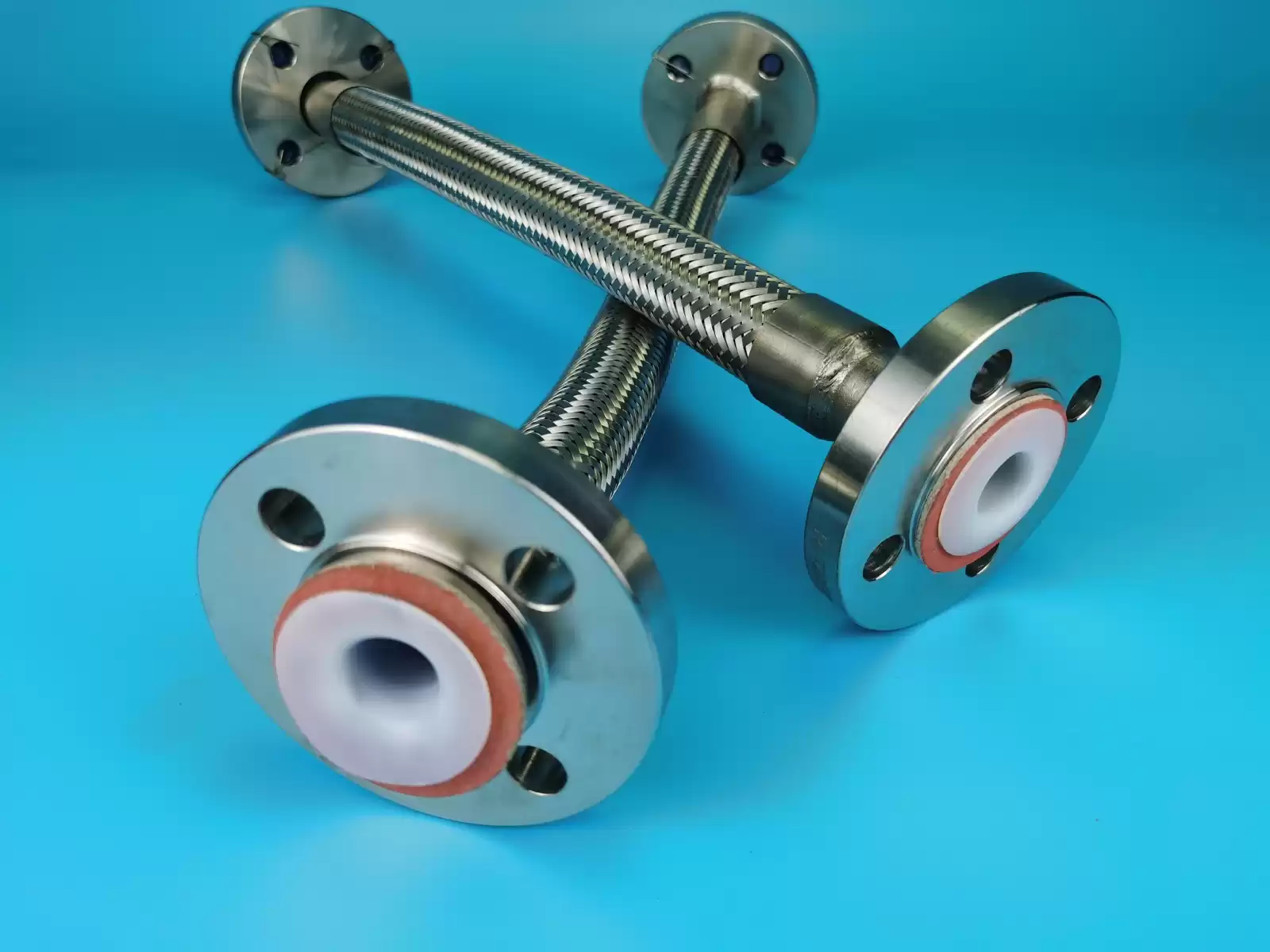

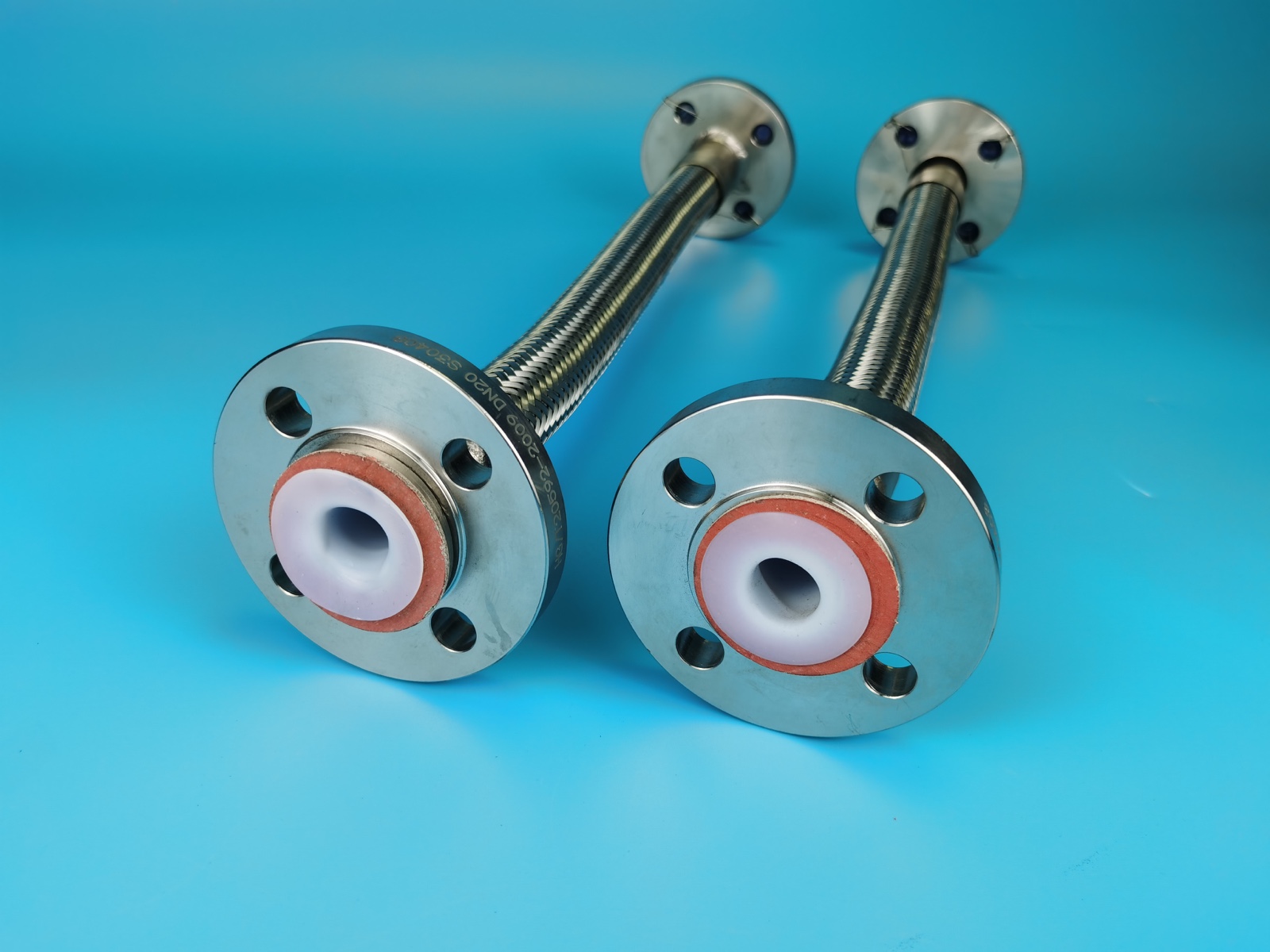

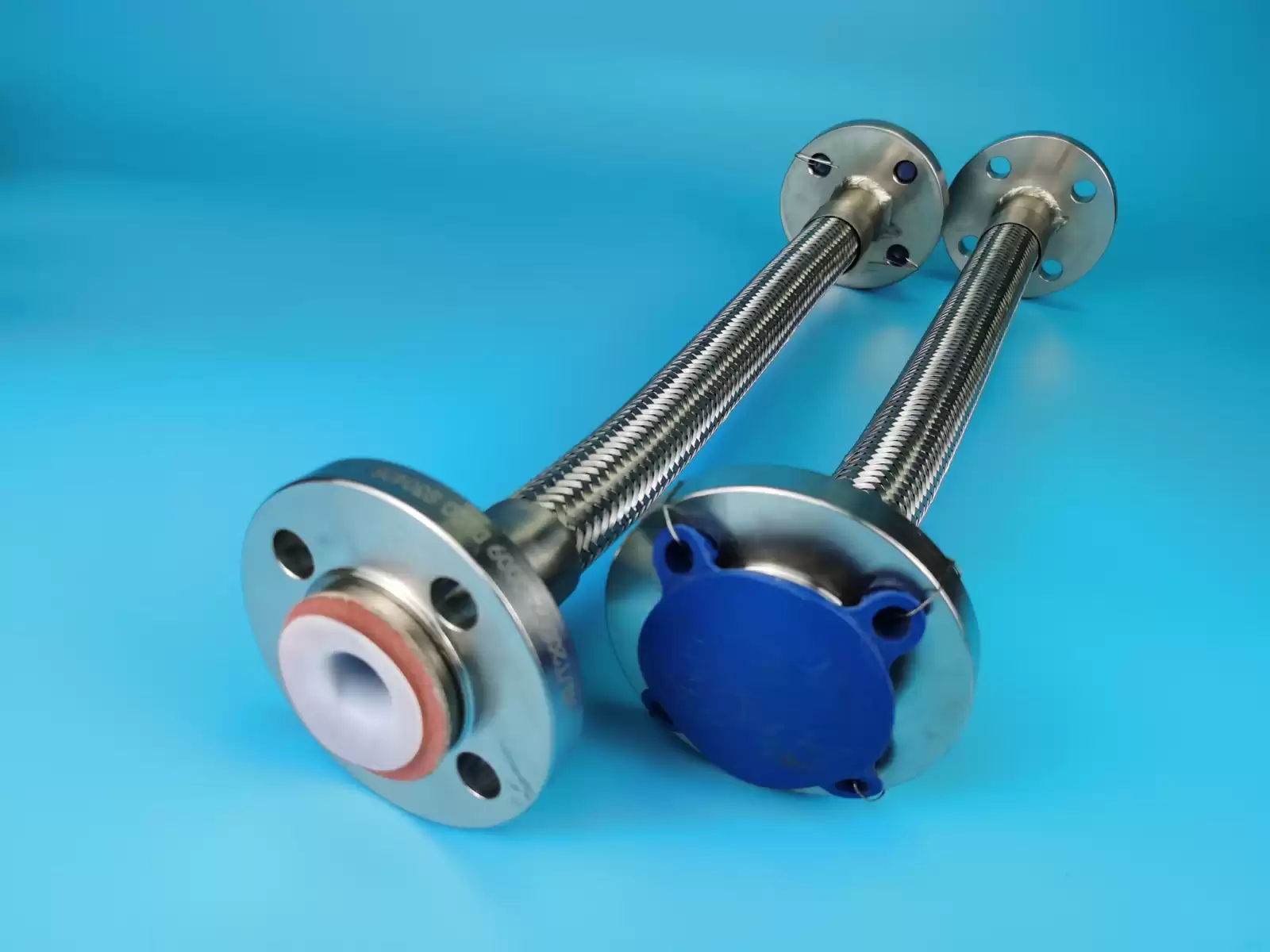

Stainless steel wire braided Flange hose
Stainless steel wire braided Flange hose is mainly used in pipes to solve the problems of vibration, displacement, feeding, thermal expansion and contraction compensation. Polytetrafluoroethylene hose has changed the characteristics that other pipes cannot bend in the past, and can withstand various acids, alkalis and salts. Stainless steel braided hose is an important connector in industrial pipeline. The pipe is generally made of 304, 316 and 316L stainless steel, with good pressure resistance, high and low temperature resistance, corrosion resistance and fatigue resistance. The applicable medium of metal hose is water, hot water, steam, gas, air, petroleum, chemicals, etc. Stainless steel corrugated hose of different grades can be selected according to different media.
Main characteristics of PTFE metal hose
Corrosion resistance: It can withstand all strong oxidants, strong acids (including aqua regia), reducing agents and various organic solvents. It also has strong resistance to molten alkali metal, fluoride medium and NaOH above 300 ℃.
Temperature resistance: the temperature range is - 190~+260 ℃, and the pipe is not affected by temperature.
Insulation: It is not affected by environment and frequency, the volume resistance is up to 1018 Ω/cm, the loss is small, and the voltage is high.
Structure of stainless steel braided hose assembly:

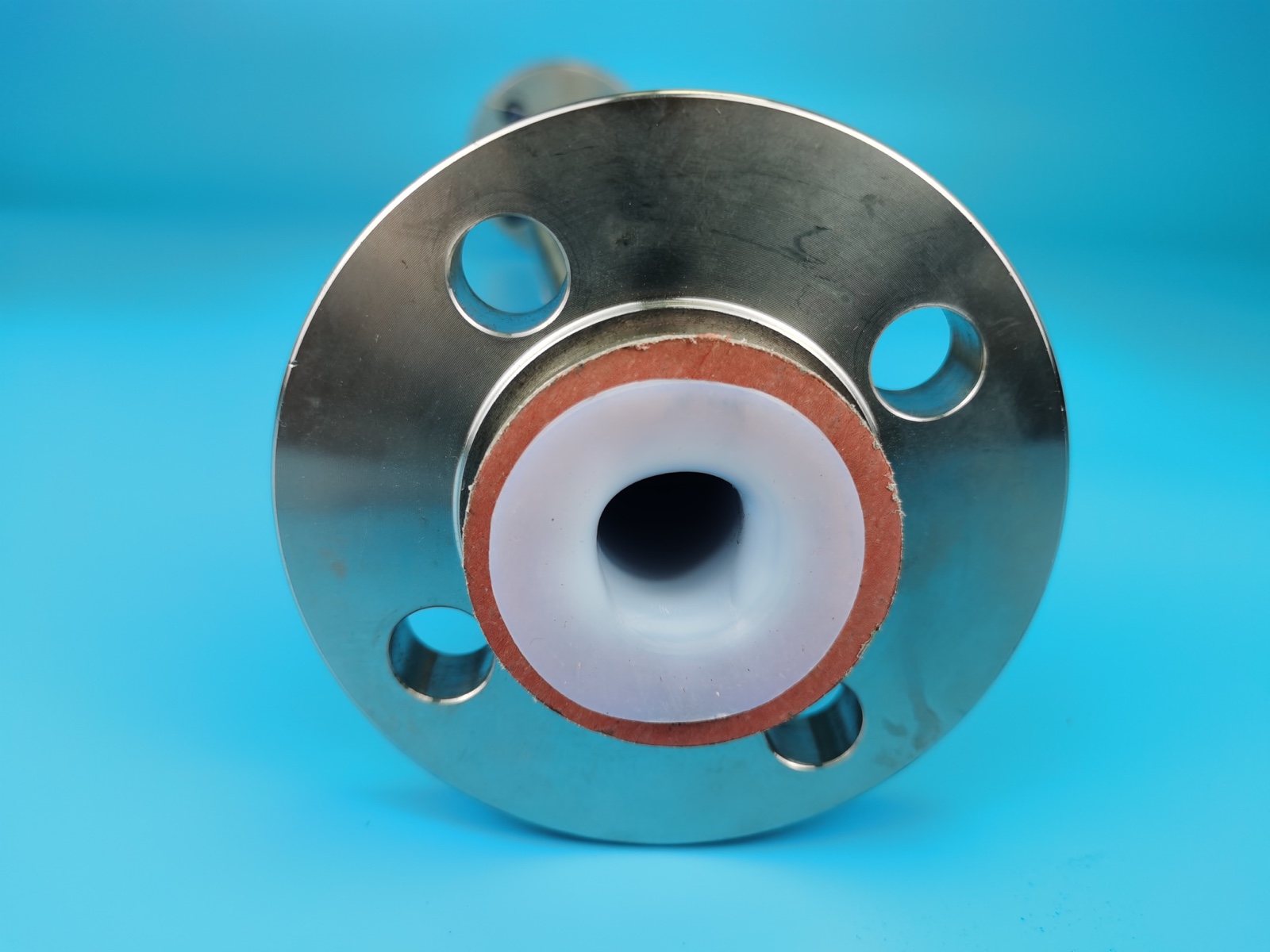

Both ends of the connector are connected by movable flange and fixed flange
Flange materials are generally stainless steel, carbon steel and cast steel
Inner core: PTFE bellows
Outer core: braided stainless steel layer
Braided flexible hose with single or double braids.
The material of each layer is usually the same as the corrugated pipe, including 304, 321 and 316L stainless steel.
The braided layer plays the role of reinforcement and shielding.
Stainless steel wire braided Flange hose features:
1. The hose body is a thin-walled stainless steel tube body hydraulic type, which has strong flexibility, scalability, bending and the ability to strengthen the protection of woven mesh sleeve, so it has a high bearing capacity.
2. It is applicable to various complex and harsh indoor and outdoor environments.
3. This product is not only applicable to the support of rotary joints, but also widely used in the soft connection of various fluid medium delivery.
Feature is a manufacturer of customized stainless steel metal hoses. Our industrial flexible metal hoses maintain the high quality of standard products, can be delivered on time and customized non-standard, and can provide reliable, qualified and stable suppliers for a long time.
All processes have passed ISO9001 certification, and all products are 100% qualified before delivery.
Installation conditions:
Flexible metal hoses can be installed horizontally, vertically or diagonally, preferably in a vertical manner. Special attention shall be paid to avoid approaching the wheels, and baffles shall be provided if necessary.

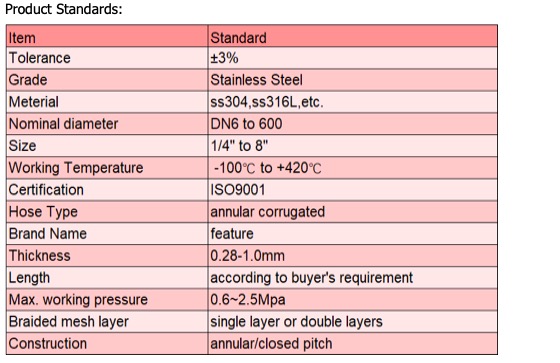

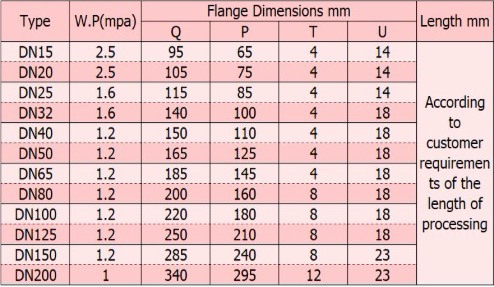

The performance parameters of Stainless steel wire braided Flange hose are as follows:
Stainless steel metal hose manufacturers can provide customized services:
1. It can be customized according to customer needs. Such as inner diameter, outer diameter, length, joint, material, printed label, packaging, etc.
2. OEM/ODM service can provide the products you want and customize the design according to your specifications.
3. If there is a need for further confirmation of products, we can provide test quality tests or purchase sample orders before placing a complete order.
