Stamped Steel Housed Units SBPF2 SBPFT2

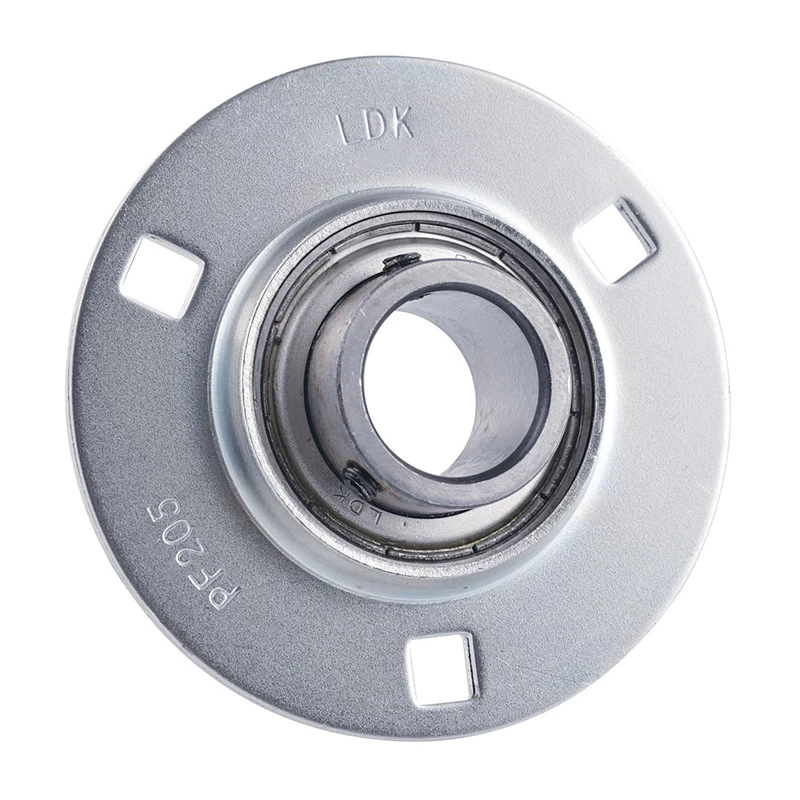

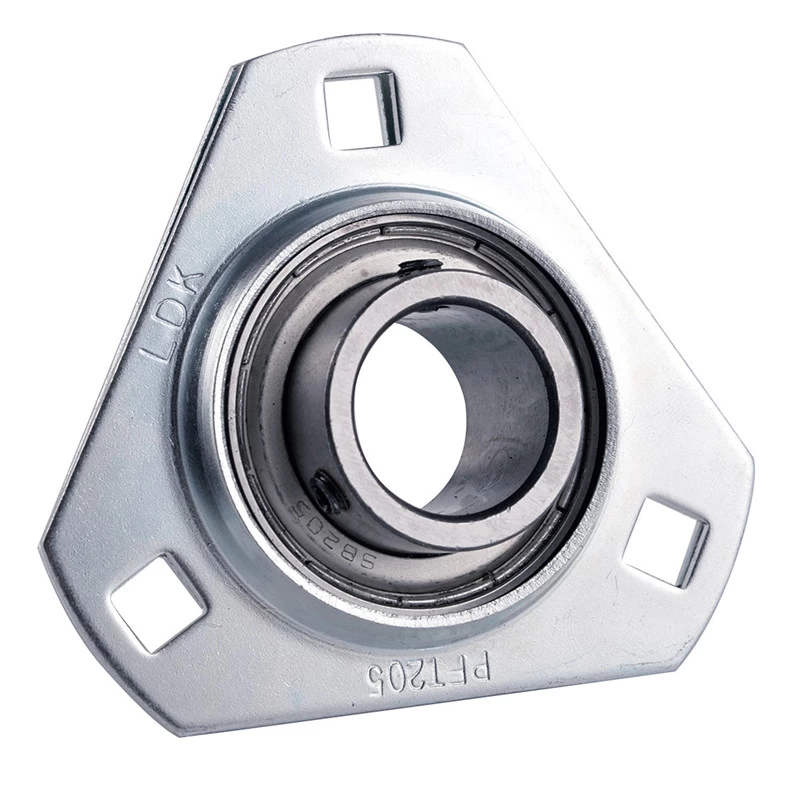

SBPF200/SBPFT200  Light duty, Setscrew locking,3-Bolt flange housing



Facebook Twitter Pinterest LinkedIn 分享

Pressed Steel Bearing Housing SBPFT208

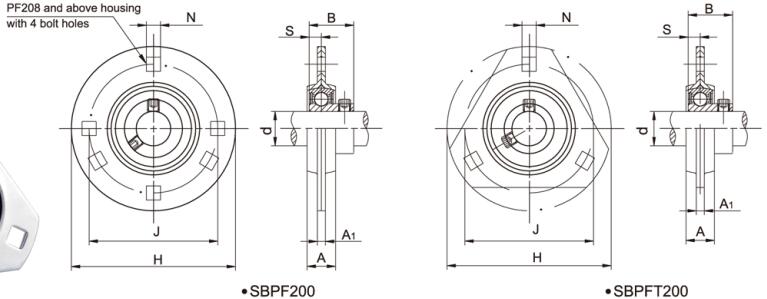

Unit No.
Shaft Dia
d
Dimensions (mm) Bolt Size Weight (kg)
(in) (mm) H J A A1 N B S (mm) (in)
SBPF201 12 81 63.5 14 4 7 22 6 M6 1/4 0.23
SBPF201-8  1/2    81 63.5 14 4 7 22 6 M6 1/4 0.23
SBPF202   15 81 63.5 14 4 7 22 6 M6 1/4 0.23
SBPF202-10  5/8    81 63.5 14 4 7 22 6 M6 1/4 0.23
SBPF203   17 81 63.5 14 4 7 22 6 M6 1/4 0.23
SBPF203-11 11/16   81 63.5 14 4 7 22 6 M6 1/4 0.23
SBPF204 20 90 71 16 4 9 25 7 MS 5/16 0.26
SBPF204-12 3/4   90 71 16 4 9 25 7 MS 5/16 0.26
SBPF205 25 95 76 18 4 9 27 7.5 M8 5/16 0.35
SBPF205-14  7/8    95 76 18 4 9 27 7.5 M8 5/16 0.35
SBPF205-15  15/16    95 76 18 4 9 27 7.5 M8 5/16 0.35
SBPF205-16 1   95 76 18 4 9 27 7.5 M8 5/16 0.35
SBPF206 30 113 90 18 5 11 30 8 M10 3/8 0.46
SBPF206-18  1-1/8    113 90 18 5 11 30 8 M10 3/8 0.46
SBPF206-19  1-3/16    113 90 18 5 11 30 8 M10 3/8 0.46
SBPF206-20 1-1/4   113 90 18 5 11 30 8 M10 3/8 0.46
SBPF207 35 122 100 20 5 11 32 8.5 M10 3/8 0.73
SBPF207-20  1-1/4    122 100 20 5 11 32 8.5 M10 3/8 0.73
SBPF207-21  1-5/16    122 100 20 5 11 32 8.5 M10 3/8 0.73
SBPF207-22  1-3/8    122 100 20 5 11 32 8.5 M10 3/8 0.73
SBPF207-23 1-7/16   122 100 20 5 11 32 8.5 M10 3/8 0.73
SBPF208 40 148 119 23 7 13.5 34 9 M12 1/2 0.94
SBPF208-24  1-1/2    148 119 23 7 13.5 34 9 M12 1/2 0.94
SBPF208-25 1-9/16   148 119 23 7 13.5 34 9 M12 1/2 0.94
SBPF209 45 150 120.5 23 7 13.5 36 9.5 M12 1/2 1.44
SBPF209-26  1-5/8    150 120.5 23 7 13.5 36 9.5 M12 1/2 1.44
SBPF209-27  1-11/16    150 120.5 23 7 13.5 36 9.5 M12 1/2 1.44
SBPF209-28 1-3/4   150 120.5 23 7 13.5 36 9.5 M12 1/2 1.44
SBPF210 50 157 127 25 8 13.5 38 10 M12 1/2 1.63
SBPF210-30  1-7/8    157 127 25 8 13.5 38 10 M12 1/2 1.63
SBPF210-31 1-15/16   157 127 25 8 13.5 38 10 M12 1/2 1.63
SBPF211 55 168 138 26 8 13.5 40 10.5 M12 1/2 1.9
SBPF211-32  2   168 138 26 8 13.5 40 10.5 M12 1/2 1.9
SBPF211-34  2-1/8    168 138 26 8 13.5 40 10.5 M12 1/2 1.9
SBPF211-35 2-3/16   168 138 26 8 13.5 40 10.5 M12 1/2 1.9
SBPF212 60 177 148 28 8 13.5 42 11 M12 1/2 2.1
SBPF212-36  2-1/4    177 148 28 8 13.5 42 11 M12 1/2 2.1
SBPF212-38  2-3/8    177 148 28 8 13.5 42 11 M12 1/2 2.1
SBPF212-39 2-7/16   177 148 28 8 13.5 42 11 M12 1/2 2.1

Unit No.
Shaft Dia
d
Dimensions (mm) Bolt Size Weight (kg)
(in) (mm) H J A A1 N B S (mm) (in)
SBPFT201 12 81 63.5 14 4 7 22 6 M6 1/4 0.23
SBPFT201-8  1/2    81 63.5 14 4 7 22 6 M6 1/4 0.23
SBPFT202   15 81 63.5 14 4 7 22 6 M6 1/4 0.23
SBPFT202-10  5/8    81 63.5 14 4 7 22 6 M6 1/4 0.23
SBPFT203   17 81 63.5 14 4 7 22 6 M6 1/4 0.23
SBPFT203-11 11/16   81 63.5 14 4 7 22 6 M6 1/4 0.23
SBPFT204 20 90 71 16 4 9 25 7 MS 5/16 0.26
SBPFT204-12 3/4   90 71 16 4 9 25 7 MS 5/16 0.26
SBPFT205 25 95 76 18 4 9 27 7.5 M8 5/16 0.35
SBPFT205-14  7/8    95 76 18 4 9 27 7.5 M8 5/16 0.35
SBPFT205-15  15/16    95 76 18 4 9 27 7.5 M8 5/16 0.35
SBPFT205-16 1   95 76 18 4 9 27 7.5 M8 5/16 0.35
SBPFT206 30 113 90 18 5 11 30 8 M10 3/8 0.46
SBPFT206-18  1-1/8    113 90 18 5 11 30 8 M10 3/8 0.46
SBPFT206-19  1-3/16    113 90 18 5 11 30 8 M10 3/8 0.46
SBPFT206-20 1-1/4   113 90 18 5 11 30 8 M10 3/8 0.46
SBPFT207 35 122 100 20 5 11 32 8.5 M10 3/8 0.73
SBPFT207-20  1-1/4    122 100 20 5 11 32 8.5 M10 3/8 0.73
SBPFT207-21  1-5/16    122 100 20 5 11 32 8.5 M10 3/8 0.73
SBPFT207-22  1-3/8    122 100 20 5 11 32 8.5 M10 3/8 0.73
SBPFT207-23 1-7/16   122 100 20 5 11 32 8.5 M10 3/8 0.73
SBPFT208 40 148 119 23 7 13.5 34 9 M12 1/2 0.94
SBPFT208-24  1-1/2    148 119 23 7 13.5 34 9 M12 1/2 0.94
SBPFT208-25 1-9/16   148 119 23 7 13.5 34 9 M12 1/2 0.94
SBPFT209 45 150 120.5 23 7 13.5 36 9.5 M12 1/2 1.44
SBPFT209-26  1-5/8    150 120.5 23 7 13.5 36 9.5 M12 1/2 1.44
SBPFT209-27  1-11/16    150 120.5 23 7 13.5 36 9.5 M12 1/2 1.44
SBPFT209-28 1-3/4   150 120.5 23 7 13.5 36 9.5 M12 1/2 1.44
SBPFT210 50 157 127 25 8 13.5 38 10 M12 1/2 1.63
SBPFT210-30  1-7/8    157 127 25 8 13.5 38 10 M12 1/2 1.63
SBPFT210-31 1-15/16   157 127 25 8 13.5 38 10 M12 1/2 1.63
SBPFT211 55 168 138 26 8 13.5 40 10.5 M12 1/2 1.9
SBPFT211-32  2   168 138 26 8 13.5 40 10.5 M12 1/2 1.9
SBPFT211-34  2-1/8    168 138 26 8 13.5 40 10.5 M12 1/2 1.9
SBPFT211-35 2-3/16   168 138 26 8 13.5 40 10.5 M12 1/2 1.9
SBPFT212 60 177 148 28 8 13.5 42 11 M12 1/2 2.1
SBPFT212-36  2-1/4    177 148 28 8 13.5 42 11 M12 1/2 2.1
SBPFT212-38  2-3/8    177 148 28 8 13.5 42 11 M12 1/2 2.1
SBPFT212-39 2-7/16   177 148 28 8 13.5 42 11 M12 1/2 2.1
