Stamped Steel Housed Units SBPP2 SAPP2

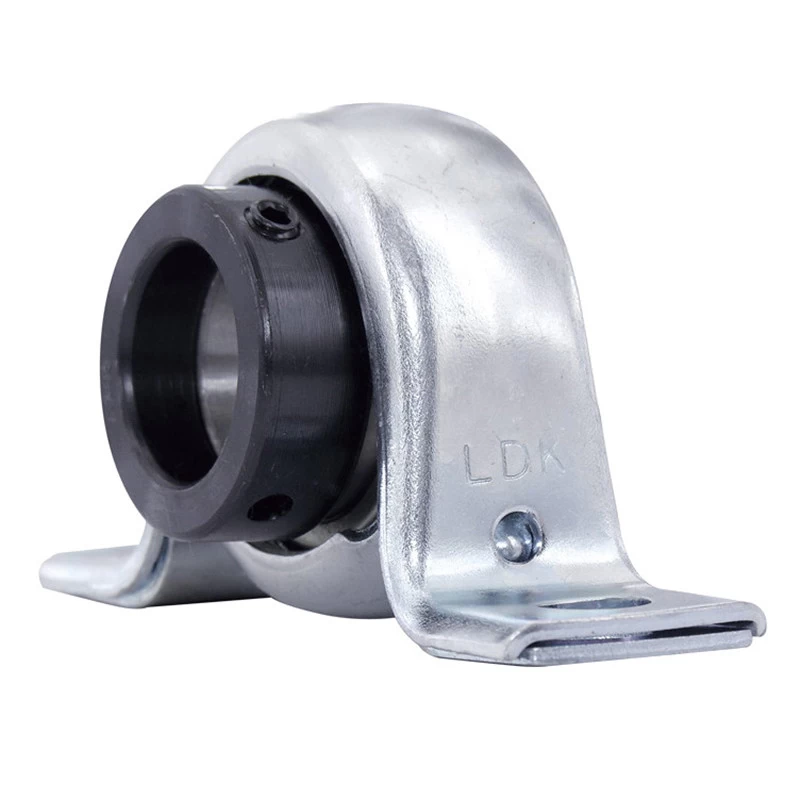

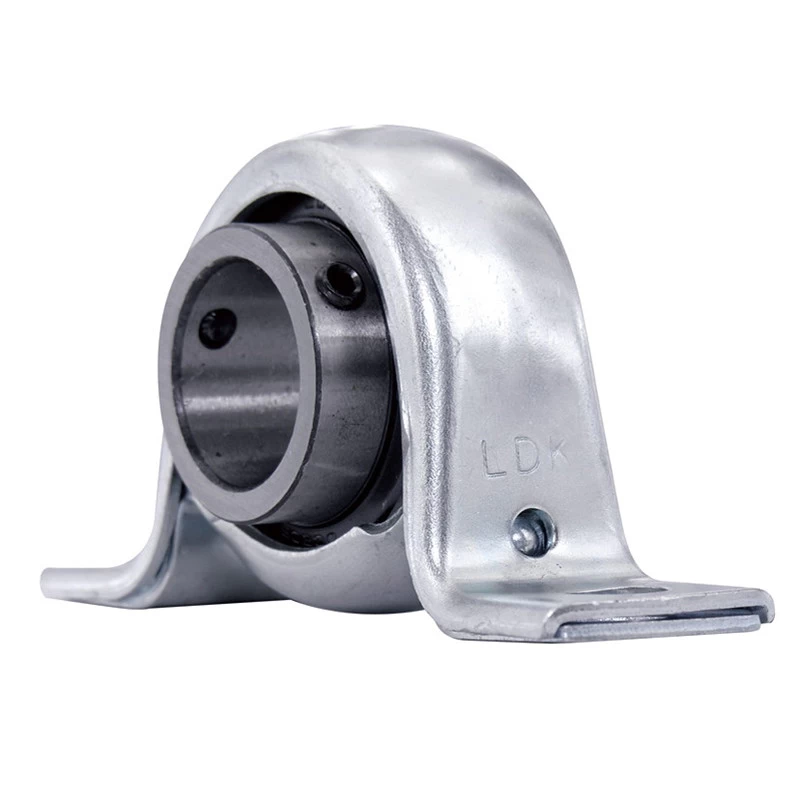

SBPP200/SAPP200  Light duty, Setscrew/Eccentric locking



Facebook Twitter Pinterest LinkedIn 分享

Pressed Steel Housing Bearing Units SAPP207

Unit No.
Shaft Dia
d

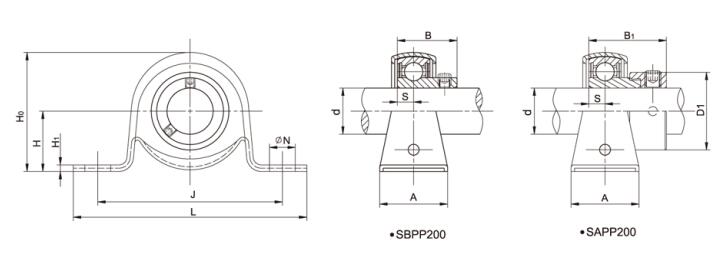

Dimensions(mm) Bolt Size (mm) Weight (kg)
(in) (mm) L J H H1 Ho N A B S
SBPP201  12 86 68 22.2 2.4 43.4 9.5 25 22 6 M8 0.15
SBPP201-8  1/2    86 68 22.2 2.4 43.4 9.5 25 22 6 M8 0.15
SBPP202 15 86 68 22.2 2.4 43.4 9.5 25 22 6 M8 0.15
SBPP202-10  5/8    86 68 22.2 2.4 43.4 9.5 25 22 6 M8 0.15
SBPP203 17 86 68 22.2 2.4 43.4 9.5 25 22 6 M8 0.15
SBPP203-11 11/16   86 68 22.2 2.4 43.4 9.5 25 22 6 M8 0.15
SBPP204  20 98 76 25.4 3 50.4 9.5 30 25 7 M8 0.22
SBPP204-12 3/4   98 76 25.4 3 50.4 9.5 30 25 7 M8 0.22
SBPP205  25 108 86 28.6 4 56.5 11.5 32 27 7.5 M10 0.31
SBPP205-14  7/8    108 86 28.6 4 56.5 11.5 32 27 7.5 M10 0.31
SBPP205-15  15/16   108 86 28.6 4 56.5 11.5 32 27 7.5 M10 0.31
SBPP205-16 1   108 86 28.6 4 56.5 11.5 32 27 7.5 M10 0.31
SBPP206  30 117 95 33.3 4 66.3 11.5 38 30 8 M10 0.43
SBPP206-18  1-1/8    117 95 33.3 4 66.3 11.5 38 30 8 M10 0.43
SBPP206-19  1-3/16    117 95 33.3 4 66.3 11.5 38 30 8 M10 0.43
SBPP206-20 11/4   117 95 33.3 4 66.3 11.5 38 30 8 M10 0.43
SBPP207  35 130 106 39.7 5 78.2 11.5 43 32 8.5 M10 0.63
SBPP207-20  1-1/4    130 106 39.7 5 78.2 11.5 43 32 8.5 M10 0.63
SBPP207-21  1-5/16    130 106 39.7 5 78.2 11.5 43 32 8.5 M10 0.63
SBPP207-22  1-3/8    130 106 39.7 5 78.2 11.5 43 32 8.5 M10 0.63
SBPP207-23 1-7/16   130 106 39.7 5 78.2 11.5 43 32 8.5 M10 0.63
SBPP208  40 148 120 43.7 5 85.8 12 43.5 34 9 M10 0.9
SBPP208-24  1-1/2    148 120 43.7 5 85.8 12 43.5 34 9 M10 0.9
SBPP208-25 1-9/16   148 120 43.7 5 85.8 12 43.5 34 9 M10 0.9
SBPP209    45 156 128 46.8 6 92.3 13 45.7 36 9.5 M10 1.20
SBPP209-26  1-5/8    156 128 46.8 6 92.3 13 45.7 36 9.5 M10 1.20
SBPP209-27  1-11/16    156 128 46.8 6 92.3 13 45.7 36 9.5 M10 1.20
SBPP209-28 1-3/4   156 128 46.8 6 92.3 13 45.7 36 9.5 M10 1.20


SAPP200 Series


Unit No.
Shaft Dia
d
Dimensions(mm) Bolt Size Weight
(in) (mm) L J H H1 Ho N A d1 B1 S (mm) (in)  (kg)
SAPP201  12 86 68 22.2 2.4 43.4 9.5 25 28.6 28.6 6 M6 1/4 0.26
SAPP201-8  1/2    86 68 22.2 2.4 43.4 9.5 25 28.6 28.6 6 M6 1/4 0.26
SAPP202   15 86 68 22.2 2.4 43.4 9.5 25 28.6 28.6 6 M6 1/4 0.26
SAPP202-10  5/8    86 68 22.2 2.4 43.4 9.5 25 28.6 28.6 6 M6 1/4 0.26
SAPP203   17 86 68 22.2 2.4 43.4 9.5 25 28.6 28.6 6 M6 1/4 0.26
SAPP203-11 11/16   86 68 22.2 2.4 43.4 9.5 25 28.6 28.6 6 M6 1/4 0.26
SAPP204  20 98 76 25.4 3 50.4 9.5 30 33.3 31 7 M8 5/16 0.31
SAPP204-12 3/4   98 76 25.4 3 50.4 9.5 30 33.3 31 7 M8 5/16 0.31
SAPP205  25 108 86 28.6 4 56.5 11.5 32 38.1 31.5 7.5 M10 5/16 0.38
SAPP205-14  7/8    108 86 28.6 4 56.5 11.5 32 38.1 31.5 7.5 M10 5/16 0.38
SAPP205-15  15/16   108 86 28.6 4 56.5 11.5 32 38.1 31.5 7.5 M10 5/16 0.38
SAPP205-16 1   108 86 28.6 4 56.5 11.5 32 38.1 31.5 7.5 M10 5/16 0.38
SAPP206  30 117 95 33.3 4 66.3 11.5 38 44.5 35.7 8 M10 3/8 0.56
SAPP206-18  1-1/8    117 95 33.3 4 66.3 11.5 38 44.5 35.7 8 M10 3/8 0.56
SAPP206-19  1-3/16    117 95 33.3 4 66.3 11.5 38 44.5 35.7 8 M10 3/8 0.56
SAPP206-20 11/4   117 95 33.3 4 66.3 11.5 38 44.5 35.7 8 M10 3/8 0.56
SAPP207  35 130 106 39.7 5 78.2 11.5 43 55.6 38.9 8.5 M10 3/8 0.8
SAPP207-20  1-1/4    130 106 39.7 5 78.2 11.5 43 55.6 38.9 8.5 M10 3/8 0.8
SAPP207-21  1-5/16    130 106 39.7 5 78.2 11.5 43 55.6 38.9 8.5 M10 3/8 0.8
SAPP207-22  1-3/8    130 106 39.7 5 78.2 11.5 43 55.6 38.9 8.5 M10 3/8 0.8
SAPP207-23 1-7/16   130 106 39.7 5 78.2 11.5 43 55.6 38.9 8.5 M10 3/8 0.8
SAPP208 40 148 120 43.7 5 85.8 12 43.5 60.3 43.7 9 M10 1/2 1.07
SAPP208-24  1-1/2    148 120 43.7 5 85.8 12 43.5 60.3 43.7 9 M10 1/2 1.07
SAPP208-25 1-9/16   148 120 43.7 5 85.8 12 43.5 60.3 43.7 9 M10 1/2 1.07
SAPP209 45 156 128 46.8 6 92.3 13 45.7 63.5 43.7 9.5 M10 1/2 1.24
SAPP209-26  1-5/8    156 128 46.8 6 92.3 13 45.7 63.5 43.7 9.5 M10 1/2 1.24
SAPP209-27  1-11/16    156 128 46.8 6 92.3 13 45.7 63.5 43.7 9.5 M10 1/2 1.24
SAPP209-28 1-3/4   156 128 46.8 6 92.3 13 45.7 63.5 43.7 9.5 M10 1/2 1.24
