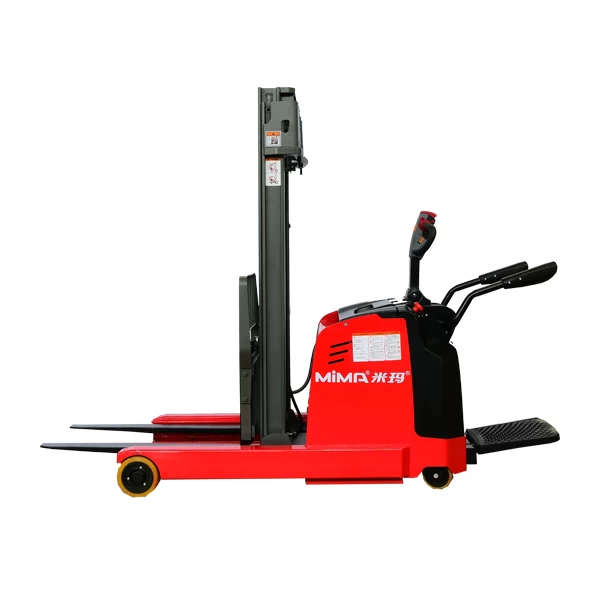

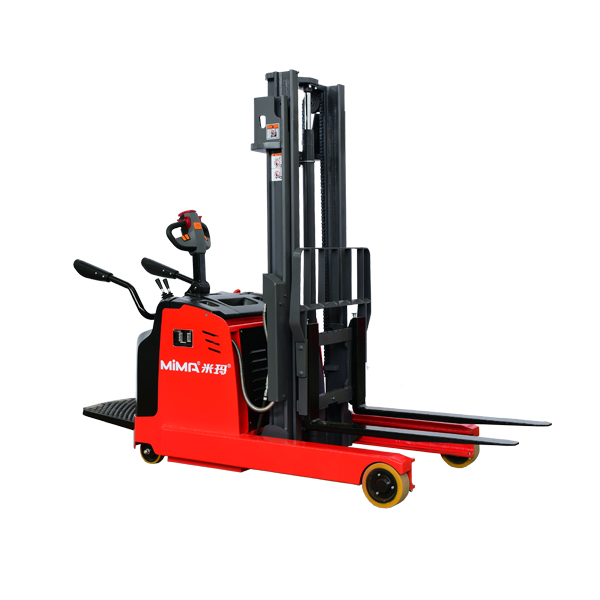

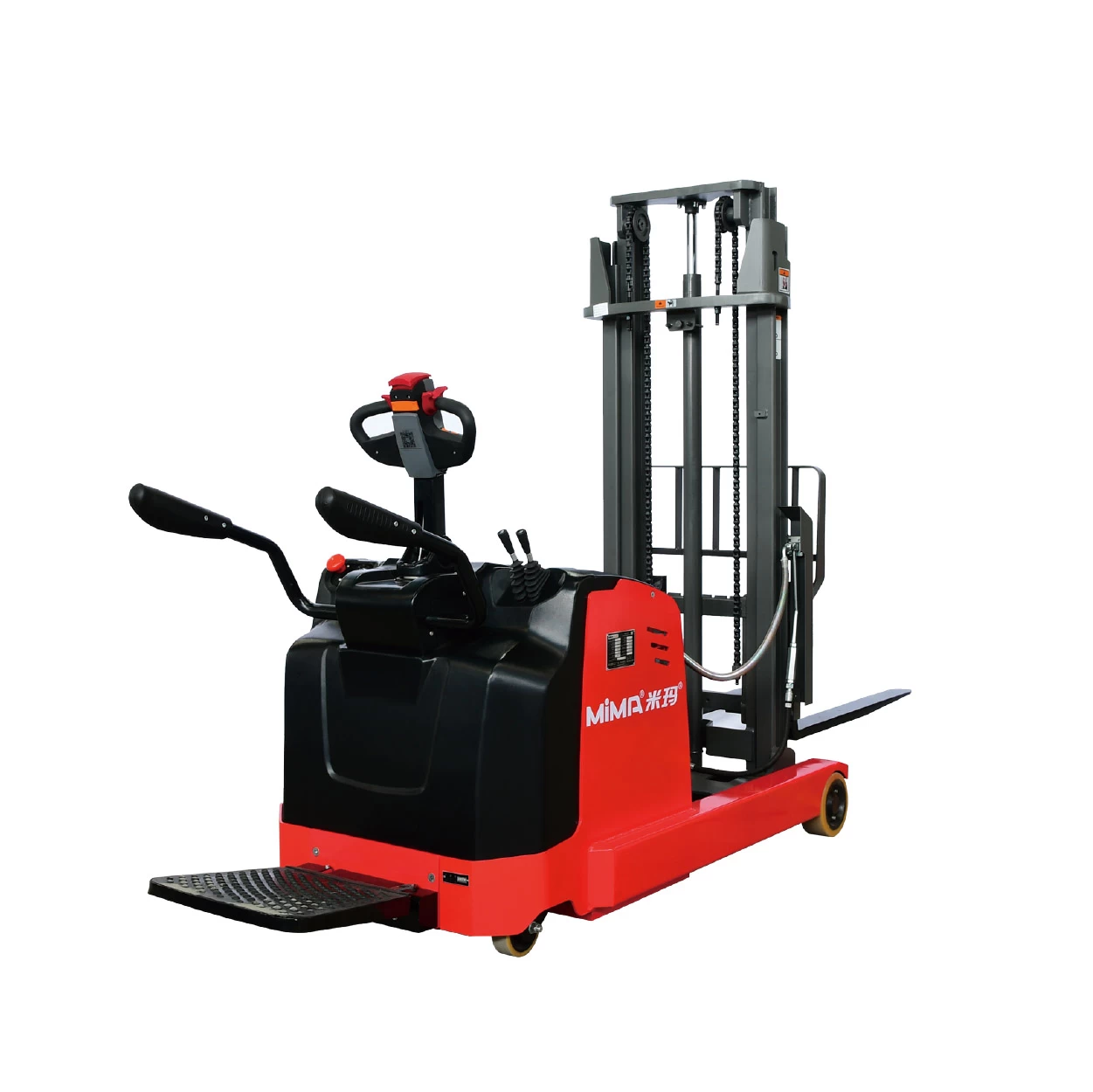

Stand on Electric Reach Stacker Truck MFA
Main Features:
1.Maintenance-free high-power AC drive system, providing reliable driving power;
2.The standard CURTIS series controller is reliable and durable.AMP waterproof and dustproof plug-in, which provides reliable protection for the circuit and greatly reduces electrical faults;
3.Platform type, pure electronic steering, integrated control handle, safe, labor-saving, flexible operation;
4.The newly designed floating suspension system makes the steering operation more flexible and convenient;
5.The frame is made of high strength steel plate frame structure, with large residual bearing capacity and long service life.
Specifications:
|
Manufacturer
|
|
MiMA
|
MiMA
|
|
Model
|
|
MFA15
|
MFA20
|
|
Power type
|
|
Battery
|
Battery
|
|
Operation type
|
|
Stand-on
|
Stand-on
|
|
Service weight(incl. battery)
|
kg
|
2100
|
2200
|
|
Rated capacity
|
Q(kg)
|
1500
|
2000
|
|
Load center
|
C(mm)
|
500
|
500
|
|
Lift height
|
h3(mm)
|
3000
|
3000
|
|
Fork dimension
|
l/e/s(mm)
|
1070/100/35
|
1070/100/40
|
|
Front overhang
|
x(mm)
|
130
|
130
|
|
Turning radius
|
Wa(mm)
|
1800
|
1985
|
|
Max. gradeability
|
%(tanθ )
|
6/8
|
6/8
|
|
Travelling speed laden/unladen
|
km/h
|
4/5.8
|
4/5.8
|
|
Lifting speed laden/unladen
|
mm/s
|
120/150
|
95/150
|
|
Lowering speed laden/unladen
|
mm/s
|
140/130
|
100/95
|
Performance
●Stand-on type with EPS, making the control more portable and flexible;
●The latest CURTIS AC control system, accurate and smooth control, higher efficiency;
Comfort
●The shock absorption design is adopted for the standing and driving pedal, which greatly improves the riding comfort and reduces the fatigue of long-time driving;
●Integrated control handle is adopted, simple and beautiful, all operation functions can be easily completed by one hand;
Reliability
●The frame is made of high strength steel plate frame structure with 5 wheels and low center of gravity design;
●The whole system adopts imported waterproof connector, all wires and cables have reliable protection, which greatly improves the reliability of the electrical system;
Safety
●With release braking, reverse braking and emergency braking three braking functions, to ensure the safety of driving;
●Standing and driving guardrail integrated forming, can better protect the operator;
●The standing-driving standard vehicle speed automatically decreases with the increase of steering Angle;
●It has the function of descending buffer and effectively protects the safety of goods.
Company Exhibition:
MiMA can offer you electric pallet truck, pallet stacker, counterbalance stacker,reach truck, stand-on reach truck, seated reach truck, reach stacker, electric counterbalance forklift truck, counter balance forklift, tow tractor, order picker, narrow aisle forklift, 4-direction reach truck, 3-way pallet stacker(VNA), multi-direction forklift, special forklift, AGV and other customized types for options, which can provide our customers with logistics handling solutions from 500kg to 100,000kg. Due to product serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.
Certification:
FAQ:
Q1: Are you electric reach stacker factory?
A1: Yes, we are the professional manufacturer of electric reach stacker for more than 20 years.
Q2: How about the delivery time?
A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM service?
A4: Yes.
