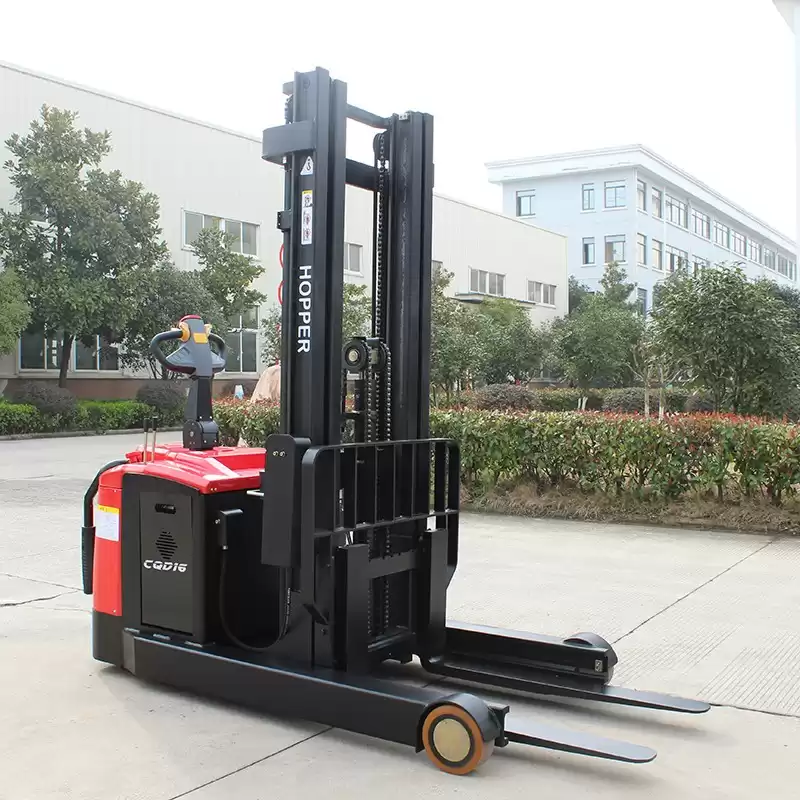

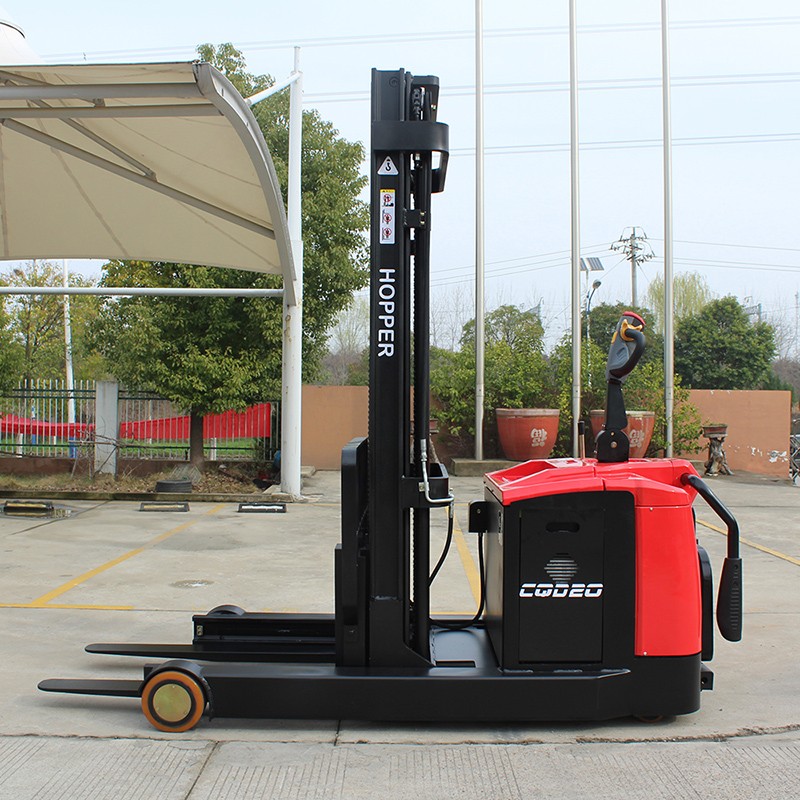

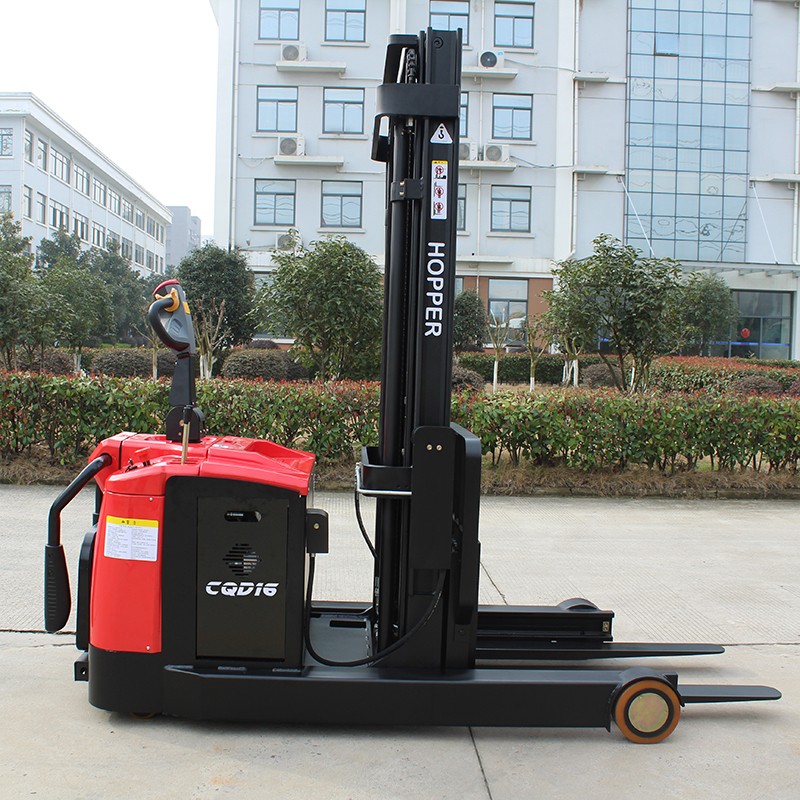

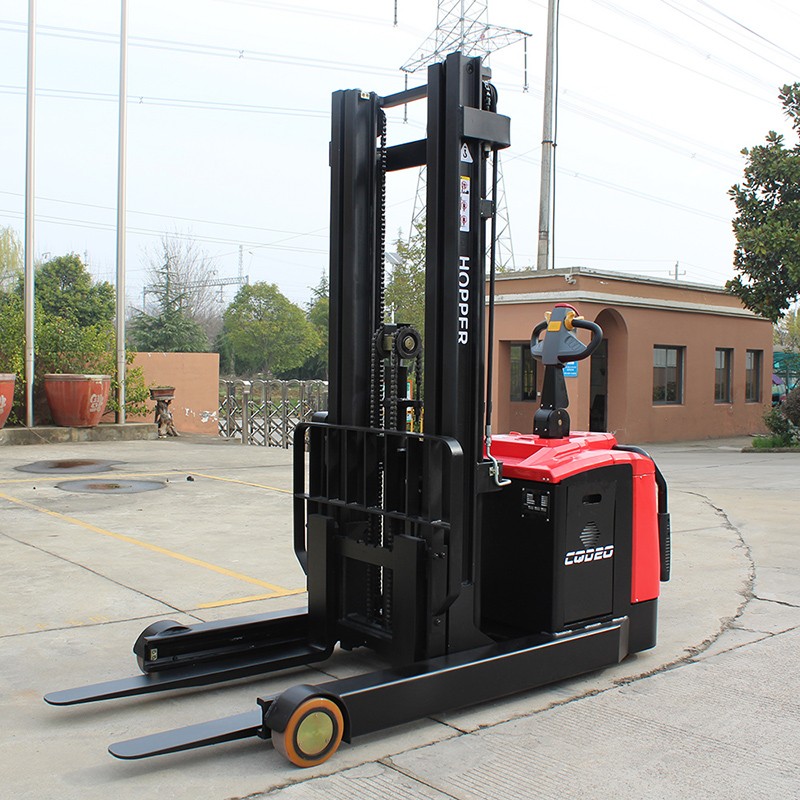

Stand On Electric Reach Truck 1.6 ton ~ 2.0 ton Series CQD16

The AC brushless drive motor is maintenance-free and cost-saving;



CURTIS AC control system, accurate control, higher efficiency



Equipped with electronic steering, improve efficiency.



 Can be different lifting heights



The imported integrated control system, smooth travel control, superior speed regulation performance;

Facebook Twitter Pinterest LinkedIn 分享
Identification 1.1 Manufacture's  type  designation HOPPER
1.2 Model 　 　 CQD16
1.3 Power  Type         Electric
1.4 Type of operation Stand-on
1.5 Steering Mode Electric  Power  Steering
1.6 Load capacity/rated load Q kg 1600
1.7 Load center distance C mm 600
1.8 Load distance, the center of drive axle to fork x 　 160
1.9 Wheelbase y mm 1440
Weight 2.0  Total Weight(with battery) 　 kg 1980
2.1 Axle Load(laden):Drive side/Load-bearing side 　 　 　
2.3 Axle Load(unladen):Drive side/Load-bearing side 　 kg /
Dimension 3.1 Overall Length (Pedal retracted/expanded) L 　 2335/2750
3.2 Overall Width W1/W2 mm 880/1030
3.3 Lift Height h1 mm 3000
3.4 Lowered mast height 2 　 204
3.5 Extended a mast height h4 mm 3890
3.6 Free lift height h5 　 /
3.7 Fork Dimension l/e/s mm 1070×100×40
3.8 Fork Mounting Class 　 　 2A
3.9 Fork carriage spread width b2 mm 220-690
3.1 Fork carriage tilt forward/backward α/β ° 44596
3.11 Distance between supporting arm and load side b 　 748
3.12 Reach Distance L3 mm 580
3.13 Height of supporting arm h6 mm 235
3.14 Ground Clearance at the center of wheelbase (Min) m1 　 52
3.15 Height of Operating Handlebar(Min./Max) h14 mm 1000/1450
3.16 Turning Radius (Pedal retracted/expanded) Wa 　 1  1  /2  45
3.17 Aisle width for lengthways(Pallet size 1000*1200)(Pedal retracted/expanded) Ast mm 2750/3170
3.18 Aisle width for lengthways(Pallet size 800*1200)(Pedal retracted/expanded) Ast mm 2830/3250
Tyre 4.1 Tyre Type 　 　 Polyurethane
4.2 Tyre Size(Front) 　 　 2  0  8
4.3 Tyre Size(Balance Wheel) 　 mm φ115x55
4.4 Tyre Size(Driving Wheel) 　 mm φ230x75
4.5 Wheels Quantity, front/rear (x=driving wheels) 　 　 2/1x+2
Performance 5.1 Traveling Speed (laden/unladen) 　 Km/h 5/5.5
5.2 LiftingSpeed(laden/unladen) 　 mm/s 80/130
5.3 Lowering Speed(laden/unladen) 　 mm/s 150/100
5.4 Max.Gradient Performance S2 5min (laden/unladen) 　 % 5月8日
5.5 Service Brake Type 　 　 Electromagnetic
5.6 Parking Brake Type 　 　 Electromagnetic
Power Unit 6.1 Drive Motor Rating(AC) S2-60min 　 　 1.5
6.2 Lift Motor Rating(DC) S3 15% 　 kW 3
6.3 Battery Voltage/Capacity K5 　 V/Ah 24/240
6.4 Battery Weight 　 kg 200
Others 7.1 Controller Brand 　 　 CURTIS
7.2 Controller Model 　 　 1232E
7.3 Sound level at driver's ear according to EN 12 053 　 dB 70

CQD16 Mast parameters
Designation     Lift  height   Lowered   Extended   Free  lift   Load  capacity
mm mm mm mm kg
One-stage 1600 2200 2500 1600 1600
Two-stage 2500 1790 3390 / 1600
3000 2040 3890 / 1600
3500 2290 4390 / 1200
4000 2540 4890 / 1000
Three-stage  full  free  mast 3500 1710 4390 1205 1200
4000 1873 4890 1370 1000
4500 2040 5390 1500 800
5000 2207 5890 1710 500
