Standing Hook Solar Tin Roof Mounting System
、
|
Item No
|
UI-TR
|
Installation
Site
|
Flat/Slope
Tin Roof (0-60 Degree)
|
|
Material
|
Aluminum
6005 T5
Stainless Steel 304
|
Max Wind
Speed
|
60 m/s
|
|
Warranty
|
10 Years
|
Max Snow
Load
|
1.4 KN/M2
|
|
Service
Life
|
25 Years
|
Max Building
Height
|
65 ft (20m)
|
1.No Roof Piercing

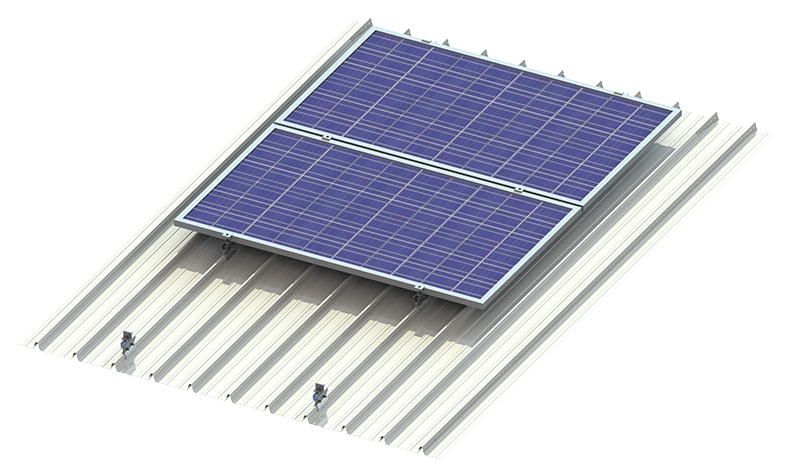

The roof top solution used hook to fix solar panels without piercing your roof which can protect the roof and keep a good outlook.
2. No Rail
Using standing hook to fix the panel instead of rail makes the installation easier and cost less.

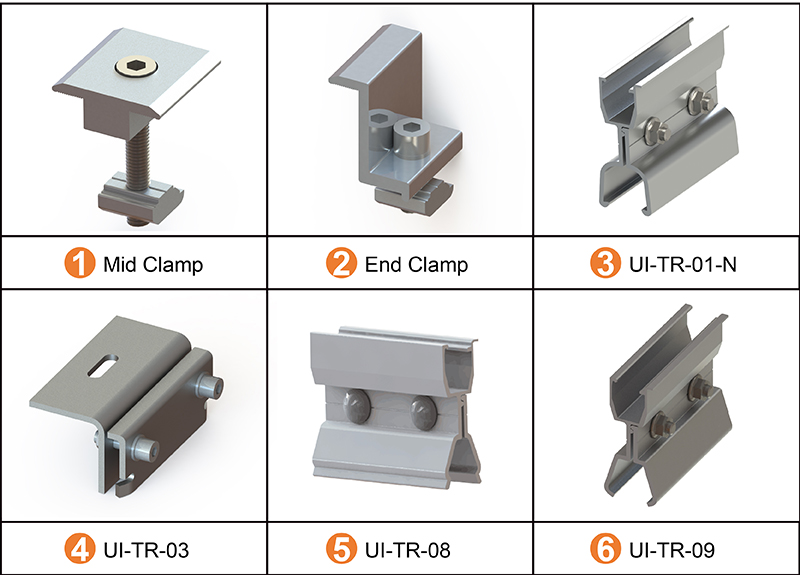

3. Various Types Hook
Different types of hook for you to choose according to you roof sheet and accept customize if you need.
UISolar roof mounting systems with patented rail, highly pre-assembled components can be your better choice.
