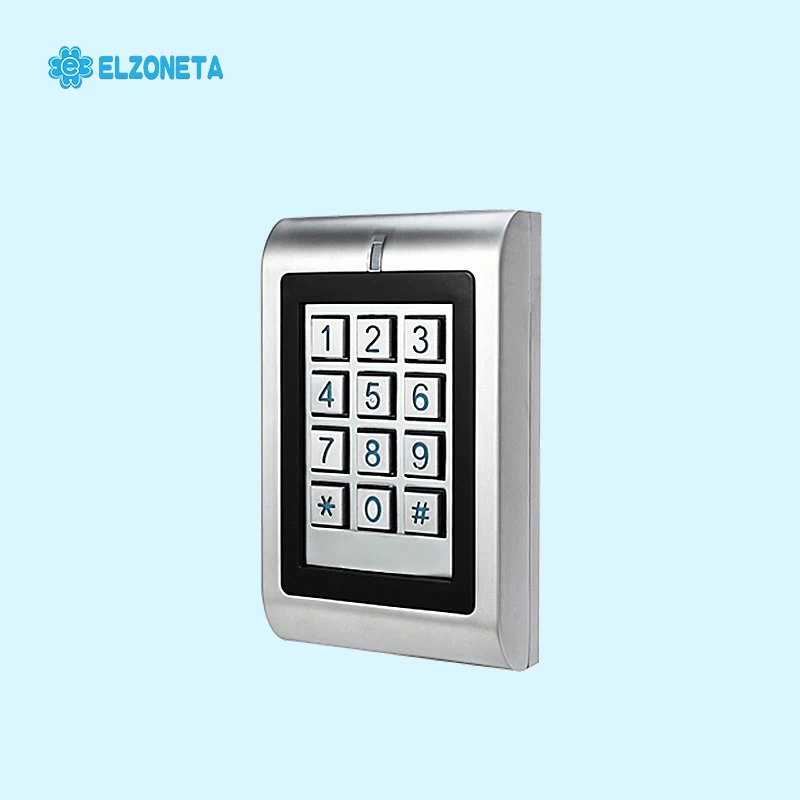

EC-ACS-SK01 Outdoor Standalone Access Control Keypad

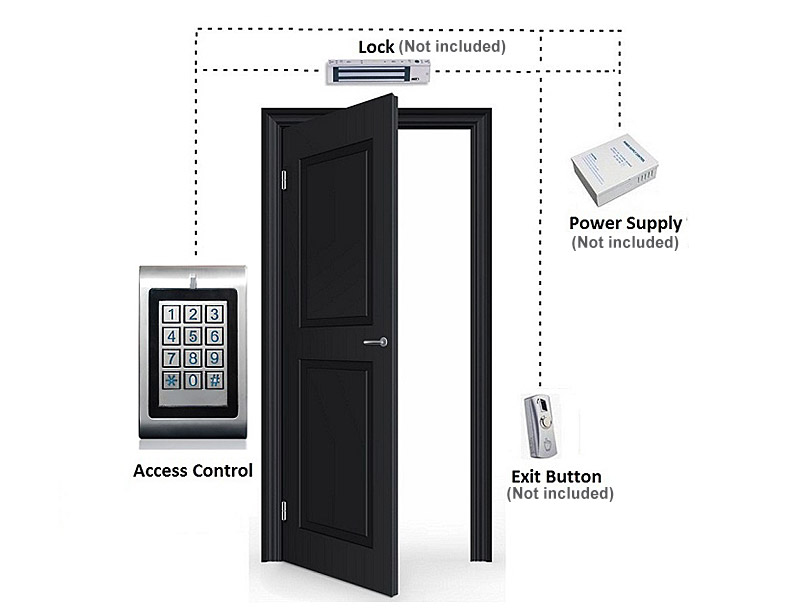

The standalone keypad is commonly used at the door of the office or home or the gate of the building. People need to read the related RFID cards ( EM card, HID card, MIFARE card etc.) or input correct PIN code before entering. With the IP66 waterproof and metal anti vandal case, the access keypad is applicable to use outdoor to protect the entrance like a guard.
Features:
• Waterproof, conforms to IP66
• Two relays operation
• 1,100 users (Card, PIN, Card + PIN)
• Card type: 125KHZ EM card
• PIN length: 4~6 digits
• Latch mode to hold door or gate open
Specifications:
|
User Capacity
Zone 1
Zone 2
|
1100 Card/PIN
1000
100
|
|
Operating Voltage
Idle Current
Active Current
|
12~28V AC&DC
55mA
80mA
|
|
Keypad
|
12 Key (3*4)
|
|
Proximity Card Reader
Radio Technology
Read Range
|
EM
125KHz Industry Standard Proximity Card
3 ~ 6 cm
|
|

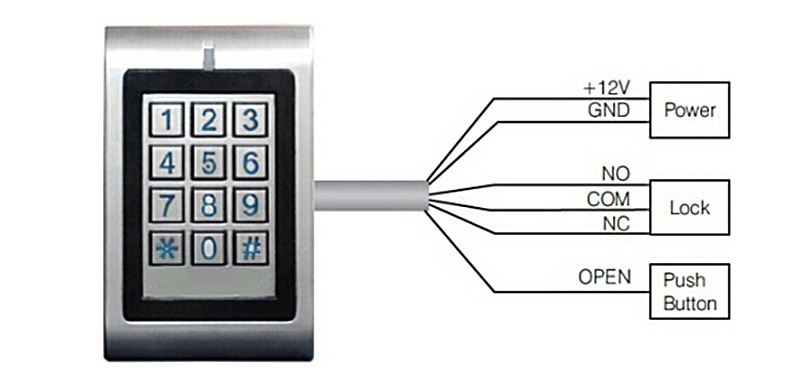

Wiring Connections
|
Electric lock, exit button,
DOTL, external alarm, door bell
|
|
Relay
Adjustable Relay Output Time
Adjustable Alarm Output Time
Lock Output Load
Alarm Output Load
|
Two (NO, NC, COM)
1 ~ 99 Seconds (5 seconds default)
1 ~ 3 minutes (1 minute default)
3 Amp Maximum
3 Amp Maximum
|
|
Environment
Operating Temperature
Operating Humidity
|
Meets IP66
-40 oC ~ 60 oC (-40 oF ~ 140 oF)
10% ~ 90% Non-Condensing
|
|
Physical
Surface Finish
Dimensions
Unit Weight
Shipping Weight
|
Zinc-Alloy Enclosure
Powder Coat
600g
700g
|
