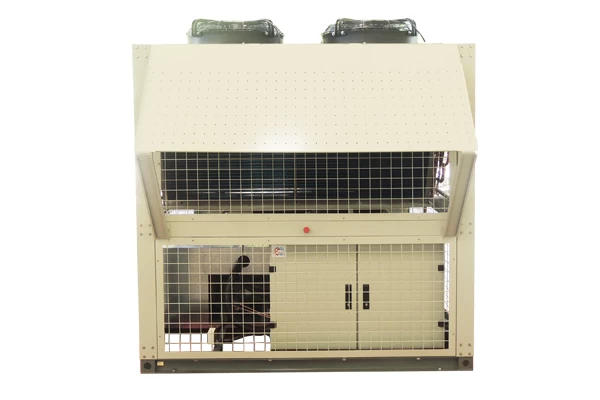

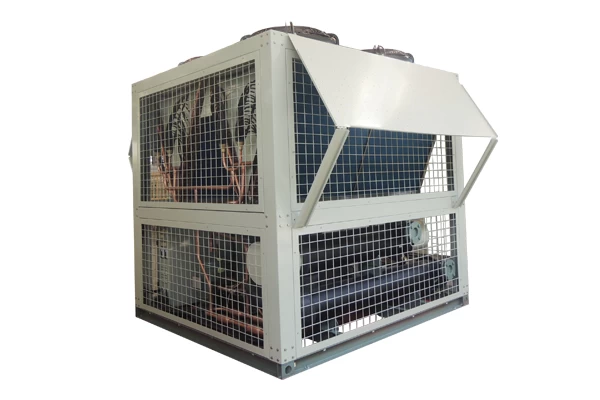

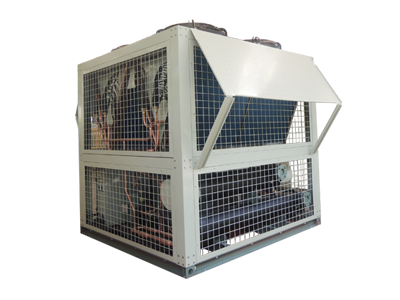

Standard Ultra-Low Temperature Air Source Hot Water Unit
Applications:
Heating, cooling, and heating in all occasions
H'Stars ultra-low temperature cold heat energy air source heat pump has five functions of refrigeration, heating and domestic hot water classification. It can realize summer cooling and winter heating. It provides domestic hot water for the whole year, so that it can be used in one machine and five times. Ground space, reduce initial investment, and save more than 40% of the cost of use.
The ultra-low temperature cold heat energy air source heat pump is divided into two types: vortex and screw. The project can be used in a single machine or in modular design. It is flexible and suitable for all kinds of places with cold and warm water and domestic hot water demand. Operate in the environment of -25℃ ~ 43℃, to obtain hot water of 55 ℃, to meet the needs of hot water in the range of 35-55℃, and suitable for use in highland areas
Technical Parameters:
Rated cooling capacity 25KW Cold water temperature range 5~20℃
Rated heating capacity 25KW Hot water temperature range 30~55℃
Cooling input power 4.53 KW Cooling dry and wet bulb temperature 35/24℃
Heating dry and wet bulb temperature -12/-14℃ Heating input power 4.72KW
COP 3.55 refrigerant R22
Power specification 3N-380V-50HZ
Unit features:
1. The compressor is equipped with a low temperature antifreeze electric heating belt, which is beneficial to the low temperature start of the compressor;
2. The unit adopts the Copeland ZW heat pump special jet-enhanced compressor, combined with the second-generation high-temperature jet boosting technology in Europe and America, to achieve the level of air energy heat energy;
3. World-class electronic expansion valve, precise control of refrigerant flow, improve unit performance, fully ensure that the unit operates normally in low temperature and harsh environment;
4. A wide range of applications, temperature range -25-43 ° C;
5. One machine and three use, to solve the environmental temperature comfort, to meet the hot water demand;
6. Reduce the floor space, easy to install;
7. Ultra-quiet operation, low noise, only 60 decibels.
