Short Delivery Time!
We offer Customized Size also!

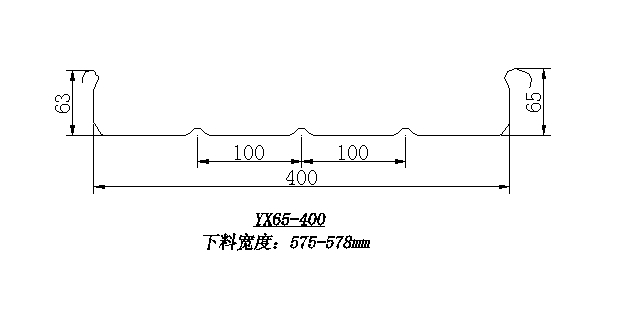

Profile Drawing
Main Machine Parameters
|
Technical Parameter
|
Description
|
|
Material Thickness
|
0.7-1.2mm
|
|
Material Width
|
575-578mm
|
|
Effective Width
|
400/430mm
|
|
Forming Station
|
13 steps
|
|
Motor power
|
5.5*2Kw
|
|
Machine Size
|
5.8m*2.1m*1.3m
|

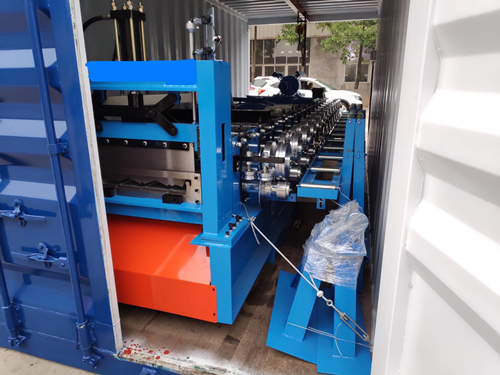

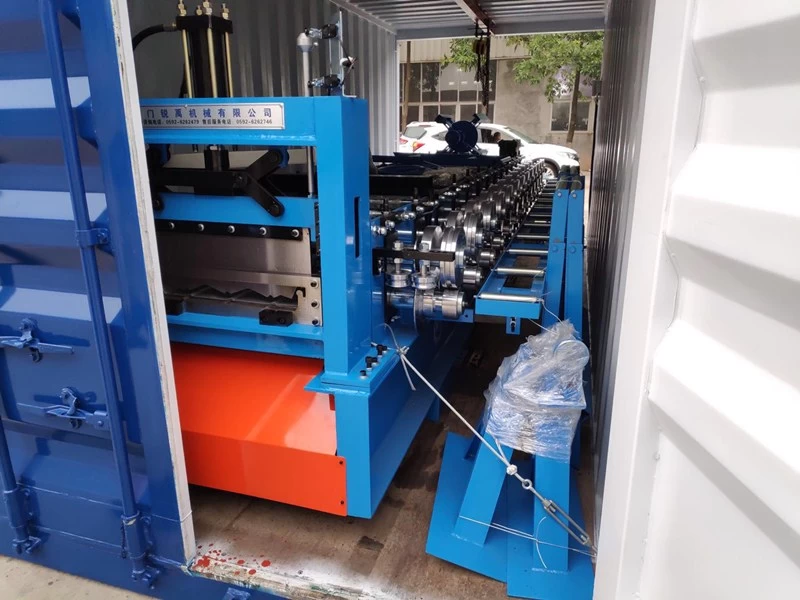

Standing Beam Roofing Machine with 20FT Container
Machine Parts

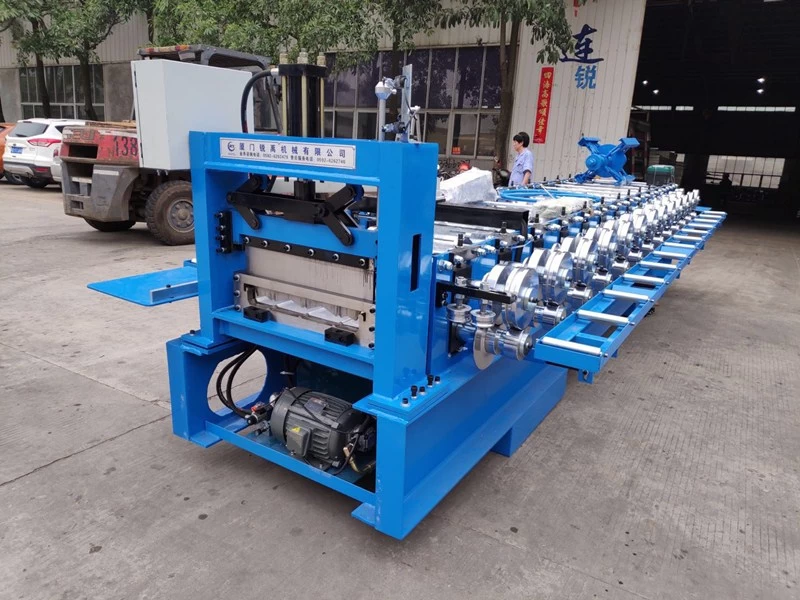

1.Standing Beam Metal Roof Machine Rollers and manual pre-cutter
This machine can produce both straight and tapered type. It saves money and space.
2.Standing Beam Roof Roll Former Post Cutter
3. Standing Beam Machine Protection Cover ( For Your Option)
4. Decoiler
5. Exit Rack
