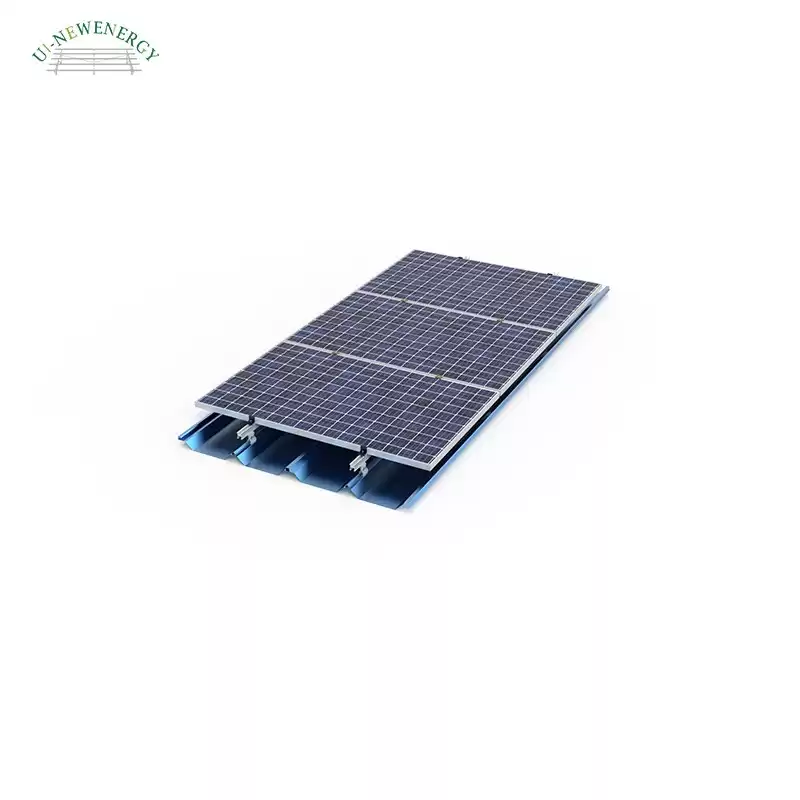

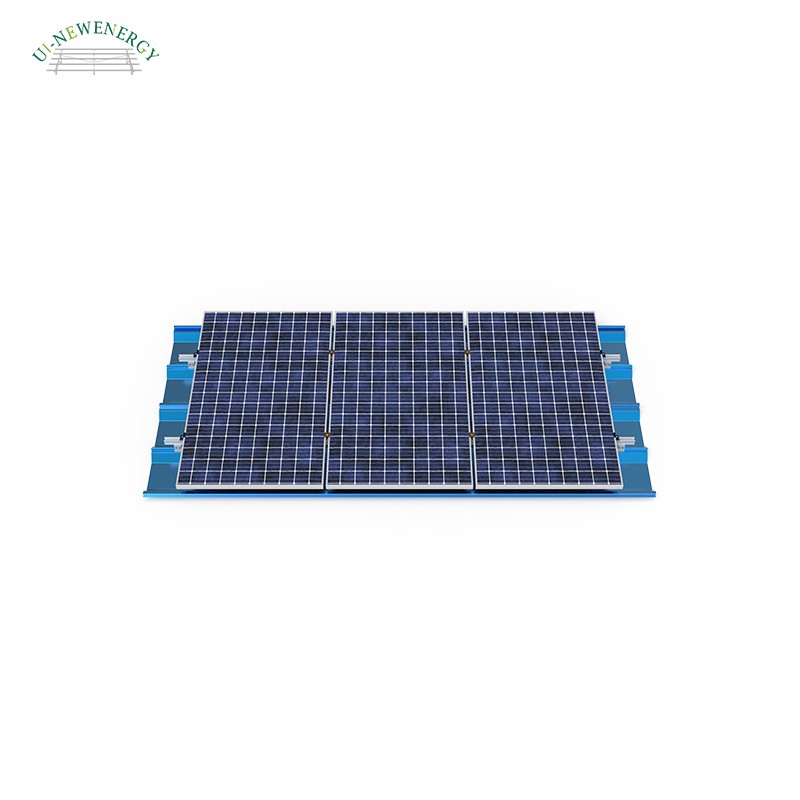

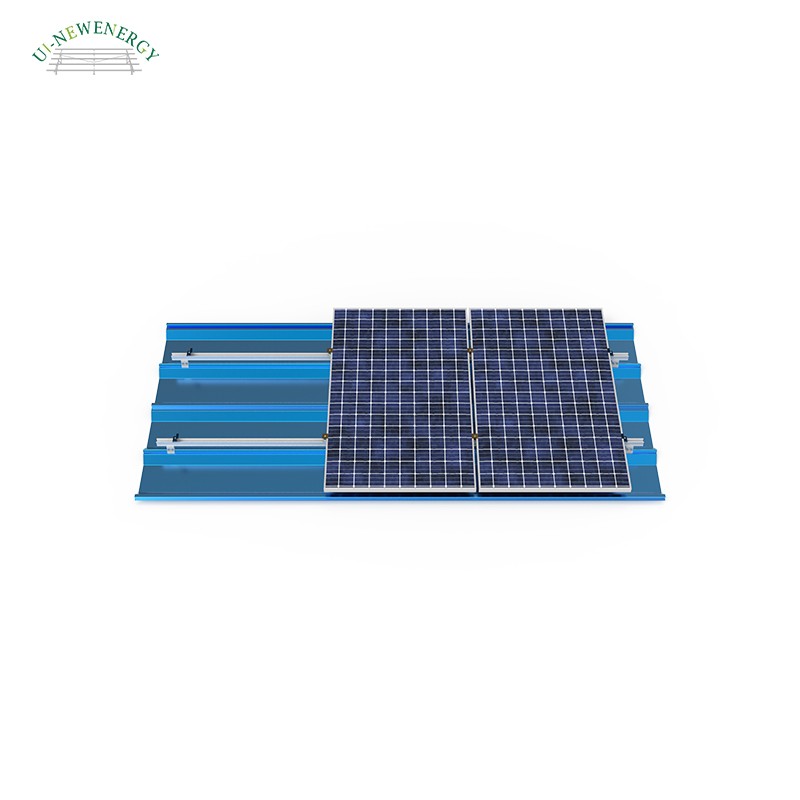

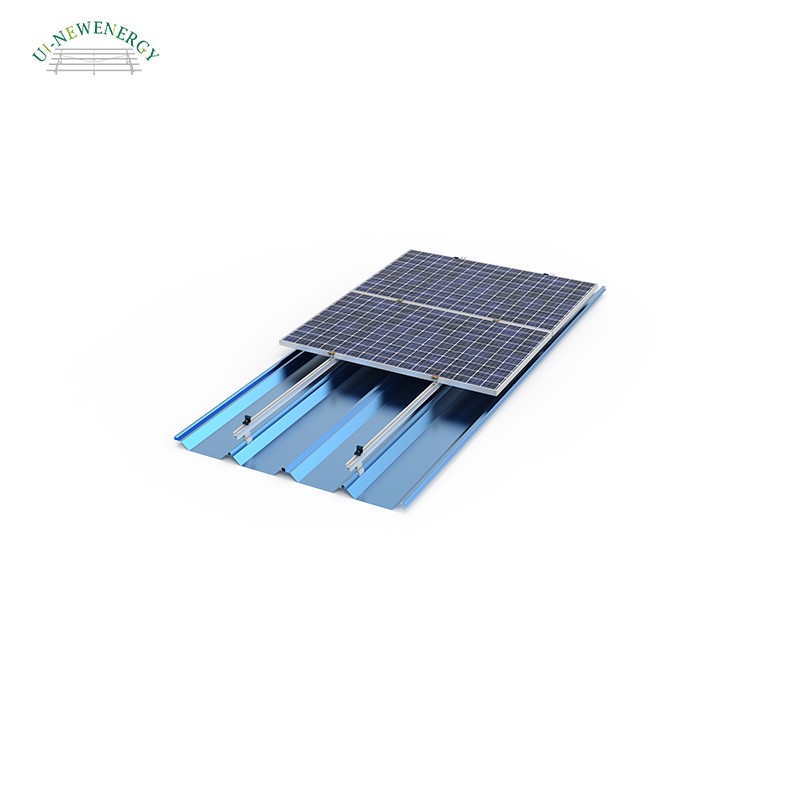

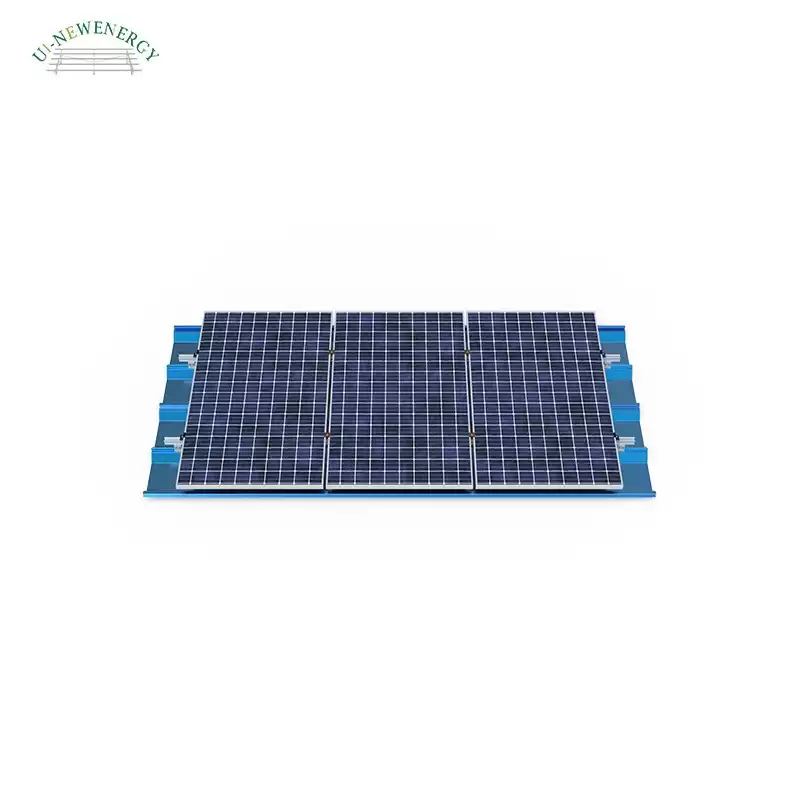

Solar Corrugated Metal Roof Mounting SR-C-1
Standing seam clamp is for corrugated metal roof solar panel mounting, fits the roof without damaging the roof. Equipped with waterproof parts to prevent water leakage from bolt holes.
Metal Roof Solar Mounting Clamp Features:
1.Versatile roof clamp for different roof types.

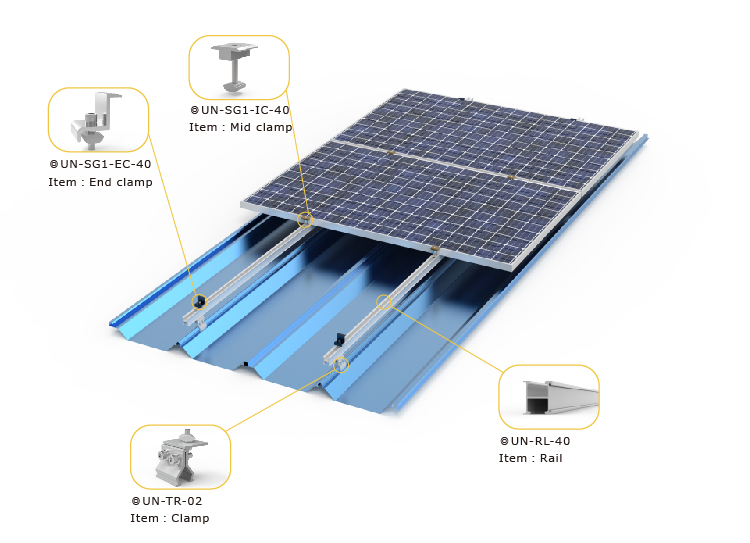

2.Easy and fast with unique rail and module/flat nut.
3.Pre-assembled parts to save cost and installation time.
4.Without penetration on the roof structure surface
5.Anti-corrosion.
|
Product Parameter
|
|
Product Name
|
Solar Standing Seam Roof Mounting
|
|
Installation Site
|
Trapezoid/ Corrugated Metal Roof
|
|
Material
|
Aluminum 6005-T5 & Stainless Steel 304 Bolt Sets
|
|
Surface
|
Anodized
|
|
Color
|
Silver or Customized
|
|
Module Angle
|
0-20 Degrees
|
|
Wind Speed
|
60m/s
|
|
Snow Load
|
1.4kN/m2
|
|
Standard
|
AS/NZS 1170; JIS C8955:2017
|
|
Warranty
|
10 Years
|
|
Service Life
|
25 Years
|
|

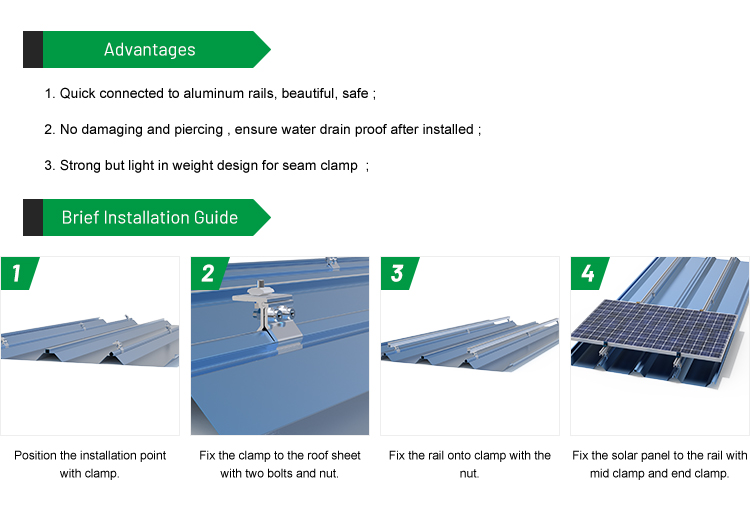

Advantages
|
Easy Installation; Safety And Reliability; 10-Year Warranty
|
F A Q
Q1:Are you a factory or trading company?
A1: We are a factory in China, specializing in solar mounting system project planning and aluminum profile customization and processing.
Our product are solar ground structures, solar carport, solar farm, ground screw and related components ect.
Q2: Where is your factory located? How can I visit there?
A2: Our factory is located in Xiamen city, Fujian province,China.
You can fly to Xiamen Gaoqi International Airport directly, all our clients, from home or abroad, are warmly welcome to visit us.
Q3: How does you factory do regarding quality control?
A3: "Quality is priority" we always attach great important to quality controlling from the beginning to the very end.
Q4: How can I get some samples？
A4:We are honored to offer samples according to your inquiry.
Q5:What necessary info. for us to design and quote？
1.What is your pv panels dimension?_____mm Length x_____mm Width x____mm Thickness
2.How many panel are you going to mount? _______Nos.
3.Do you have any special requirement on ground/flat roof clearance?
4.May I know the tilt angle you need?________degree
5.What is your planned pv assmebly block? ________Nos. in a row,___rows
6.How is weather there, such as wind speed and snow load?___m/s anit-wind speed and____KN/m2 snow load.
