Installing solar panels on the tin roof can not only provide heat insulation but also absorb solar power. Solar power generation is very environmentally friendly.
Technical Parameters
|
Installation Angle
|
Flat
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/m2
|
|
PV Modules
|
Framed,unframed
|
|
Module Orientation
|
Landscape
|
|
Standards
|
AS/NZS 1170
|
|
|
DIN 1055
|
|
|
JIS C 8955：2017
|
|
|
International Building Code IBC 2009
|
|
|
California Building Code CBC 2010
|
|
Material
|
Al6005-T5(Anodized)
|
|
Color
|
Silvery or according to customer requirements
|
|
Warranty
|
12 years
|

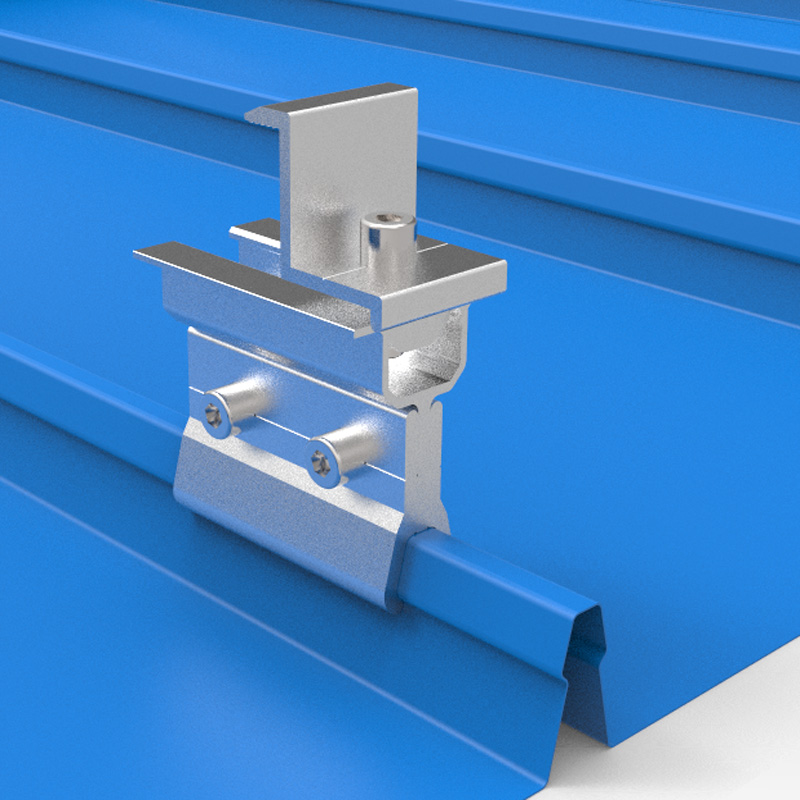

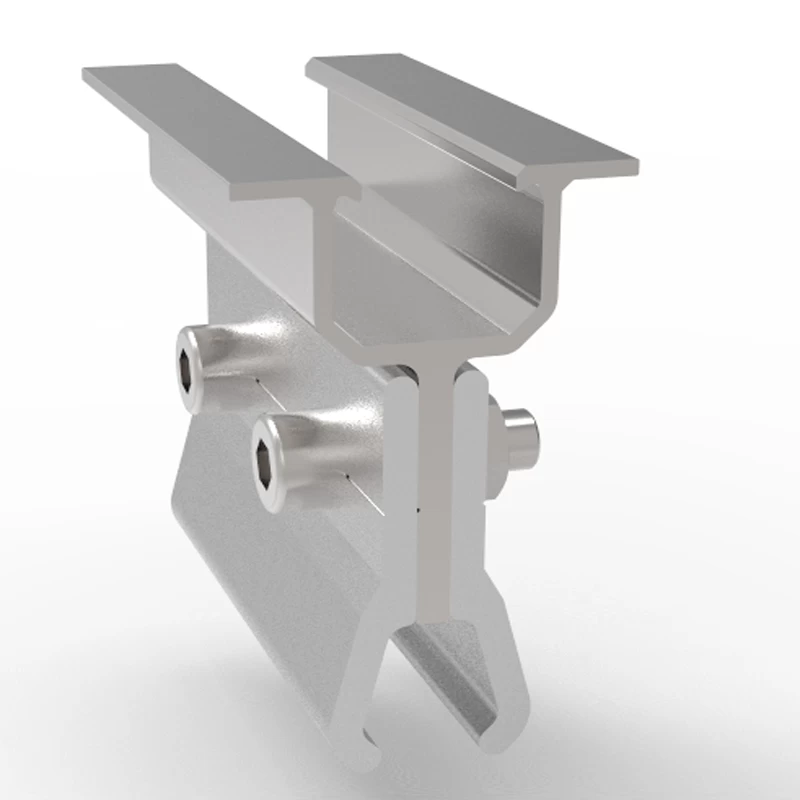

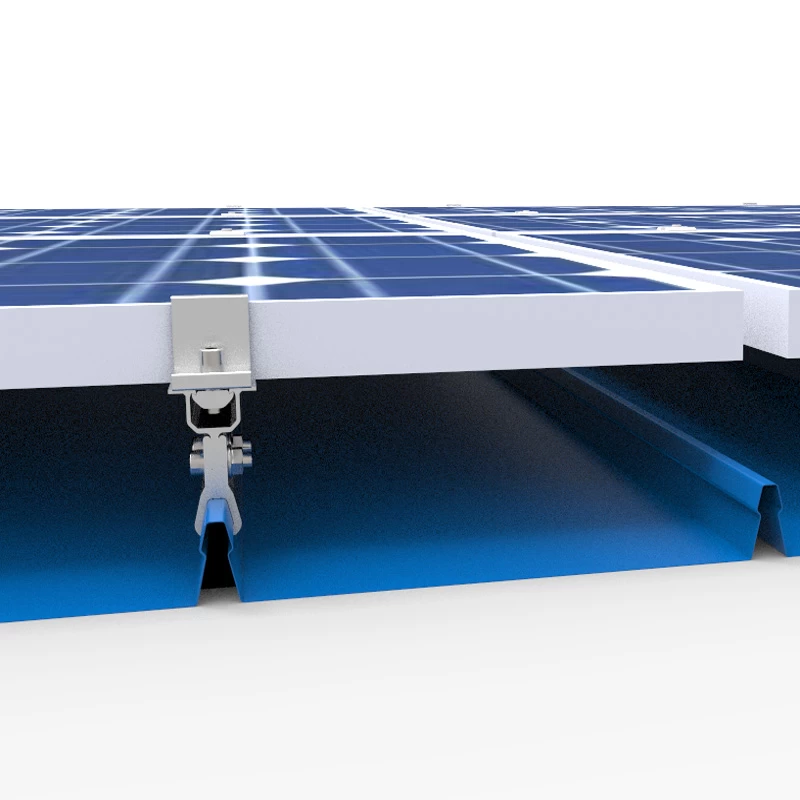

Standing seam metal roof clamps
Feature:
1. No. 1 erect
color steel tile fixture is also suitable for a specific color steel tile,
such
a color steel tile has a long convex portion, which is fixed by clamping the
convex portion;
2. The clamp
clamps the two clamps on the color steel tile by bolts,
so it will not damage
the original color steel tile.
3. Light weight
and easy installation
Advantage
1.Easy installation;
2.High strength,anti-uv,high frequency insulation(design standard:IS C 8955:2017,GB 50009-2012,IBC 2009,CBC 2010);
3.Chemical resistance&weatherability(certificate:AS/NZS 1170,MCS,CSA etc);
4.Max wind speed:up to 60m/s;
5.Anti-corrosive:anodized;
6.Duration:25 years.

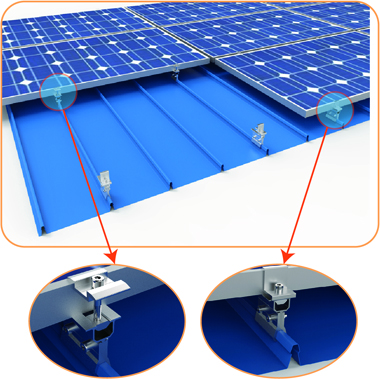

Component photos of standing seam metal roof clamps

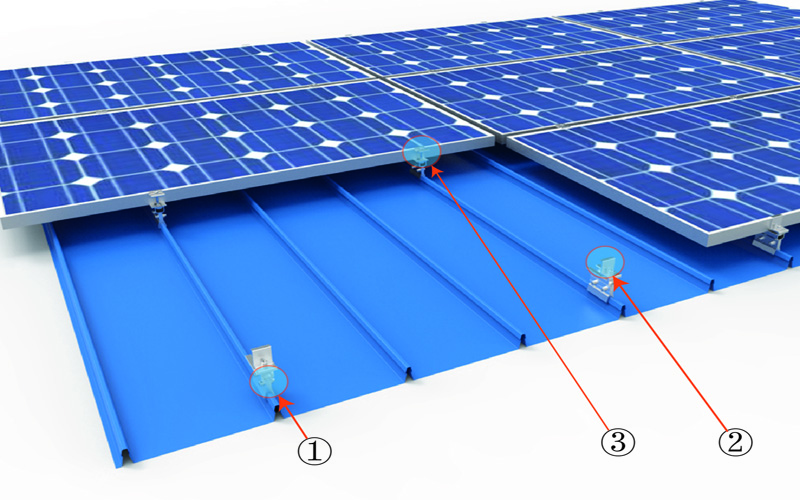

1. Erect galvanized roof hook 2. Solar end clamp 3.Solar inter clamp

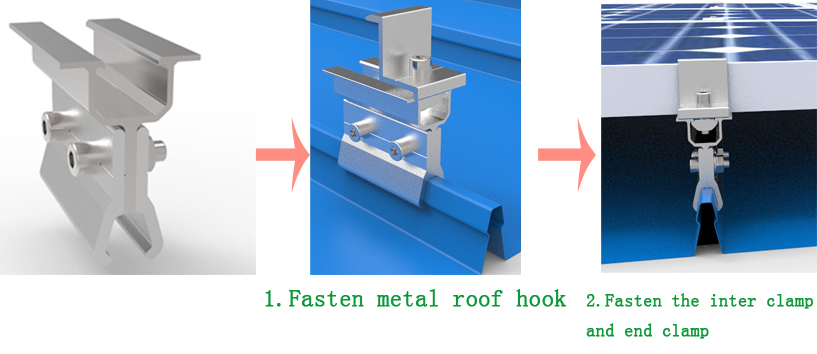

Installation steps of standing seam metal roof clamps

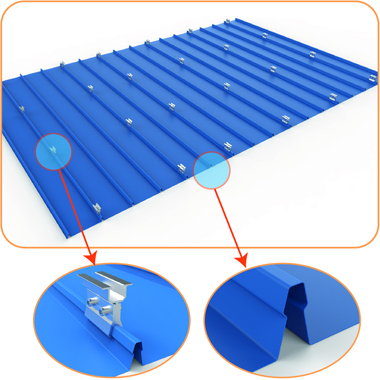

Step1：Install galvanized roof Step2：Install roof rails and rail splices
hook according to the drawing
Install galvanized Shape of galvanized roof Inter clamp End clamp
roof hook

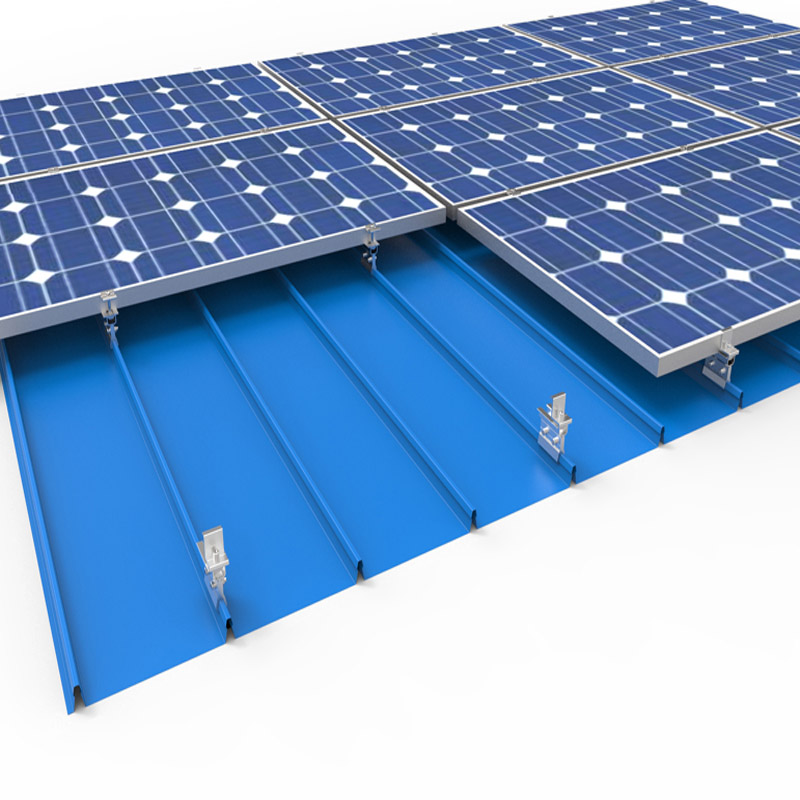

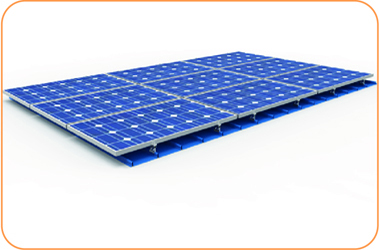

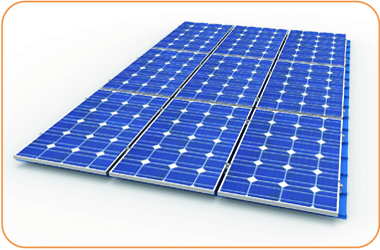

Step3：Installation completion diagram Step4：Installation completion diagram
Component photos-multiple design
Installation steps

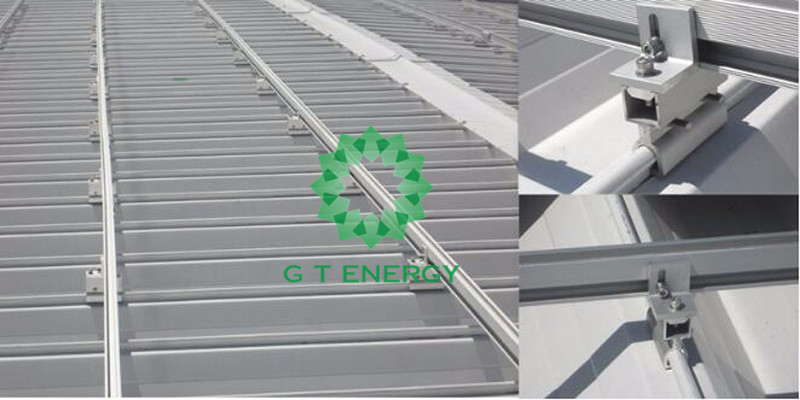

Project photos
