Standing Seam Roof Mounting Solar Panels On RV Roof

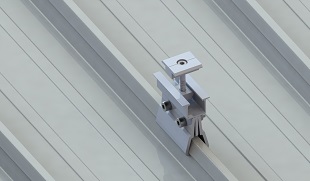

Standing Seam Roof Clamps easily on the folded seam rooftop. The clamps are especially designed to catch the standing seam effectively.


  • MaterialAluminium, Steel
  • ColorSilver, Black

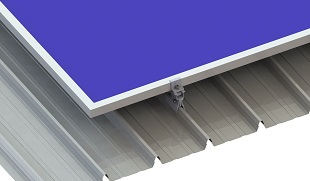

Standing Seam Roof Mounting Solar Panels On RV Roof



The standing seam roof clamps makes mounting on folded seam roof particularly easy. The clamps are simply attached to the standing seams. The clamps offer a secure fastening without penetrating the roof sheets, ensuring maximum stability with minimum weight. The variety of system combinations like L-foot, fixed foot or PV module clamp directly, allows it to be connected quickly to all rail components.



Technical Data

Install Site Standing Seam Metal Roof
Max Wind Speed ≤60m/s
Snow Load ≤1.4KN/M2
Tilt Angle 0 degree
Applicable Module Framed or frameless
Module Orientation Landscape, portrait
Standards AS/NZS 1170, ASCE 7-10, JIS2017
Material AL6005-T5, SUS304
Anti-corrosive Anodized
Color Silver, Black
Warranty 12 years



Key Features

 - The standing seam roof solar mount was designed to allow the attachment of PV modules or PV mounting rails directly to a commercial grade standing seam metal roof without penetrating the metal or collapsing the ridge in the metal roof material.

 - The clamp is made from high tensile strength aluminum and has two models that will work with multiple metal roof designs including single and double rolled seams or similar designs.

 -  This allows a completely engineered system that is simple, robust, and efficient with the lowest possible total installed cost.

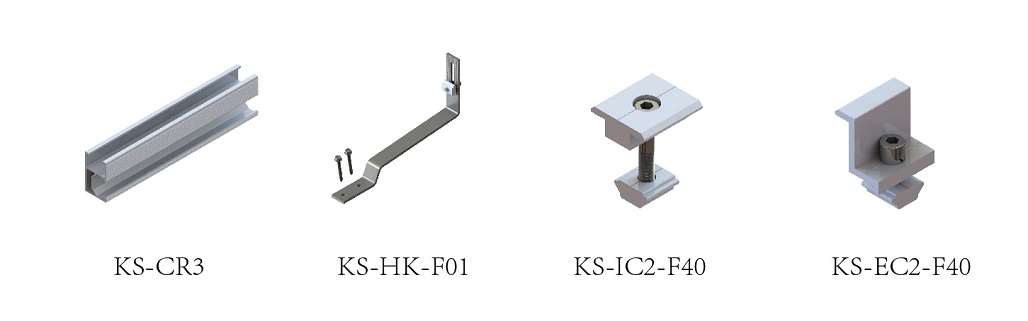

Components

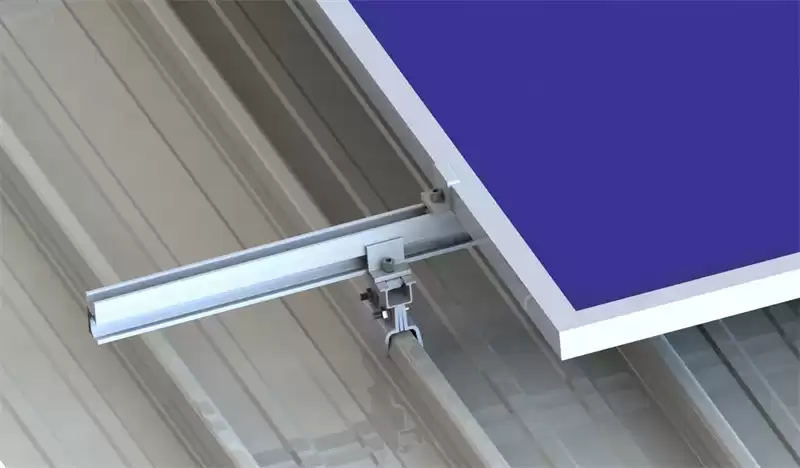

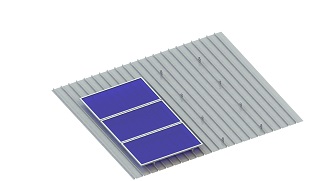

Details

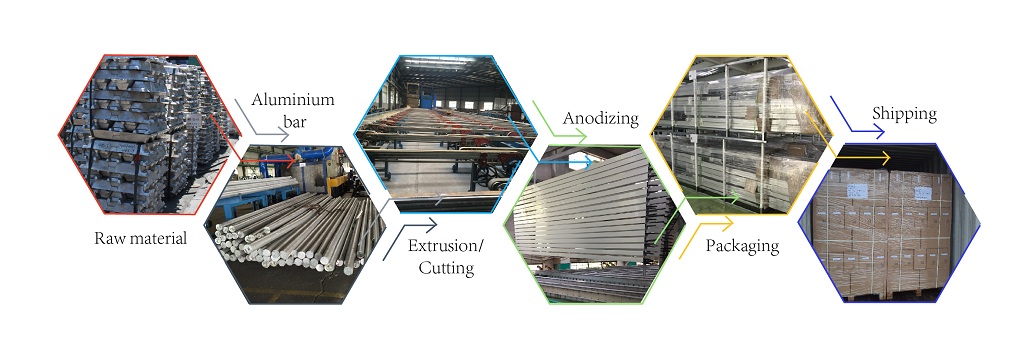

Production Process

Why choose Kingfeels ?

1. Top quality with competitive price---one of the biggest aluminum solar mounting manufacturer with integrated production in Xiamen.

2. Full anodize for all components---offering 12 year warranty and 25 year life time.

3. Excellent design ability---over 20 structure engineers, the chief engineer has 10 years' experience of structure engineering for aluminum solar mounting systems.
