Standing Seam Type Conical Steel Roof Roll Forming Machine

The Standing Seam Type Conical Steel Roof Roll Forming Machine is for producing vertical type standing seam roof, it is also can roll forming conical steel roof style if the project needs. The roof middle width is changeable by changing several Roller Spacers.


  • Driving Motor4KW*2
  • Forming Station15
  • Covered Width416mm
  • Material Width305-610mm
  • Material Thickness0.3-0.6mm

Customized full set of standing seam roof system machines


Product Name: Standing Seam Type Conical Steel Roof Roll Forming Machine

Like other concealed fixing standing seam roofing sheet roll forming machine,Standing seam type conical steel roof roll forming machine can also produce with different widths material and get different BEMO sheets on the same machine, like one BEMO sheet roll forming machine can make both 65-400 and 65-450 type roof panels which joint with each other through clips too.


The Standing seam type conical steel roof roll forming machine's is size interchangeable type, movable forming rollers have been designed for different width material, then we can get kinds of standing seam roof. After adjusting the rollers working position, the different width of tapered standing seam roof have been made out also.

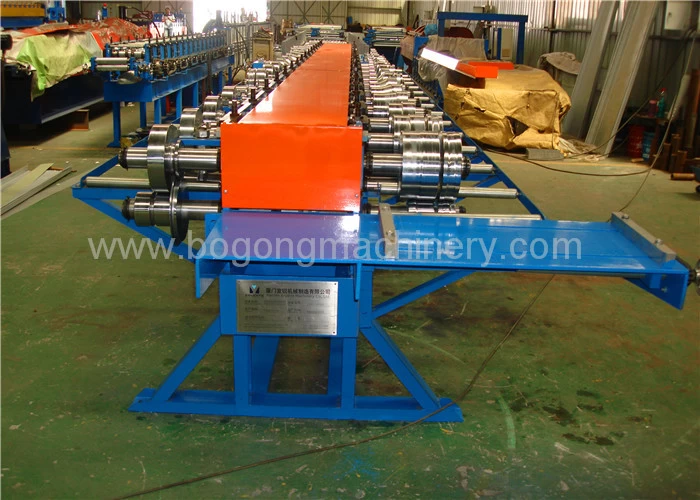

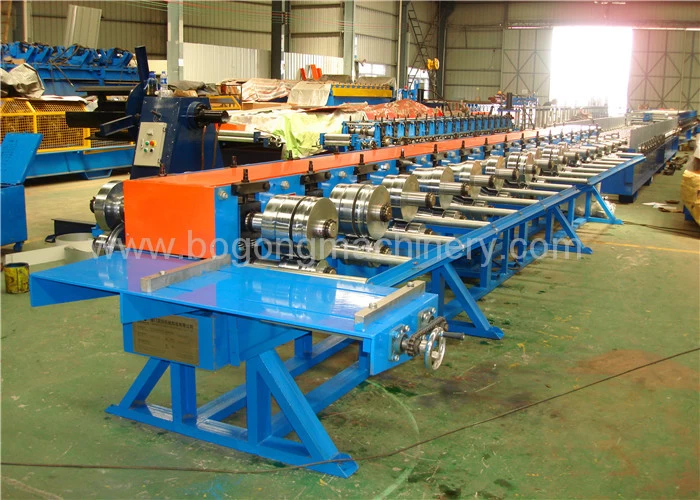

Standing seam roof sheet forming machine

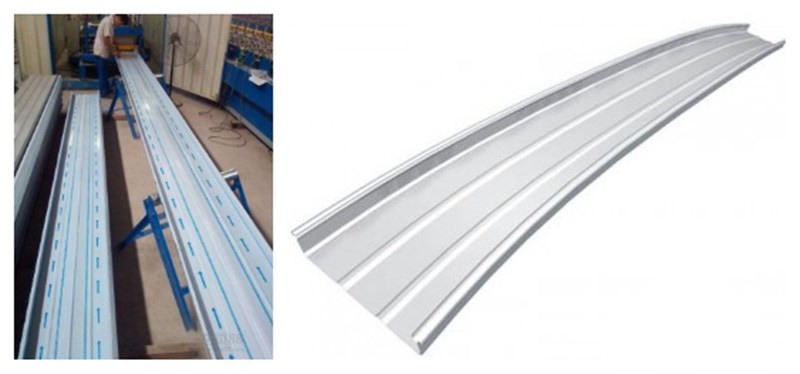

Standing Seam Roof Sheet Sample

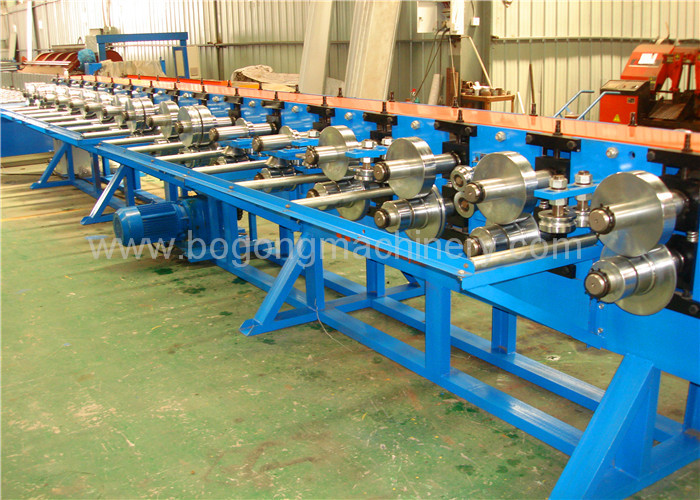

China mobile standing seam roll former

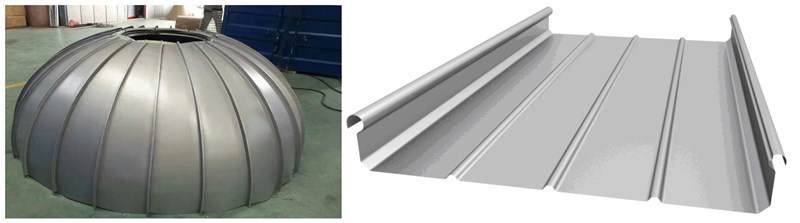

Conical Shape Roof Sample

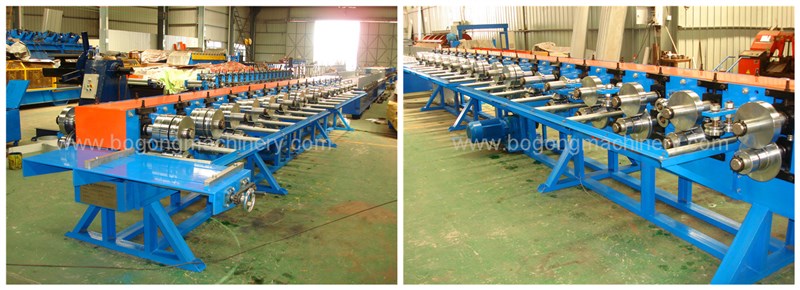

China mobile standing seam roll former

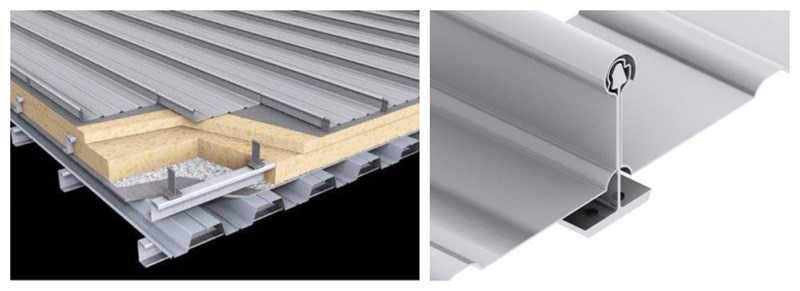

Standing Seam Roof Joint & Installation

Upon bottom ceiling layer, there cotton material is in middle layer, the standing seam roof is outside layer of whole roof sheet system. See second the picture, it is the standing seam roof fasten type, after joint well, we need electric seaming machine to seam all pieces standing seam roofs together.

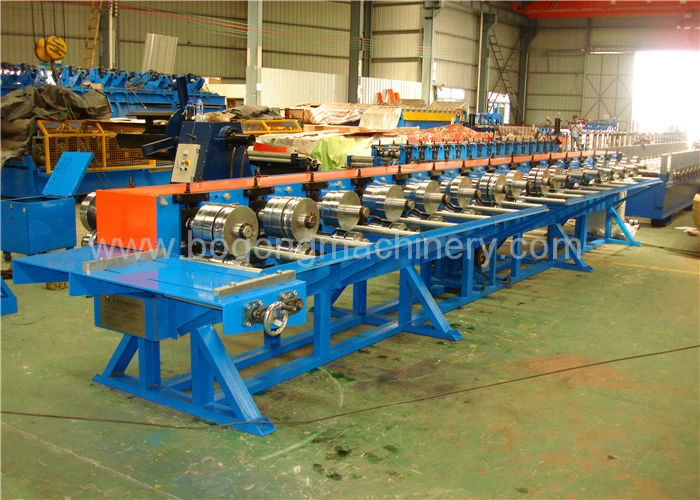

Conical Steel Roof Roll Forming Machine

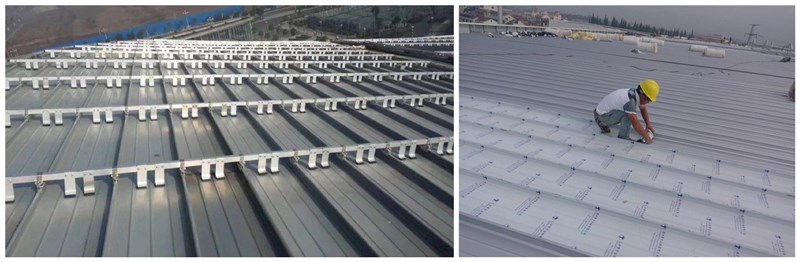

Standing Seam Roof Usage Project

standing seam roof making machines

Other Style Of Standing Seam Roof Design

steel sheet standing seam roll forming machine


Technical Parameters


Parameters

Specification

Voltage

380V/50HZ/3PH/or customized

Driving Motor

5.5KW

Forming Steps

 15 steps

Working Speed

15-18m/min

Thickness for Steel

0.7-1.0mm

Shaft Diameter

65mm

Effective Width

416mm

Feeding Width

305~600mm

PLC Cabinet

Schneider, Delta

Encoder

Omron

Sprocket Wheel

45 steel high-frequencies quench

Cut-off System

Post cutting, no waste cutting

Cutting Blade Material

Cr12 steel

Machine Frame Material

Fine welded structural steel;

Roofing Material

PPGI, GI steel G330-550

Painted Color

Blue+Orange Or Customization

Overall Size

6500*950*1350mm

Weight

3500KGS
