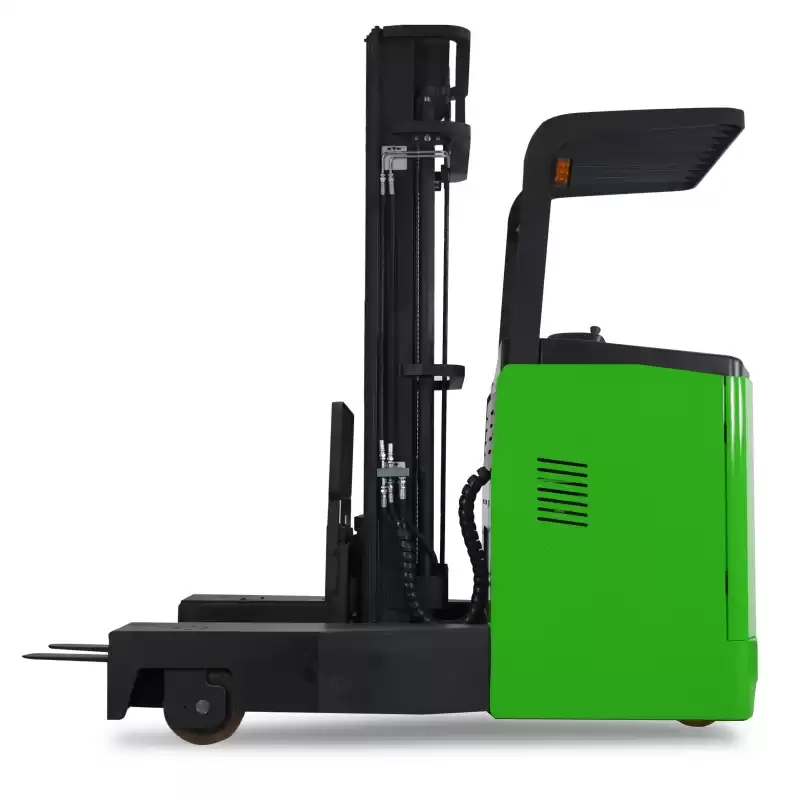

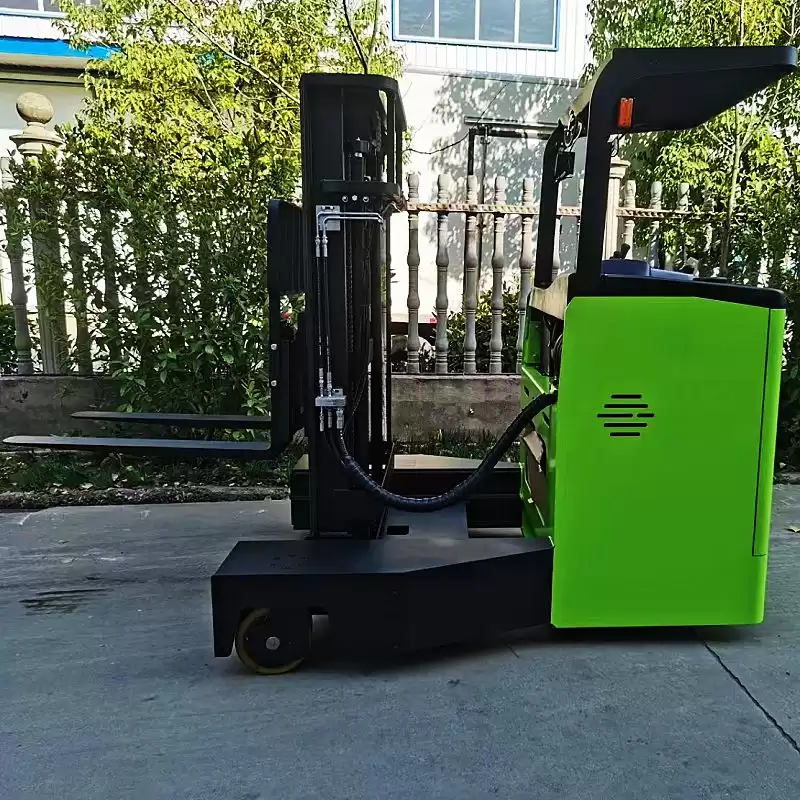

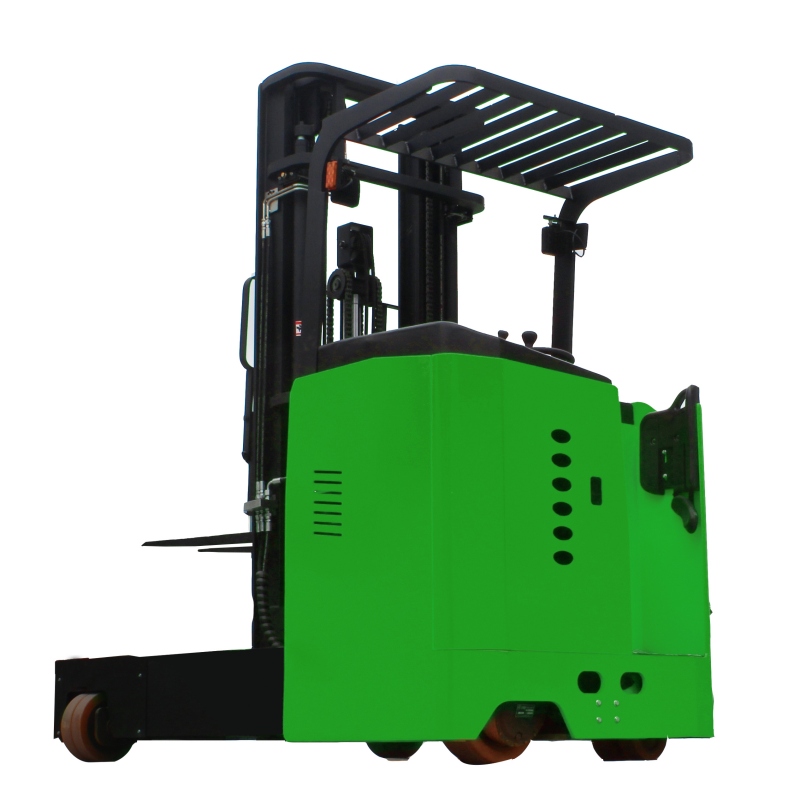

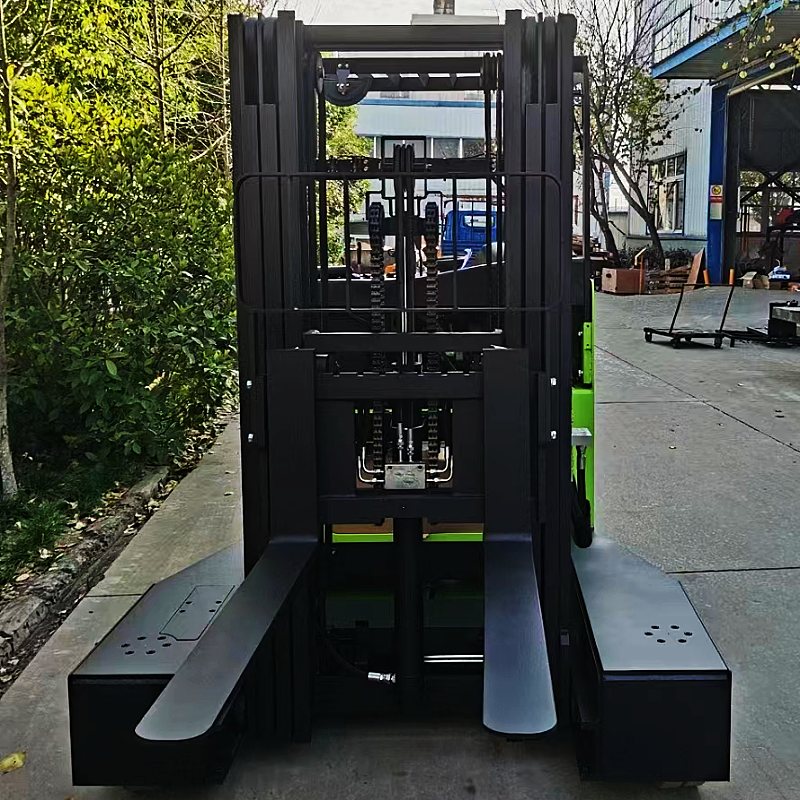

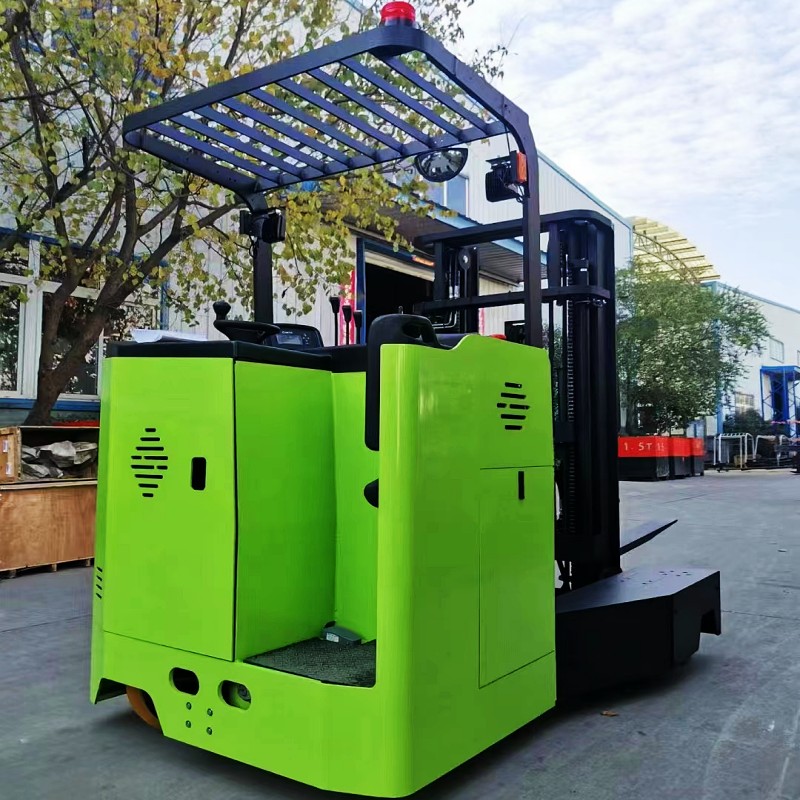

Standing Type 4-directional Reach Truck

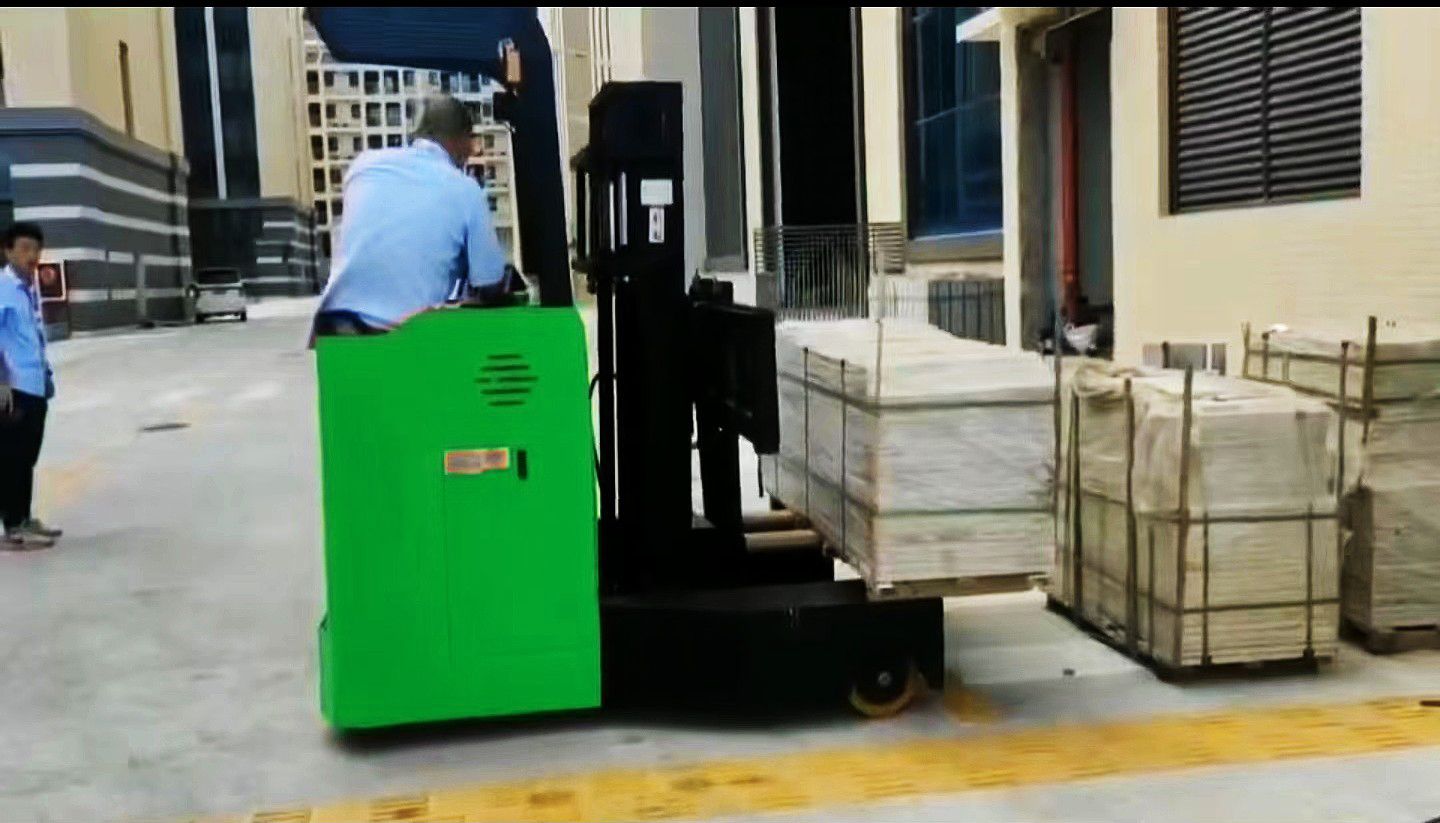

4-directional reach truck mainly used for long material handling in narrow aisle. The main feature is that it can drive in four directions, front, rear, left, and right, and the requirements for aisle and turning radius are small. The rated load is 1.5-3.0 tons, and the lifting height is 3.0-8.0 meters. It is mainly used in long material industries such as steel, profile, plate and wood.
Features:
1. Four-way driving, suitable for very narrow passages and long material handling;
2. Full AC system, electric steering, long service life and low energy consumption;
3. Imported controller, high control precision, convenient electronic control setting, high performance and low failure;
4. High-strength PU tires, stable driving and reliable braking;
5. HD drive wheel display;
6. Large capacity battery.
7. Lithium battery is optional.

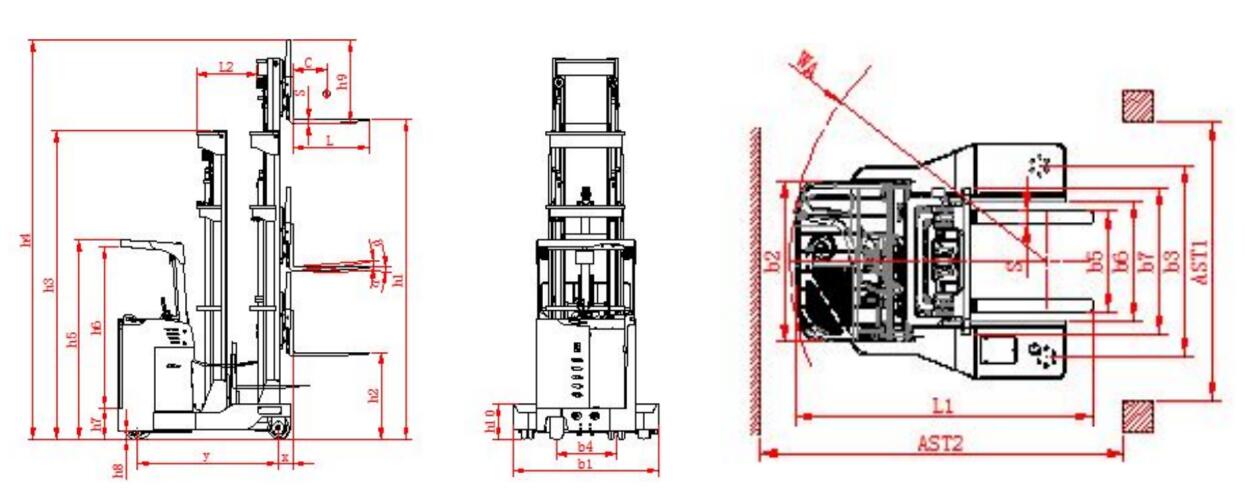

Specification:
| |
| |
Manufacturer |
|
NEOlift |
|
| Model |
|
NRQ25 |
| Load capacity |
kg |
2500 |
| lift height |
mm |
6000 |
| Overall length |
mm |
2700 |
| Overall width |
mm |
1680 |
| Fork size |
mm |
45/125/1070 |
| Reach distance |
mm |
640 |
| Aisle Width for Pallet 1200*1000 Cross away |
mm |
2900 |
| Min.turning radius |
mm |
2105 |
| Driving motor |
kw |
6.5 |
| Lifting motor |
kw |
8.6 |
| Battery type |
|
Lead Acid |
| Battery capacity |
V/Ah |
48V400Ah |
| Charger |
V/Ah |
48V/50A |
| Drive controlling type |
|
AC |
| |
Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics
