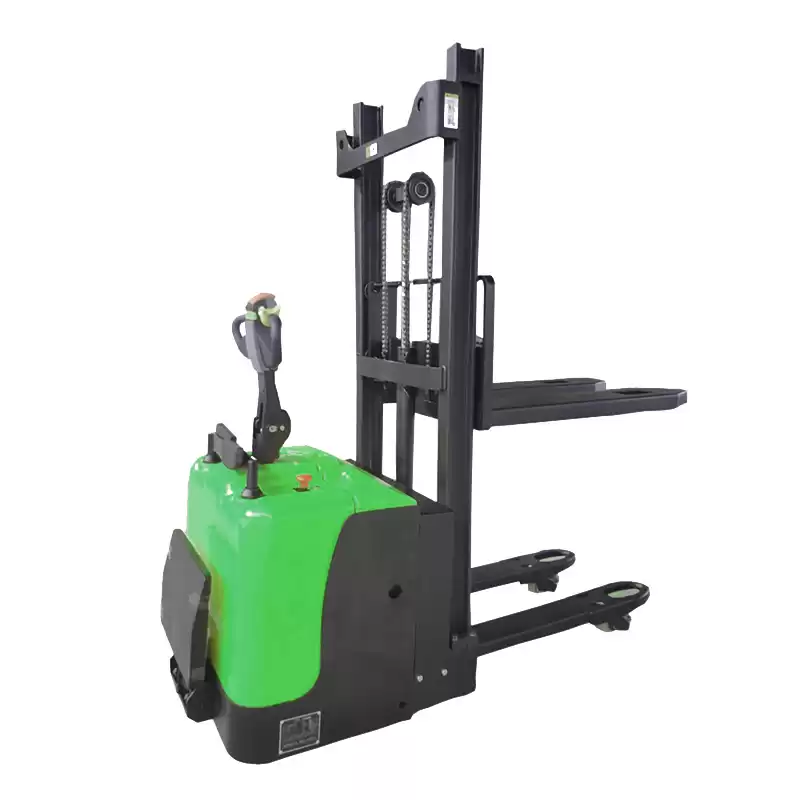

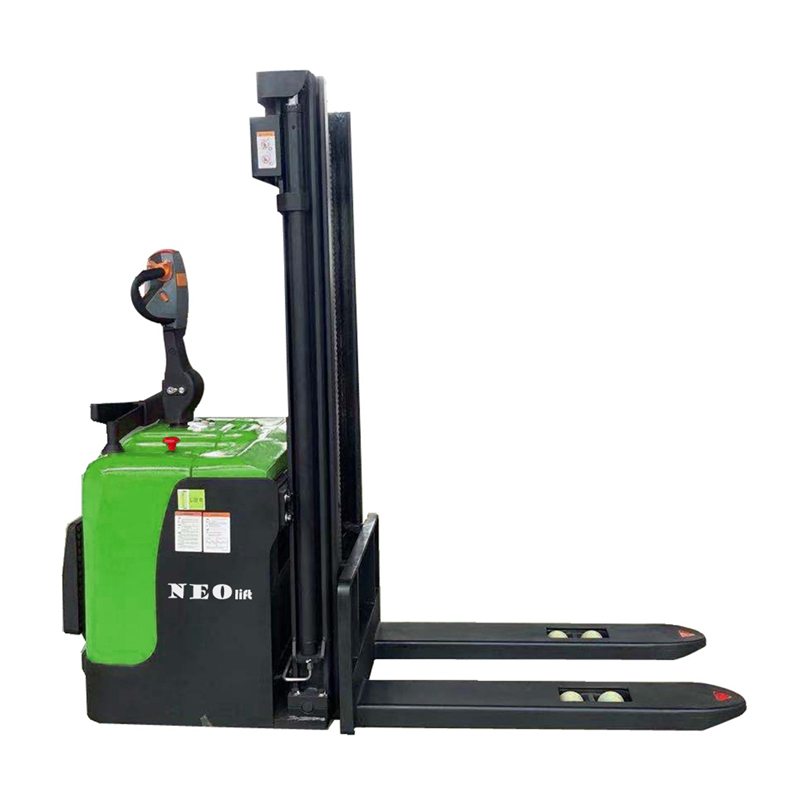

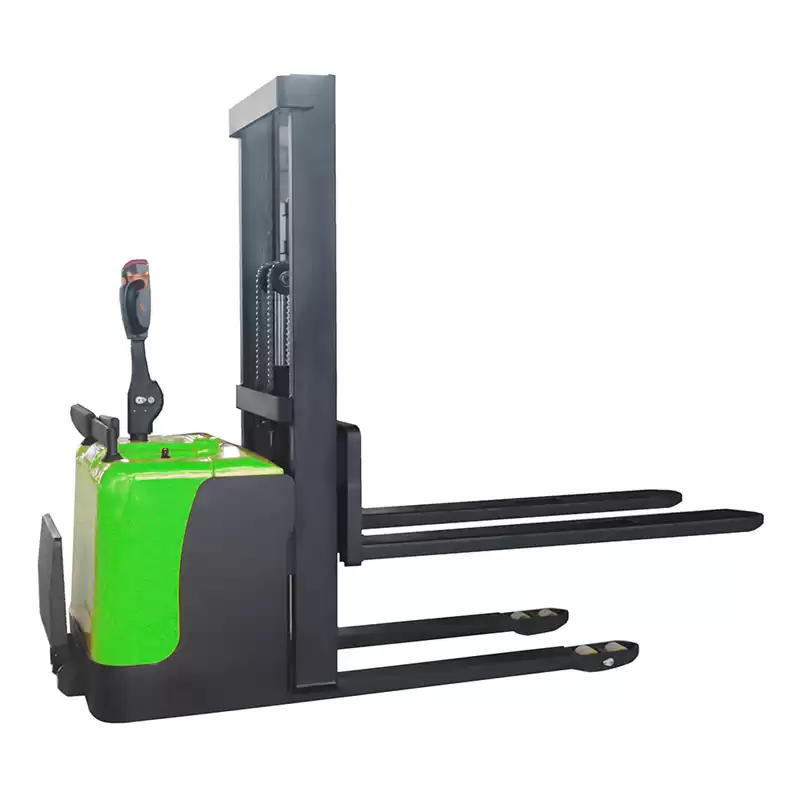

Standing Type Electric Battery Powered Pallet Stacker
Standing type electric pallet stacker is a new generation of products developed for warehousing logistics Equipment. It is drived by battery. The load capacity is 1.5-2.0T with max. lifting height 5.5m.Horizontal handling and stacking of medium cargo.Middle and long distance handling and stacking.Applicable to loading, unloading and handling palletized goods in warehouses, supermarkets and workshops.

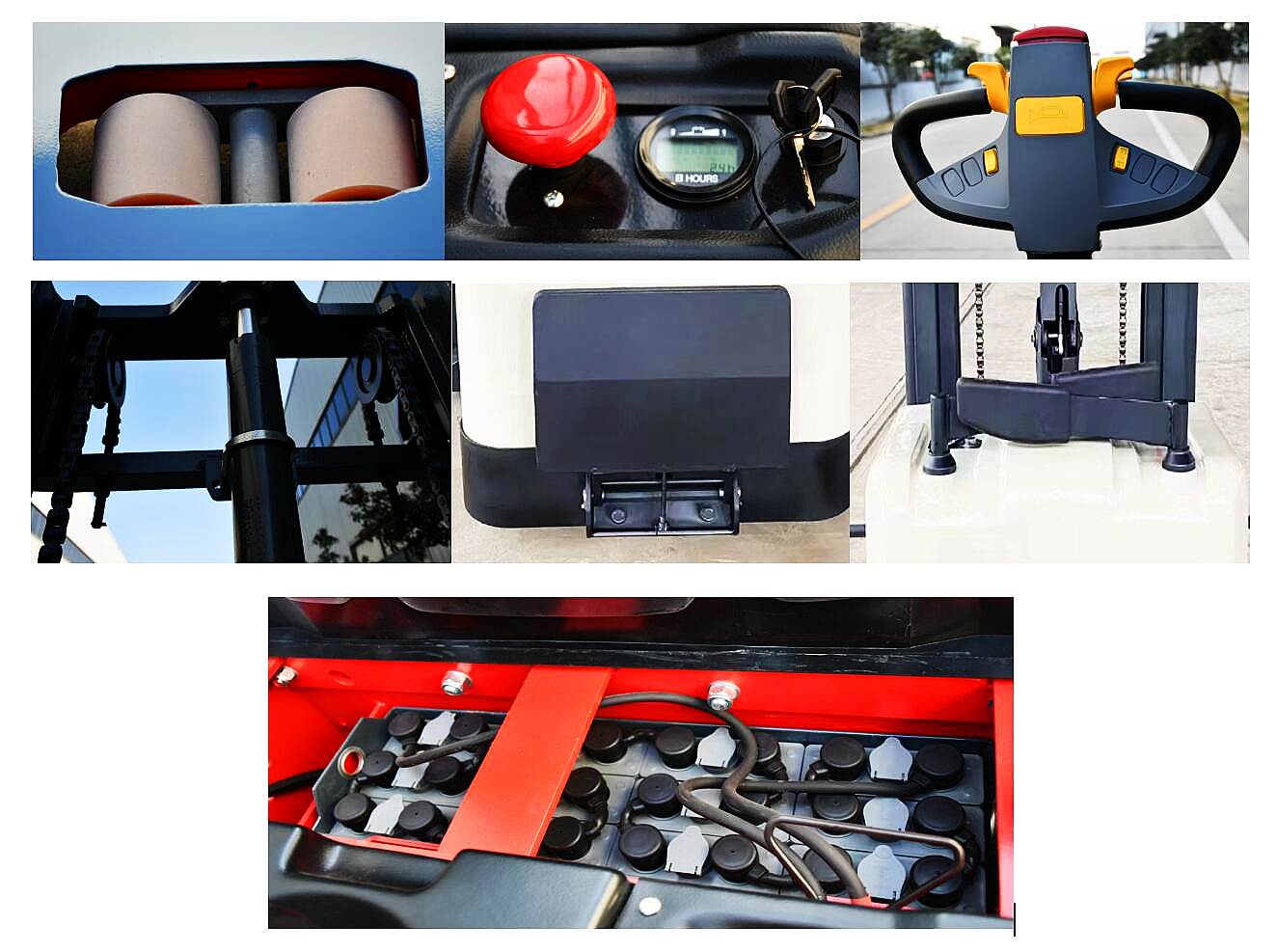

Features:
1. The AC motor is brushless and maintenance-free.
2.5 fulcrum low center of gravity design, good stability.
3. It has the function of anti-slip on the slope, emergency braking to ensure safety.
4. It has the function of descending buffer. When the fork is less than a certain height from the ground, it will automatically decelerate to effectively protect the goods.
5. Install wings, when the wings are down, the speed of the vehicle will drop by 30%-40%, which increases the safety.
6. The turning speed is limited to prevent the vehicle from turning over too fast.
7. Lifting power limit function, automatically power off when it reaches the highest point.
8. Detachable pedal design, it is more convenient to replace accessories.

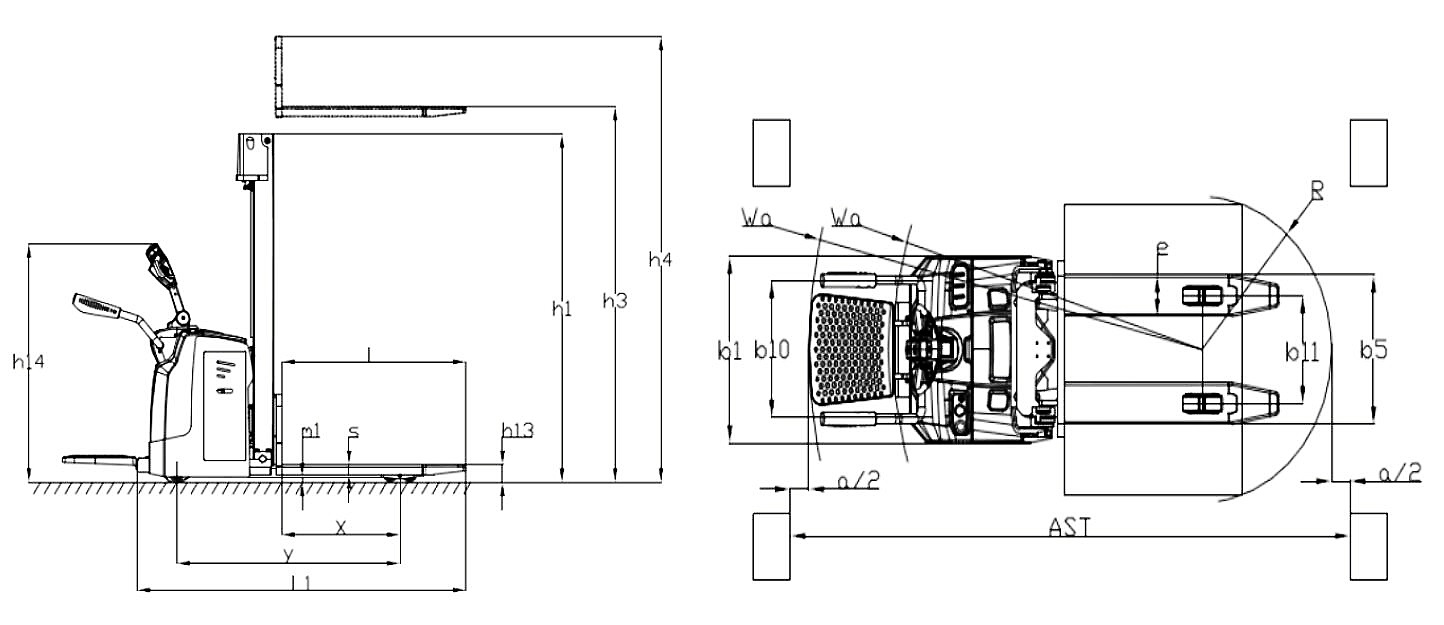

Specification:
| |
| |
Manufacturer |
|
NEOlift |
|
| Model |
|
NSZ15 |
NSZ20 |
| Power type |
|
Battery |
Battery |
| Rated load |
kg |
1500 |
2000 |
| Service Weight(incl.battery) |
kg |
1270 |
1300 |
| Lift height |
mm |
3000 |
3000 |
| Handle height(min/max) |
mm |
1100/1390 |
1100/1390 |
| Fork size |
mm |
1150/190/56 |
1150/190/56 |
| Braking method |
|
Electromagnetic |
Electromagnetic |
| Drive motor power (S2-60min) |
kw |
1.5 |
1.5 |
| Lift motor power, (S3-15%) |
kw |
2 |
2 |
| Battery, voltage/rated capacity |
V/Ah |
24/210 |
24/210 |
| Battery weight |
kg |
200 |
200 |
| steering system |
|
Electronic steering |
Electronic steering |
| Battery replacement method |
|
Side pull |
Side pull |
| |

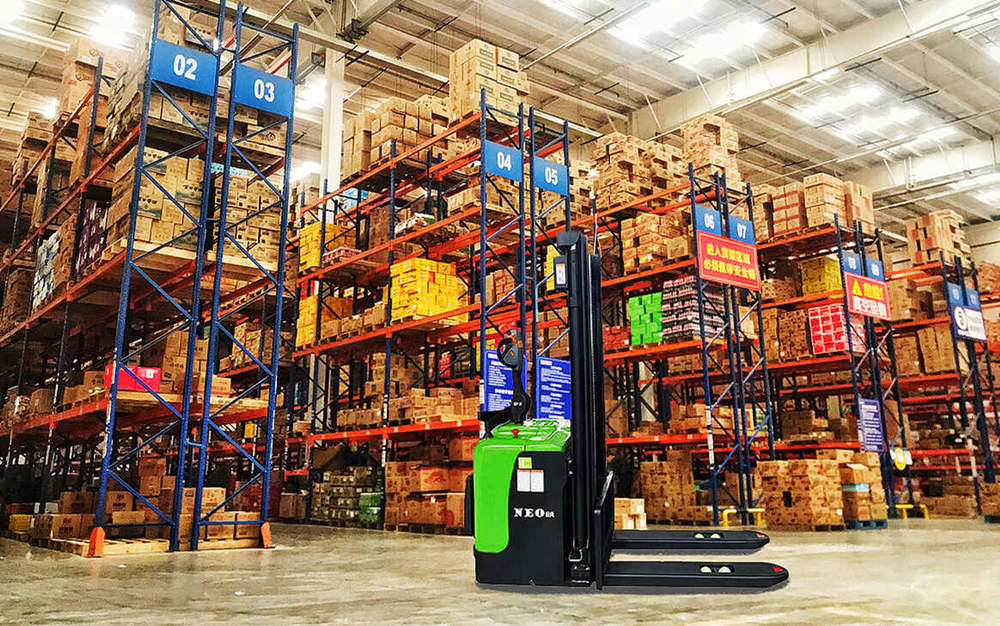

Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics
Certificate:
Why choose NEOlift?
1.NEOlift has 20+ years experience in the field of electric material handling equipment! We can provide our customers with full range warehouse equipment based on various requirement.
2.The product range is comprehensive, the quality is safe and reliable.We have strict quality management system. We can provide customers with non-standard customized solutions according to their needs.
3.Professional and strong technical research and development team and timely and effective after-sales service.Shanghai Zon-Cho Huge Science And Technology Co., Ltd. has more than 60 professional technical R&D personnel, and each model has a professional R&D personnel responsible for it. Among them, more than 30% of the R&D personnel have a master's degree, 5 have a doctorate degree, and more than 60% of the R&D personnel have been engaged in the industry for more than 5 years.
