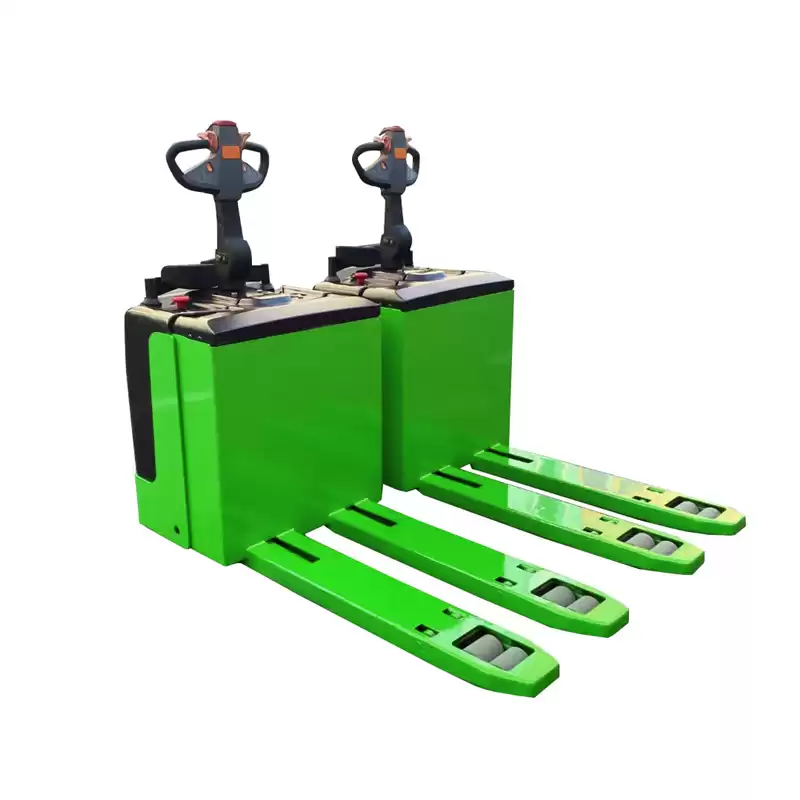

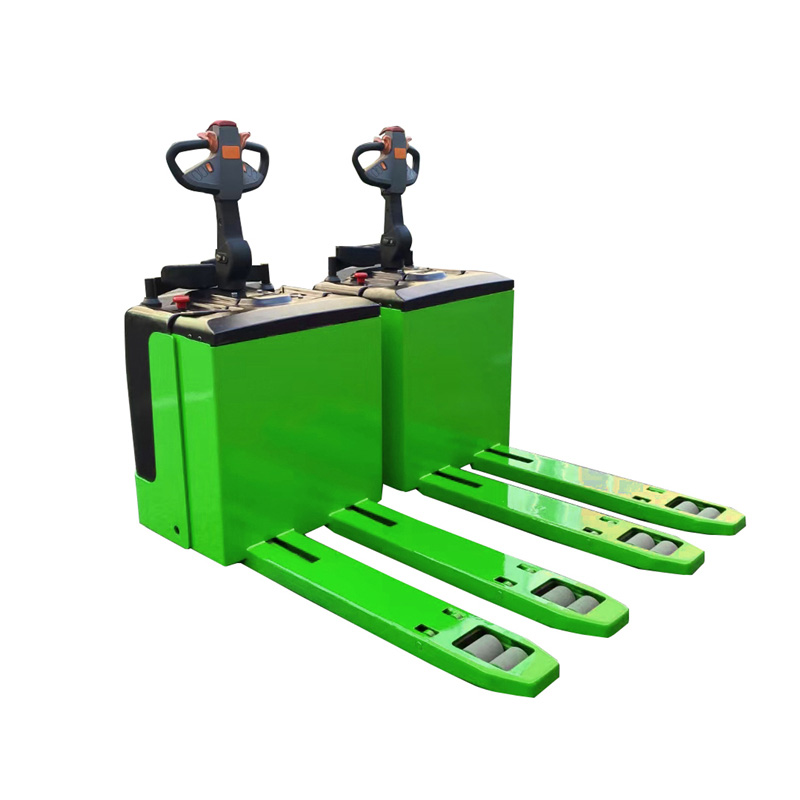

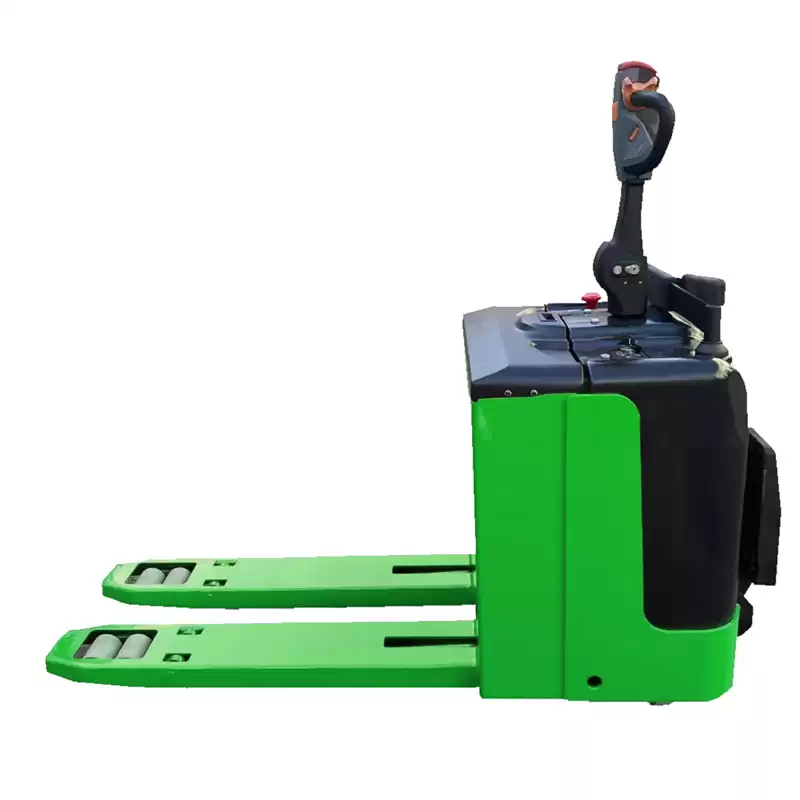

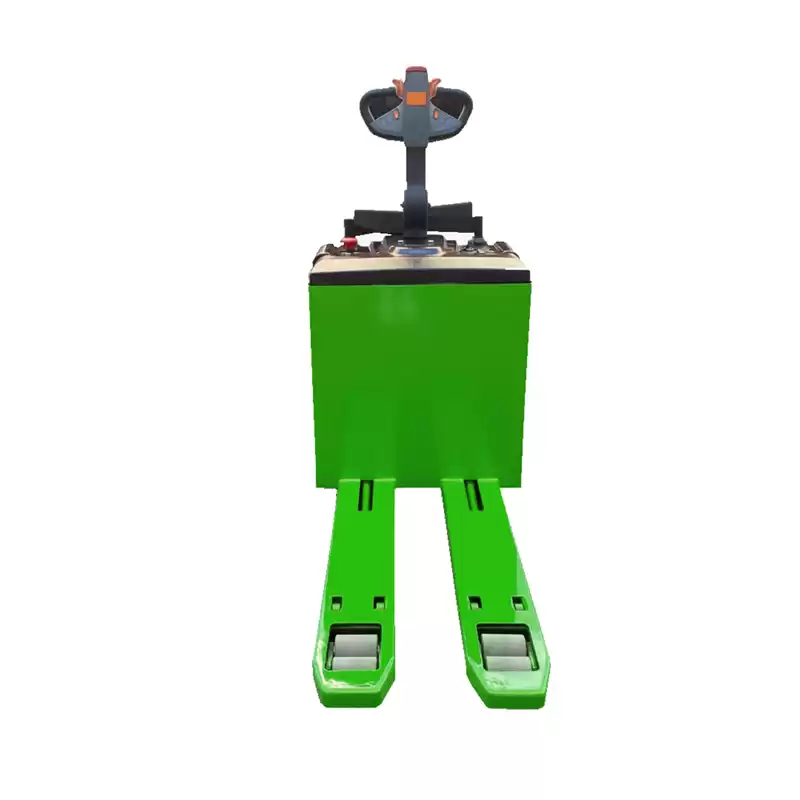

Standing Type Electric Pallet Truck
Standing type electric pallet truck is mainly used for plane point-to-point handling. It is drived by battery. The rated load capacity range 2-6T.It is used for medium and long distance horizontal handling of medium and heavy loads; it is suitable for medium and large shopping malls, supermarkets, freight yards, workshops and other occasions;Horizontal handling of medium and heavy cargo;Middle and long distance handling;

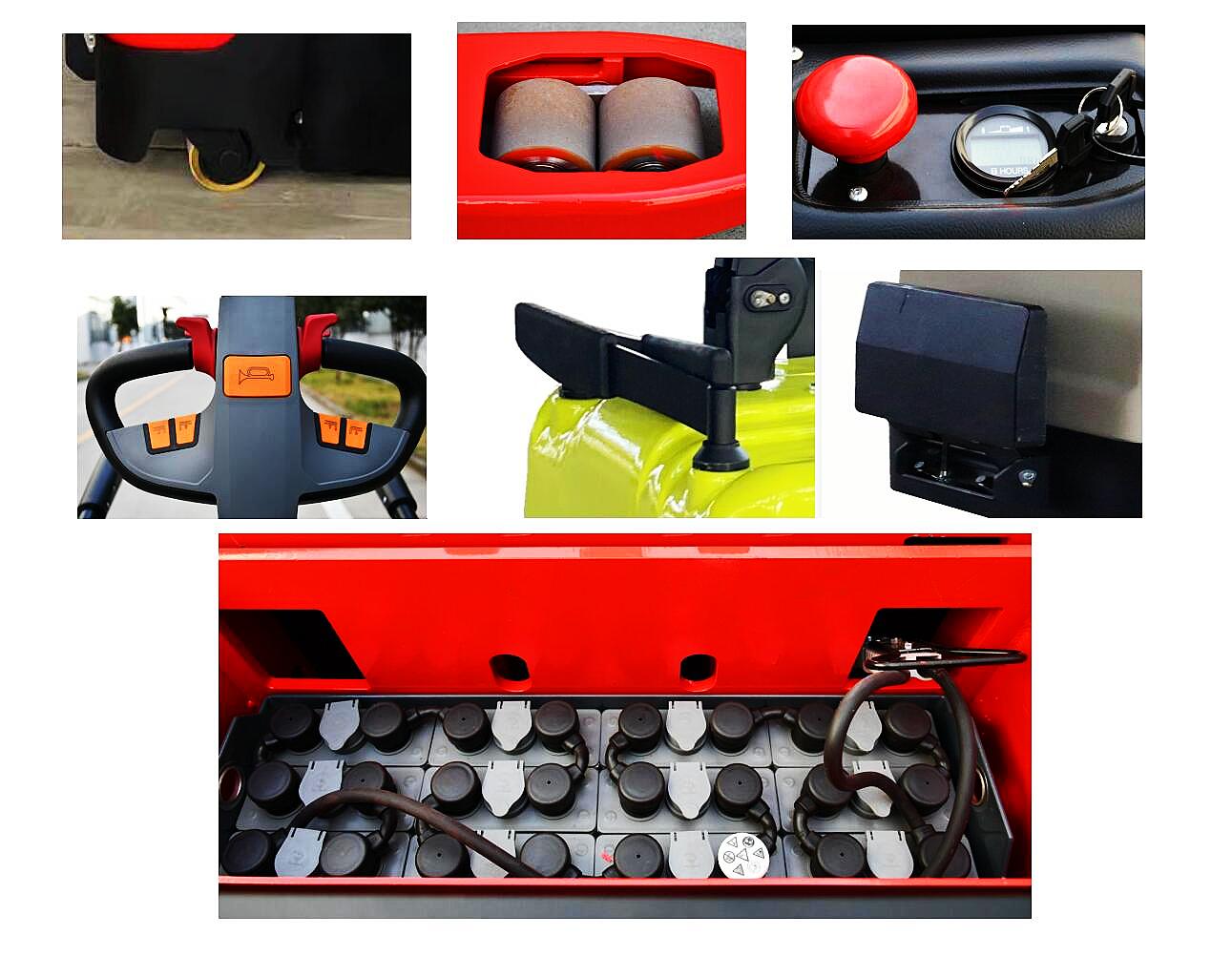

Features:
1. Equipped with electric steering as standard, the operation is easier and safer.
2. The wing safety function, when the wing is lowered, the speed of the vehicle will drop by 30-40% when driving,
Increased operator safety.
3. Detachable pedal design, it is more convenient to replace accessories.
4. The turning speed is limited to prevent the vehicle from turning over too fast.
5. AC drive motor, maintenance-free.
Specification：
| |
| |
Manufacturer |
|
NEOlift |
|
| Model |
|
NTZ20 |
NTZ25 |
NTZ30 |
NTZ40 |
NTZ60 |
| Power type |
|
Battery |
Battery |
Battery |
Battery |
Battery |
| Rated capacity |
kg |
2000 |
2500 |
3000 |
4000 |
6000 |
| Service weight(incl. battery) |
kg |
676 |
676 |
860 |
900 |
1300 |
| Lift height |
mm |
120 |
120 |
110 |
110 |
110 |
| Fork size |
mm |
1150/170/56 |
1150/170/56 |
1150/175/75 |
1150/205/75 |
1200/255/87 |
| Brake type |
|
Electromagnetic |
Electromagnetic |
Electromagnetic |
Electromagnetic |
Electromagnetic |
| Drive motor (S2-60 min) |
kw |
1.5(AC) |
1.5(AC) |
1.5（AC) |
2.3（AC) |
2.5（AC) |
| Lift motor (S3-15%) |
kw |
2.2(DC) |
2.2(DC) |
2.2（DC) |
2.2（DC) |
3.0（DC) |
| Battery voltage/ capacity |
V/Ah |
24/210 |
24/210 |
24/210 |
24/270 |
24/270 |
| Battery weight |
kg |
200 |
200 |
200 |
240 |
240 |
| Steering System |
|
EPS |
EPS |
EPS |
EPS |
Electric power steering |
| Battery replacement type |
|
Hoisting |
Hoisting |
Hoisting |
Hoisting |
Hoisting |
| |

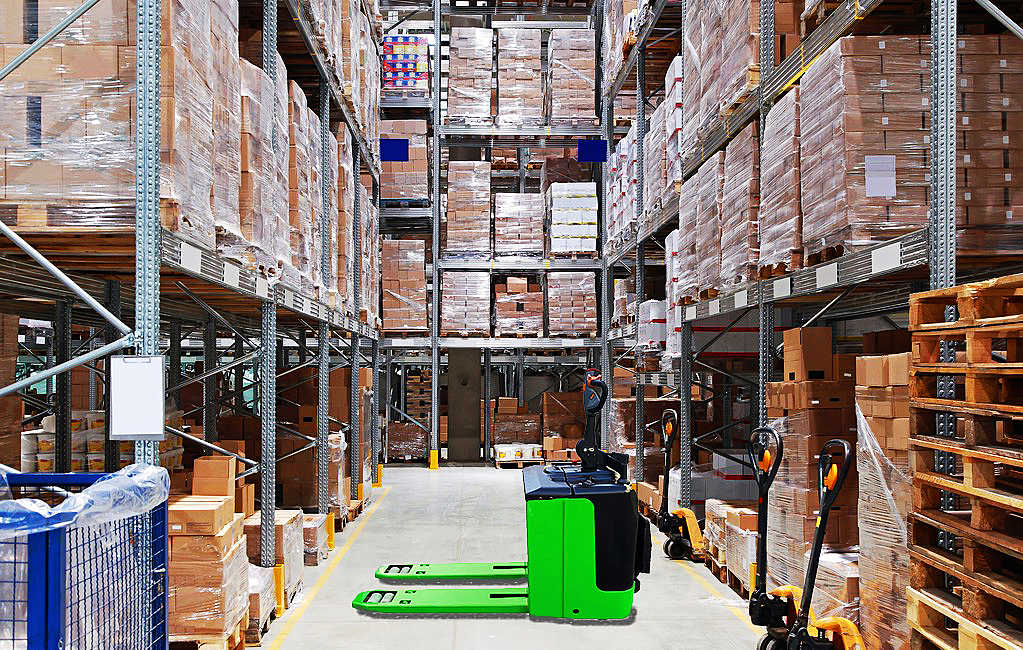

Application：
1.Logistics,
2.Warehousing
3.Food
4.Textile,
5.Printing
6.Cold chain and other industries.
Certificate:
Why choose NEOlift?
1.NEOlift has 20+ years experience in the field of electric material handling equipment! We can provide our customers with full range warehouse equipment based on various requirement.
2.The product range is comprehensive, the quality is safe and reliable.We have strict quality management system. We can provide customers with non-standard customized solutions according to their needs.
3.Professional and strong technical research and development team and timely and effective after-sales service.Shanghai Zon-Cho Huge Science And Technology Co., Ltd. has more than 60 professional technical R&D personnel, and each model has a professional R&D personnel responsible for it. Among them, more than 30% of the R&D personnel have a master's degree, 5 have a doctorate degree, and more than 60% of the R&D personnel have been engaged in the industry for more than 5 years.
