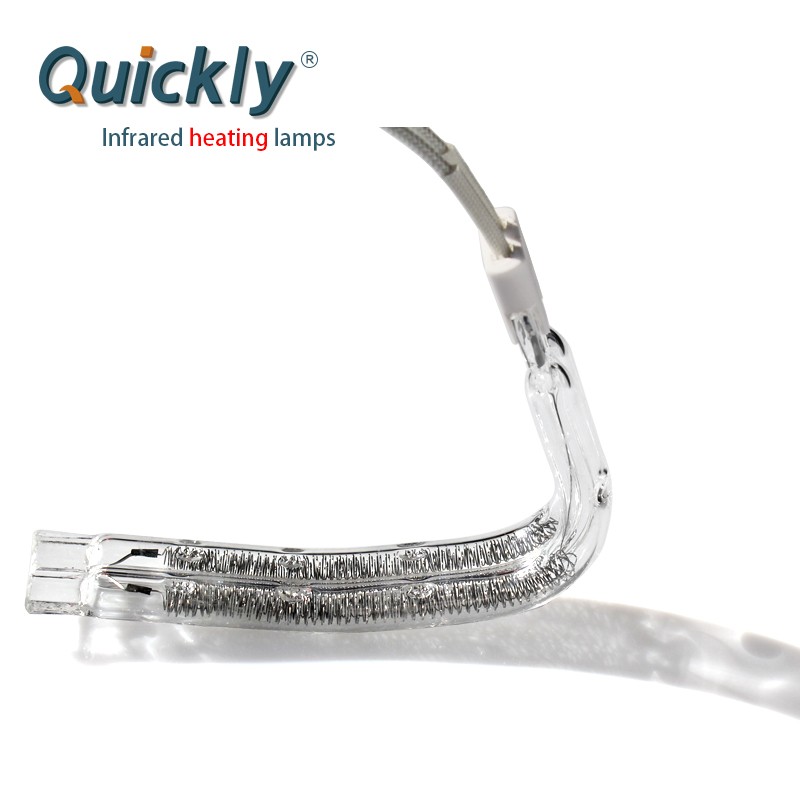

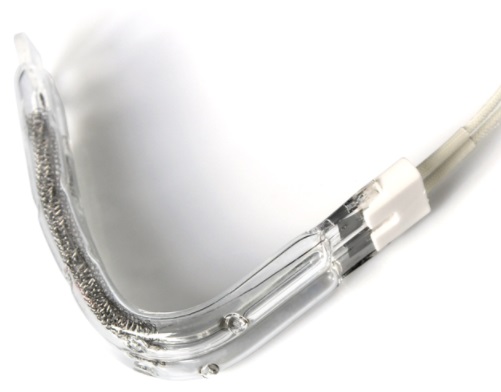

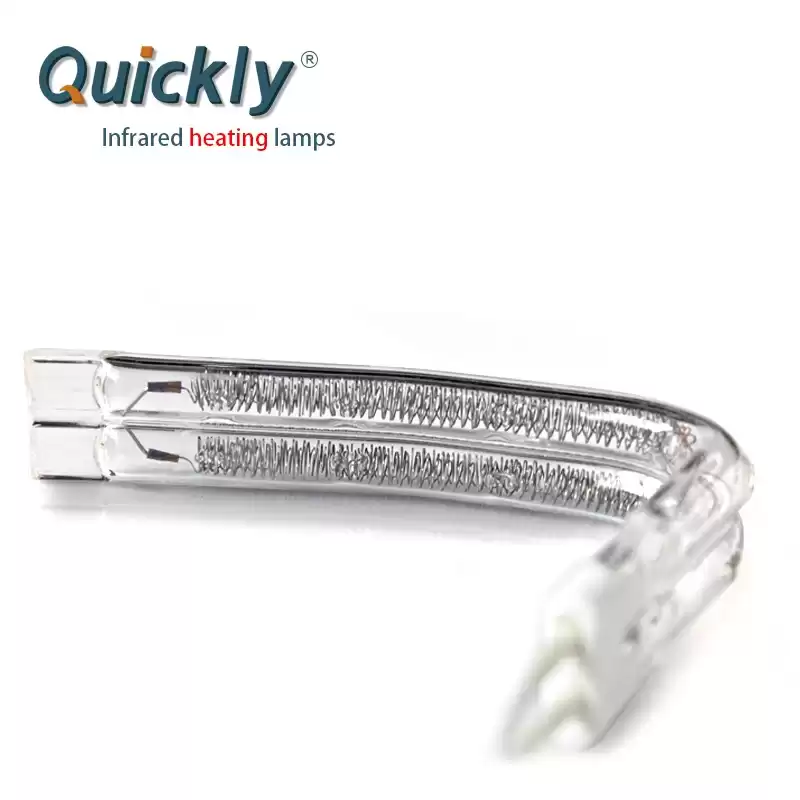

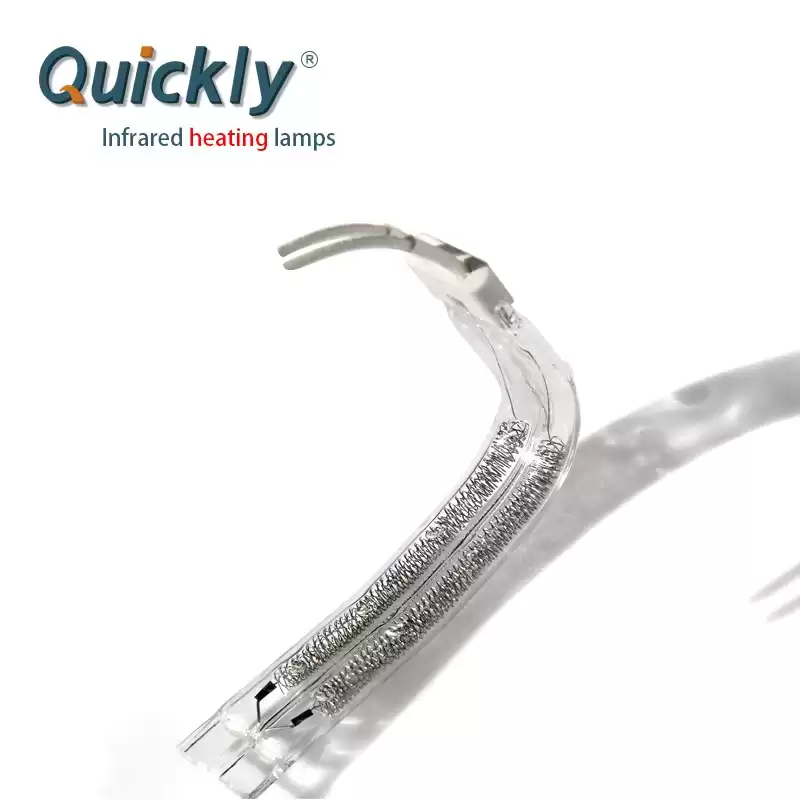

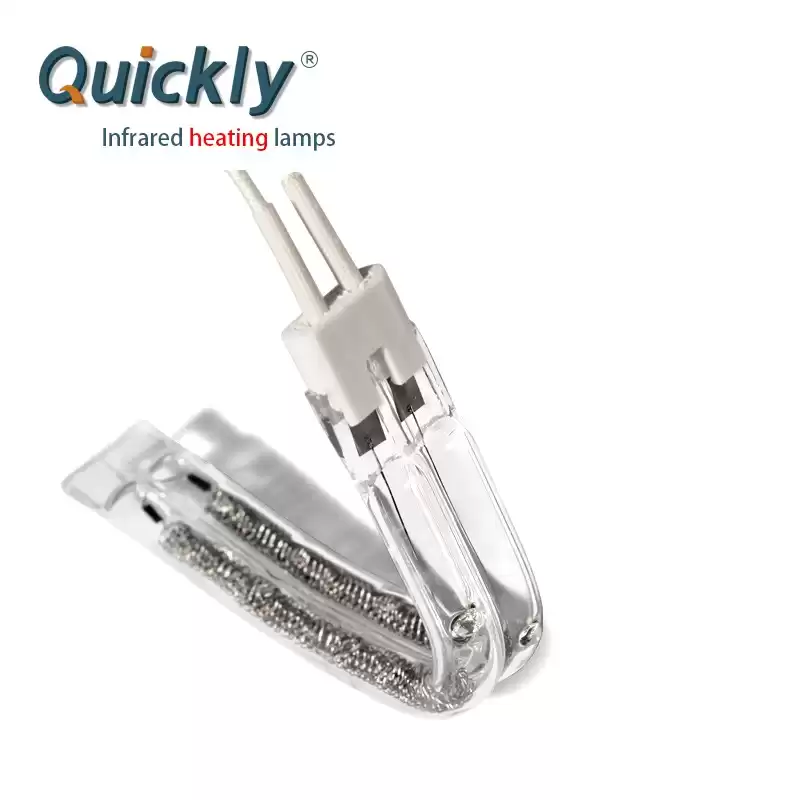

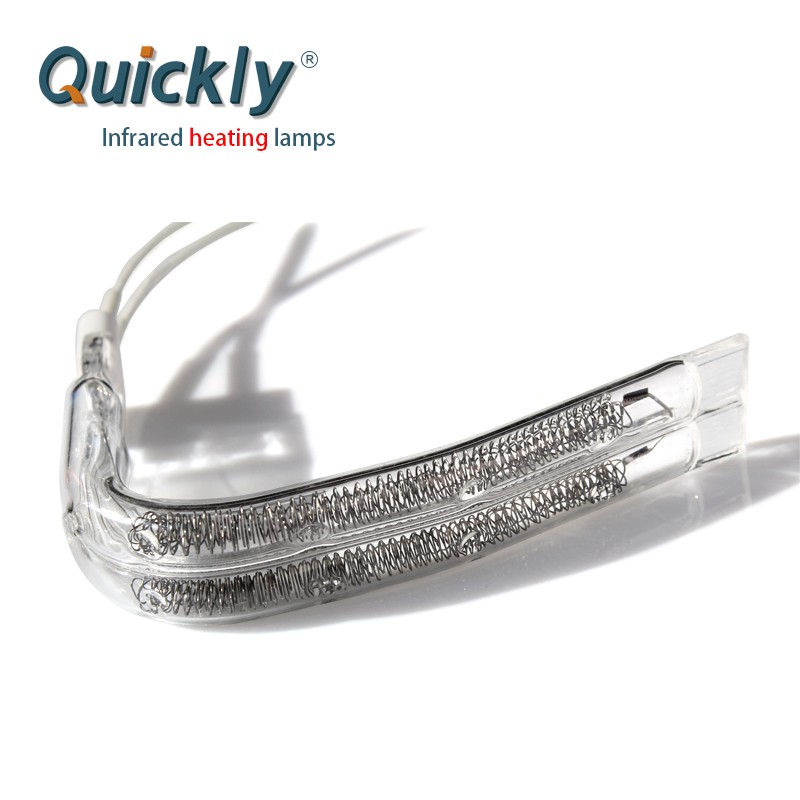

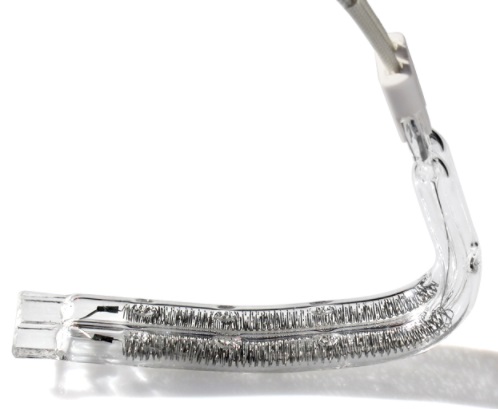

Customized Special Shaped Fast Medium Wave Infrared Heating Lamps IR heater for 3D Printer
Quick details
Fast-Response Medium-Wave infrared emitters are heaters that fall between the short and standard medium-wave . Utilizing the best of both wavelength. The heaters is suitable for drying processes because of transferring heat at a medium wave spectrum. The high absorption of surface layers and films makes them particularly applicable to thin materials, while the heaters' penetrative effect renders them highly effective for use in plastics processing.

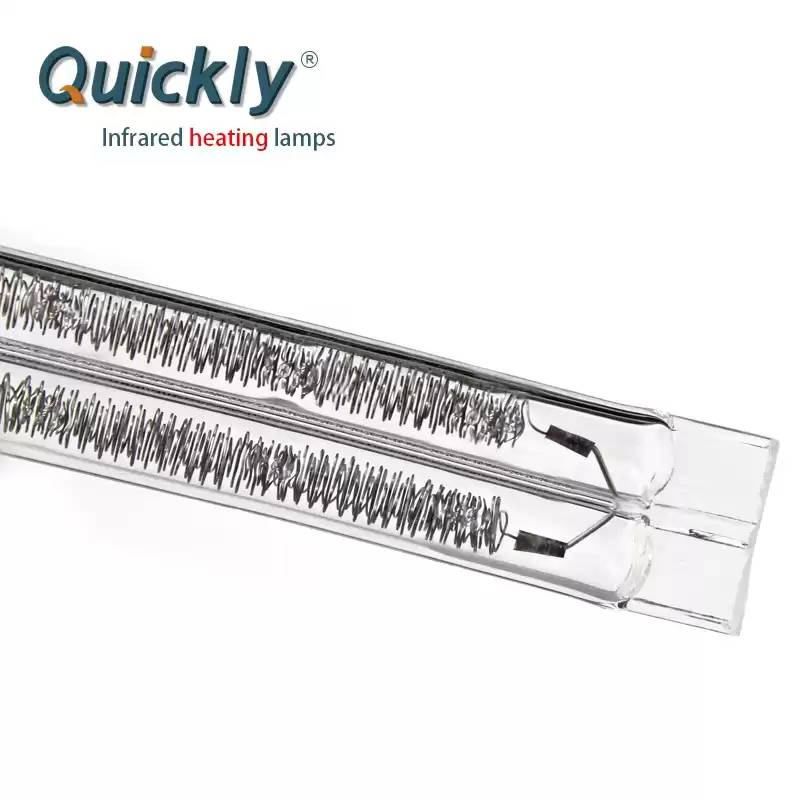

The main characters of twin tube fast medium wave IR emitters are:
· Twin tube standard section 23 x11mm & 33 x 15mm
· Filament temperature 1500 - 1800 °C
· Peak wavelength 1.4 - 1.6 µm
· Maximum power density 50 W/cm
· Maximum surface power 120 kW/m2

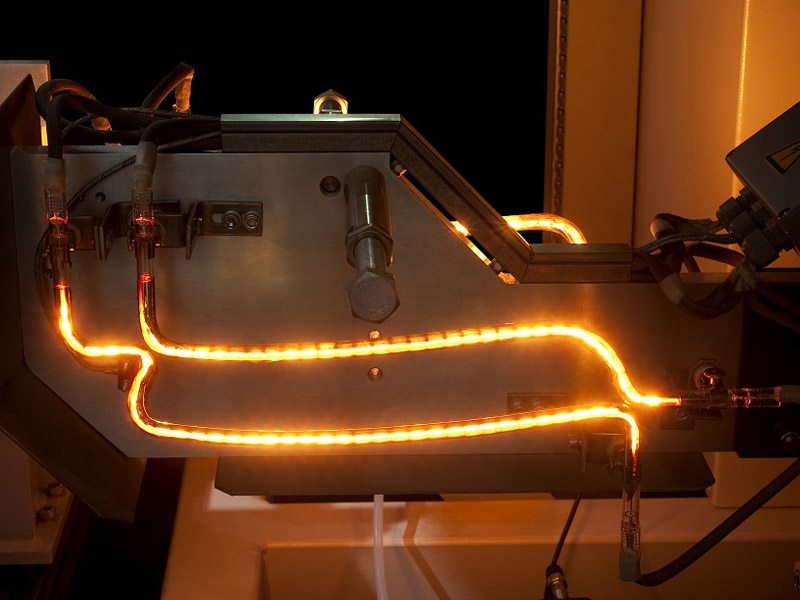

· Universal operation (standard horizontal operation, but are modified for vertical )
· Heaters can be one-side and two-side connected.
· Gold and ceramic white coating on the heater quartz tube ensures that the effective radiation is virtually doubled.
· Standard, custom and OEM models available
Advantages of Infrared Radiation
1. energy saving: Infrared radiation unlike convection or conduction, dose not rely on any medium to transfer heat from infrared source to the object being heated, heat directly to the object
2. Time saving: no need medium transferring, quick response,can reach working temperature more quickly, heating by infrared emitters shortens process time and increases production rates
3. space saving : small and customized size and shape
4. cost saving: low capital cost, easy installation, reliable operation, low maintenance costs and efficient use of energy.
5. Better product quality: Controllable, predictable heating reduces wastage and promotes products quality
6. environment protection:Clean, and no any pollution released to the surroundings
Product applications
PET performs heating in stretch blow moulding machines.
Printing ink drying in offset machines
Pre-heating before embossing
Screen printing curing on T-shirts
Textiles and various such applications
Paint curing
Powder coating
Lacquers drying
Drying glaze on ceramic tiles
Textiles
semiconductor industry
Why QUICKLY ?
1.The materials used for our lamps are at good quality approval UL testing
2. As a manufacturer of infrared lamps over 10 years history, and we have experienced workers, half of them have worked for us over 5 years
3. We are factory, so we can control the delivery date, material, quality directly
4. For any exclusive-human damage within warranty time, we will delivery the replacements within 3-5 work days once confirming
5. Safe package to protect lamps from being broken during shipping
6. We will provide you the lamp’s holder free of charge ( 2 units clamps for 1 piece lamp）
7. Various Payment methods like wire transfer, paypal, western union
8. Shipping ways provided including DHL, Fedex, TNT, UPS, air, sea
FAQ
1. how to place the order?
Let us know your required lamp specifications including lamp type,diameter, length, power, voltage,reflector...then we send you the
quotation,after payment,production will be started, after finished, they will be shipped to your side
2. Why Quartz Glass as the one main of material?
The choice of quartz glass is not a coincidence: this extraordinary material is totally transparent at IR radiation, can withstand constant
working temperatures of more than 1000°C and it is resistant to chemical corrosion.
3. could you supply clamps for lamp installing ?
Yes, we will provide mounting clamps for clients, and the corresponding clamps quantity with purchased lamps are supplied freely bu us.
Have an unusual design?
4. Send us a drawing, sketch, or sample and we'll be happy to quote it.
We specialize in small runs and custom designs, but can be highly competitive on large orders as well.
5. How does your factory do quality control
" quality is priority", we always and keep paying more attention to QC from the material purchasing to the lamps' packing. Our product have gained CE, ROHS, ISO9001.

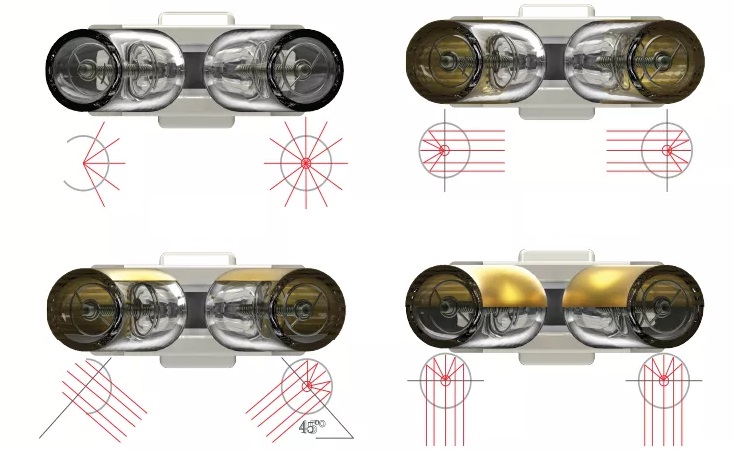

6. why coating on quartz tube surface ?
QUICKLY offers infrared emitters which coated with gold and white reflector , they can emit heat directly to the product. A gold or white coating on the infrared emitters reflects the infrared radiation. Consequently the infrared radiation impinging on the product is virtually doubled, increasing the effectiveness of the heat output. The reflection efficiency of gold coating is higher than white coating, while for the emitters with high watt density or the surface temperature of the tube above 800°C , we suggest to use ceramic coating as reflector because the temperature resistance is up to 1000°C . In addition to 180° (half-tube) coating, we also manufacture 270° coating or other customer specified degrees.

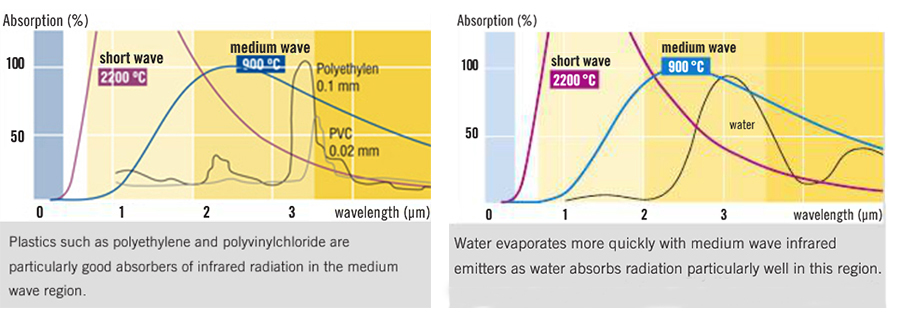

7. Why there are different wavelength IR lamps
All materials including chairs,human body, everything will absorb a fraction of the infrared spectra, reflect a fraction at the surface and allow a fraction of the radiation to pass through. Infrared lamps can realize the heating and drying purpose at a shorter time with less energy but get a good performance only when the infrared radiation which precisely matches the absorption characteristics of the product. Depending on the temperature of the heating filament, an infrared emitter can delivers distinctly different radiation at various wavelengths. Short wave radiation can penetrate deep into some solid materials and ensure a uniform through heating. Medium wave radiation is absorbed mostly in the outer surface and predominantly heats the surface.Medium wave radiation is particularly well absorbed by many plastics,glass and especially water and is converted directly into heat. So we need different lamps at different wavelength for different heating applications requests.
