Steel Aluminum Hybrid Solar Mounting System
Overview

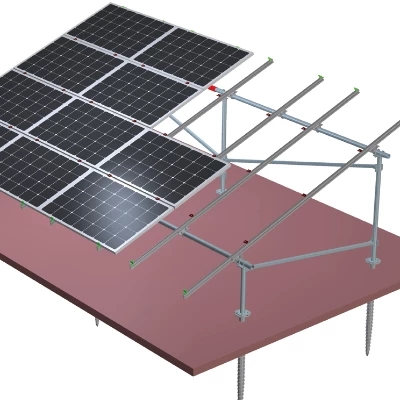

The HUGE floor brackets are designed and arranged for flexibility. The installation angle is wide, and can be installed from 0 to 60 degrees. Unique track, clamp, Q235 steel pipe (outer diameter 60mm hot-dip galvanized), U bolts, pipe caps, spiral piles, etc., can be installed quickly and easily, saving labor costs and installation time. There is no need to cut or weld at the installation site. It can guarantee the corrosion resistance, structural strength and beauty of the product.
1. Material: Q235 hot-dip galvanizing treatment, strong corrosion resistance.
2. Simple and efficient installation: Convenient installation, special structural design can be easily installed, saving construction time and cost.
3. International Standards: The ground mounting system complies with international standards AS / NZS1170.2 and SGS testing, JIS C8955:2017.
4. Environmental protection: It can be recycled with all the raw materials, guaranteeing at least 15 years of quality warranty and 25 years of service life.
Parameter
|
Item
|
Illustration
|
|
Installation Site
|
Ground
|
|
Snow Load
|
2.4KN/m2
|
|
Installation Direction
|
Vertical or Horizontal
|
|
Installation Angle
|
0-60 degree
|
|
Ground Clearance
|
300-3000mm
|
|
Panel
|
with frame/ frame-less
|
|
Wind Load
|
60m/s
|
|
Color
|
Natural or custom
|

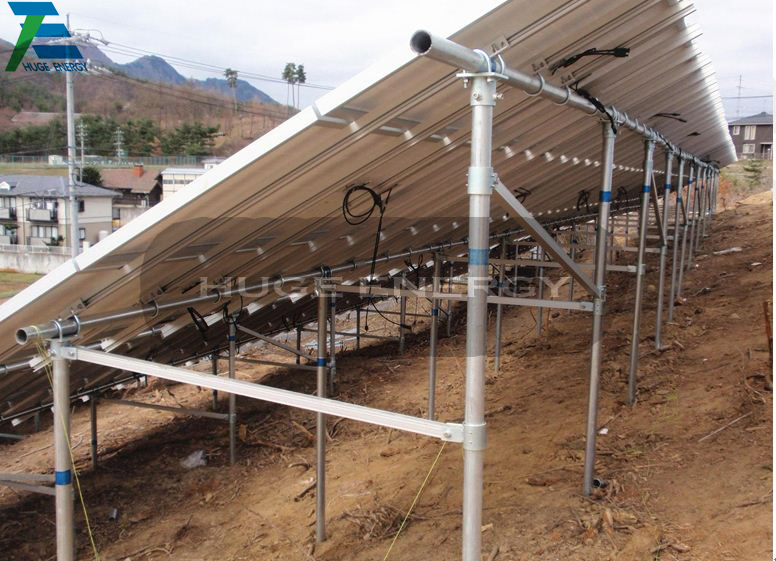

Project
Why Huge Energy
Reliability
Huge Energy is a manufacturer specializing in successful solar installation solutions, to deliver reliable products to customers. We firmly support the design and production in accordance with international standards. We can guarantee the reliability of our products. Even under extreme installation conditions such as heavy snow, storms and heavy salt damage areas, Huge Energy's products can be used for 25 years.
Quality Control
With the automation production line, you can control the material and quality of the product strictly. At the same time, the factory thoroughly manages each production process with the ISO quality control system.
Quality Assurance
Huge Energy's solar system is made on the domestic advanced production line and is strictly produced based on quality standards. Achieve huge compliance with our customers through the strictest quality assurance system of the solar product manufacturer.
We have a 15 year quality guarantee on Huge products.
After-sales Service
Today's Huge Energy has completed thousands of projects worldwide, with a total installed capacity exceeding 2 GW. Along the way, Huge Energy's products have responded to the design and product installation challenges successfully during various challenging natural conditions, and have accumulated a large amount of production and manufacturing experience and project installation experience.
Became a supplier of reliable plan offerings worldwide. We will provide after-sales service so that your project can be operated efficiently even after the project is installed.
