Product description

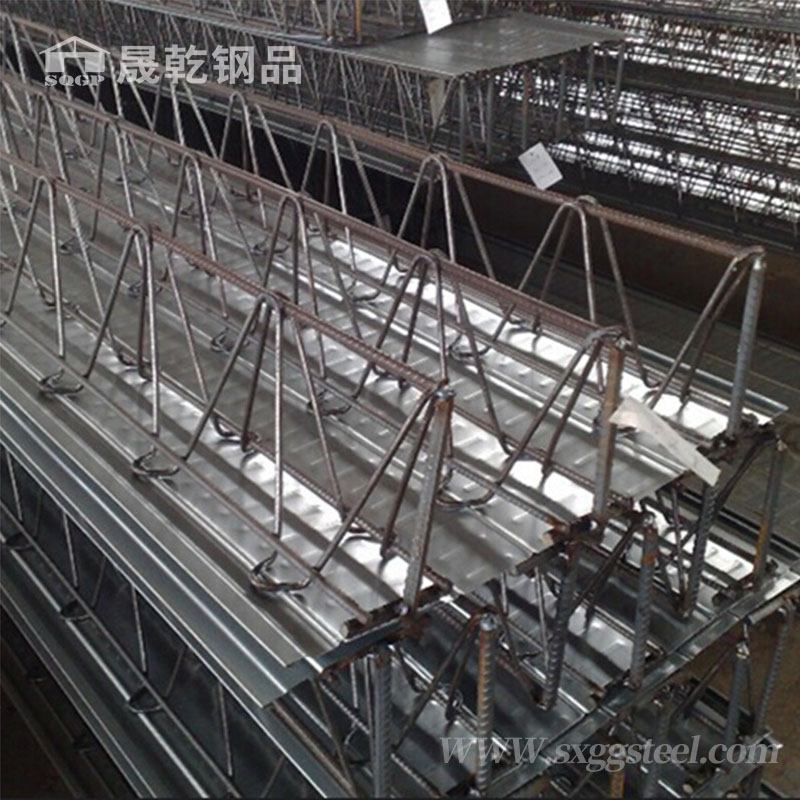

Anti-earthquake Construction Material Truss Decking Sheet is a composite of corrugated sheet and steel bar truss which replace wooden template to bear all the comstruction loads in the construction phase and participate in bearing structure load in the service stage. Composite deck is floor deck which replace all or part of the force steel bar and work together with concrete to in service stage, while steel sheet of steel truss deck does not participate in bearing structure load, it's non-composite deck.
Specifications:
1. Top bar diameter : from 5-12mm
2. bottom bar diameter :from 5-12mm
3. Distributing bar diameter: from 4-10mm
4. bar length:from 3-11.8m
5. girder width:100-150mm
6. girder height: from 100-150mm
|
Type
|
600mm
|
|
Size
|
from TD3-70 to TD7-270
|
|
Width
|
600mm
|
|
Overlap Width
|
590mm
|
|
Maximum length
|
11.8m
|
|
Height
|
70-270mm
|
|

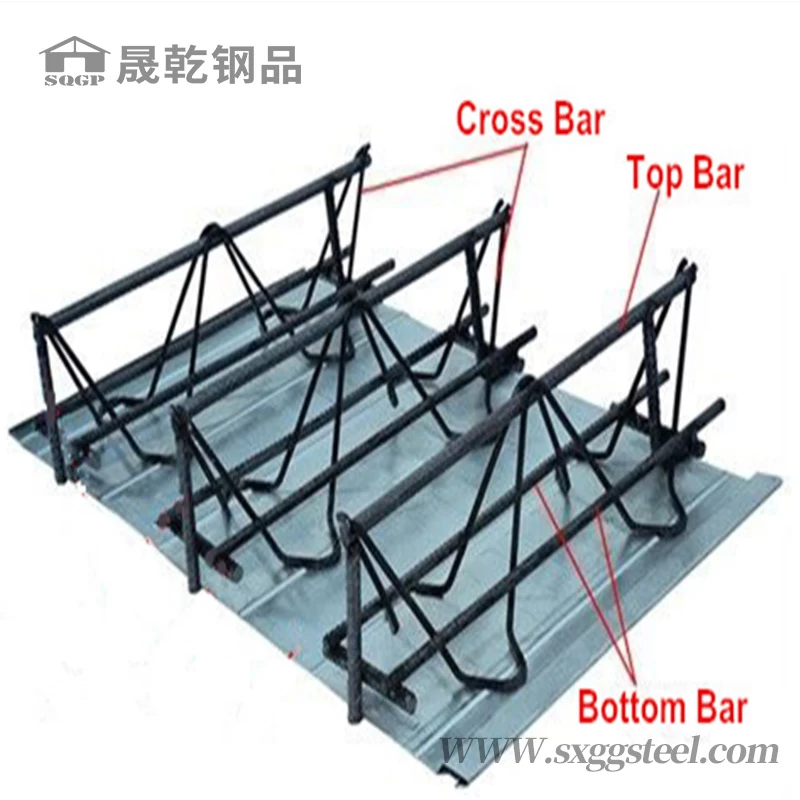

Top and bottom bar diameter
|
6-12mm
|
|
Cross bar diameter
|
4-8mm
|
|
Decking thickness
|
Galvanized steel sheet 0.5mm
|
At present, multistory and tall building usually take profiled steel sheet with some ribs -concrete composite floor,which has the disadvantages of high thickness, reducing inner height of building, unflattering of under floor, lots of reinforcement binding, hard control of distances between ribs and thickness of concrete.
