Steel Construction Used Light Steel Keel Hat Roll forming machine

Product name: Steel Construction Used Light Steel Keel Hat Roll forming machine

Machine Details

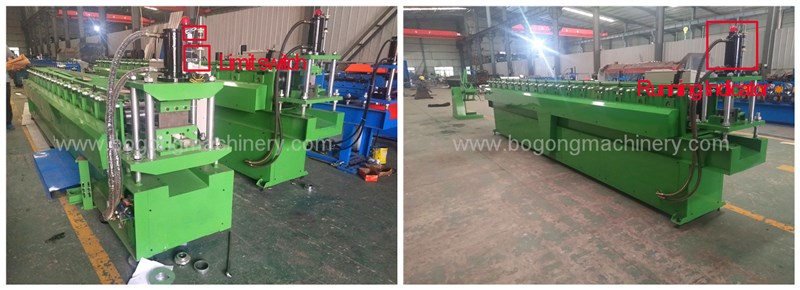

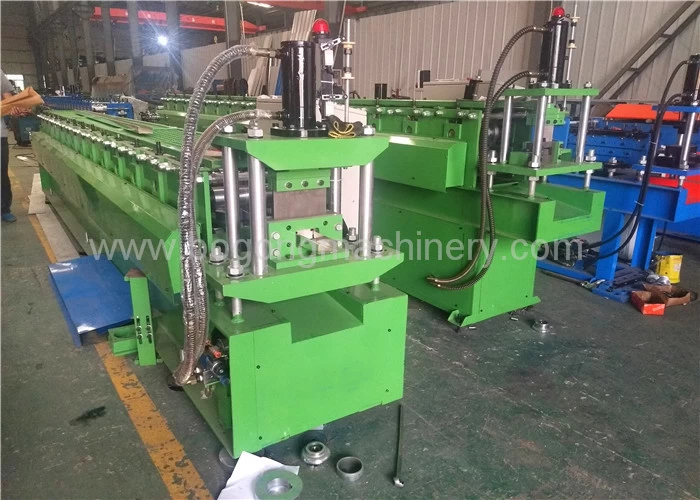

There is limit switch on Steel Construction Used Light Steel Keel Hat Roll forming machine cutting section end, this switch is for controlling the upper cutting blade, to ensure the upper cutting blade won't go to too high or too lower. The mechanical part are combined with electric control system, full intelligent to track working state.

We have installed machine running state indicator also, when the whole line has gotten through the power supply, this indicator will be light to notice the workers be careful of it. This is another safety items for our roll forming lines.

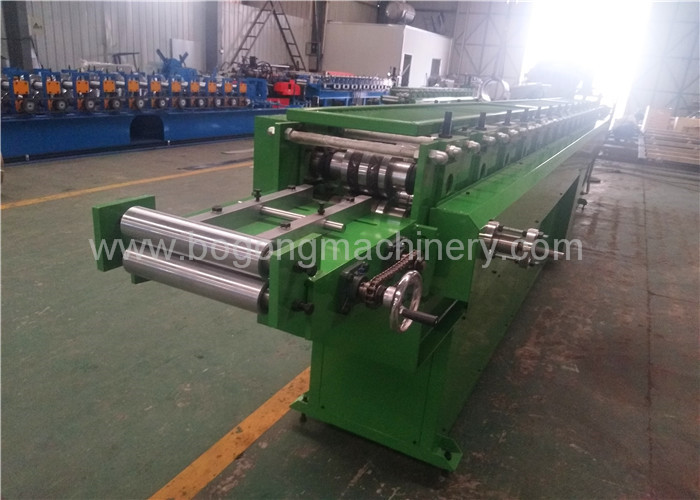

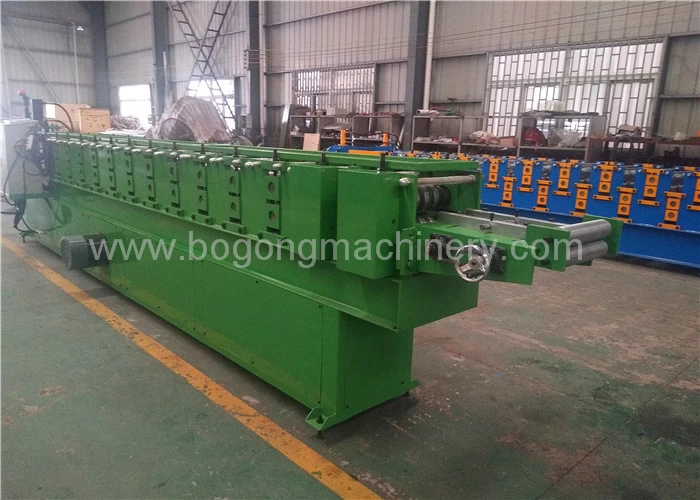

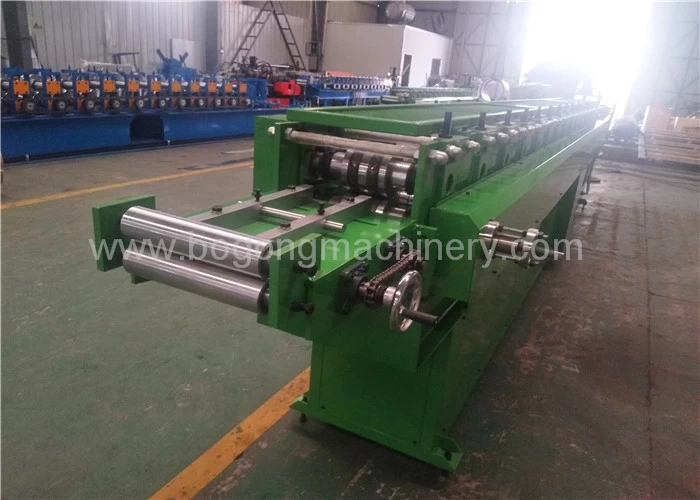

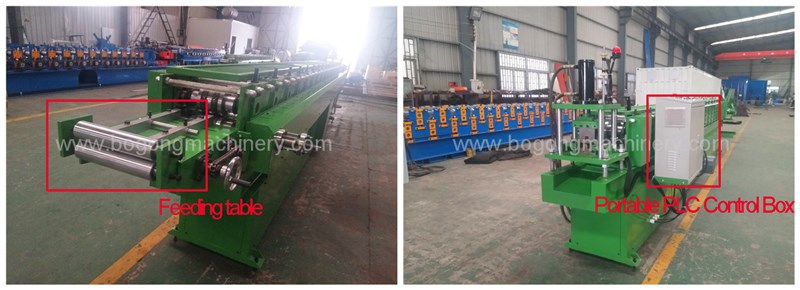

This  Steel Construction Used Light Steel Keel Hat Roll forming machine  is small, just 11 steps roll forming, and about 5.8 meters long, so we design portable type PLC control box, welded on roll forming machine frame aside. And the feeding table is with one group of guiding roller. Hand wheel is on one side for adjusting different material feeding width.

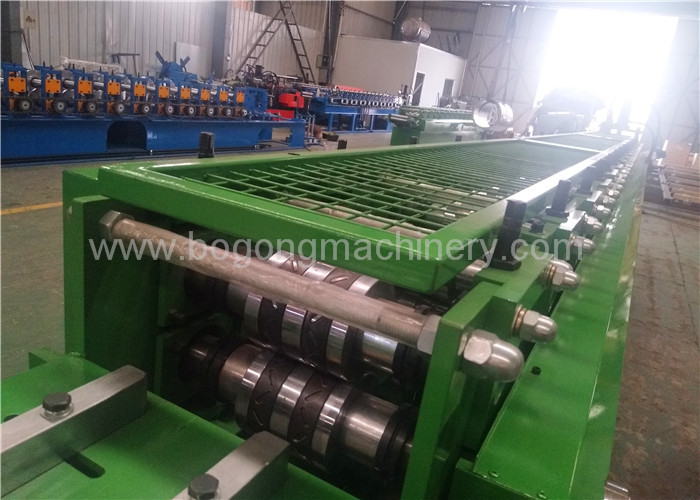

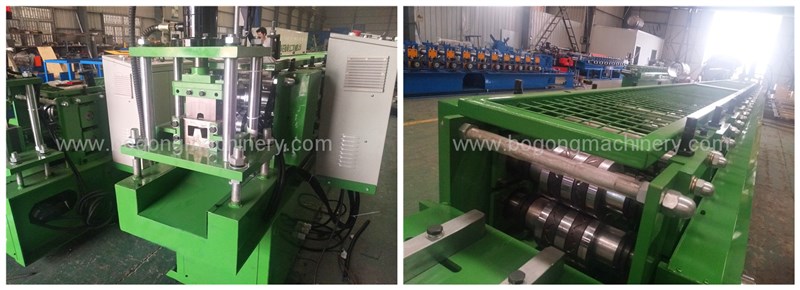

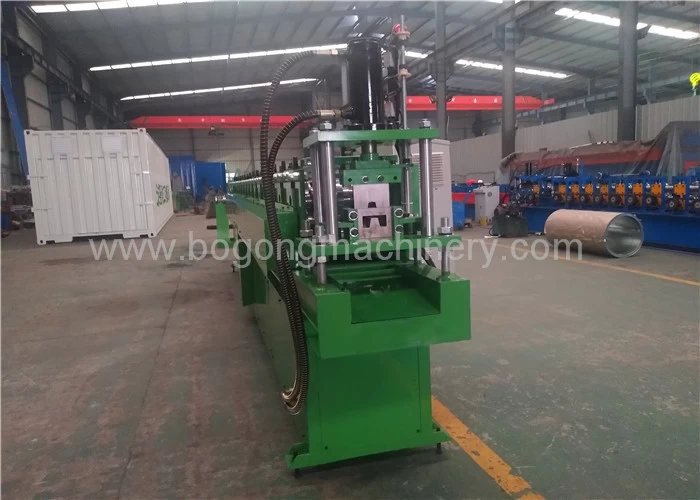

Hydraulic cutting section for whole  Steel Construction Used Light Steel Keel Hat Roll forming machines, at the bottom is the waste material coming down  guiding plate. All roll forming section was covered with grids type of safety cover, the operator can see the working rollers well and avoid people's hand go inside, third safety part design of this  Steel Construction Used Light Steel Keel Hat Roll forming machines.

Technical Parameters

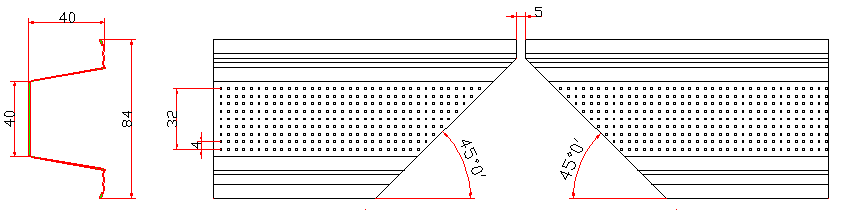

Light Steel Keel hat Design Drawing

This keel hat raw material strip width is about 156mm and thickness is 0.3-0.8mm, the bottom dot and swaist ribs  is the option designs for whole roll forming lines.
