Steel Metal Gusset Plate Roll Forming Machine Decoration Used

OEM/ODM design and manufacture are acceptable

Personal custom design is fine also

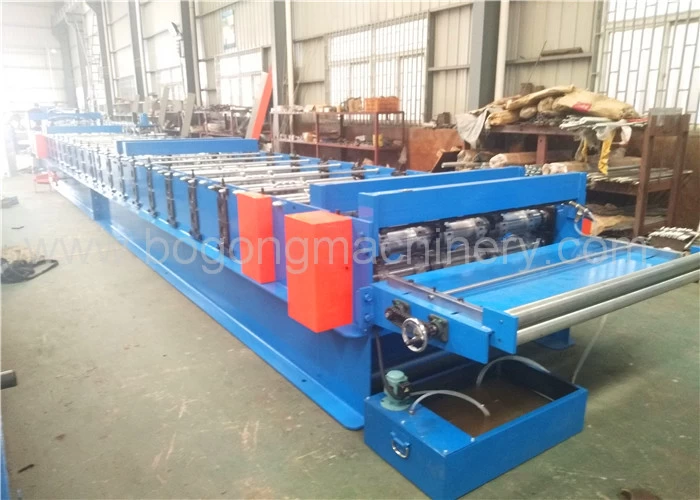

Product Name: Steel Metal Gusset Plate Roll Forming Machine Decoration Used

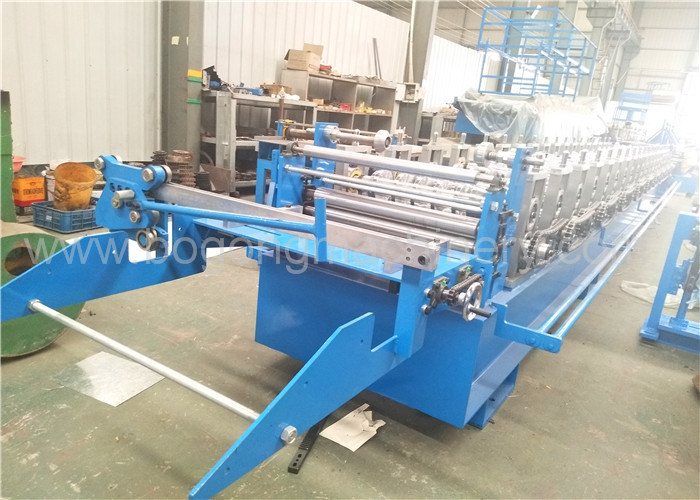

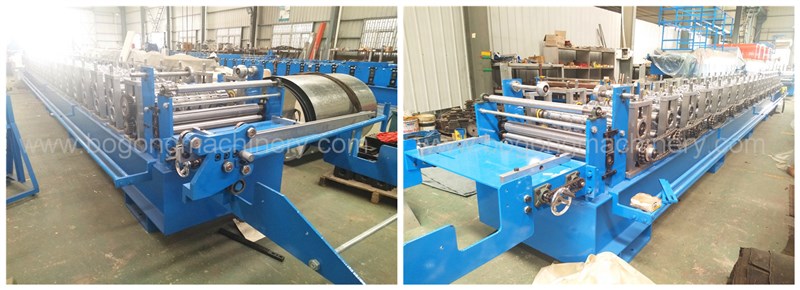

Before feeding table, there is entry bench and pre-sheer at steel metal gusset plate roll forming machine's beginning end, see below pictures, the feeding guider on feeding table is adjustable, hand wheel adjusting. This set gusset plate roll forming machine can produce three types of width, D-spacer type change, so we need adjust the material width when we changed to producing anther side of design.

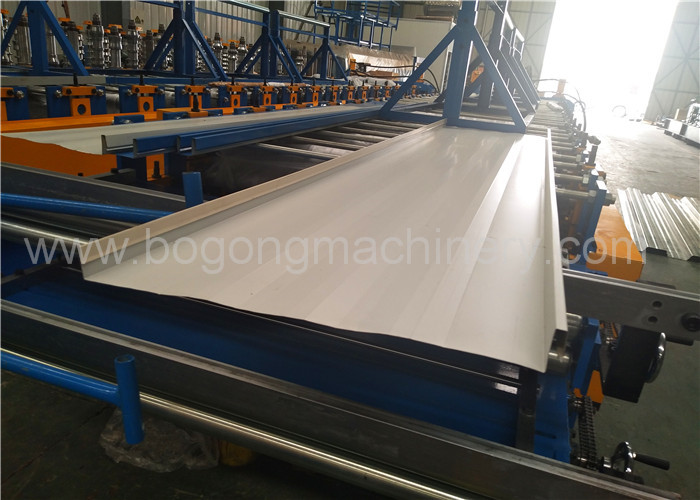

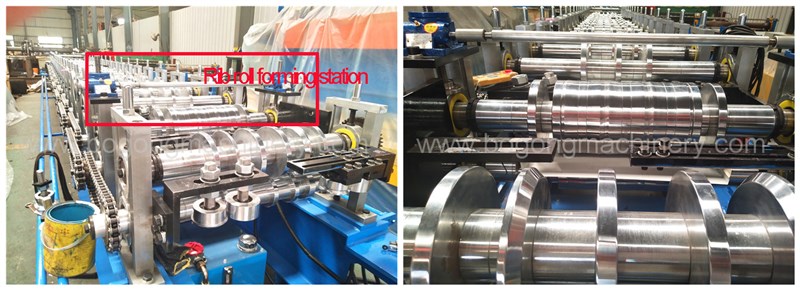

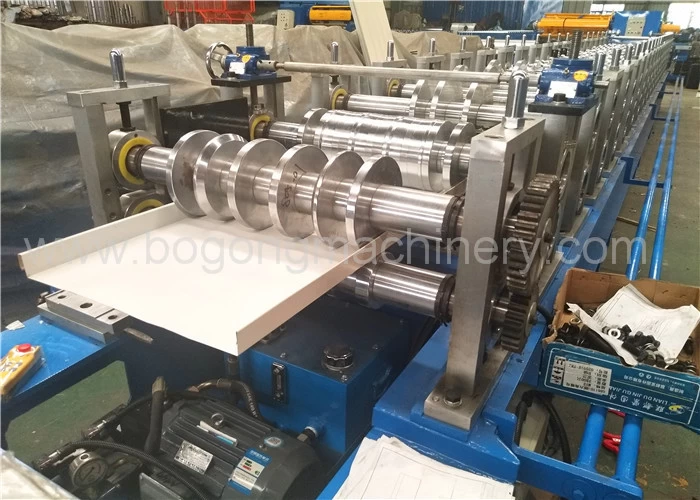

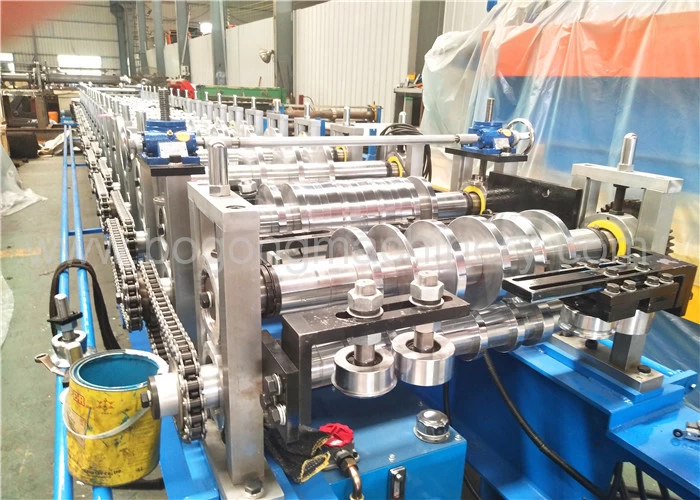

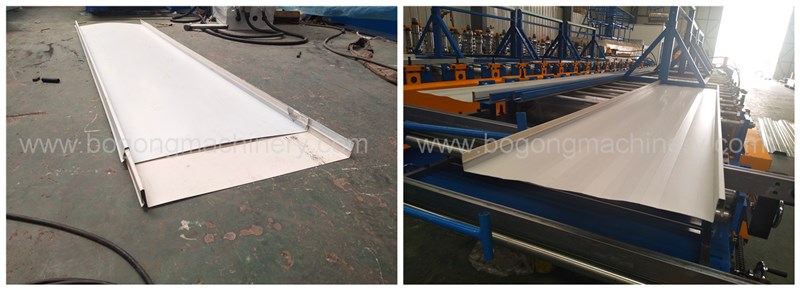

We designed one alone station as option for roll forming ribs. For this Steel Metal Gusset Plate Roll Forming Machine, sometimes, we gusset plate needs ribs, sometimes we needn't ribs, so when need't roll forming ribs on gusset plate, this station rollers can be lifted up, or we adjust down to roll forming ribs. We can compare the gusset plate sample with ribs and without ribs effective on the sample pictures.

Technical Parameters

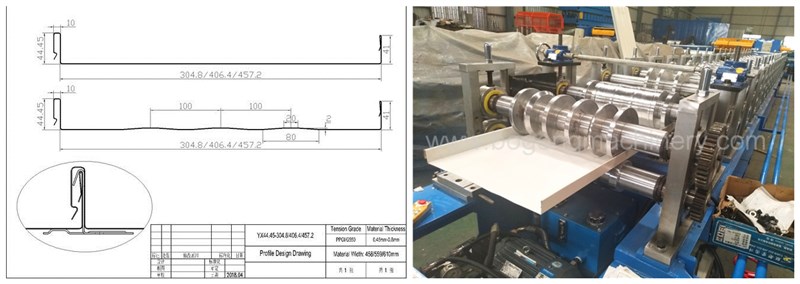

Profile Drawing Drawing

Three feeding width three effective width, changeable design for metal sheet gusset plate roll forming machine profile design, any need, feel free to contact us, we can customize design or OEM for users.
