Steel Metal Rolling Shutter Door Roll Forming Machine 136mm Feeding Width

This roll forming machine is for producing galvanized shutter door material, the important for all Steel Metal Rolling Shutter Door Roll Forming Machine is to ensure all shutter door panels should be connected well, not to lose after rolling up.


  • Encoder BrandOmron
  • Cutting TypeBlanking
  • Cutting Blade MaterialCr12
  • Shaft Diameter65mm
  • Driving Motor4KW
  • Forming Station15
  • Covered Width76
  • Material Width136mm
  • Material Thickness0.6-1.0mm

Customize any kinds of steel door, rolling shutter door roll forming machines and other necessaries.


Product name: Steel Metal Rolling Shutter Door Roll Forming Machine 136mm Feeding Width

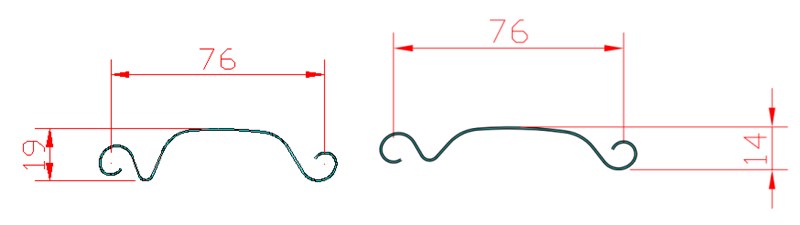

Profile Design Drawing

This Steel Metal Rolling Shutter Door Roll Forming Machine is the popular design for garage door, the raw material width is 136mm and 122mm,the raw material can be pre-painted  sheet and galvanized sheet, and suit for 0.6-1.0mm thickness.


rolling shutter door roll forming machine

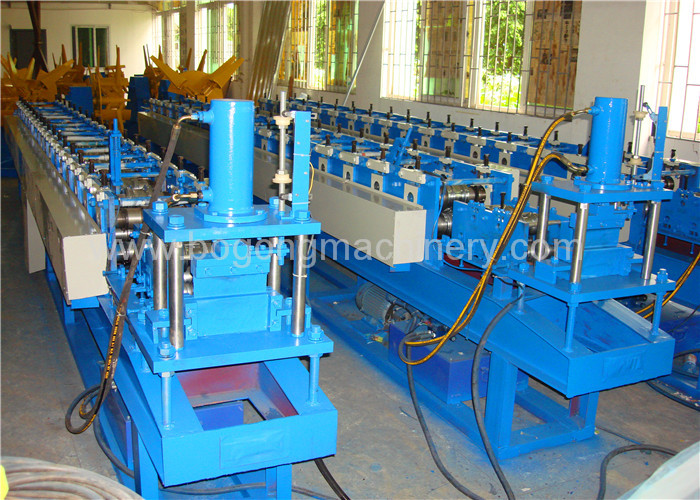

Main Machine Details

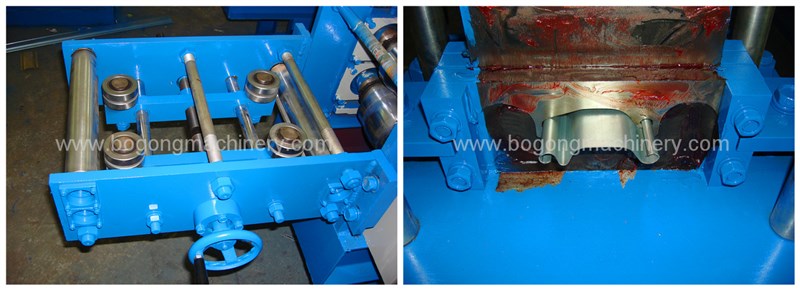

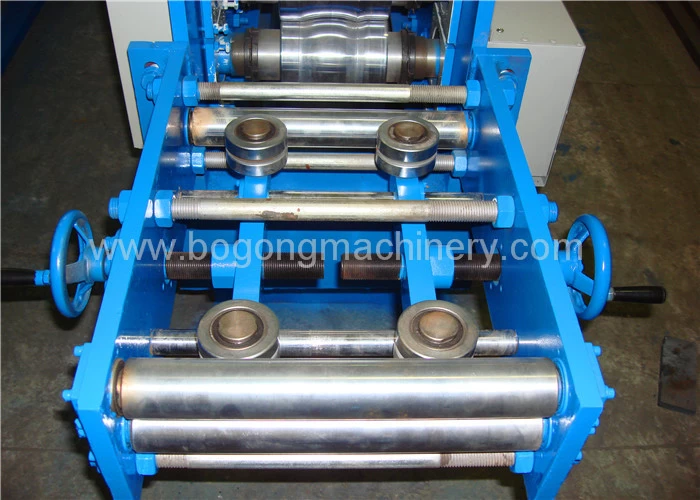

 At the beginning of Steel Metal Rolling Shutter Door Roll Forming Machine, there is one group guiding roller, then guiding plate for material head, the guiding plate width can be adjusted by hand wheel, it is convenient for operating.

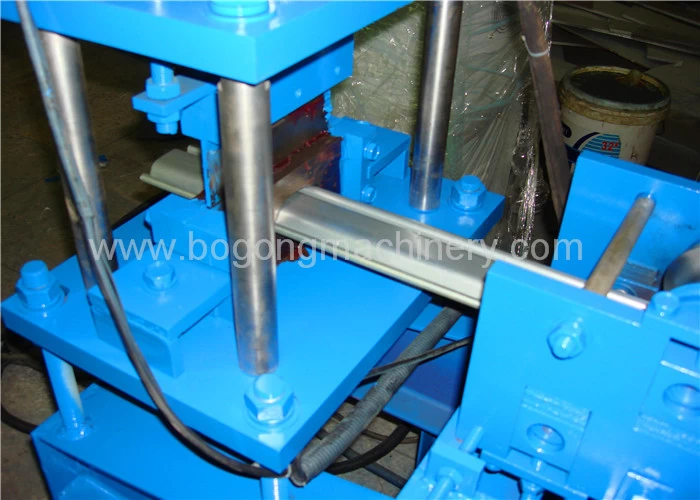

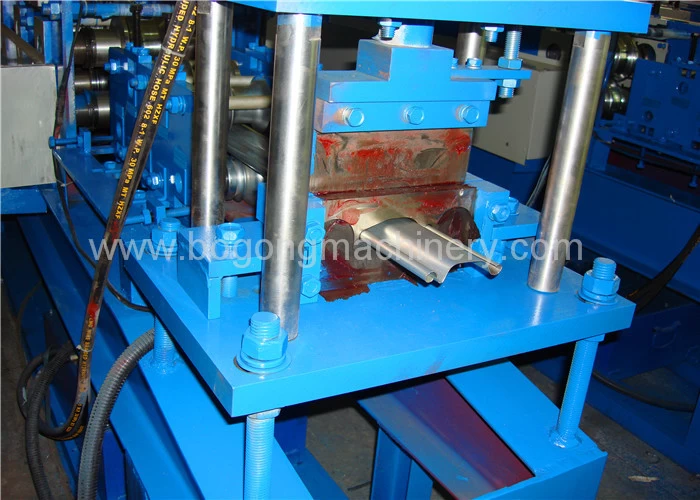

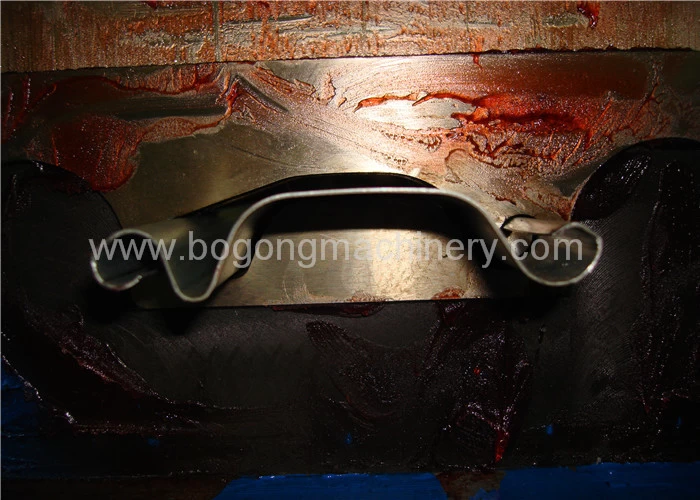

Next is hydraulic cutting section, three pieces of cutting blades cutting, with small waste material cutting to ensure cutting place good.

Roller shutter door roll forming machine

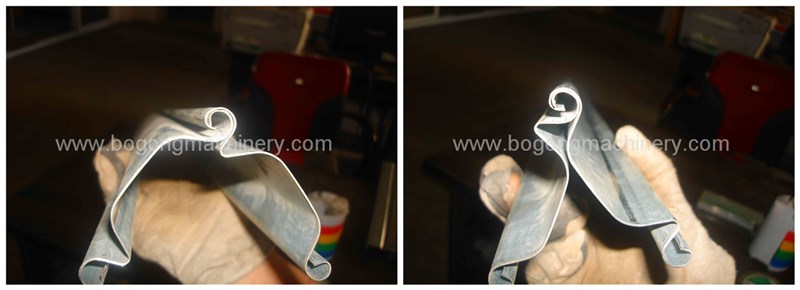

For Steel Metal Rolling Shutter Door Roll Forming Machine, the most important is to produce good effective joint shutter door panel, see below jointed effect picture, no matter positive direction or negative direction, all should keep the overlap is good, never fall down from other pieces.

metal roller shutter door roll forming machine



Technical Parameters

Parameters

Specification

Voltage

380V/50HZ/3PH or customized

Driving Motor

KW

Forming Steps

 15 steps

Working Speed

10-15m/min

Thickness for Steel

0.6-1.0mm

Shaft Diameter

65mm

Shaft Material

High grade 45# forged steel

Roller Material

G45# steel, CNC lathe,polished and chrome plated

PLC Cabinet

Schneider, Delta

Encoder

Omron

Sprocket Wheel

45 steel high-frequencies quench

Cut-off System

Post cutting, no waste cutting

Cutting Blade Material

Cr12 steel

Machine Frame Material

Fine welded structural steel;

Raw Material

 GI steel G330-550

Painted Color

Blue+Orange Or Customization

Overall Size

7500*950*1050mm

Weight

2500KGS
