Steel purlin brackets and cleats for C/Z purlin installation

Yumisteel is committed to providing our customers with a full range of steel construction products, enabling our customers to purchase from one stop.


  • Galvanized steel color- YumisteelY

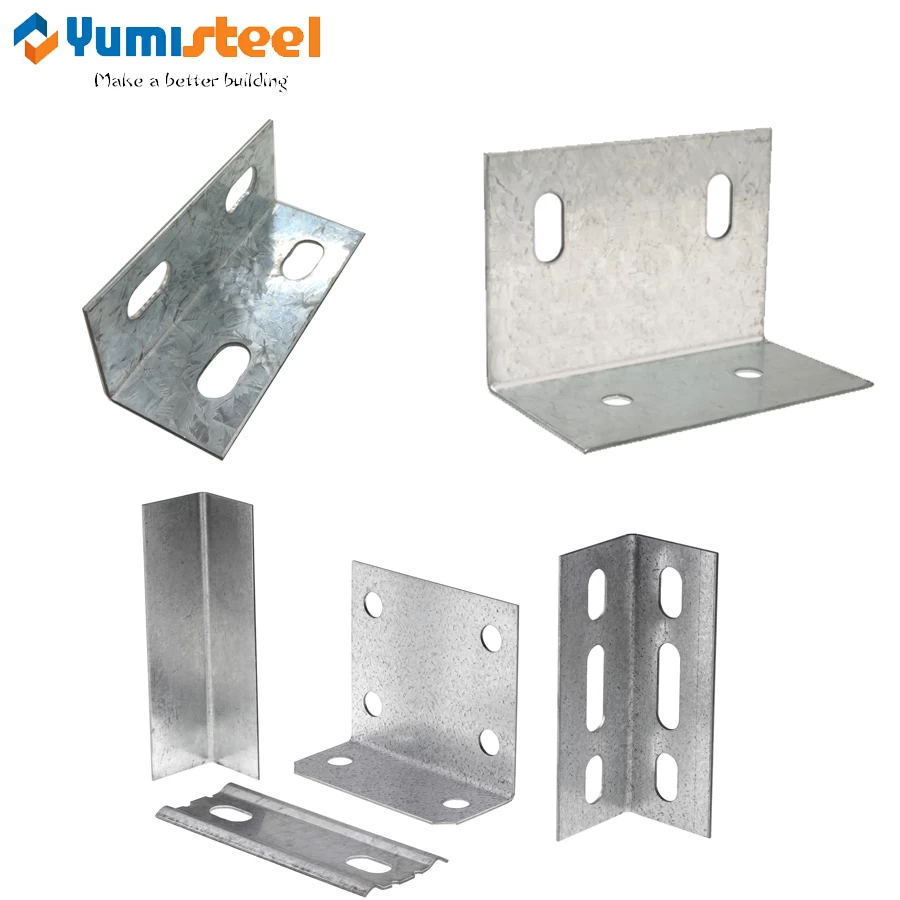

What's purlin brackets?

C purlin brackets for sales

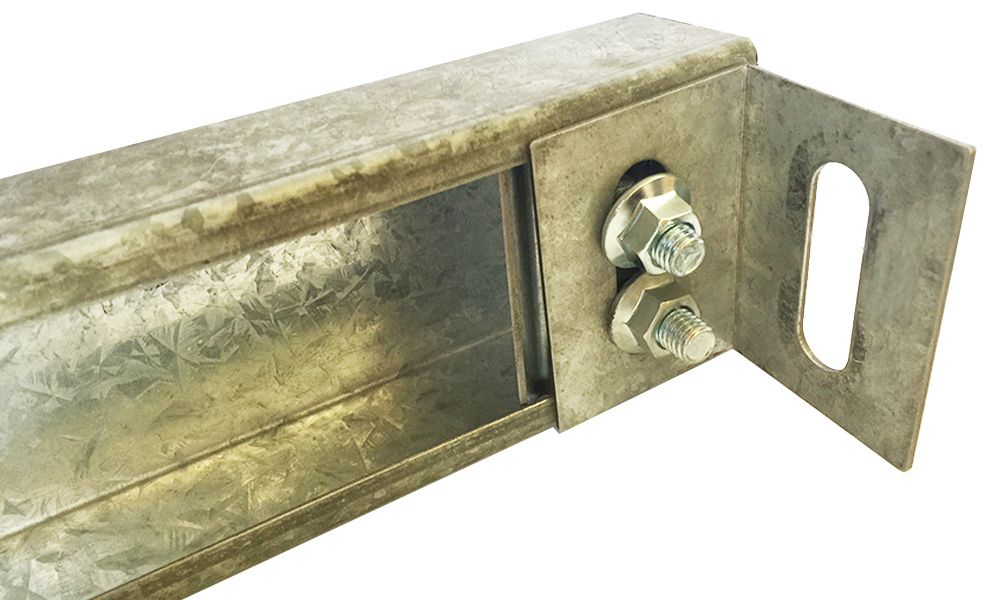

Steel purlin brackets (cleats) are ideal for joining or connecting C or Z section purlins. Purlin Brackets are prepunched to match standard purlin.There is standard size purlin cleats,but if you require alternative sizing, please contact our sales team for availability.

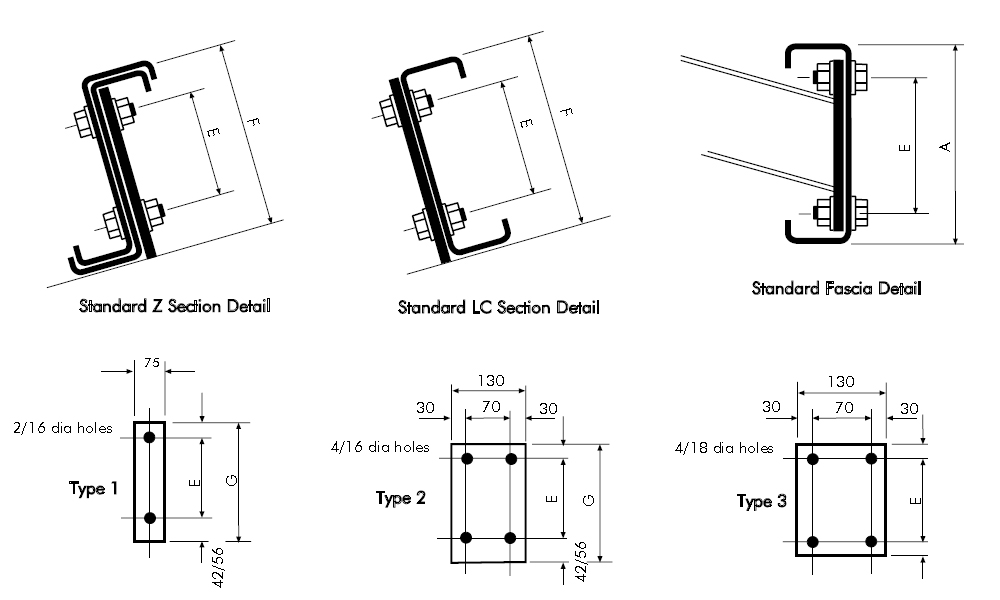

Cleat details

β˜† Standard cleat dimensions and details:

purlin cleats for sales

Product name

Size details

Thickness(mm)

Cleat dimensions

A

B

B

D

E

F

G

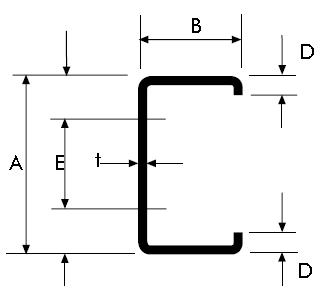

C purlin

100

40

 N/A

20

1.5-3.0

40

110

100

100

50

  N/A

20

1.5-3.0

40

110

100

150

40

  N/A

20

1.5-3.0

60

160

155

150

50

 N/A

20

1.5-3.0

60

160

155

150

60

  N/A

20

1.5-3.0

60

160

155

200

50

  N/A

20

1.5-3.0

110

210

205

200

60

  N/A

20

1.5-3.0

110

210

205

200

70

  N/A

20

1.5-3.0

110

210

205

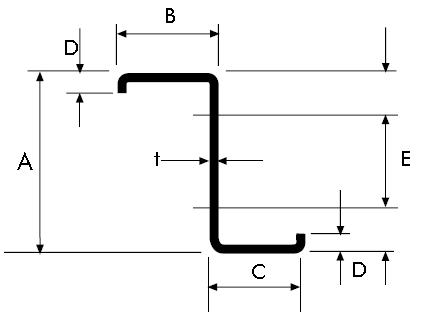

Z purlin

150

55

55

20

1.5-3.0

60

160

155

200

57

63

20

1.5-3.0

110

210

205

Note:

1)The cleats described above are not supplied by Yumisteel,but these details are assisted by Yumisteel cooperated supplier.

2)If you have special size needed,please advise the size drawing and order quantities.

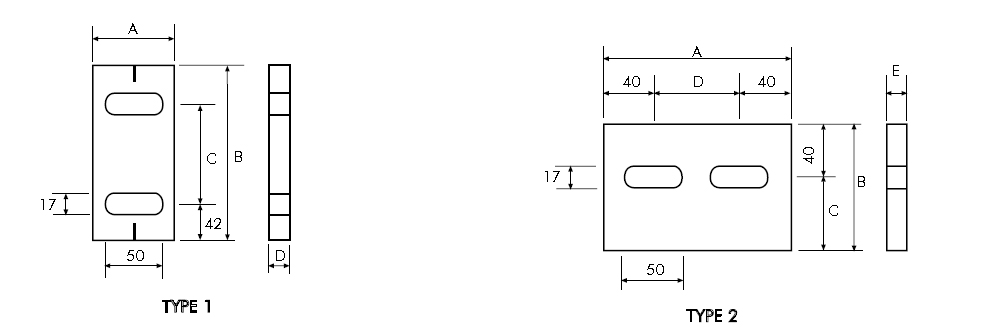

β˜† Standard brackets and cleats for multi hole purlins:

Wherever practical purlin and girt cleats should be welded to columns and rafters at centers to suit the standard lengths of bridging components.


Standard Brackets and Cleats for Multi Hole Purlins

NO.

A

B

C

D

E

Hole punching size

Mass

100KC

150

100

60

70

8

50*17

0.86kg

150KC

75

156

89

-

8

50*17

0.67kg

200KC

75

206

140

-

8

50*17

0.86kg
