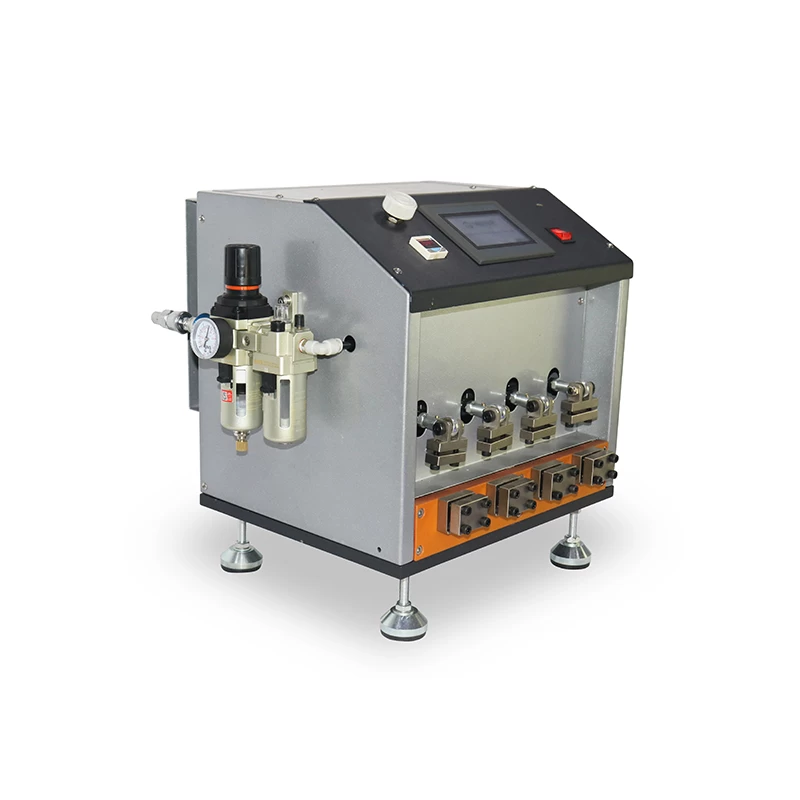

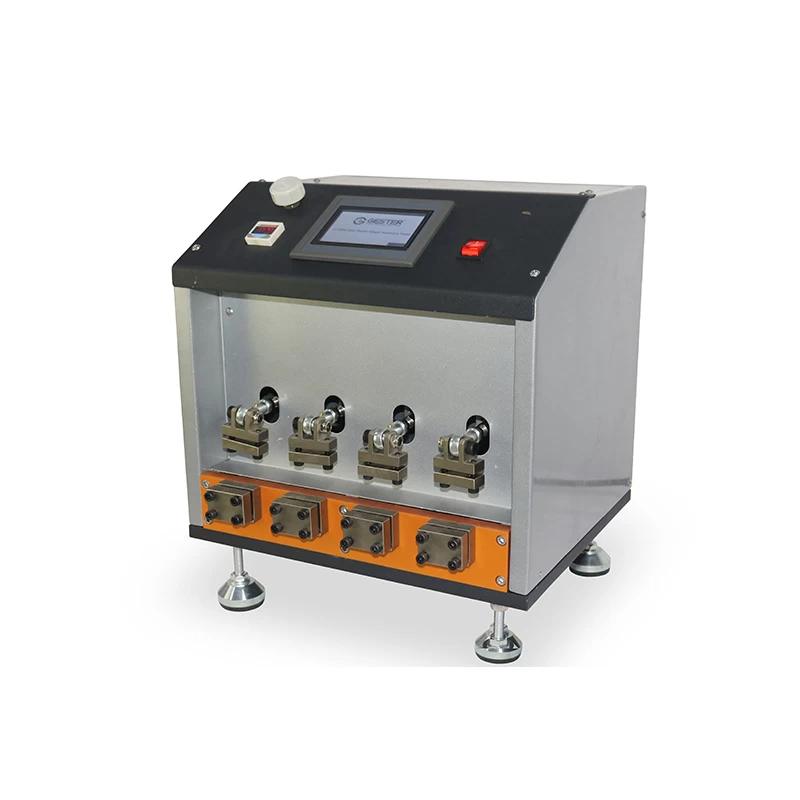

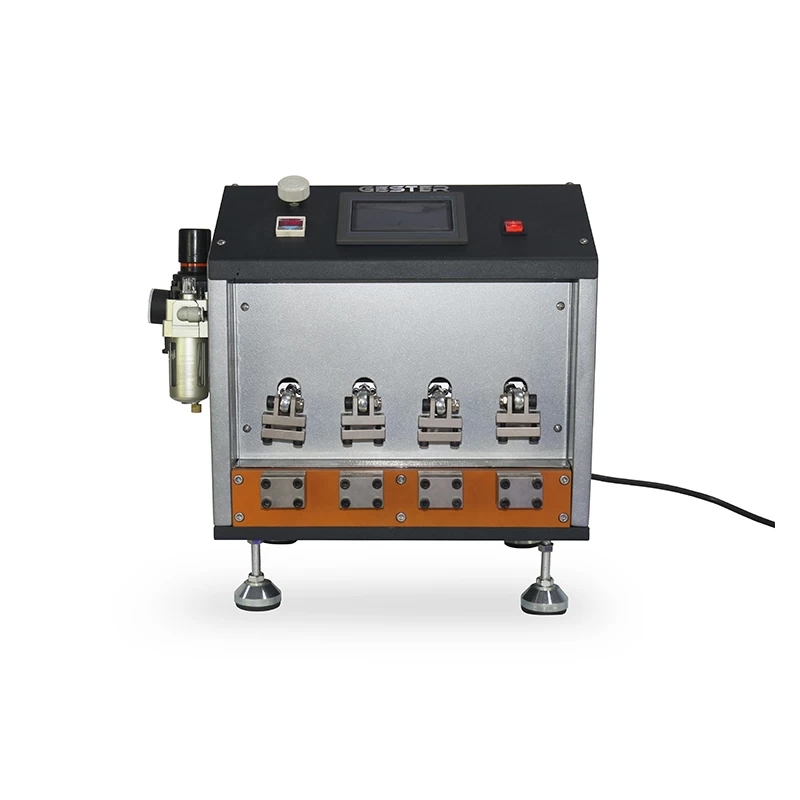

Steel Shanks Fatigue Resistance Tester GT-KB46
Product Introduction
|
Application:
Steel Shanks Fatigue Resistance Tester is used to determine fatigue resistance of shoes steel shank.
Fix
two ends of steel shank by respectively clamps, excert a certain force
on upper fixture, flex the shank in frequency of 4 cycles per second and
inspect the damage degree of sample after certain times.
Standards:
GB/T 3903.35, GB 28011, ISO18895, EN 12958
|

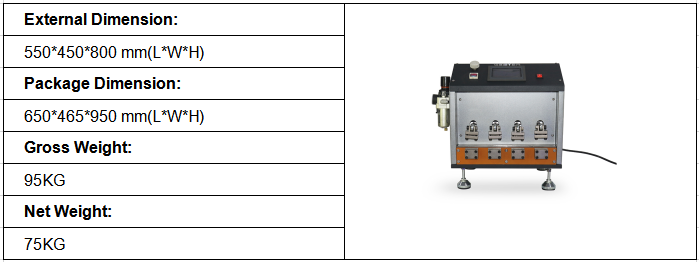

Dimensions

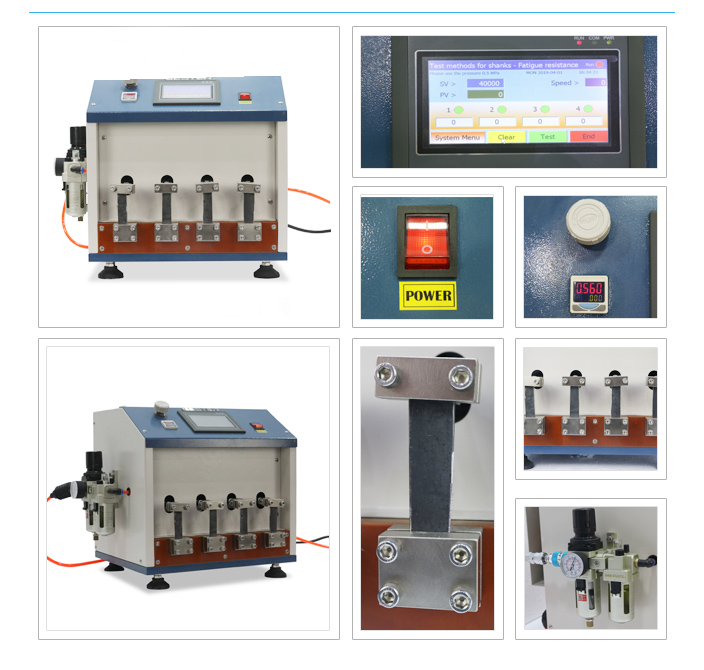

Feature
Fix
two ends of steel shank by respectively clamps, excert a certain force
on upper fixture, flex the shank in frequency of 4 cycles per second and
inspect the damage degree of sample after certain times.
Key Specifications
Model
|
GT-KB46
|
Test position
|
4
|
Test speed
|
4 r/s
|
Hard steel plane height of lower fixture
|
32mm±2mm
|
Distance between connecting rod of upper fixture and lower fixture
|
70mm±2mm
|
Circular test load
|
49N±2N
|
Test clamp force
|
4900N.mm±50 N.mm
|
Control method
|
PLC touch screen
|
Power supply
|
1∮AC 220V 50/60HZ
|
Dimensions（W×D×H）
|
500 ´ 450 ´ 800 mm
|
Weight
|
75kg
|
Standards
|
GB/T 3903.35, GB 28011, ISO18895, EN 12958
|
Standards accessories
|
Power line
|
Optional accessories
|
Torque wrench
|
Air compressor
|
