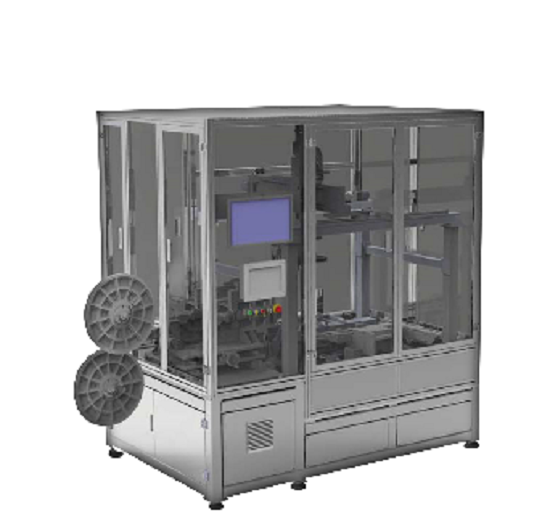

Steel Strip Packing Equipment
Products Description
The equipment is mainly used for binding and fixing the module which is composed of square-shell battery, feeding the steel coil, drawing and cutting the steel strip with fixed length, automatically binding and fixing the module, laser welding is used at the steel strip joint, and the weld structure is even, the utility model is neat and beautiful and ensures the requirement of welding strength. Can be customized according to the use of the design module loading and unloading mode, can be used as a single machine, can also be used with the automated production line supporting.
Performance Characteristics
1. Steel coil feeding, equipment automatically fixed length cut steel strip;
2. High precision cutting of steel strip;
3. Laser welding of steel strip, high welding strength, high efficiency;
4. Equipped with welding monitoring system, can real-time observation through the display equipment inside the welding status.
Technical Parameter
|
Model Number
|
TMAX-BJXR-SSP01
|
Beat
|
1PPM
|
|
Voltage Source
|
380V 50HZ
|
Batteries
|
Square Shell
Battery Module
|
|
Power
|
3KW
|
Pressure
|
0.5-0.7MPA
|
|
Belt Material
|
0.5mm Steel Strip
|
Dimensions
|
2400*1500*2500(mm)
|
