Stem U packing for type FC gate valve

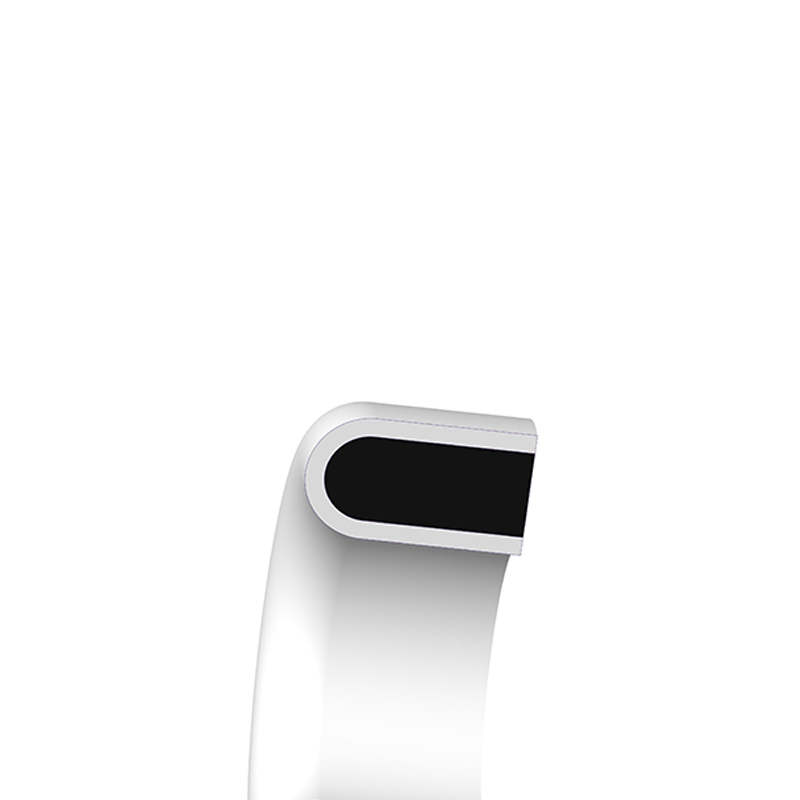

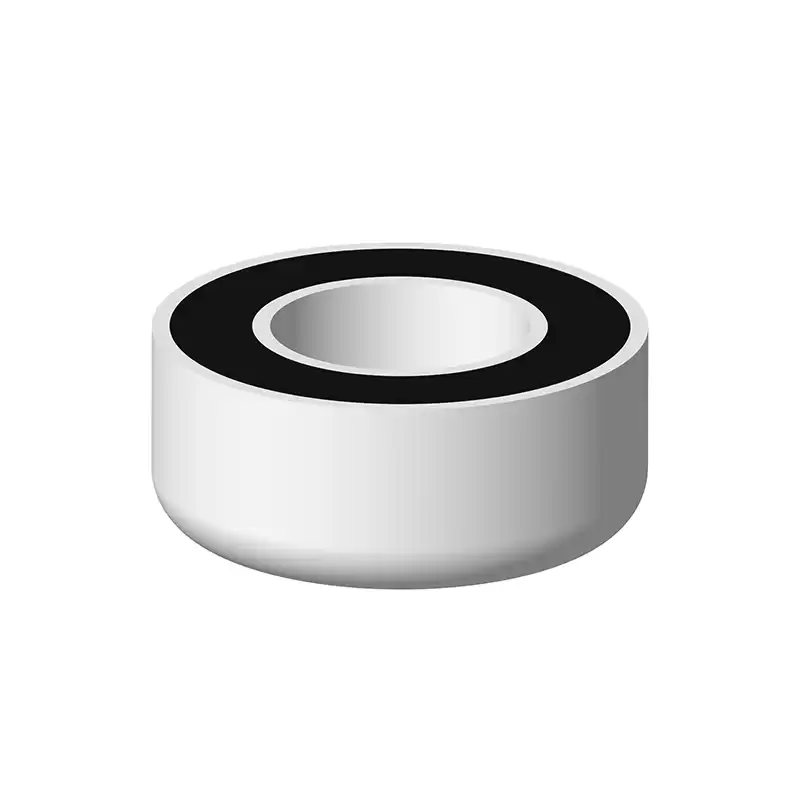

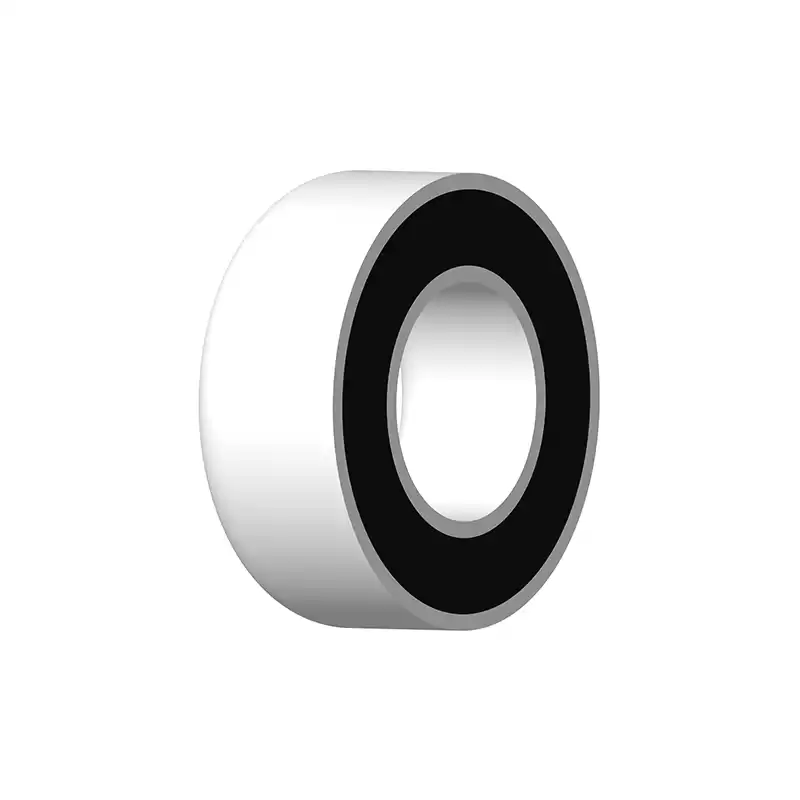

JST's ESU series stem packings, also known as u packing, are designed to be placed between the stem and bonnet of Type FC gate valves. This stem packing gives you a reliable seal for superior performance.

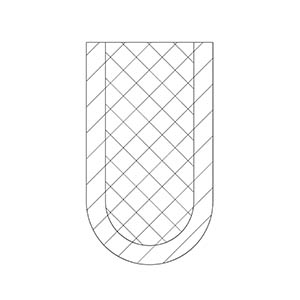

This ESU shell is made of virgin PTFE and the filler could be NBR, HNBR or FKM.
|
Advantages:
1.Suitable for low pressure application
2.Excellent sealing performance
3.Easy to install
4.Cost-effective
|
Working Conditions
|
Working Pressure
|
Working Temperature
|
Working Medium
|
0~15000 PSI
|
PU
|
Hydraulic fluids, crude oil, sour oil/gase, H2S, salty water
|
Application Suggestion:
FC valve
Size:
|
|
Inch
|
MM
|
|

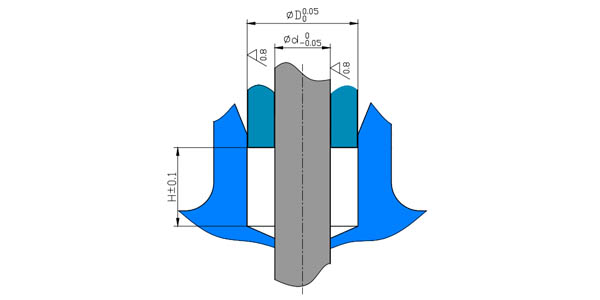

Stem size
|
Outer diameter of groove
|
H
|
Stem size
|
Outer diameter of groove
|
H
|
|
0.750
|
1.500
|
0.750
|
19.05
|
38.10
|
19.10
|
|
1.000
|
1.750
|
0.750
|
25.40
|
44.45
|
19.05
|
|
1.000
|
1.750
|
0.780
|
25.40
|
44.45
|
19.81
|
|
1.000
|
1.750
|
0.750
|
25.40
|
44.45
|
19.10
|
|
1.062
|
1.750
|
0.625
|
26.97
|
44.45
|
15.88
|
|
1.125
|
1.750
|
0.750
|
28.58
|
44.45
|
19.05
|
|
1.250
|
2.000
|
0.750
|
31.75
|
50.80
|
19.14
|
|
1.375
|
2.000
|
0.750
|
34.93
|
50.80
|
19.05
|
|
1.500
|
2.250
|
0.750
|
38.10
|
57.15
|
19.05
|
|
1.500
|
2.250
|
0.827
|
38.10
|
57.15
|
21.00
|
|
1.750
|
2.375
|
0.406
|
44.45
|
60.33
|
10.31
|
|
1.750
|
2.500
|
0.625
|
44.45
|
63.50
|
15.88
|
|
1.750
|
2.500
|
0.687
|
44.45
|
63.50
|
17.45
|
|
2.000
|
2.750
|
0.750
|
50.80
|
69.85
|
19.05
|
|
2.000
|
2.750
|
1.062
|
50.80
|
69.85
|
26.97
|
|
2.250
|
3.000
|
0.625
|
57.15
|
76.20
|
15.88
|
|
2.250
|
3.000
|
0.787
|
57.15
|
76.20
|
20.00
|
|
2.500
|
3.250
|
0.812
|
63.50
|
82.55
|
20.62
|
|
2.500
|
3.375
|
0.200
|
63.50
|
85.73
|
12.70
|
|
2.750
|
2.500
|
0.750
|
69.85
|
88.90
|
19.05
|
|
2.812
|
3.562
|
0.750
|
71.42
|
90.47
|
19.05
|
|
3.250
|
4.000
|
0.750
|
82.55
|
101.60
|
19.05
|
|
3.625
|
4.375
|
0.500
|
92.08
|
111.13
|
12.70
|
