Stone Grain Color Coated Steel Coils for Wall/Roof Metal Sheet

The color steel coils can paint different patterns, such as wood grain, flover print, camouflage, brick. MOQ:20 tons / Size.


  • Stone 16Y
  • Stone 15Y
  • Stone 14Y
  • Stone 13Y
  • Stone 12Y
  • Stone 11Y
  • Stone 10Y
  • Stone 09Y
  • Stone 08Y
  • Stone 07Y
  • Stone 06Y
  • Stone 05Y
  • Stone 04Y
  • Stone 03Y
  • Stone 02Y
  • Stone 01Y

Pre-paint steel coils characteristics

Different patterns can be paint to suit for different architectural design;

☆ Good quality coating types can be chosen according to local environment requirement;

1) Polyester(PE)

2) Silicon modified polyester(SMP)

3) High durability polyester(HDP)

4) Polyvinylidene fluoride(PVDF)

☆ It can be processed directly;


PPGL steel coils specification

Product name

PPGL coils

Base sheet

Aluminum and zinc coated steel

Thickness range

0.20 - 1.00 mm

Width range

900 - 1250 mm

Coil weight

3 MT - 10 MT

Mass of coating

40 g/m² - 275 g/m²

Painting standard

Primers: Epoxy,  PU

Top Coating: Polyester (PE),Silicon Modified Polyester (SMP),High-durability Polyester coating(HDP)Poly Vinyl Di Flouride (PVDF)

Back Coating: Epoxy, Polyester, PU

Top Coating

15 μm - 30 μm

Back Coating

10 μm - 12 μm

Colors

Customized

Packing

Seaworthy Packaging


PPGL steel coils application

☆ As roofing system,

☆ As wall system,

☆ As flooring system,

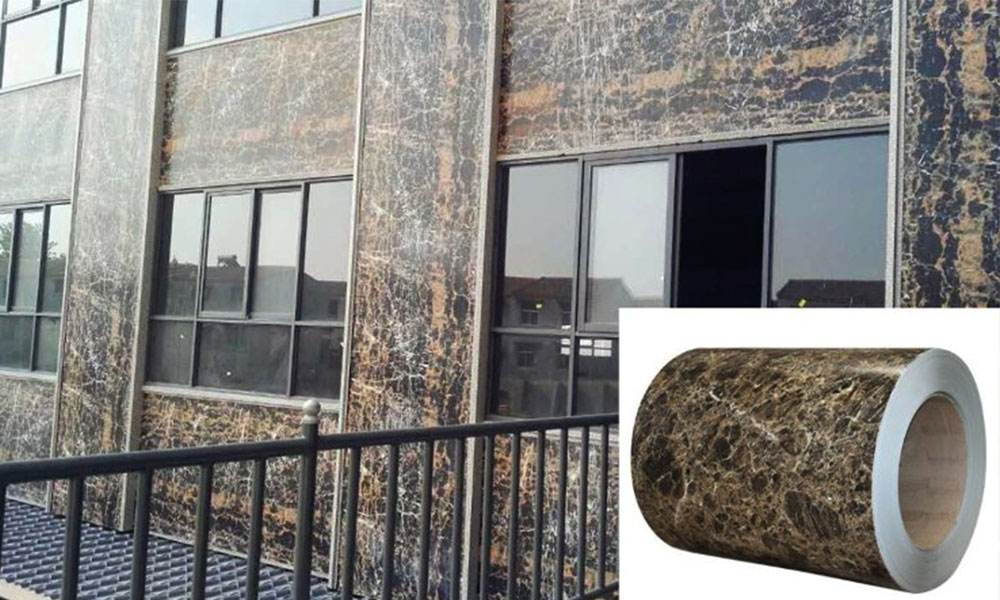

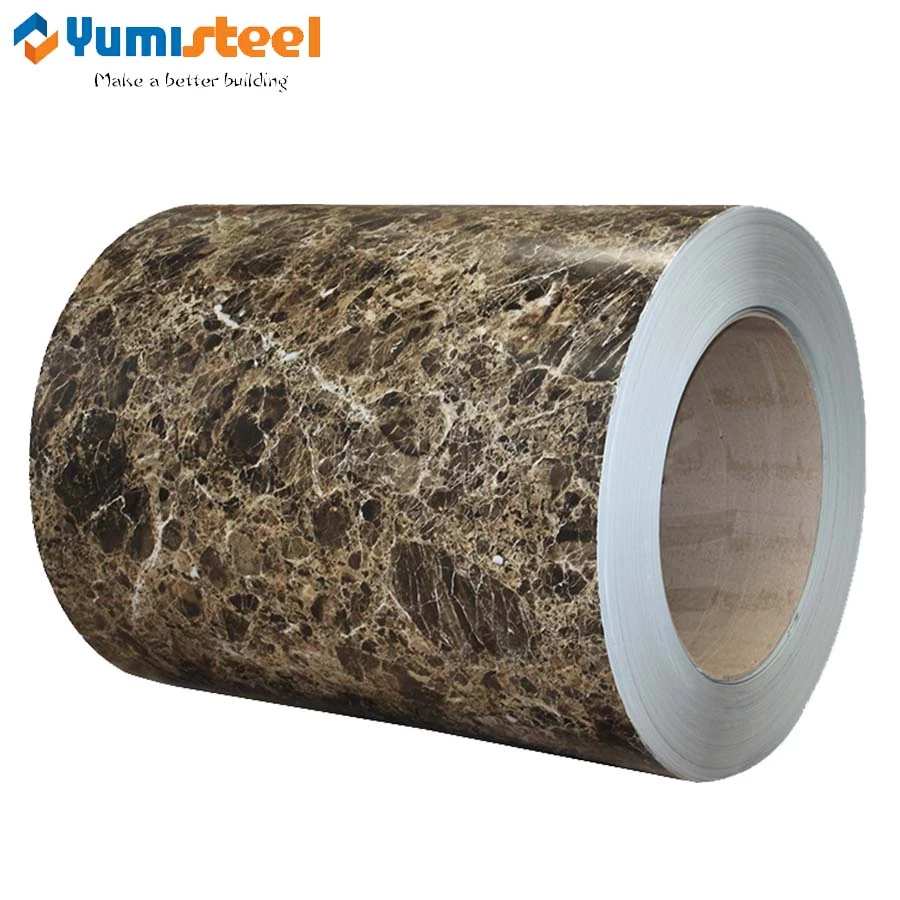

marble stone grain color steel coil

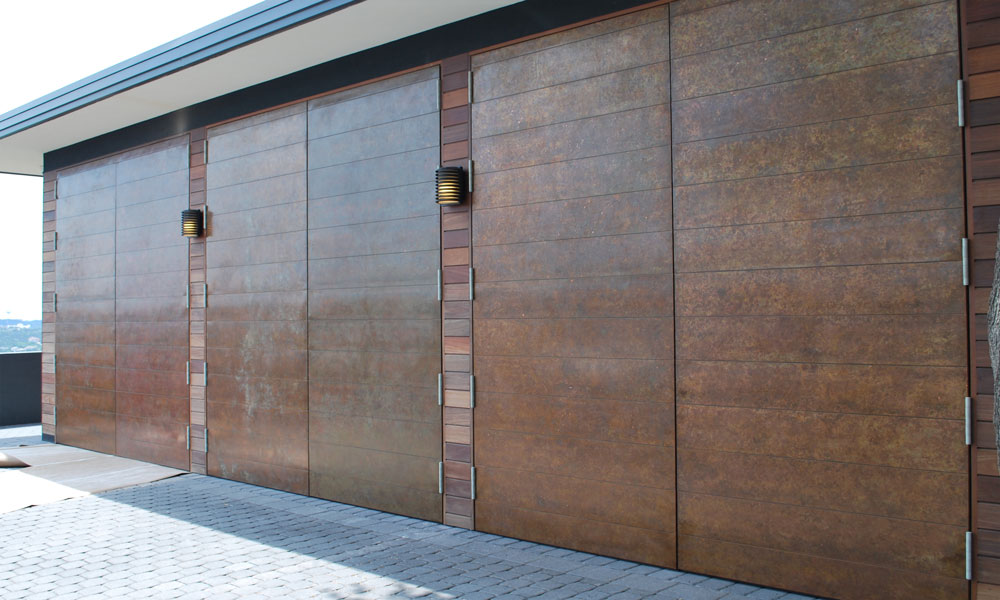

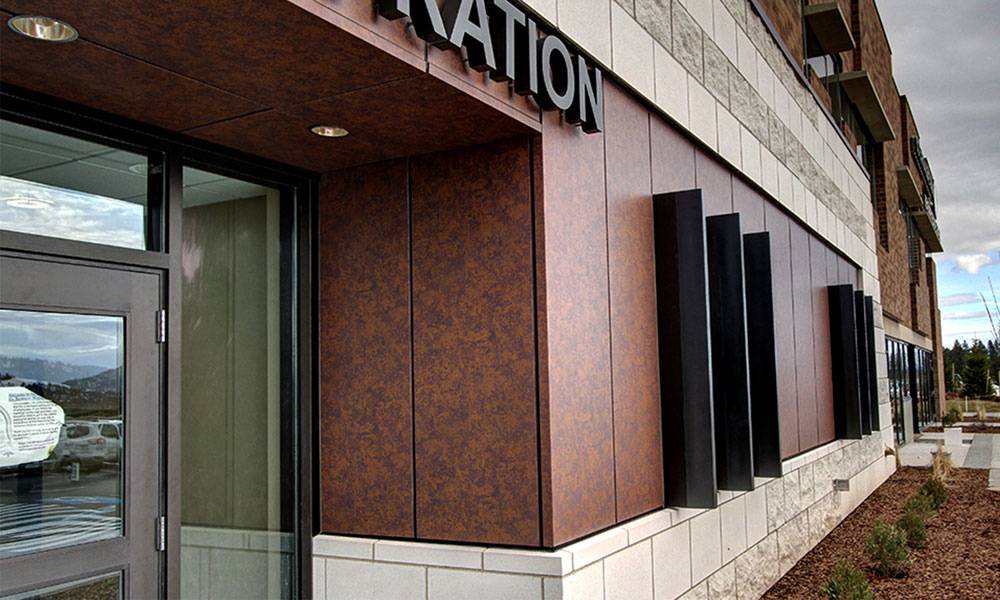

steel coils for wall panel

prepaint steel coils supplier

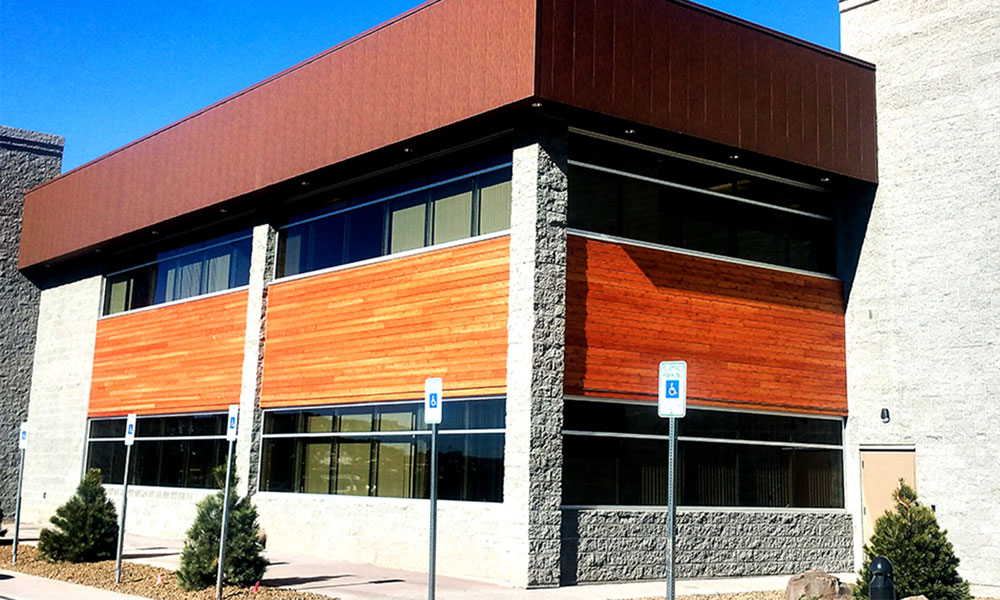

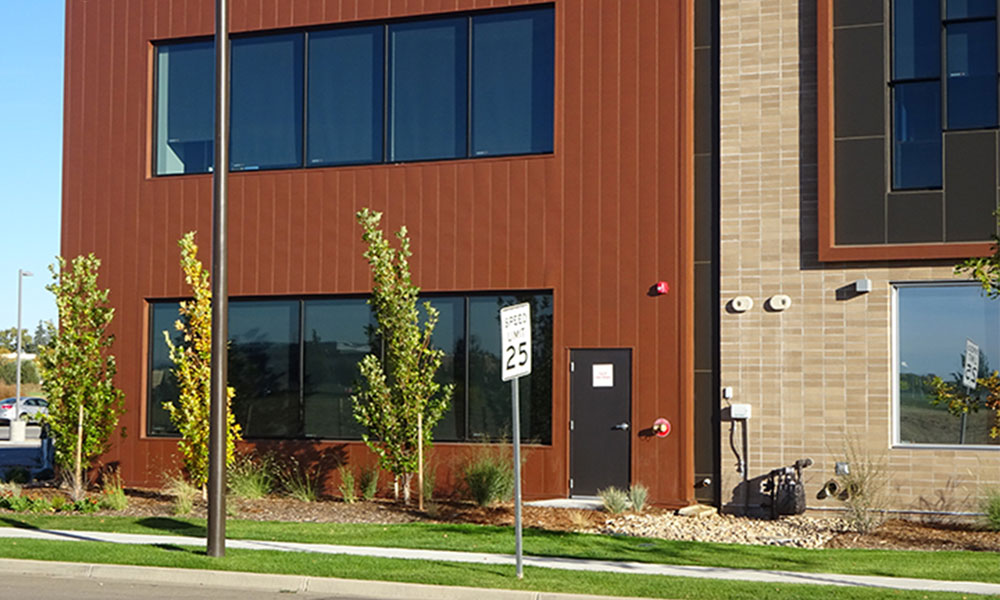

chinese steel coils for metal siding

paint pattern on steel coils


Packing & Delivery:

☆ Packing:

All steel coils from Yumisteel will be well packed as follows.

 One layer of Mildew paper and one layer of moisture-proof kraft paper to protect the steel coils.

 One 3.5cm thick kraft paper loops inside,and connected with mildew paper and of moisture-proof kraft paper to make sure the steel coils are well protected.

☆ Then again one layer of steel sheet on the surface and tighted with steel strips.

 When loading,we put mildewproof bags in the container.


☆ Delivery:

Delivery time for regular sizes: 15-20 days ;

Delivery time for special sizes: 25-30 day;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.
