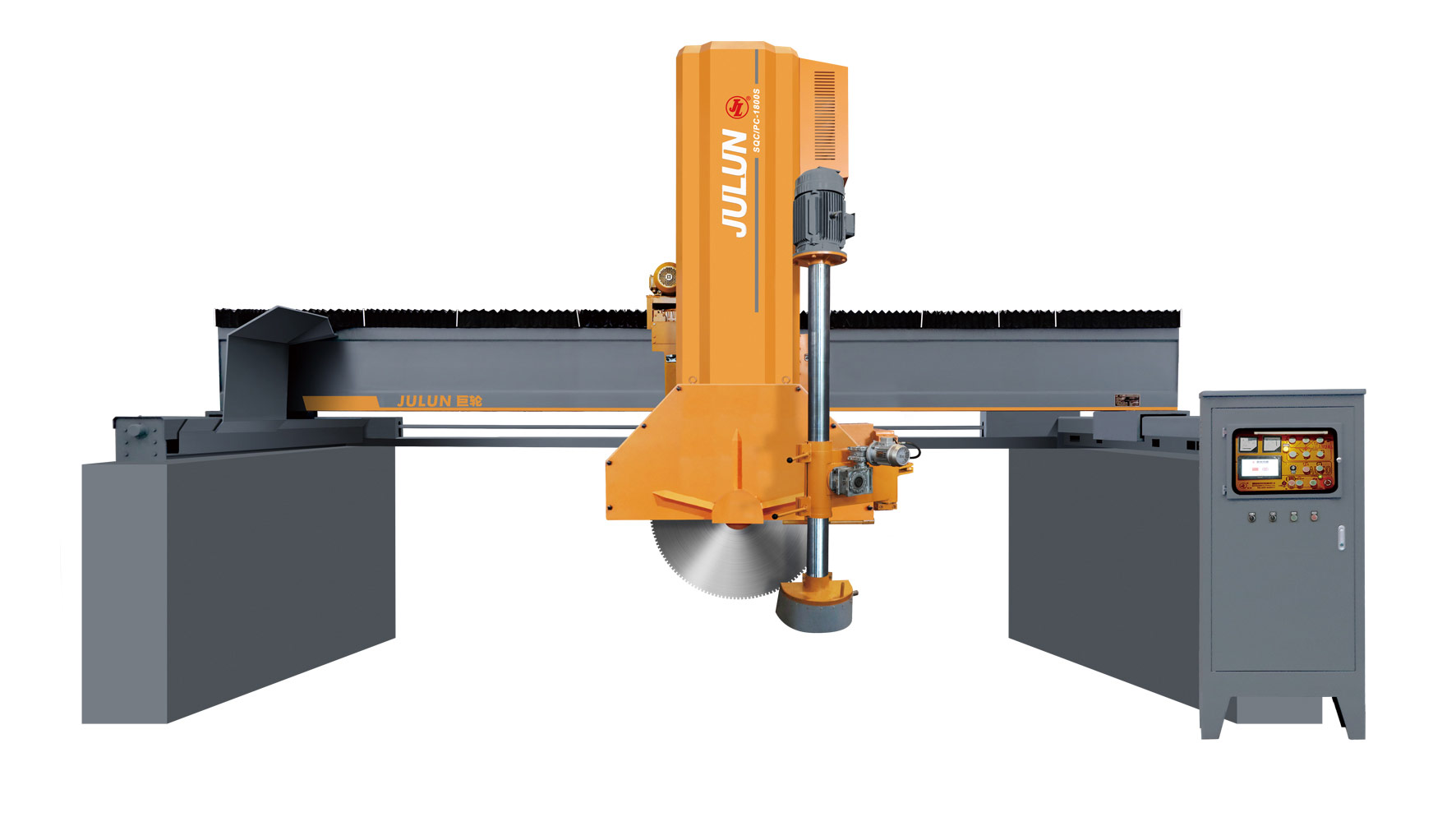

Stone Marble Cutting Machine
1.Horizontal stone cutting machine uses PLC system and Human-machine interface, combined with Ultra-high precision rotary encoder to slice, uses inverter to control left-right feeding, adjusts the speed according to the stone material.
2.It uses hydraulic lifting system, and the forward-backward slicing uses high-precision screw nut driving. The key part adopt imported good-quality spare parts. Combined with horizontal blade designing, cutting the sheet roots of plates directly, eliminating the trouble of unloading plate manually, improving efficiency.
3.Horizontal Blades uses hydraulic system, up-down rising uses guide system, which is more reasonable and stable. Thus the whole machine is featured with high cutting efficiency, high slicing precision, flatness of plate after cutting, high stability, easy-operating to suit granite and marble block with high value. Note:360° rotating worktable is optional.
Specification
|
Appellation
|
unit
|
SQC/PC-1600S/1800S/2000S
|
|
Max.blade diameter
|
mm
|
Φ1600/Φ1800/Φ2000
|
|
Max.processing length
|
mm
|
4000/3800/3600
|
|
Max.processing width
|
mm
|
2200
|
|
Max.lifting stroke
|
mm
|
1350
|
|
Diameter of horizontal cuting balde
|
mm
|
Φ400
|
|
Max.spindle lifting stroke
|
mm
|
750/850/950
|
|
Main generator power of horizontal cutting
|
kw
|
15
|
|
Water consumption
|
m³/h
|
10
|
|
Power of main motor(optional)
|
kw
|
75/90
|
|
Total power
|
kw
|
100/115
|
|
Dimension(L×W×H) (from base to the highest point)
|
mm
|
8000×4400×3700
|
|
Weight
|
kg
|
130000
|

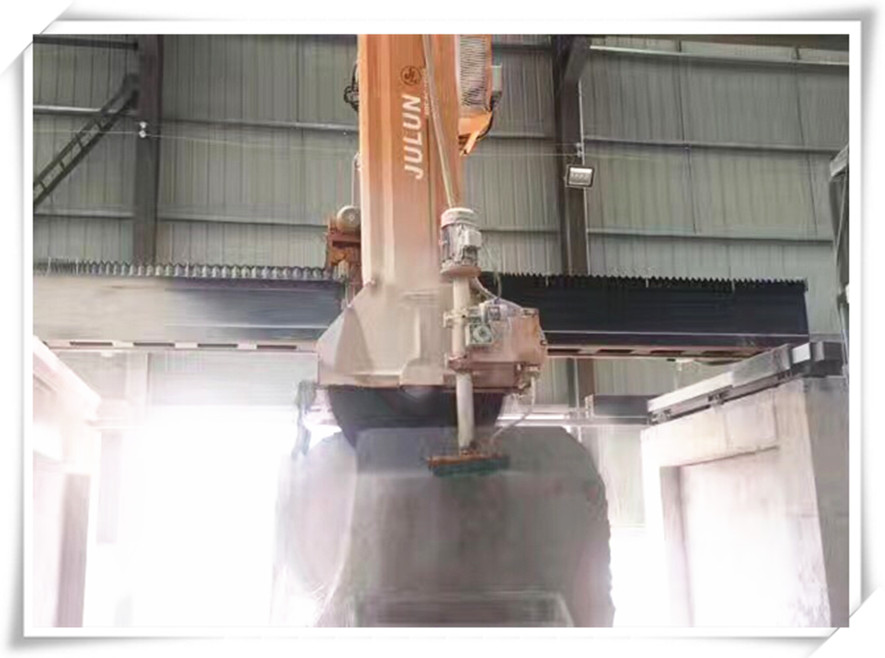

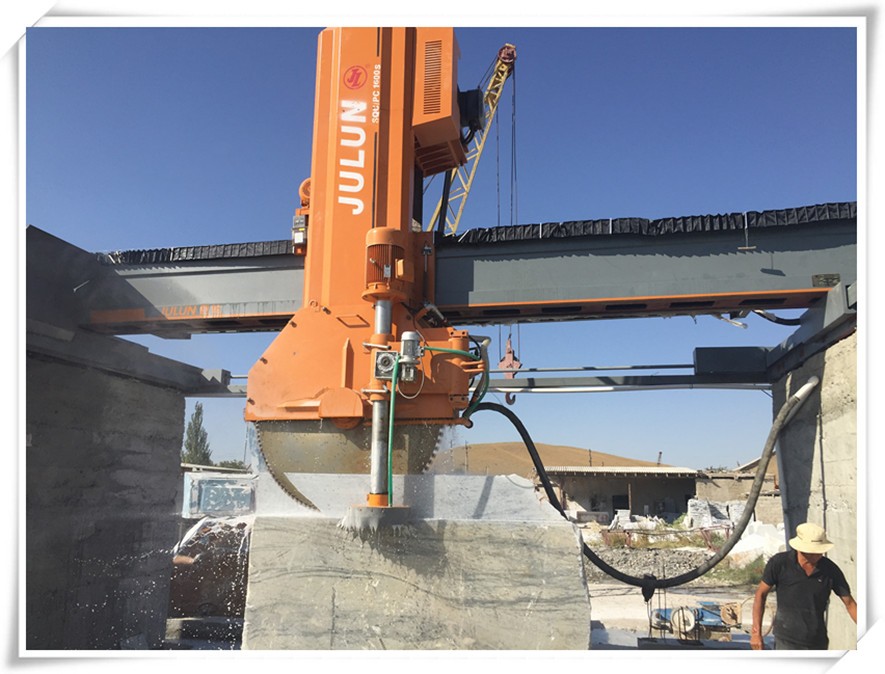

Photos
