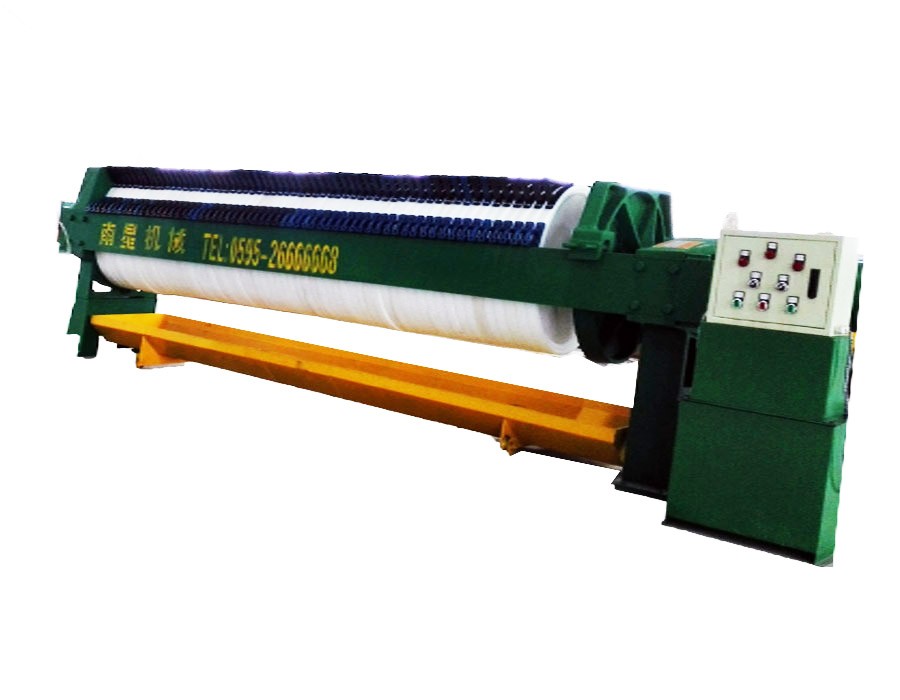

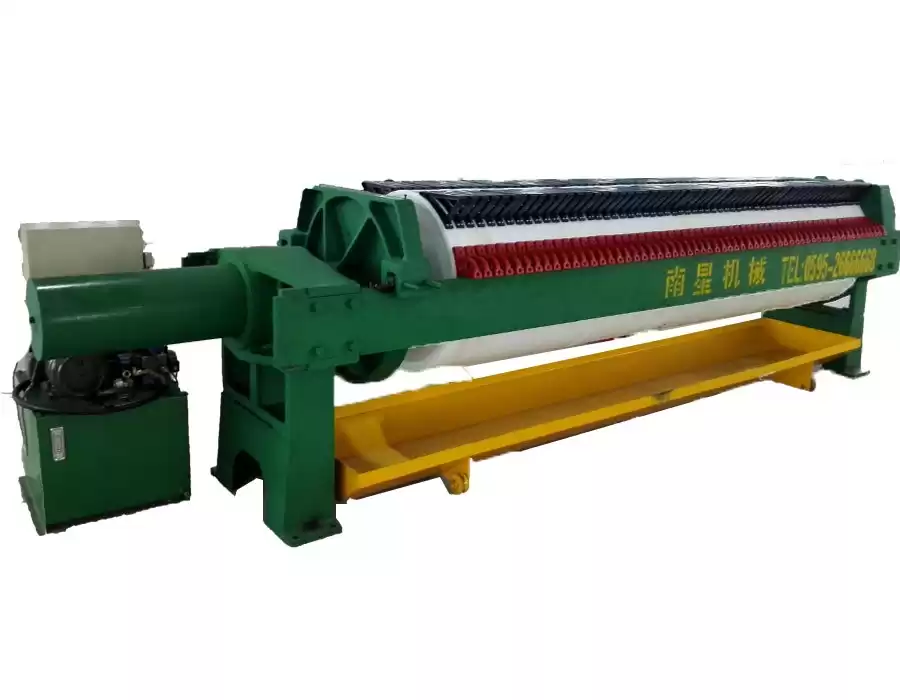

Stone Sewage Treatment Slurry Filtration Machine
Filter Press Characteristic：
1. The main parts of filter press is made of cast steel, Stable Structure and long usage life.
2. The filter plates are made of high intensity HDPE, the highest working pressure could be 2.5Mpa, long life span and acid and alkali resistance.
3. Filter plates has moutain and valley design, good for preventing slurry spout.
4. Adopting the contact meter to maintain the pressure automatically, saving the labor cost and improve the working efficiency.
How Filter Press Work

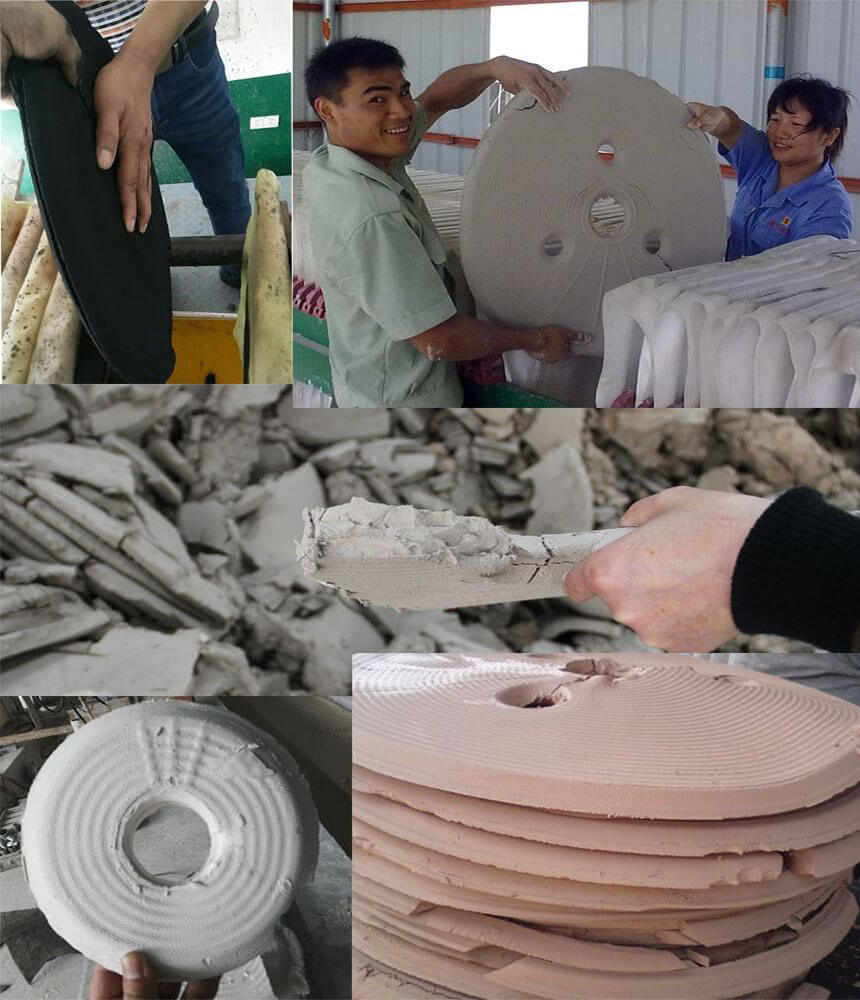

Ceramic plunger pump transports the slurry into the filter press from the feeding head, the chambers created by the plates are filled up with the slurry, the cloth (specifically developed for each material) and the high pressure dry the cakes, faster and better. The clean water is discharged into water collector, ready to be reused, and the cakes can now be disposed of easily.
Filter Press Application：
Widely applied in Mining, Waste water Treatment(Ceramic, marble, granite, glass and so on) , Kaolin, Clay, Sand Washing and other solid-liquid separation.
Filter Press Technical Parameters：
Model | Filter Area (m2) | Inner Size (mm) | Plate Thickness (mm) | Motor Power (kw) | Plate Number (Pcs) | Filter Capacity (L) | Working Pressure In Chamber (Mpa) | External Size (mm) L*W*H | Weight (kg) |
WYB-650 | 27 | Φ650 | 50 | 3 | 40 | 367 | ≤1.5 | 3950*1150*1170 4800*1150*1170 5800*1150*1170 | 2500 |
40 | 60 | 546 | 2700 |
54 | 80 | 725 | 3000 |
Plates quantity could be added or reduced according to customers' requirements. |
1.Q: Can you provide us the detailed drawing?
Yes, we can provide you the drawing after have made the prepayment.
2.Q: Are you a manufacturer or a trader?
We're a professional and experienced manufacturer located in Shanghai.
3.Q: Can you accept OEM?
Yes, we can produce the machinery totally according to your design standard.
4Q: How about the delivery time?
Normally 10-30 working days after prepayment, and we promise we will make the delivery as soon as we can.
