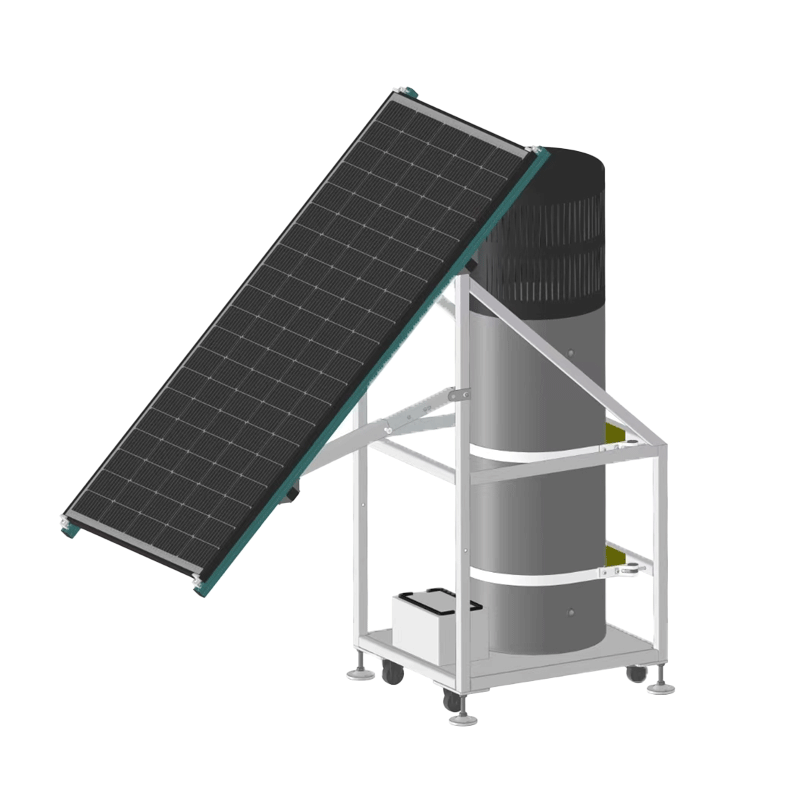

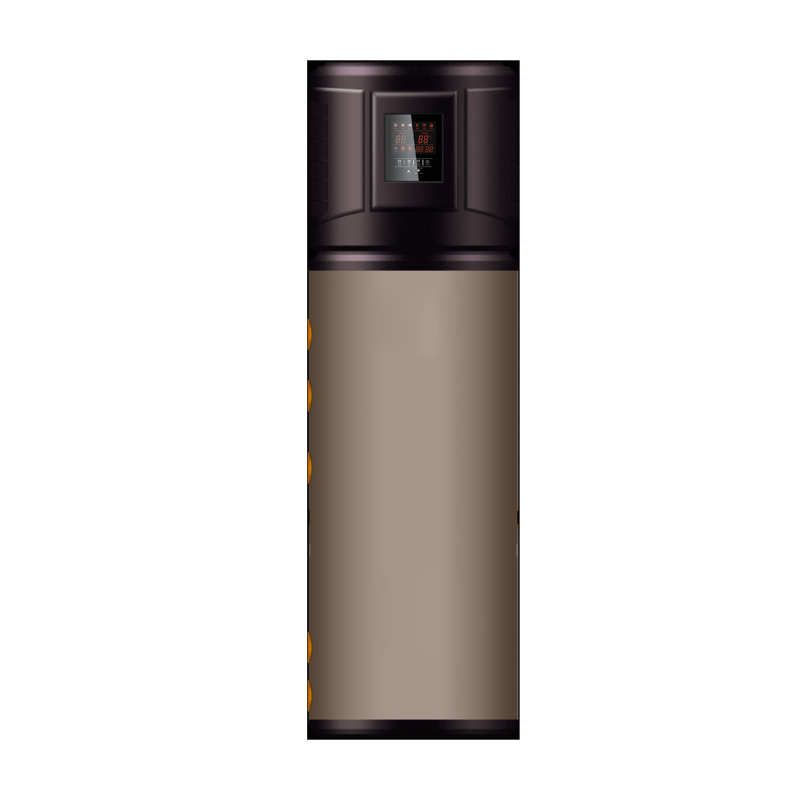

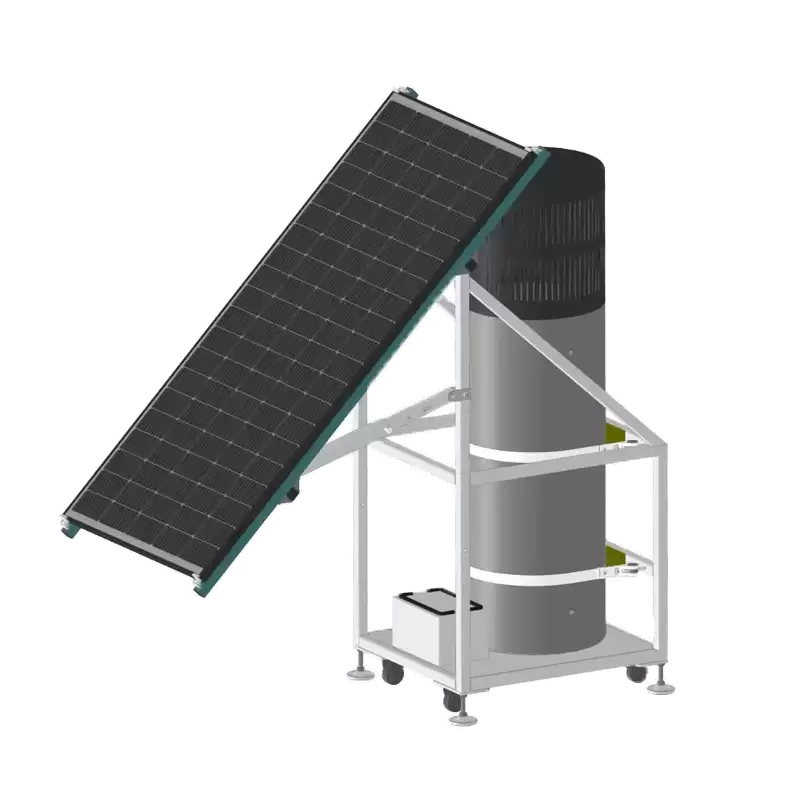

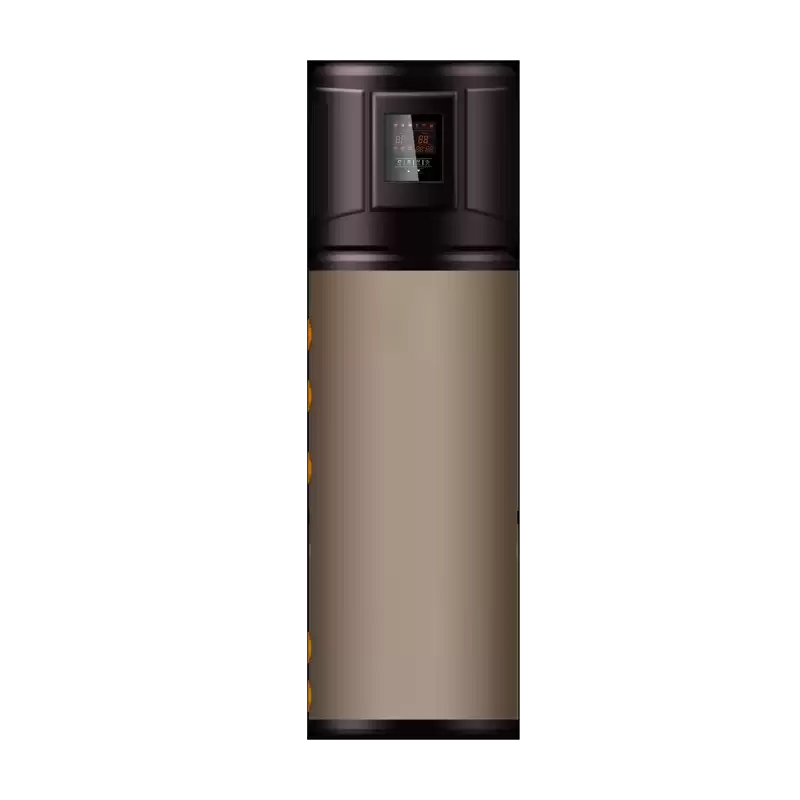

Storcube Household PVT Heat Pump System

The Household PVT Heat Pump System combines photovoltaic and thermal (PV/T) technologies in a single module, maximizing energy efficiency for residential use. Designed for easy installation on roofs and walls, it generates electricity from solar energy while using waste heat for household heating, enhancing overall energy utilization. This system provides a sustainable, high-efficiency solution that reduces energy costs and supports eco-friendly living by integrating power generation and heating in one compact, versatile unit. Ideal for homes aiming to optimize solar energy use and reduce reliance on traditional power sources.

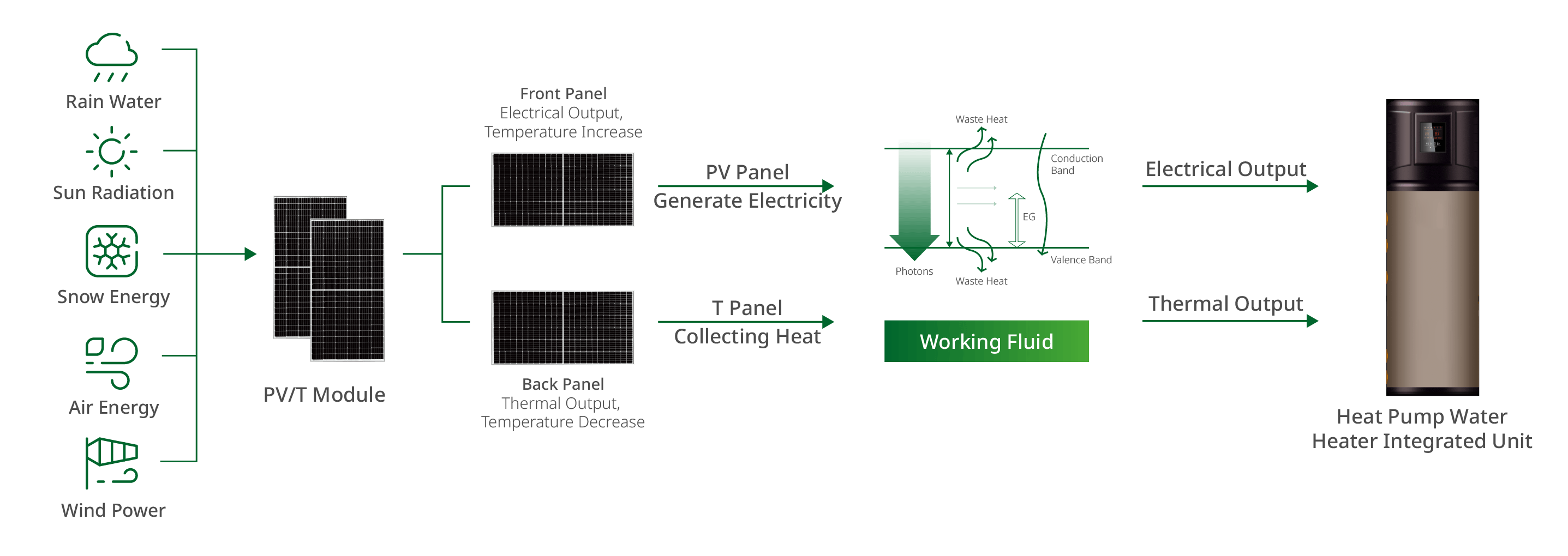

  • System Working Process


















  • System Features
  • #

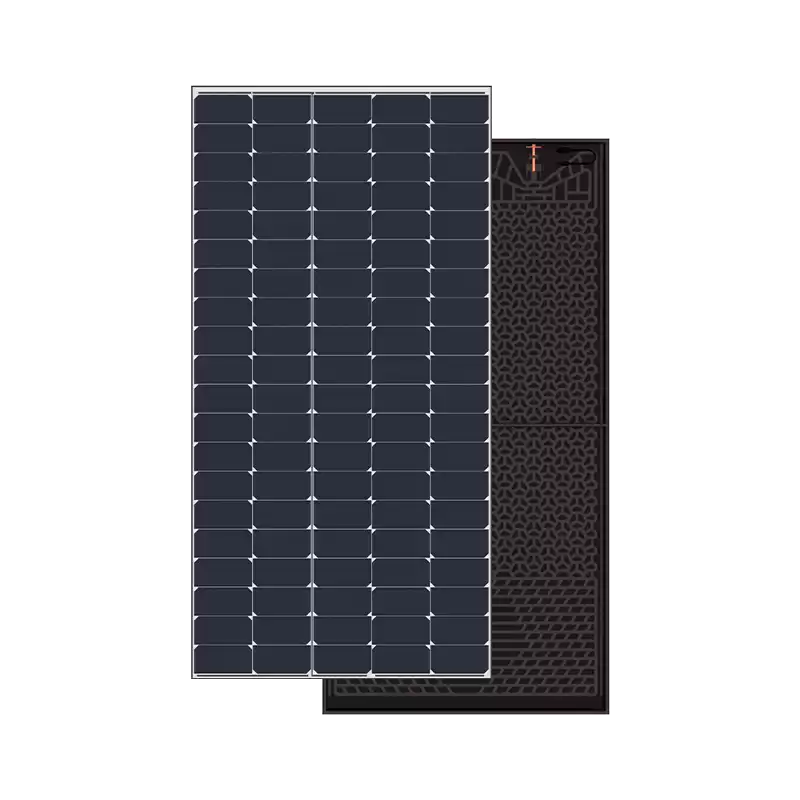

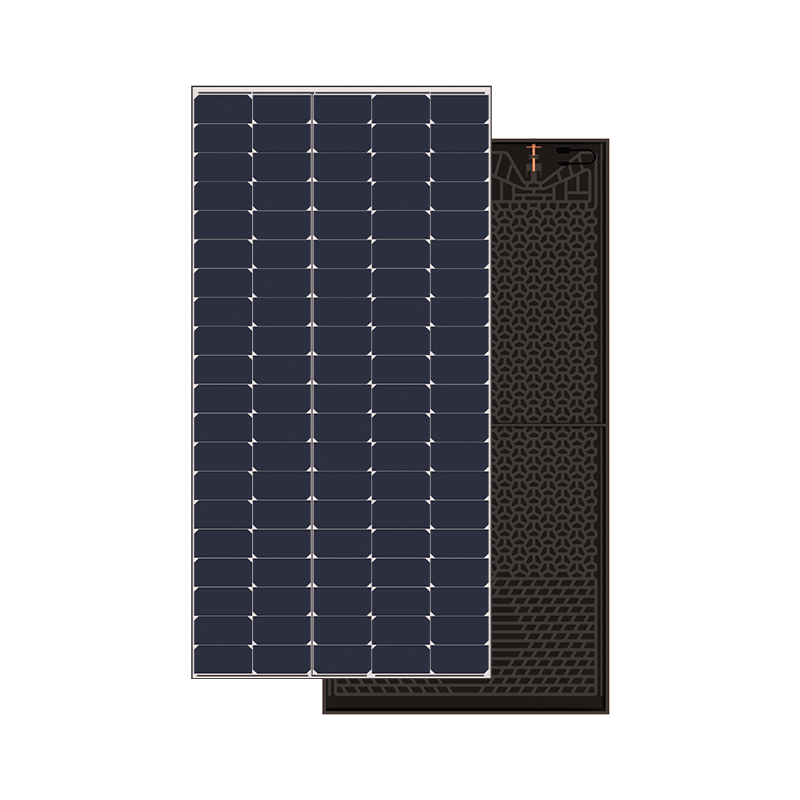

    Integrated PV/T Module
    Combines photovoltaic and thermal panels to generate electricity and capture waste heat, achieving solar utilization efficiency above 80%.
  • #
    Dual-Sided Absorption
    Built with lightweight alloy, this module can be installed on walls, rooftops, or balconies, using both sides for heat absorption to enhance combined electrical and thermal performance.
  • #
    Space-Efficient Design
    Optimizes limited space by integrating power generation and heating, reducing rooftop resource waste.
  • #
    Enhanced Power Output
    Cools PV modules via heat pump, boosting power generation efficiency by 10-18%.
  • #
    High Energy Efficiency
    Uses PVT modules as external evaporators, improving dual-source heat pump efficiency by 20-50% over conventional air-source heat pumps.













  • PVT Panel Specifications



Model Total Power Generation Power Solar Thermal Power
SPVT-M10/50 1500W 370W 1130W
SPVT-M12/36 1400W 350W 1050W













  • System Specifications (SPKRS002/01-100 I)



PVT Capacity 350/370/550W Anti-Touch Protection Type Class I
Number of PVT Blocks 1/2 Maximum Working Pressure of Heat Exchanger 2.8MPa
Power Supply 220V/50Hz Discharge/Suction Maximum Working Pressure 2.8MPa/0.7MPa
Rated Heating Capacity 960~3500W Maximum Allowable High/Low Pressure 2.8MPa/0.7MPa
Rated Heating Power 350~500W Inlet/Outlet Pipe Diameter DN15
Performance Coefficient COP 7 Connection Tube Specifications 9.52*6.35mm
Maximum Water Production Rate 70L/h Dimensions 510*1820mm
Maximum Input Power 2500W Net Weight/Gross Weight 70kg/84kg
Maximum Input Current 11.4A Noise Level <38dB(A)
Maximum Outlet Water Temperature 75°C Applicable Ambient Temperature -7°C~45°C
Waterproof Rating IPX4

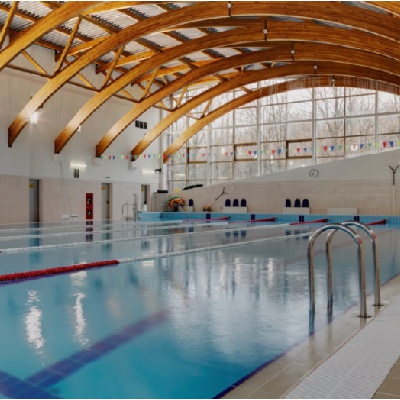

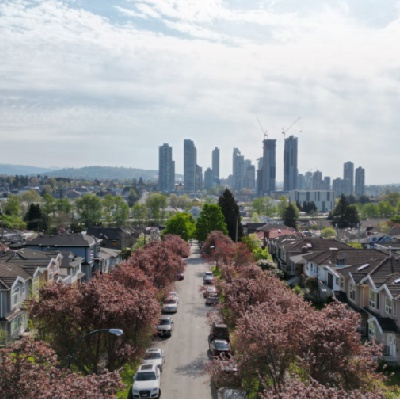

  • Application Scenarios
