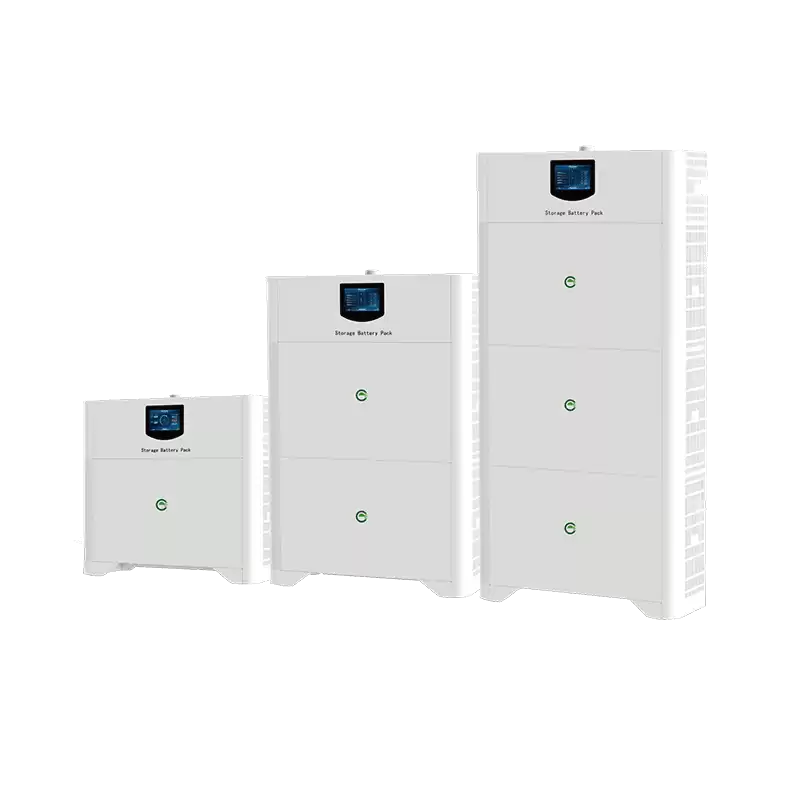

Storcube Residential Large-Capacity Energy Storage Series

The storage battery packs provide efficient energy management with features like peak shaving, self-consumption, and emergency power supply. Equipped with reliable lithium iron phosphate (LFP) batteries, they ensure long-lasting, safe, and efficient energy storage. Ideal for residential use, these battery packs optimize energy consumption, reduce electricity costs, and provide backup power during outages, making them an essential solution for eco-conscious homeowners seeking reliable and sustainable energy storage.









  • Product Features

















  • Specifications



Performance

Item STC 01/5 S0 STC 01/10 S0 STC 01/15 S0
Battery Module Energy 5kWh 5kWh 5kWh
Number of Battery Modules 1 2 3
Rated Power 5kWh 10Kwh 15kWh
Rated Capacity 100Ah 200Ah 300Ah
Rated Voltage 51.2V 51.2V 51.2V
Voltage Range 40-59.2V 40-59.2V 40-59.2V



Communication

Item STC 01/5 S0 STC 01/10 S0 STC 01/15 S0
Display SOC State Indication, LCD Indicator Screen
Communication RS485/CAN



Basic Specifications

Battery Type Lithium Iron Phosphate Operating Temperature 0°C - 55°C
Maximum Charging Current 100A Humidity <95%
Maximum Discharging Current 105A Altitude 4000m (for use above 2000m)
Ingress Protection Rating IP65 Installation Method Floor/Mounting
Storage Temperature -20°C - 55°C Dimensions(W*H*D)

650*600*200mm

(STC 01/5 S0)

650*950*200mm

(STC 01/10 S0)

650*1300*200mm

(STC 01/15 S0)

Installation Environment Indoor/Outdoor Weight 67kg 119kg 171kg
Noise <25dB

















  • Application Scenarios
