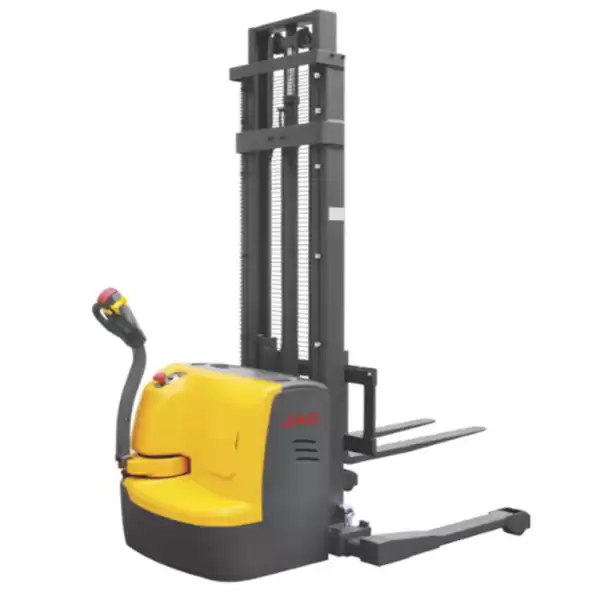

Walkie type electric stacker with straddle legs provides a cost effective solution for applications involving medium lifting storage and short distance double-deck pallets transportation.
1. Advantages:
STRUCTURAL AND SAFETY:
• Advanced AC control system Intelligentized regenerative brake system.
• Multi-function display with BDI and hour meter.
• Emergency reversing device.
• Auto deceleration system utilizes regenerative braking.
• Built-in pressure relief valve protects the trucks from overloads.
• Emergency power disconnect.
• Stepless speed control.
• With lifting limit switch to shut off pump motor at the max. lifting height.
• Small turning radius standing drive motor system, water-proof and dust-proof motor structure.
SERVICEABILITY:
• CANbus technology reduces wiring complexity .
• Side-way battery with roll-out system , convenient for replacement.
2. Specification
|
Model
|
|
CTDW10
|
CTDW12
|
CTDW15
|
|
Load capacity/rated load
|
Q(kg)
|
1000
|
1200
|
1500
|
|
Max. Lift height
|
h3(mm)
|
1600/2500/3000/3300
|
1600/2500/3000/3300
|
2500/3000/3300/3500/4500/5000/5600
|
|
Load centre distance
|
c(mm)
|
600
|
600
|
600
|
|
Load distance,centre of drive axle to fork
|
x(mm)
|
795
|
795
|
677
|
|
Fork height, lowered
|
h13(mm)
|
70
|
795
|
70
|
|
Tyre size, front
|
mm
|
φ250×70
|
φ250×70
|
φ250×70
|
|
Tyre size, rear
|
mm
|
φ98×82
|
φ98×82
|
φ80×84
|
|
Additional wheels(dimensions)
|
mm
|
φ150×60
|
φ150×60
|
φ150×60
|
|
Wheels,number front rear(x=driven wheels)
|
|
1×1/4
|
1×1/4
|
1×1/4
|
|
Height,mast lowered
|
h1(mm)
|
2145/1895/2145/2295
|
2145/1895/2145/2295
|
1805/2055/2205/2305/2120/2280/2480
|
|
Free lift(option 2500~3500mm)
|
h2(mm)
|
~
|
~
|
1300/1550/1700/1800/1570/1740/1940
|
|
Height,mast extended
|
h4(mm)
|
2145/3145/3645/3995
|
2145/3145/3645/3995
|
3025/3525/3825/4025/5080/5560/6160
|
|
Height of tiller in drive position min./max.
|
h14(mm)
|
1150/1450
|
1150/1450
|
670/1300
|
|
Overall length
|
l1(mm)
|
1975
|
1975
|
1980
|
|
Length to face of forks
|
l2(mm)
|
890
|
890
|
915
|
|
Overall width
|
b1(mm)
|
1182-1582
|
1182-1582
|
1170-1560
|
|
Fork dimensions
|
s/e/l(mm)
|
35/100/1070(1150)
|
35/100/1070(1150)
|
35/100/1070(1150)
|
|
Width overall forks
|
b5(mm)
|
200-800
|
200-800
|
200-800
|
|
Aisle width for pallets 800×1200 lengthways
|
Ast(mm)
|
2490
|
2490
|
2465
|
|
Turning radius
|
Wa(mm)
|
1625
|
1625
|
1610
|
|
Travel speed,laden/unladen
|
Km/h
|
6.5/6.7
|
6.5/6.7
|
5.8/6
|
|
Lift speed,laden/unladen
|
m/s
|
0.06/0.13
|
0.06/0.13
|
0.11/0.14
|
|
Lowering speed,laden/unladen
|
m/s
|
0.13/0.10
|
0.13/0.10
|
0.12/0.12
|
|
Battery voltage,nominal capacity K5
|
V/Ah
|
24/120
|
24/120
|
24/240
|
|
Battery weight
|
kg
|
90
|
90
|
220
|
|
Battery dimensions l/w/h
|
mm
|
753x178x240
|
753x178x240
|
675x254x500
|
|
Service weight (with battery)
|
kg
|
650/700/730/750
|
660/710/740/760
|
1040/1160/1170/1200/1375/1410/1450
|
