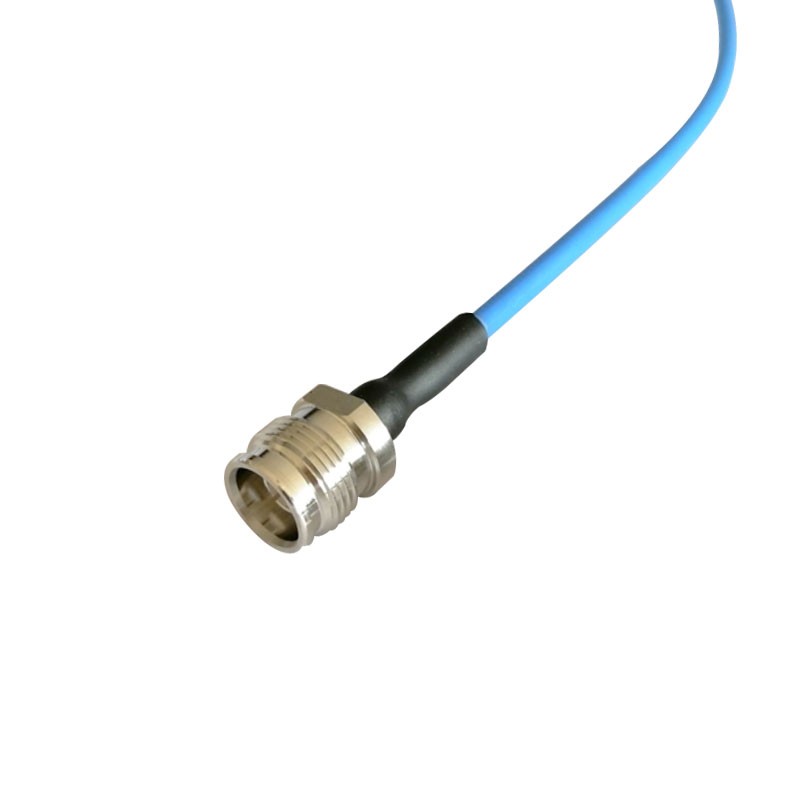

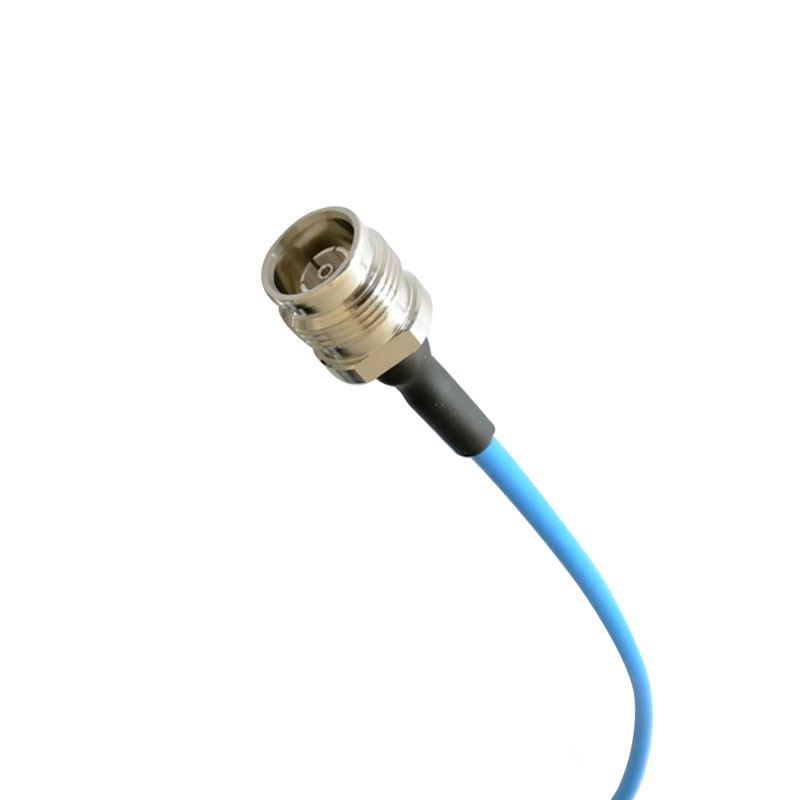

Straight 2.2-5 Female to 2.2-5 Female Connector Cable Assembly with TFT402 Cable For 5G
The 2.2-5 cable assembly can use flexible or corrugated coaxial cable such as 1/4" Superflexible, TFT402; the body of 2.2-5 to 2.2-5 cable assembly is right angle or straight connectors which is female to female, male to female or male to male gender. ROHO's 2.2-5 to 2.2-5 cable assembly is a low PIM cable. This 2.2-5 female to 2.2-5 female cable assembly uses a 50ohm straight 2.2-5 for connector 1 and a 50ohm straight 2.2-5 for connector 2, Cable is 50ohm TFT402.
Specifications
ELECTRICAL DATA | |
Connector 1 Series | 2.2-5 |
Connector 1 Style | Str Female |
Cable Type | TFT402 |
Connector 2 Series | 2.2-5 |
Connector 2 Style | Str Female |
Contact Termination | Solder |
Shield Termination | Crimp |
Impedance (Ohms) | 50 |
Low PIM | Yes |
Max Frequency | 6GHz |
Working Temperature | -65°C to +165°C |
ELECTRICAL DATA | |
Body Material | Brass |
Body Finish | Nickel/Ternary alloy |
Contact Material | Phosphor Bronze/Beryllium Copper |
Contact Finish | Gold/Silver |
Insulator Material | PTFE |
Applications
- Multi-Carrier Communication Systems
- Low PIM Applications
- Distributed Antennas Systems (DAS)
- Outdoor Installations
- Small Cell
